Cardboard/EVA Foam/fabric/jigsaw puzzle paper die cutting machine

Product Overview

Description

Product Features:
1,Shell is welded with carbon dioxide Q235 material, guide positioning is made of 45 round steel, grinding. The deformation phenomenon is avoided.

2,The main engine structure is driven by four-column double-cylinder double-balance guide, and the cutting error of each cutting position is very accurate.

3,Pressure is stable, there will be no continuous cutting and edge phenomenon, because the machine pressure plate cutter balance, can extend the life of the cutting plate.

4,The lubrication system of all connecting parts of the machine is automatically lubricated by the automatic lubrication system, thus reducing the wear of the moving parts of the machine and prolonging the service life of the machine.

5,When the upper pressure plate is quickly pressed down to cut the cutting die, it will automatically cut slowly, so that the size error between the upper and lower cut objects can be reduced.

6,The machine is more structured Comprehensive consideration, so that users do not have the worry of machine oil leakage.

7,Tool mold setting is simple and easy to learn, motor power is small, energy consumption is low, machine surface is non-fading and temperature-resistant electrostatic spraying.

8,Equipped with hydraulic oil cooling device to control the long working time to reduce the temperature of hydraulic oil, to ensure the stability of the machine pressure.

9,The machine operation window is equipped with safety protection system to ensure the safety of operators.(Based on customer needs)

Product application:
Shoe Helper, shoe head, upper, football, volleyball, tennis, sandpaper, medicine, plastic, foam, floor, felt, car interior, PP,PE,EVA,EPE,EPP,EPS, sponge, rubber, bubble film, double-sided glue, advertising paste, magnetic paste, insulation cotton, pearl cotton, computer accessories, paper, mat, Xuan paper, fan, seal, protective clothing, film, jigsaw puzzle, chocolate, filter material, sound-absorbing cotton, corrugated board, clean cloth, non-woven cloth, leather, seat cover, foot pad, umbrella, mouse pad, carton, cup, tablecloth, simulation flower, raincoat, hat, ear cover, mask, glove, insole, coaster  Loofah cloth, blanket, cork, plaster, nuts, camouflage net, soundproof cotton, clothing, etc.
Product data:

Model No.	Cutting force	Stroke Range	Area of Work Table	Main Motor Power	Dimension
XCLP3-300	30T	50-190mm	1600*500mm	2.2KW	2250*1000*1400
XCLP3-350	35T	50-190mm	1600*610mm	2.2KW	2250*1000*1400
XCLP3-400	40T	50-190mm	1600*700mm	3KW	2230*1100*1400
XCLP3-500	50T	50-190mm	1600*800mm	4KW	2250*1200*1450
XCLP3-600	60T	50-159mm	1600*900mm	5.5KW	2350*1300*1500
XCLP3-800	80T	50-190mm	1800*1500mm	7.5KW	2600*1900*1500
XCLP3-1000	100T	50-190mm	2000*1400mm	7.5KW	2800*1800*1500
XCLP3-1500	150T	50-190mm	2100*1100mm	11KW	2950*1500*1550

 If the above table does not have the size of the cutting machine you need, we can remake it for you.

REMARK: MY FACTORY CAN MAKE THE MACHINE ACCORDING YOUR ORDER, FOR EXAMPLE, THE CUTTING FORCE, CUTTING AREA, FEEDING DEVICE, SPECIAL STROKE ETC

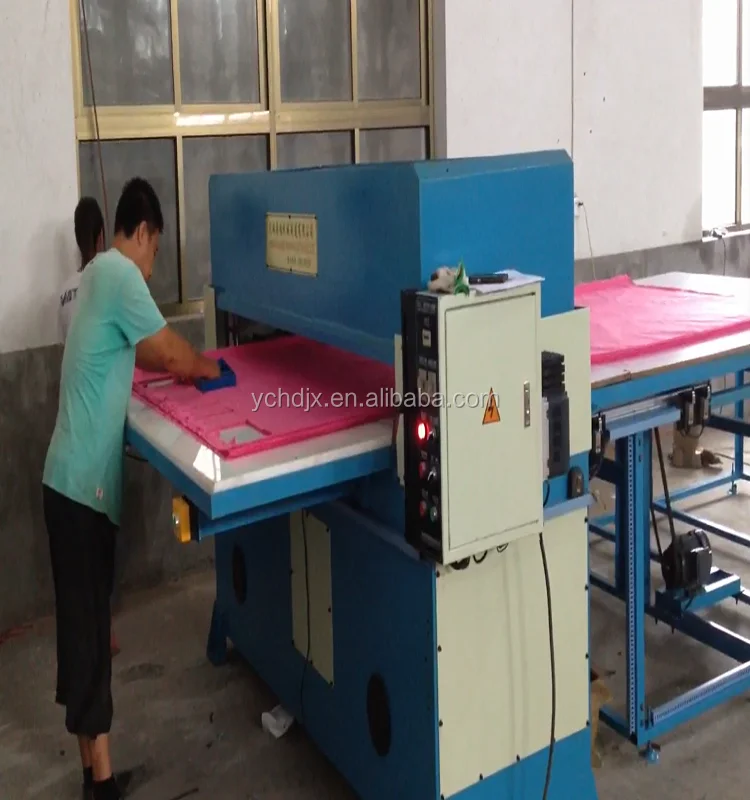

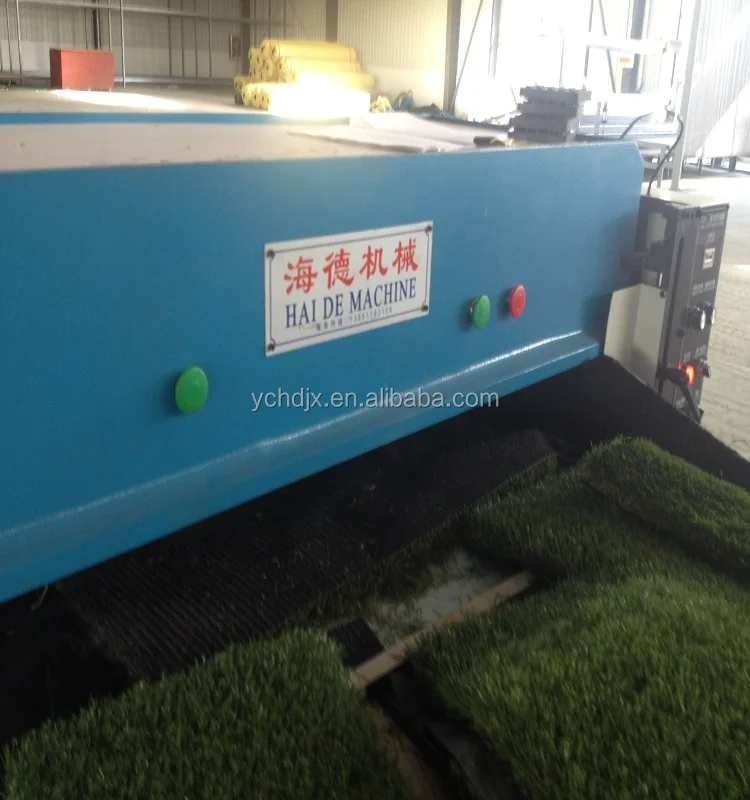

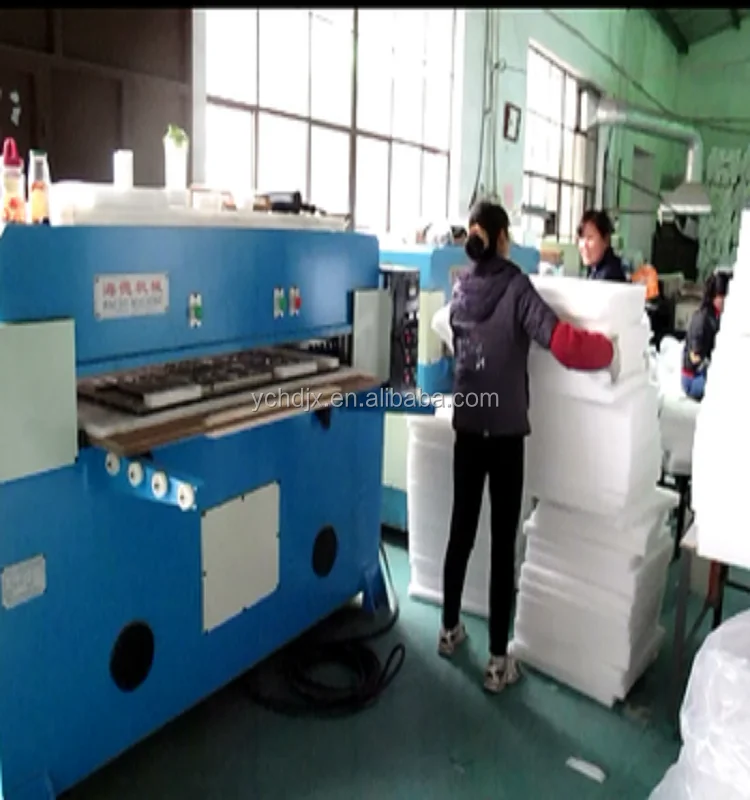

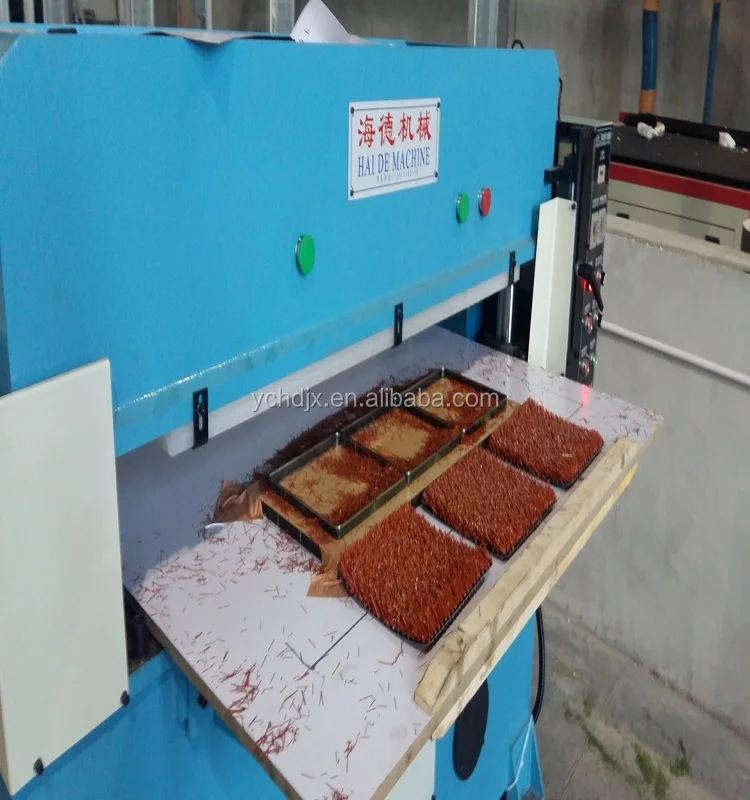

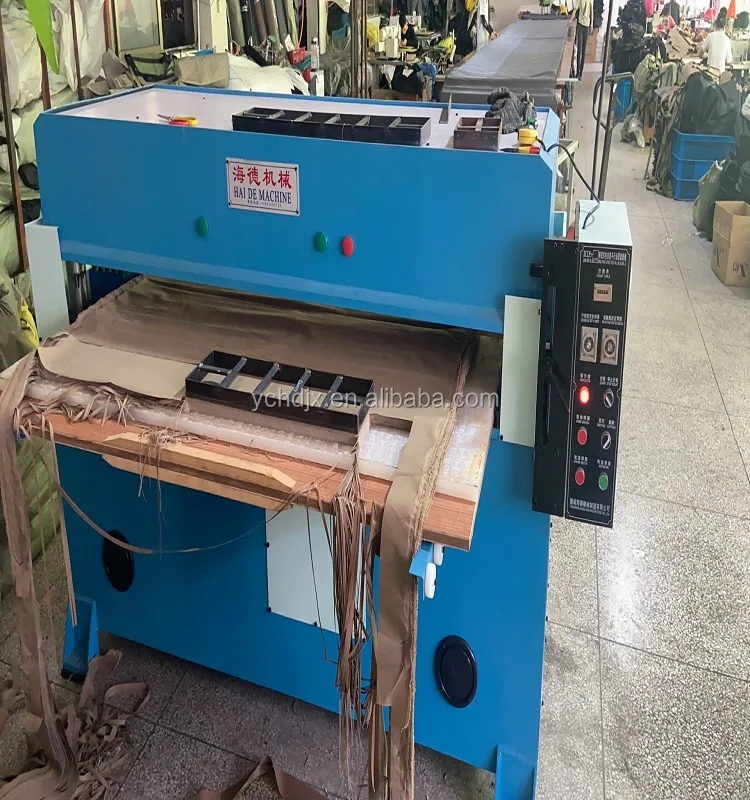

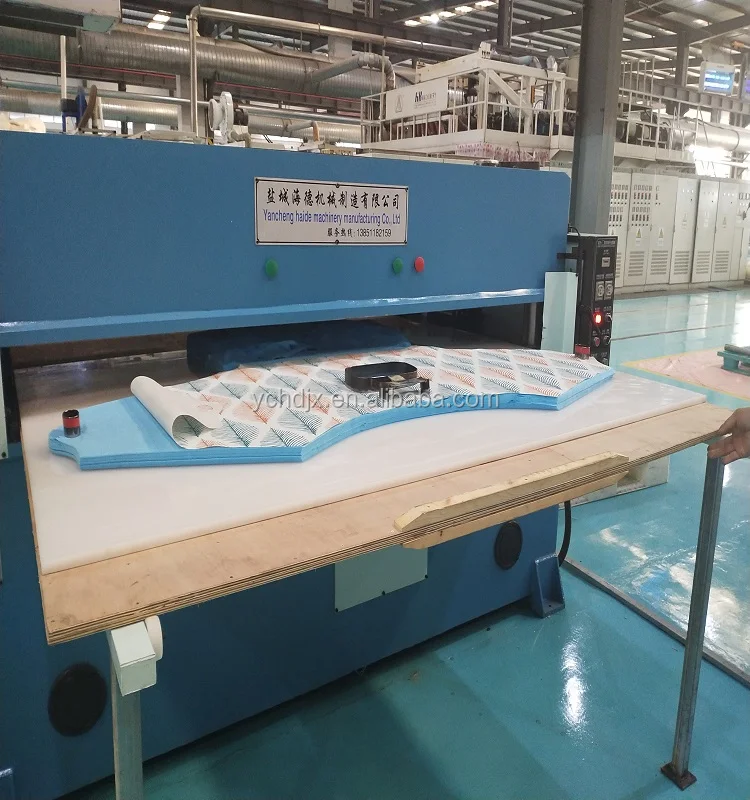

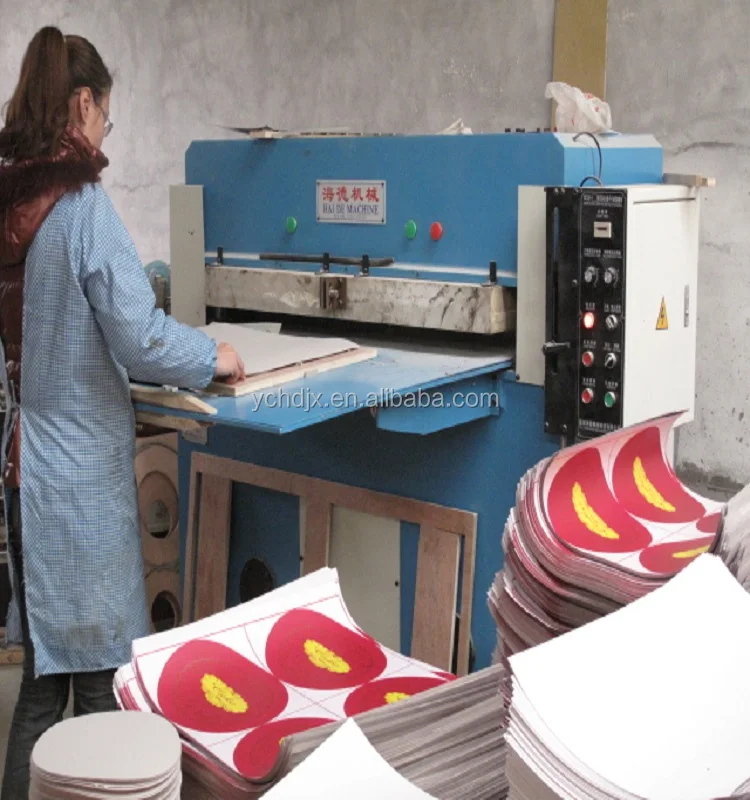

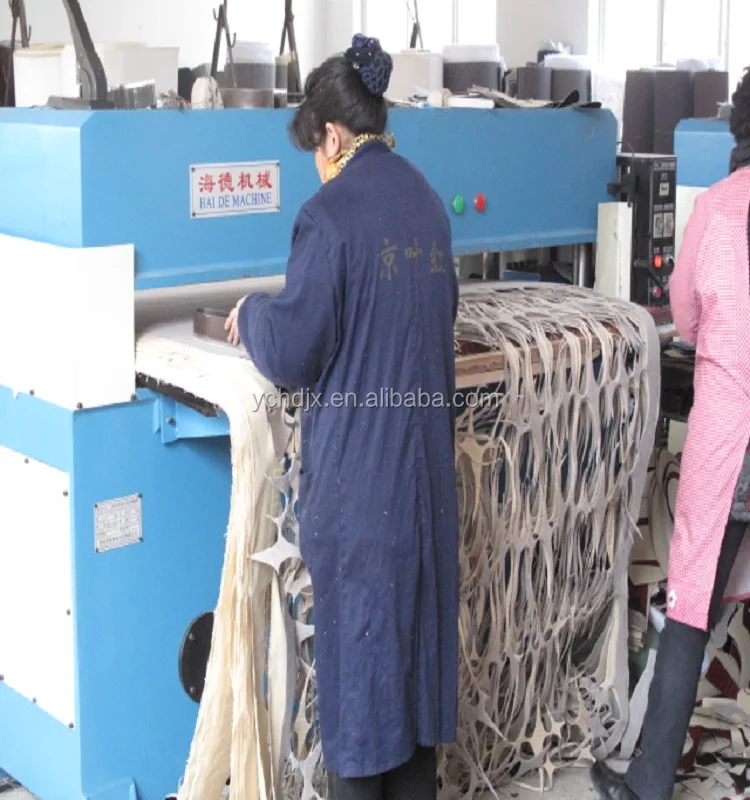

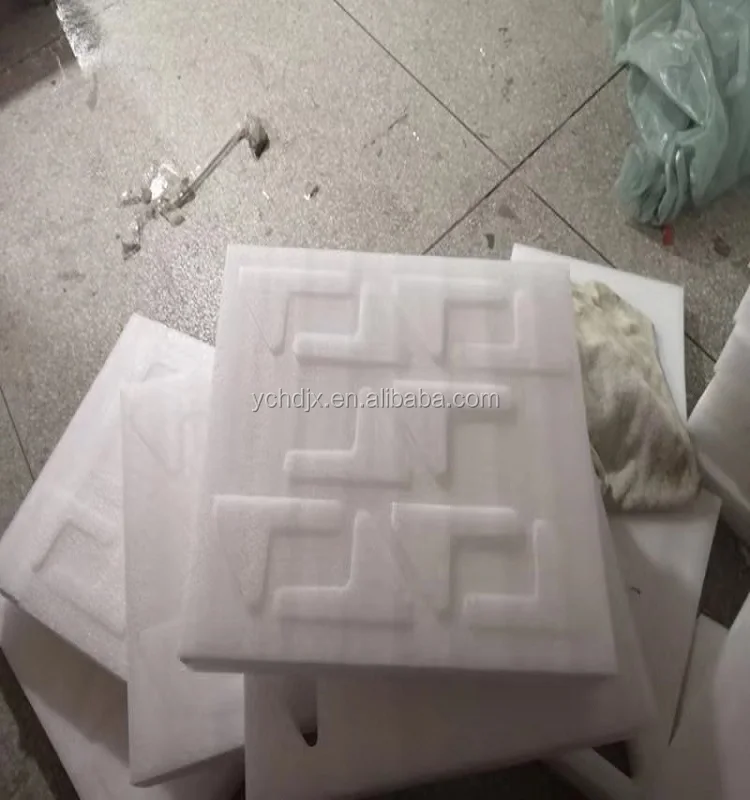

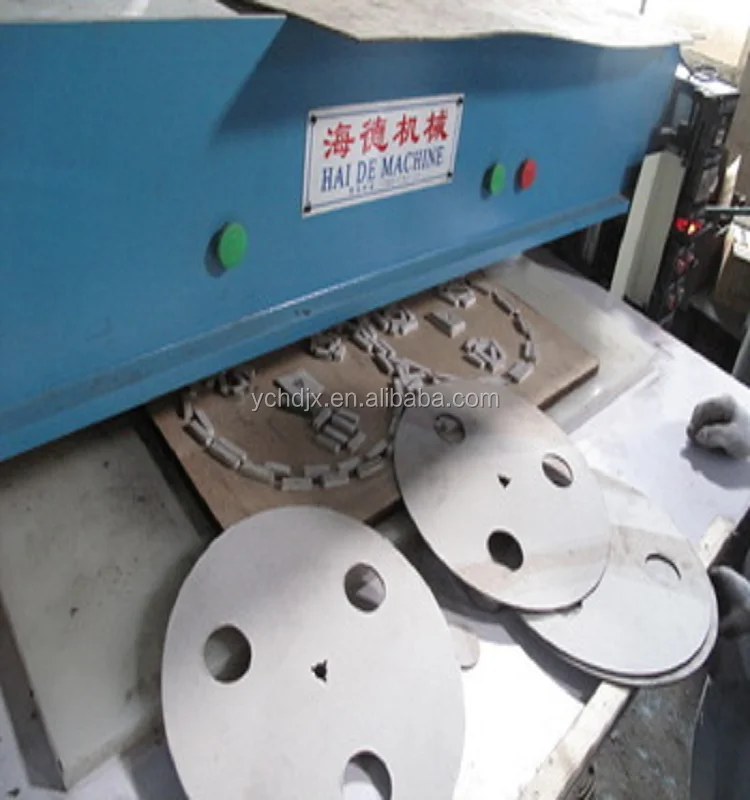

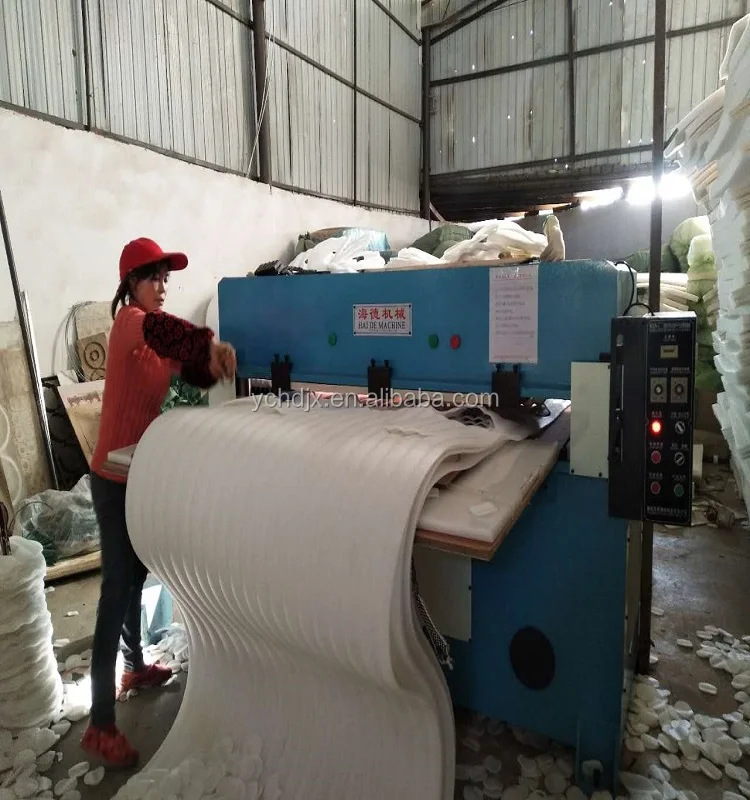

Product Application Case:

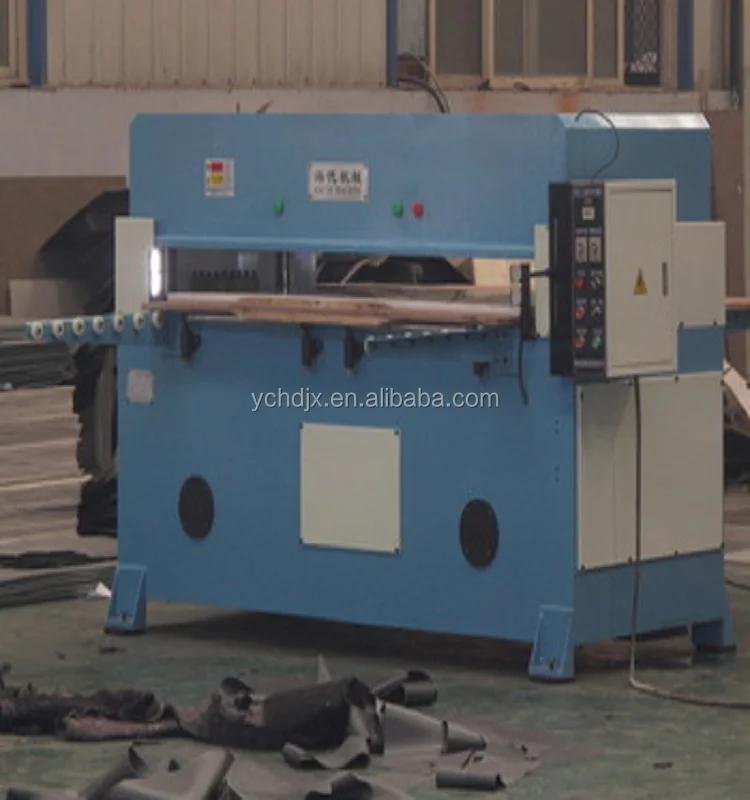

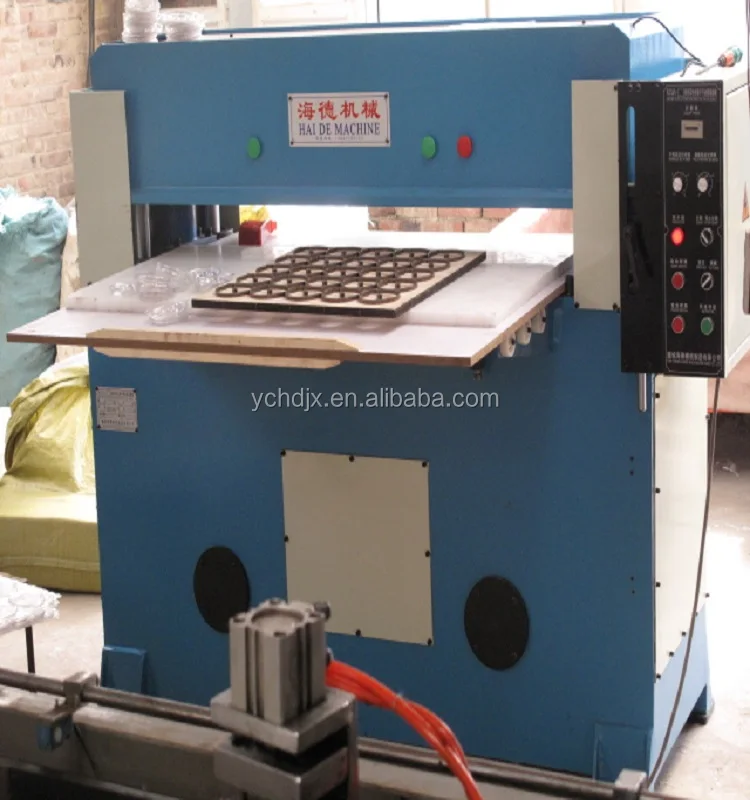

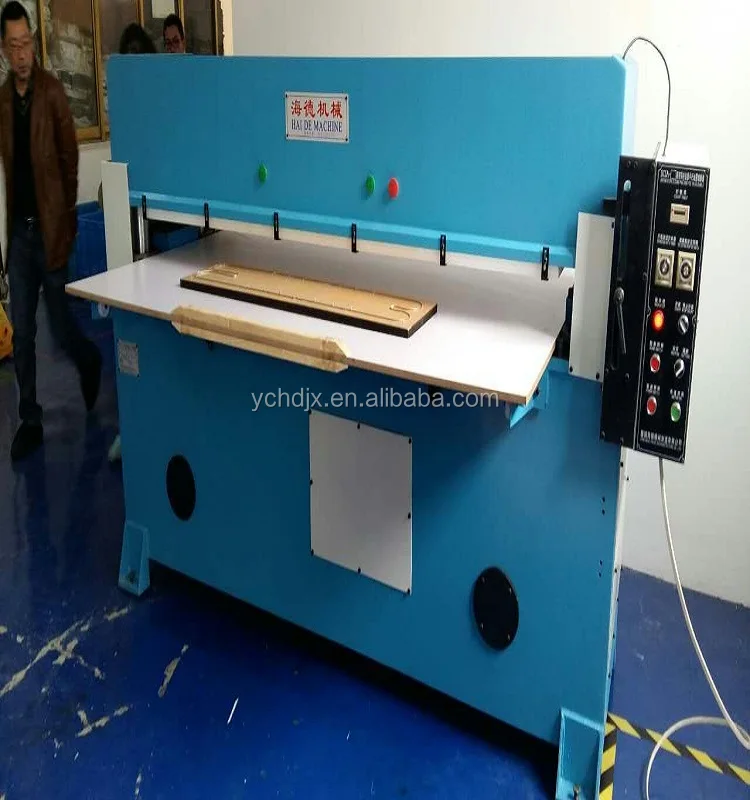

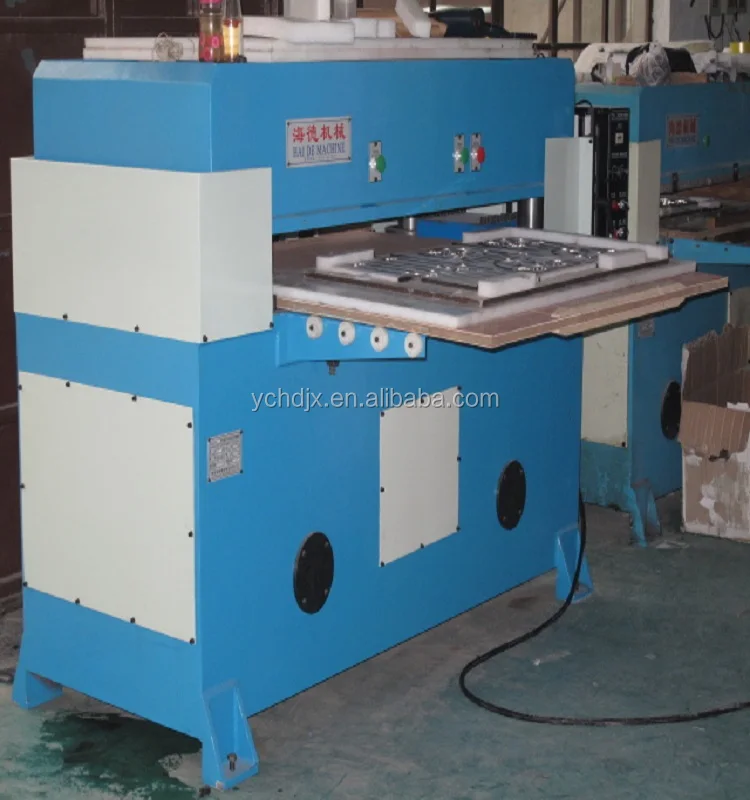

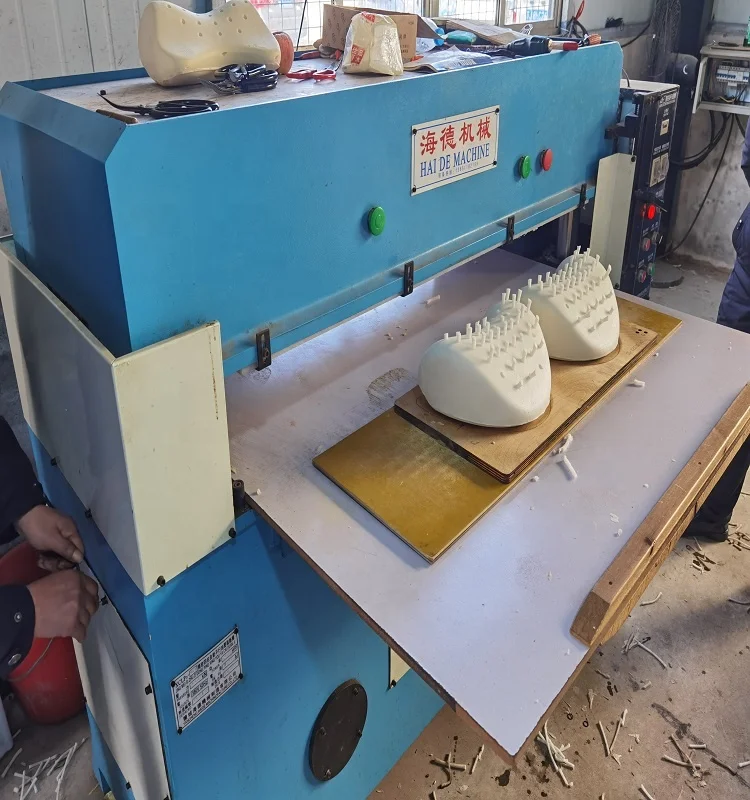

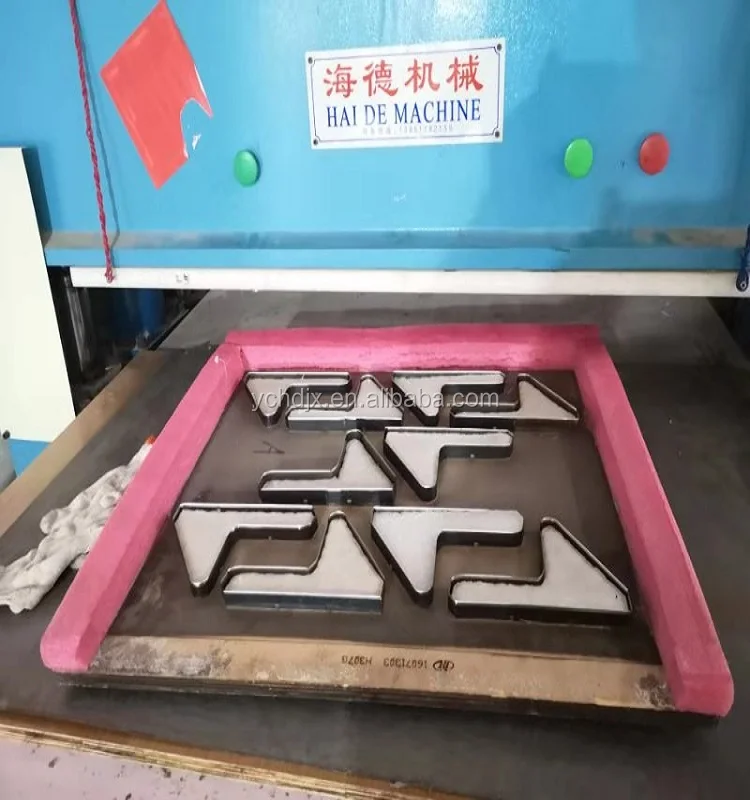

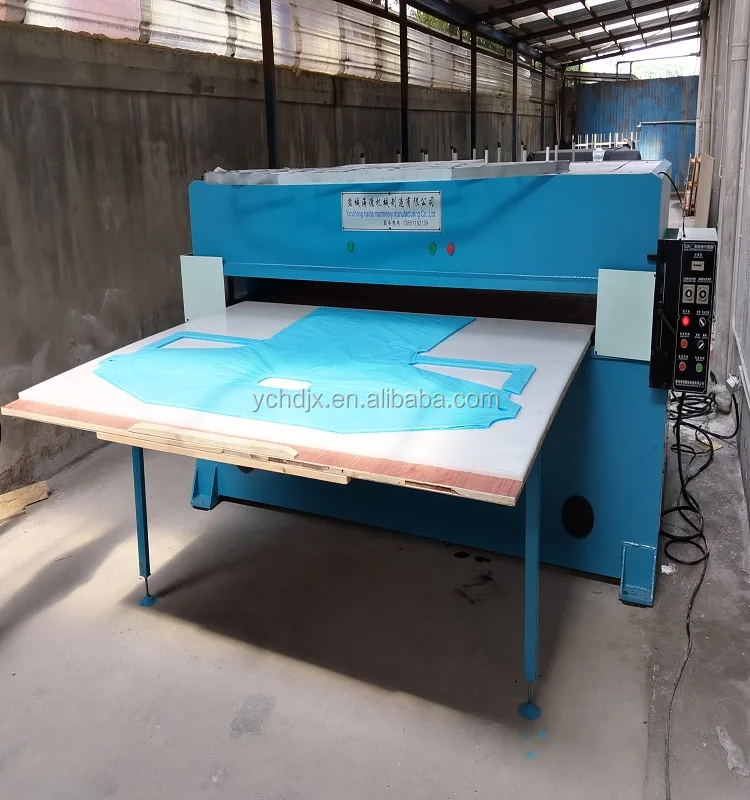

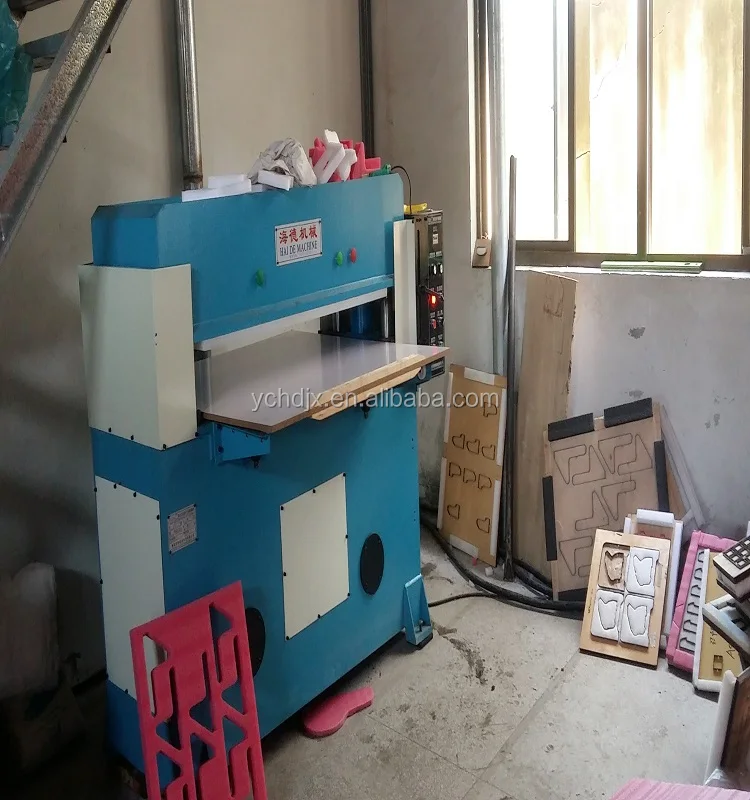

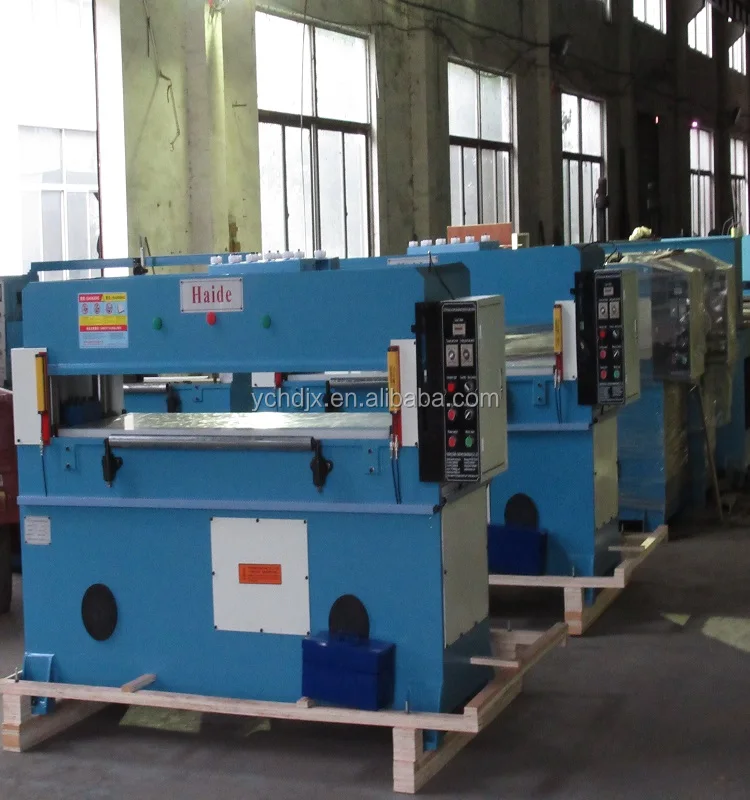

Product picture:

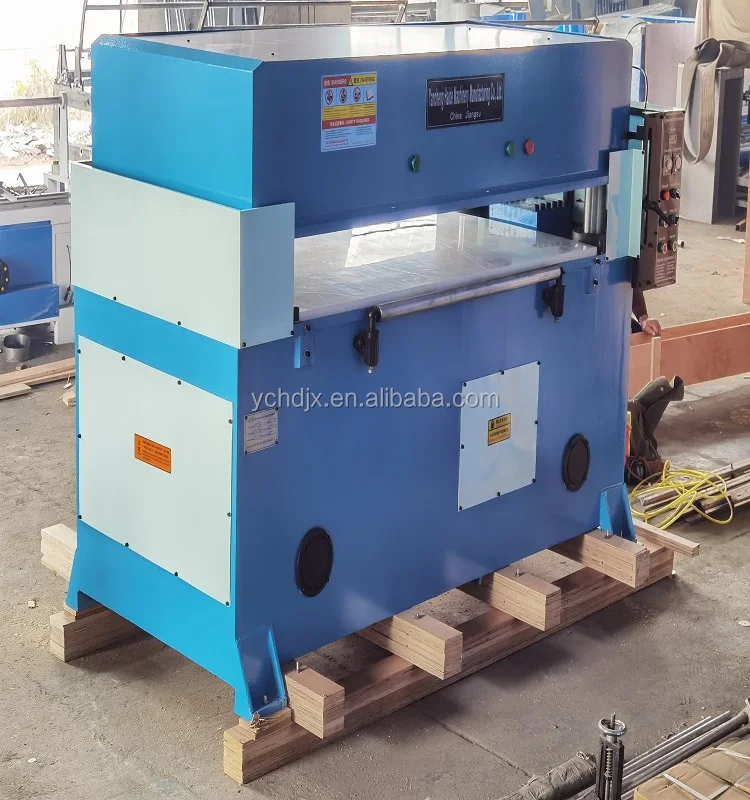

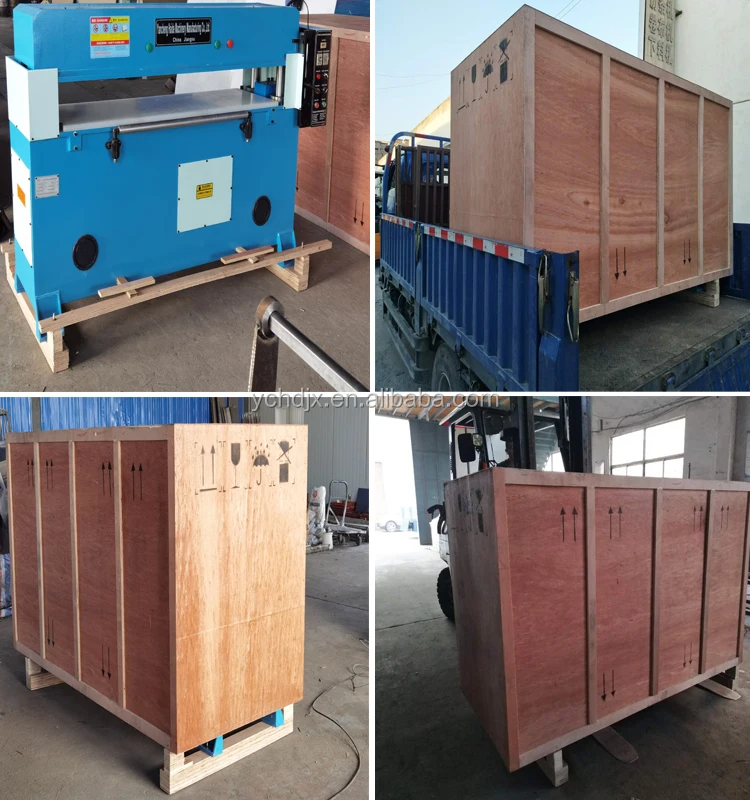

Product packaging picture:

Product Certificates and Qualifications:
