Product Overview

Description

Products Description:

             Thermal conductive silicone tape is silicone polymer elastomer with fiberglass as base material

 for reinforcement , also called thermal conductive silicone cloth, anti-tear silicone cloth, this kind of silicone

cloth can effectively reduce the thermal resistance between the  electronic  components   and the

 radiator, it  also has  good  characteristic  of  electrical  insulation,  high  dielectric strength,  good   thermal

 conductivity and high chemical resistance properties.in addition, It can withstand problem of short circuit of

high voltage and metal piercing , and is an excellent thermal conductive insulation material to insteadof  the

traditional mica and silicone grease.



Features & Benefits:



-thermal conductivity:1.0 w/m.k

-High performance insulator and thermal performance.

-Strong tensile resistance,abrasion resistance.

-Strong withstand voltage,thin thickness.

-soft surface,no viscosity on surface



Typic Application:



-Power supply,invertors,transistor,mosfet.

-TO-220,TO-3P,TO-3.

-Automobile electronic heating modules.

-Motor control, communication equipments

-Power semiconductor, IS MOS tube IGBT chip.

-High voltage, high temperature, high power welding machines.

-Computer, flat screen TV, mobile equipment, video equipments.

-Network products, household appliances.



Application Models:





-Filling Between the heat source and heat dissipation module or shell.



-Electrical insulation filling between the heating element and shell.



Configurations:

-Sheet form or Roll form and Die-cut parts

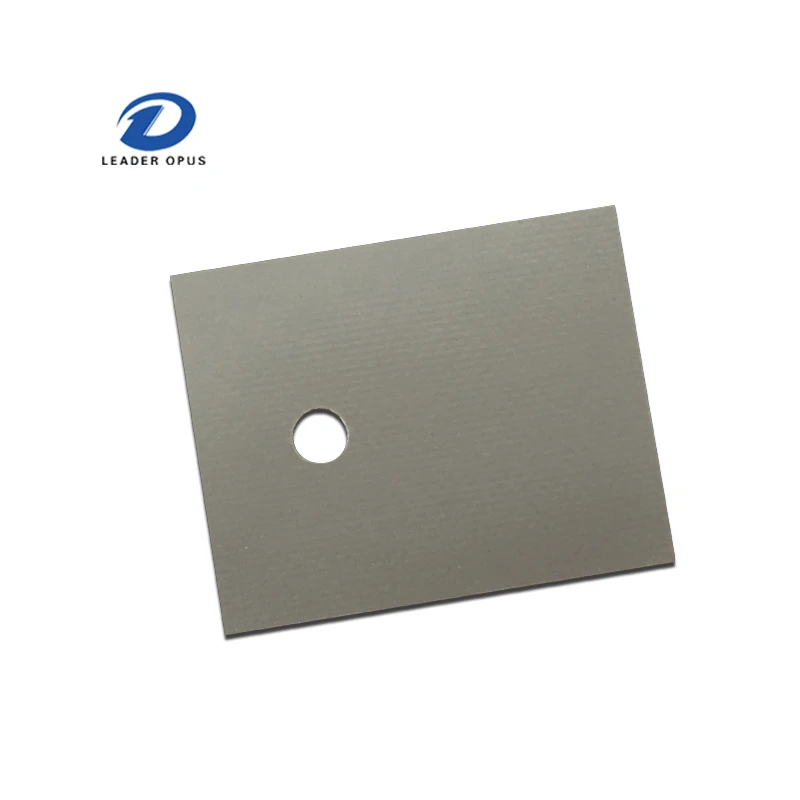

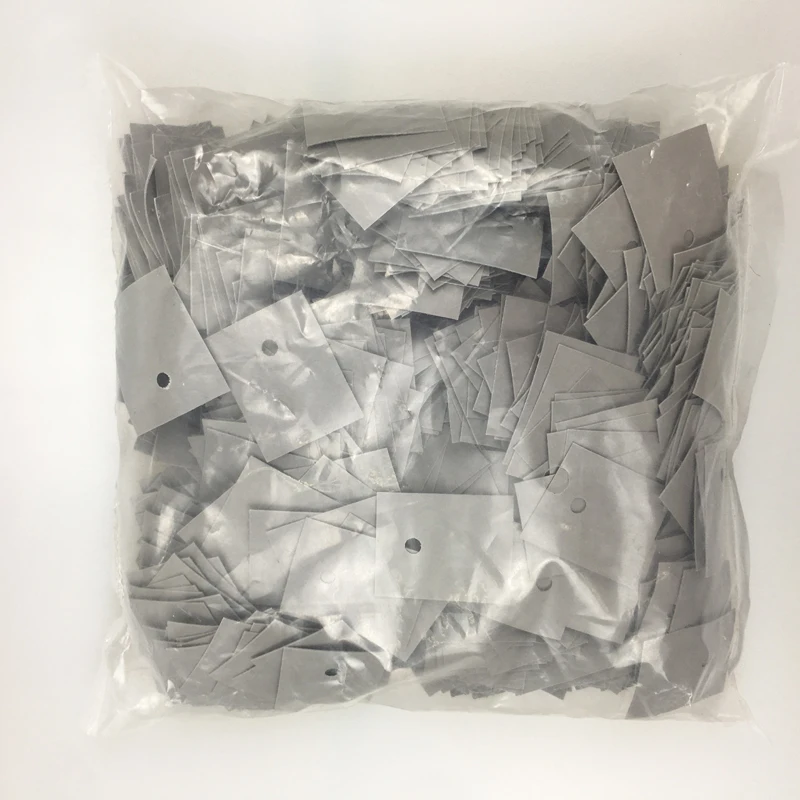

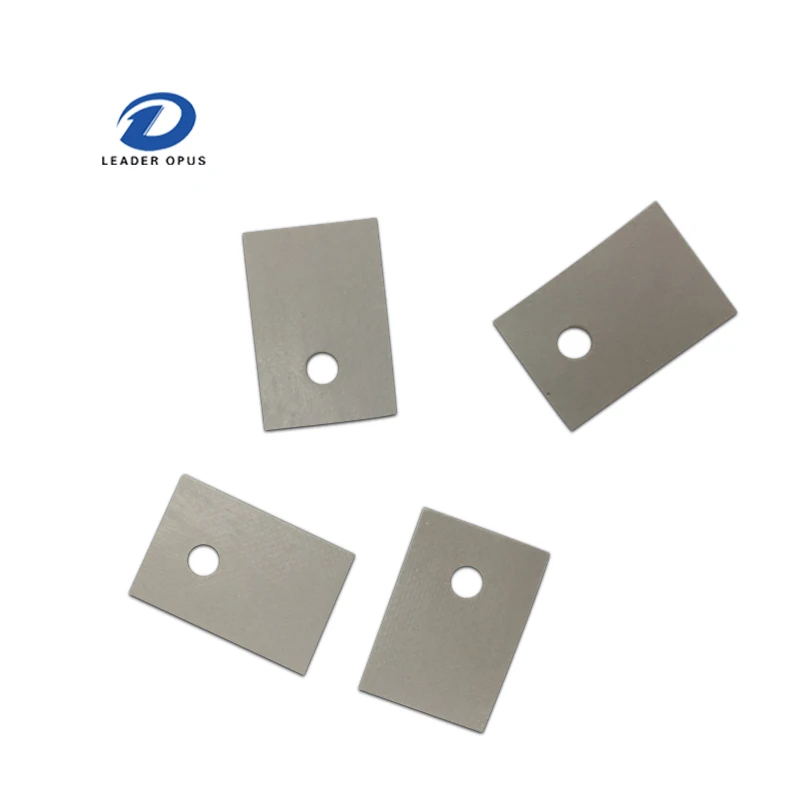

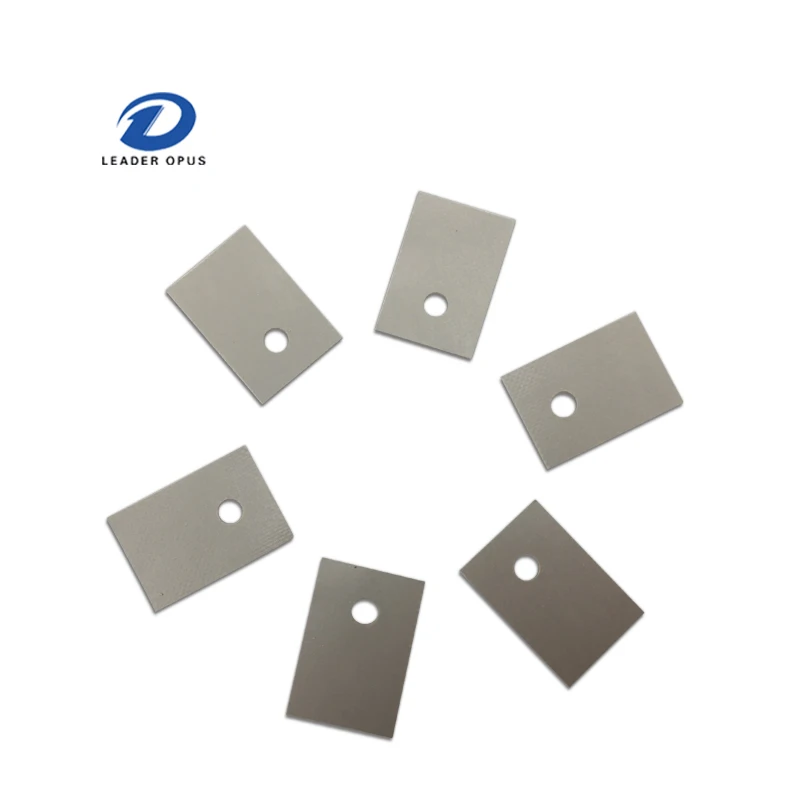

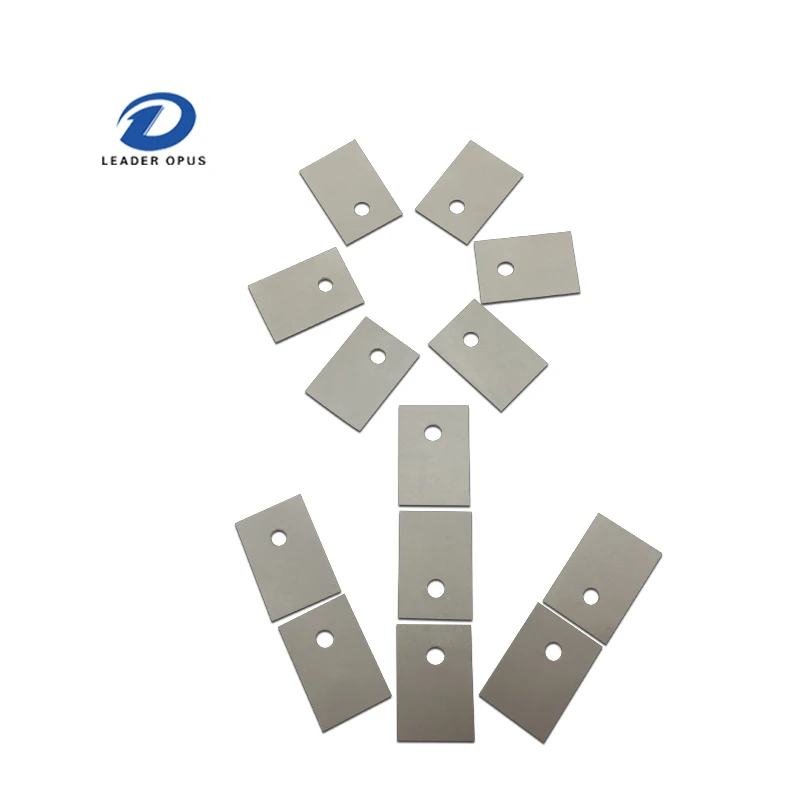

-TO-3,TO-3P,TO-220,precut parts.

-Acrylic adhesive applied available,A1 for 1 side,A2 for both sides.



Available Size:



Thickness:   0.23,0.25,0.3,0.45,0.85.

Demention:

  T(0.23,0.3,0.45,0.85),W(300mm),L(50m)

  T(0.23,0.3,0.45,0.85),W(300mm),L(25m)



Other different thickness can be customized

We can die-cut it into sheets of different shapes according to customer demands



Property		Value	Test method
Material		Fiberglass reinforcement	---
Color		Pink	---
Hardness(Shore A)		85±3°	ASTM D 2240
Tensile Stregth(Kg/c m2)		60	ASTM D 412
Elongation(%)		3	ASTM D 412
Continuous Use Temp(℃)		-20~200	TGA+DMA
Electrical
Volume Resistivity(Ω.cm)		1015	ASTM D 257
Breakdown Voltage(KV)		>4	ASTM D 149
Dielectric Constant(ε)	60 Hz	3.6	ASTM D 150
	1K Hz	3.6
	1M Hz	3.5
Dedlectric Dissipation	60 Hz	0.012	ASTM D 150
	1K Hz	0.009
Fator(tanδ)	1M Hz	0.005
UL-94		v-0	UL 94
Thermal
Thermal conductivity(W/m.k)		1.0	ASTM D5470
Thermal Resistance@25PSI/T20		0.3℃*in2/W	ASTM D5470
