tungsten electrode grinder machine suitable for 22.5 and 30 degree

Product Overview

Description

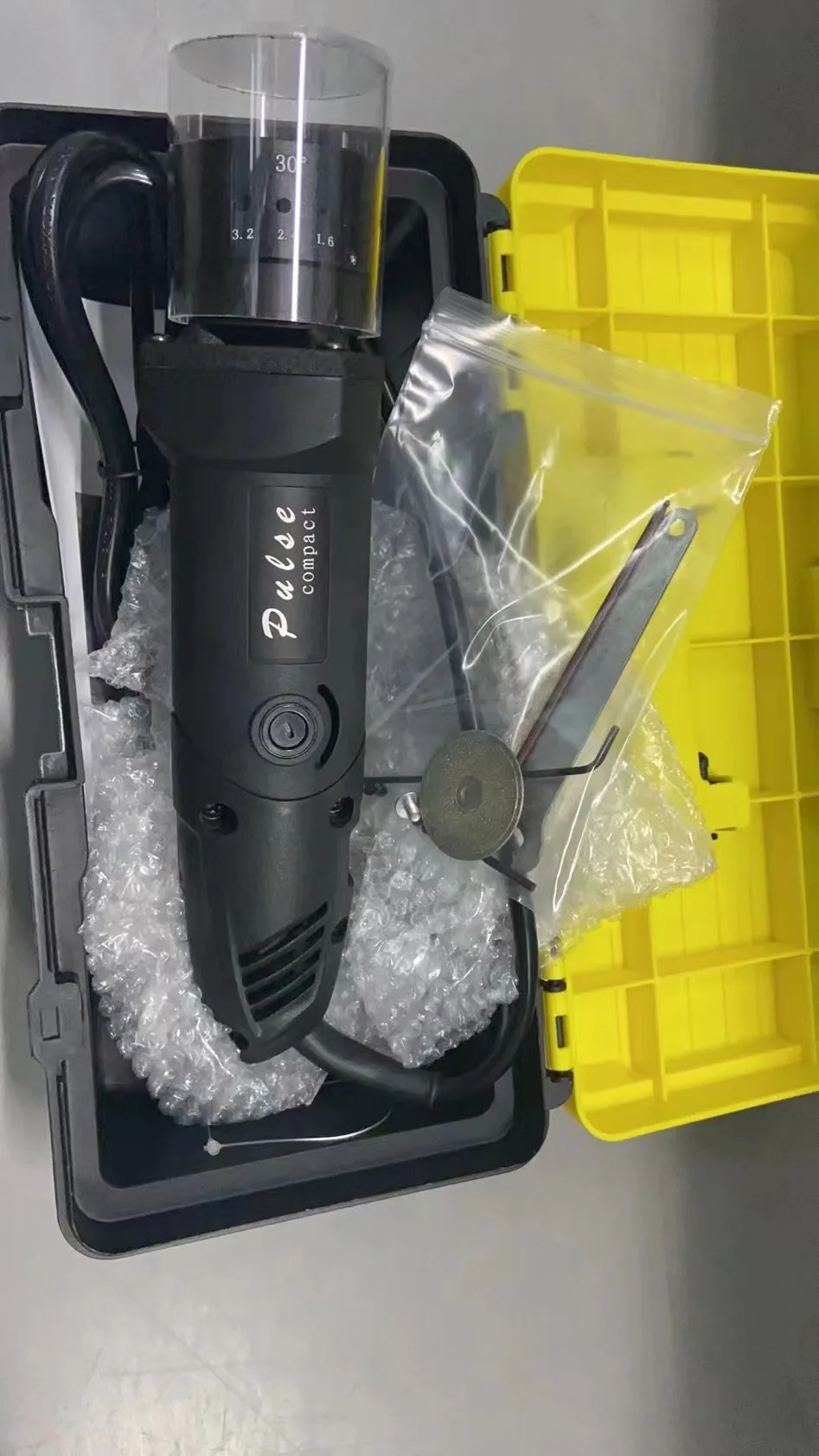

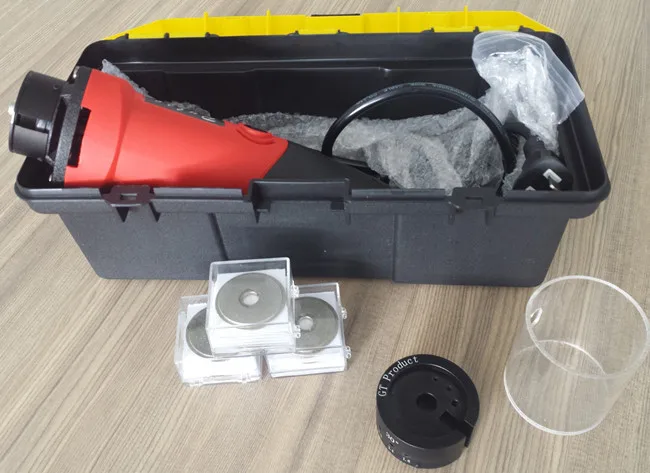

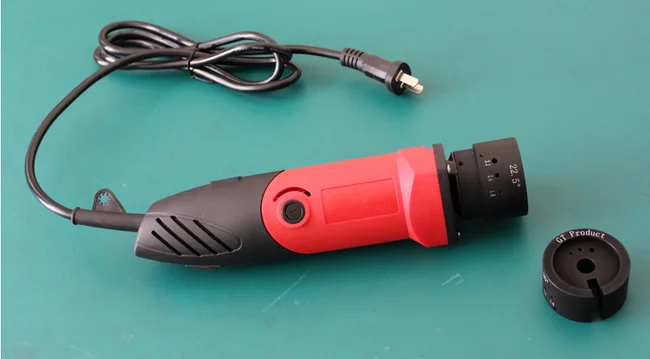

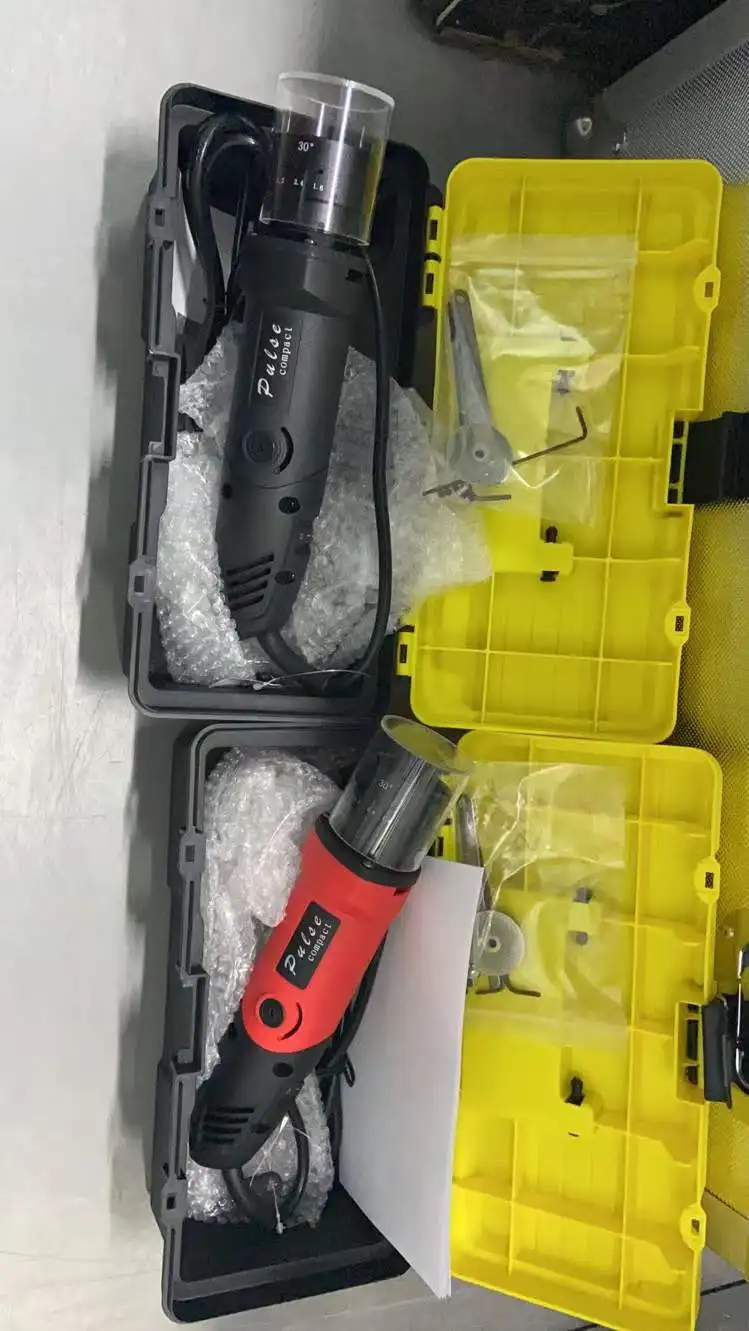

ESG Plus handheld type tungsten electrode grinding machine

In TIG argon arc welding, plasma welding etc. need to use tungsten pole occasions, generally need grinding tungsten pole, But tungsten grinding process produces the dust not only to the human body is very harmful, but also due to tungsten electrode Angle and tungsten surface roughness etc. factors are affecting the quality of welding. In automatic welding occasions, in order to achieve the welding quality consistency, normally required tungsten pole shape and surface roughness and can't change, but artificially grinding quality is uneven, so use tungsten grinding machine grinding out quality uniformity quality tungsten is very necessary.



Name	Diamond Size	Wheel Diameter		Wheel Thickness		Model NO.	Weight(KG)
		mm	Inch	mm	Inch

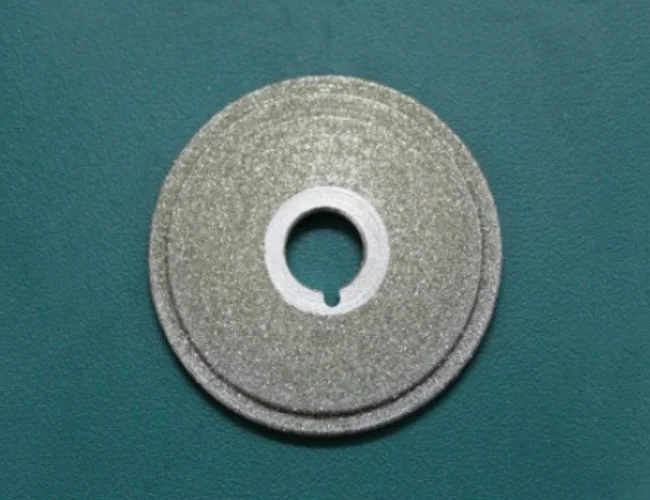

Diamond wheel	Small	37	1.457	1.7	0.07	5000 000 401	0.01
Diamond wheel	Middle	37	1.457	1.7	0.07	5000 000 402	0.01
Diamond wheel	Big	37	1.457	1.7	0.07	5000 000 403	0.01

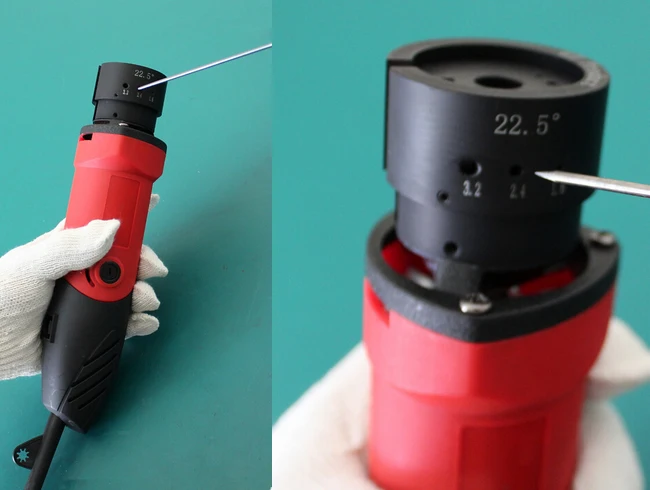

 Grinding Angle(°)  22.5° and 30°

 Grinding of tungsten diameter(mm)  1.6  / 2.4  / 3.2  (1.0mm optional)



Performance Characteristics



1.Using high quality micro motors with high reliability

2. Exquisite structure designs get rid of the grinding process tungsten pole radioactive dust the harm to human body.

3.Angle precise, surface high precision. To improve the welding arc quality provide basic guarantee.

4.As a flashlight size, operation is convenient and simple.

5. We accept the OEM order as you need.
