Flammable and explosive area, such as petroleum and chemical enterprises, well drilling business, chemical industry business, and outdoor working, construction sites’ equipment and facilities
Features
- Light Source:Integrated of high brightness LED Source, with high-efficiency constant current power driver, saving 60% power consumption than HID
- All over LED parts sealed, water proof, dust proof, no need to clean and maintain the inner
- Power Supply: High-efficiency constant current driver with smart controller, recover the luminous flux, reduce light failure, ensure LED source’s light Luminous Efficiency, avoid over-pressure, over-current and sudden current
- Heat Sink: Special aluminum housing, high strength and good heat dissipation, anodized surface, corrosion proof
- Light Distribution: Special light distribution for every type of lamps, make full use of lamp function.
- Lampshade: spin forming with mirror aluminum, excellent appearance, corrosion proof, advanced Nano coating on the reflector, light diffused reflection make the lamp’s light softer and more uniform
- No UV, provide high quality lighting environment and healthy security for users indoors
- Free maintenance series, energy saving and environmental protection
- Adjustable rotating angles for wall mounting, arranged by cables, ceiling installation arranged with cables or steel pipes
Model List
Dimension
L.I.D. Diagram
A.A.I. Figure
Parameters
Basic Info
Items

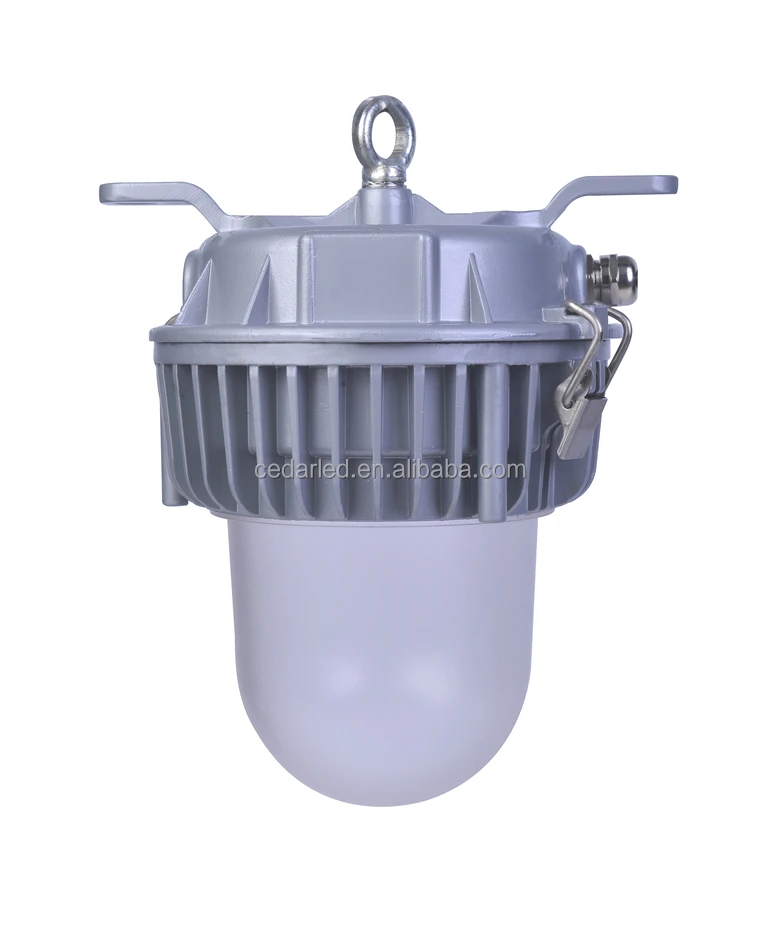

Corridor Light
Model
CD-TL1501-28
Aspect
Material
Aluminum Alloy
Body Color
Silver White
Dimension
D203*H214
Electrical
Watts(W)
28
Input Voltage(V)
AC/DC 24~220
Frequency
50~60Hz
Power Mode
Internal
Power Factor
>0.9
Power Efficiency
>86%
Optical
LED Brand
Osram
LED Type
High Power
LED Qty.(pcs)
9
Luminous Flux(lm)
1200
CCT(K)
2700~6500
Light Color
Cold,Natural,Warm
CRI(Ra)
>70
Beam Angle(°)
118°
Dimmable
Unavailable
Application
Mounting Size(mm)
/
Socket
/
Install Mode
Hanging on wall,Suspended,Ceiling Mounted,with Rod
