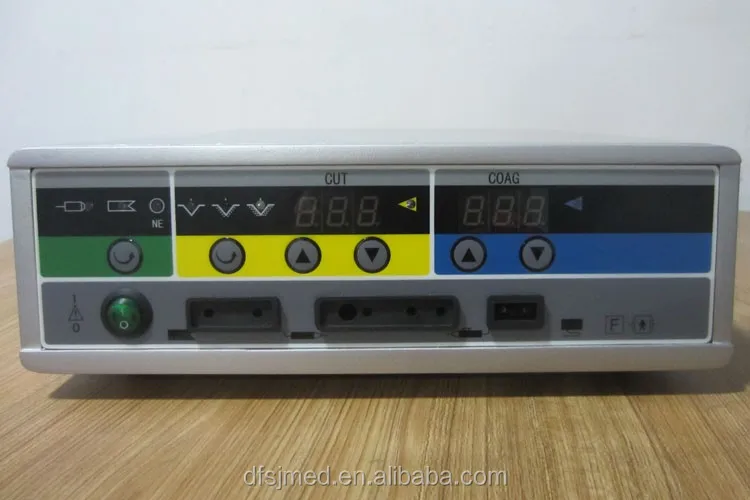

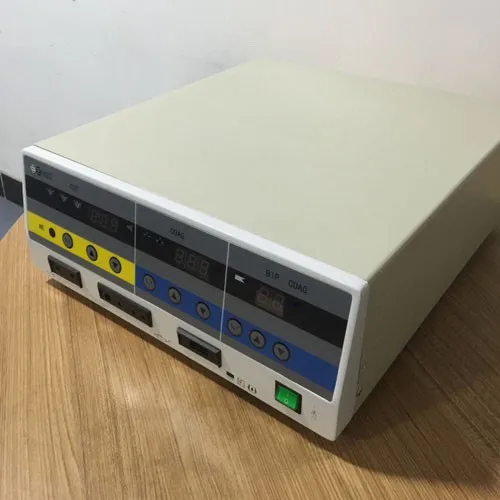

2016 hot sale innovative Medical Device High-Frequency electrosurgical generator unit
Various functions with Compact and light design
Monopolar cut ( Pure cut , Blend 1 ,Blend 2 ,Blend 3 )
Monopolar Coag ( Fulguate Coag, Contact Coag, Spray Coag)
Bipolar Coag, fully meet different surgery need.
Tissue Monitoring Technology
This technology monitors the tissue density, especially for polypectomy & papillotomy,
cutting is smartly divided incut & pause, so that coagulation occurs in each pause.
The system is intelligent to change the pause interval as
tissue density changes, hence produces fine cutting with coagulation effect.
Patient Return Electrode Monitoring (PREM)
REM (Return Electrode Monitoring) function monitors the range of contact area
between a patient and the neutral plate. If the size is inappropriate, it automatically
stop the high-frequency current with audible alarm to minimize the danger of burning incidents.
Compatible with other surgical equipment
Endoscopy, Optimum Smoke Evacuation System.
Waterproof Panel Operation
Microcomputer Auto Control, Three-zone (LED ) digital display.
Applications
General Surgery, Gastroenterology , Dermatology,Vascular Surgery, Obstetrics and Gynecology.
ORL/ ENT surgery, Neurosurgery, Orthopedics & Plastic Surgery, and other open surgery.
Working Mode | Max Power | Peak Voltage | |||
Monopolar Cut | Pure cut | 400W | 1500V | ||
Blend 1 | 250W | 2000V | |||
Blend 2 | 200W | 2500V | |||
Blend 3 | 150W | 3000V | |||
Monopolar Coag | Fulgurate Coag | 120W | 4000V | ||
Spray Coag | 100W | 4020V | |||
Contact Coag | 80W | 4700V | |||
Bipolar Coag | Bipolar Coag | 70W | 620V | ||
Electrical requirement | |||||
Operating Voltage | 220V±22V | Measuring Frequency | 530KHz±2 | ||
Monopolar Rate Load | 500Ω | Bipolar Rate Load | 100Ω | ||
Max Input Currency | 1400VA | ||||
Environmental Conditions for Use | |||||
Condition | Range | ||||
Temperature | 50°C to 40°C | ||||
Relative humidity | ≤ 95% non-condensing | ||||
Pressure | 700 hPa to 1060 hPa | ||||
Environmental Conditions for Transport and Storage | |||||
Condition | Range | ||||
Temperature | -40°C to 55°C | ||||
Relative humidity | ≤ 93% non-condensing | ||||
Pressure | 500 hPa to 1060 hPa | ||||
Dimension (L×W×H) | 350mm×320 mm×100mm | ||||
Weight | 15kg | ||||

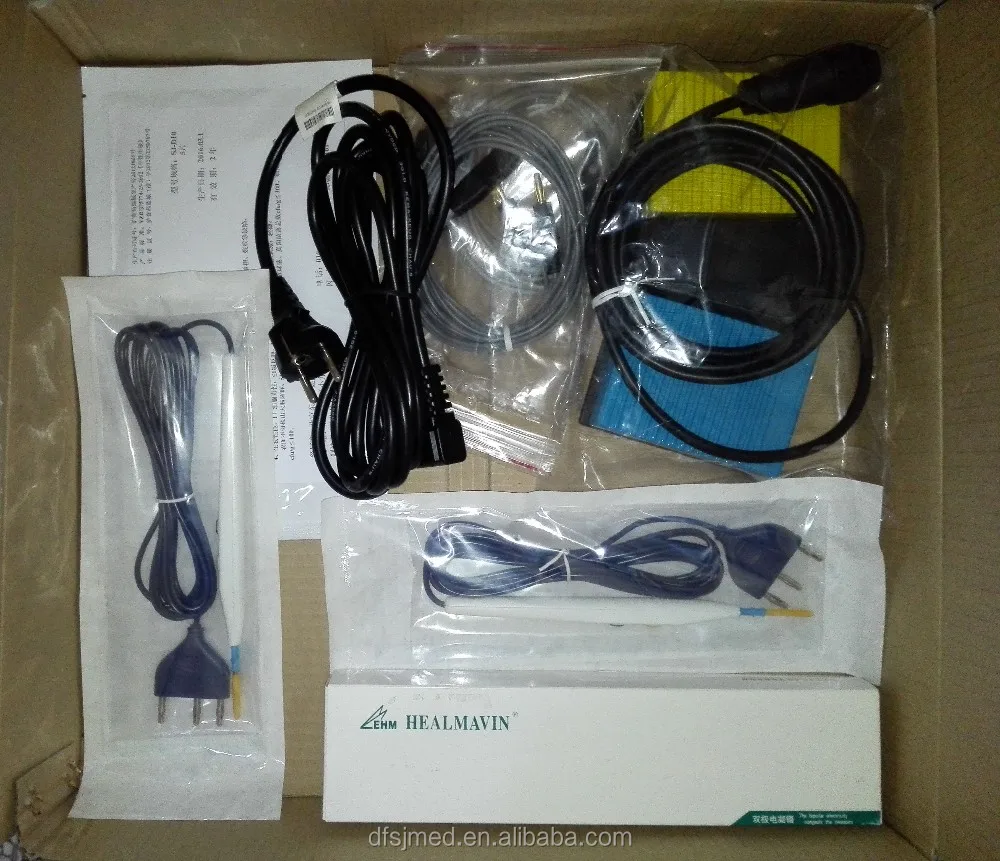

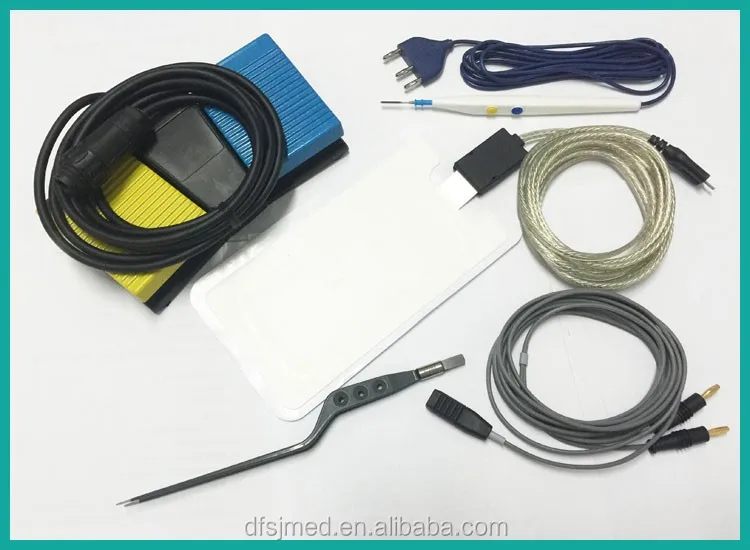

Standard Accessories
Code | Description | Quantity |
1 | Electrosurgical Unit | 1 |
2 | Single-use ESU Pencil with Cable | 2 |
3 | Single-use ESU Plate | 5 |
4 | Reusable ESU Plate Cable | 1 |
5 | Bipolar ESU Forceps | 1 |
6 | Reusable Bipolar cable | 1 |

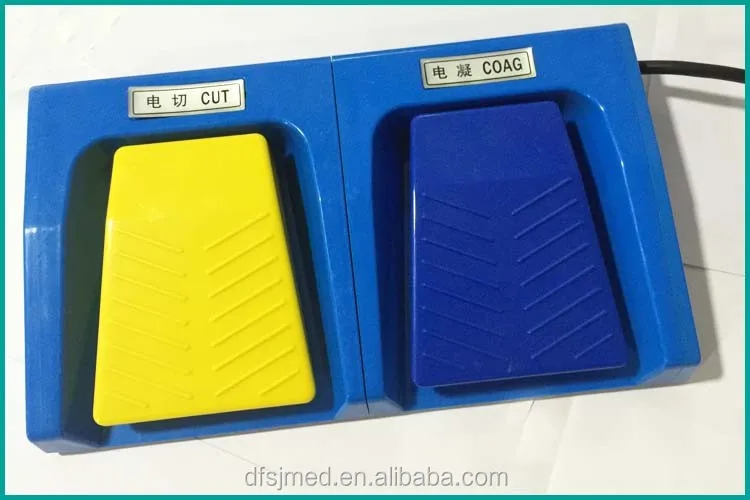

7 | Double Foot Swith | 1 |
8 | Power Cable | 1 |
9 | Service Manual | 1 |
