Product Overview

Description

Automatic Side Sealer Heat Shrink Film Thermal Shrink Packing Machine

Features:

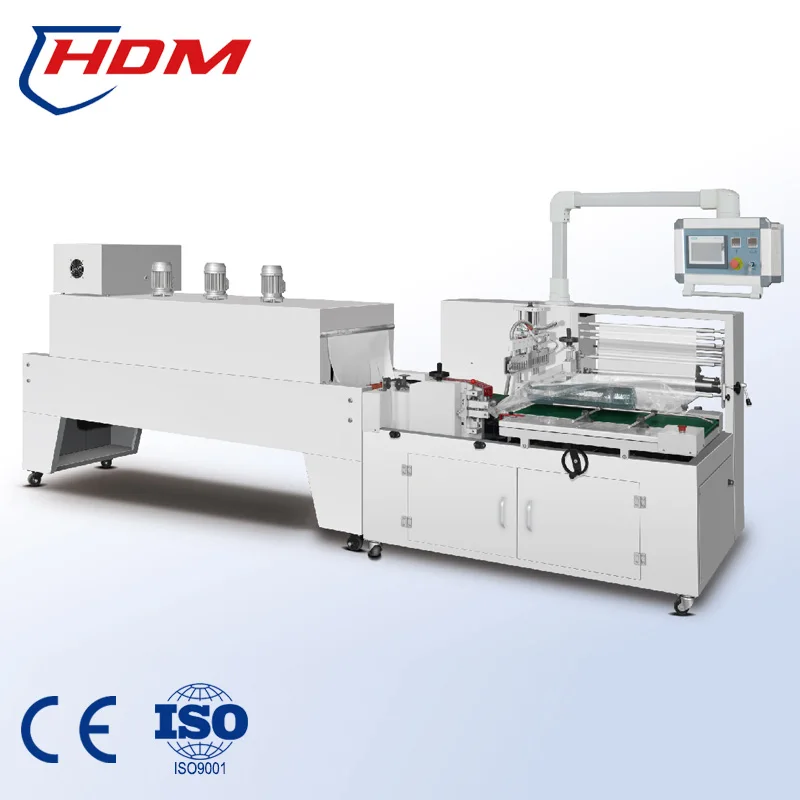

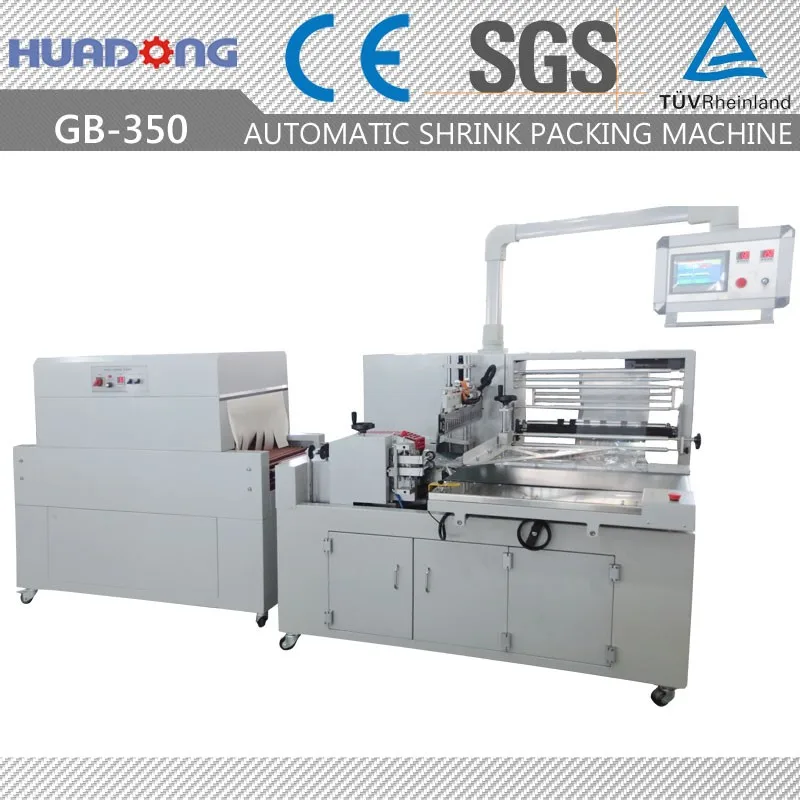

1. GB-350 is a fully automatic shrink packaging machine including side sealer and heat shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.

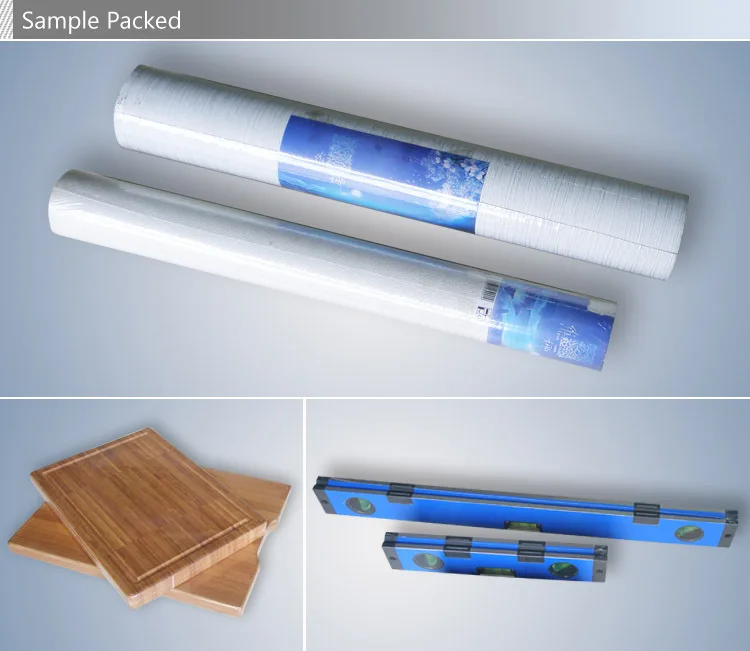

2. This machine can pack long products. There is no limit of product length because of side sealing system.

3. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.

4. Side sealing line can be adjusted in the center of product or other desired position.

5. Film perforating wheels can be adjusted or removed easily.

6. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.

7. Operate easily and conveniently by moveable control panel.

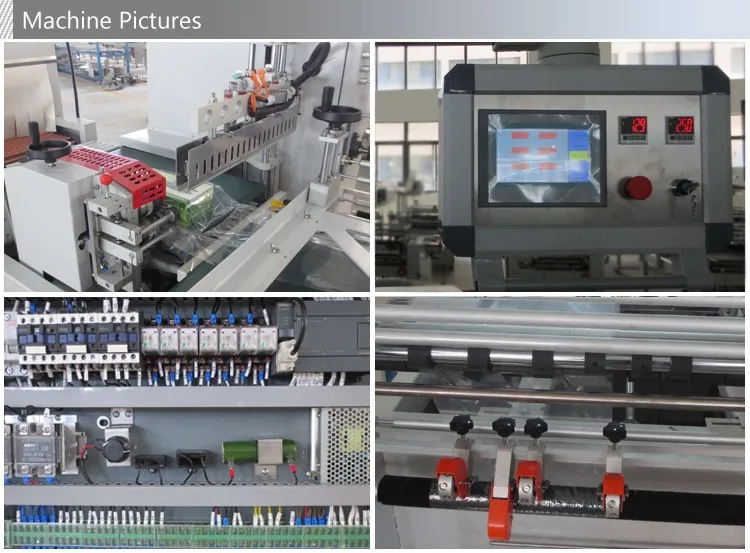

8. Adopt Siemens PLC and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.

9. A pair of photoelectric switch in vertical for thin products.

10. Optional sensor for transparent products.



 Automatic Side Sealer Heat Shrink Film Thermal Shrink Packing Machine



Technical data	GB-350
Sealing type	side sealing
Power supply	380V/50-60Hz/3phase
Product length	infinite
Sealing height	200 mm
Product size	width + height <=450mm, width < 350mm
Conveyor speed	20M/min
Film type	center-folded polyolefin (POF) film, center-folded polyethylene (PE) film
Max film size	580mm (width) x 280mm(outer diameter)
Power consumption	max. 8.5kw
Shrink tunnel oven size	450(W) x 220(H)mm (depends on product size)
Shrink tunnel conveyor speed	variable, 40 m/min
Shrink tunnel conveyor	rotating silicon coated rods
Working height	750-820 mm
Air pressure	0.5MPa (5 bar)
Sealing knife	Teflon coated alloyed knife with permanently heated bar
Main control components	Siemens PLC and touch screen, Omron temperature controller, relay and sensor
Machine main material	powder coated carbon steel

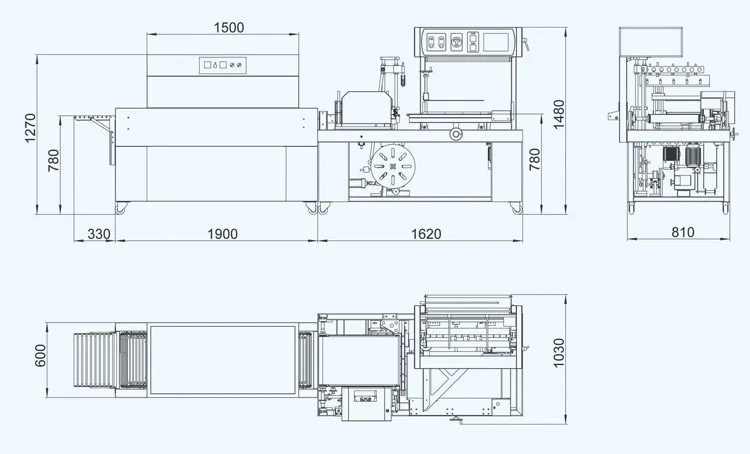

Machine dimensions	1620 x 810 x 1480 mm,   2230 x 600 x 1270 mm
Machine weight	600kgs
