IBS TTC 12 Zones 15A,Plastic Injection Mold Equipment Hot Runner Automatic Thermostat with Best price
- Category: Mould Temperature Controller >>>
- Supplier: Shenzhen IBS Electronic Co. Ltd. [Guangdong China]Shenzhen
Share on (60454393992):
Product Overview
Description
IBS TTC 12 Zones 15A,Plastic Injection Mold Equipment Hot Runner Automatic Thermostat with Best price
Product Details
- Pictures
- Description
| Power Input | AC 220V+/-20% |
| Output Power | 4600W, 15A/240V |
| Power comsuption | 1.5 Double card |
| Input resistance | 33MΩ |
| Temperature testing range | 0~535C, 32~999F |
| Working temperature range | 0~50C |
| Testing accuracy | +/-0.2% SPAN |
| Control accuracy | +/-0.2% SPAN |
| Operate humidity | 10~80%RH |
| Sensor type | J/K |
| Output drive componenet | SCR |
| SCR touch way | Auto-tuning+phase angel |
| Control arithmetic | FUZZY+PID |
| Fuse testing function | Yes |
| T/C Open and Reverse testing | Yes |
| Heater Open testing | Yes |
| Manual output function | Yes |
| External cooling compensation | Yes |
| Softstart dehumidity function | Yes |
| T/C short testing | Yes |
| Non touch transger | Yes |
| Inner testing circuit temperature compensation | Yes |
| SCR short testing | Yes |
| Currency timing detecting | No |
| Phasic reverse protection | No |
| Malposition of T/C and heater testing | Yes |
| Heater Open testing | No |
| Temperature record function | No |
| Control zones | 1-60 Zones |
| Temperature display way | Double 4 digitron |
| Heater dissipation | External radiator+cooling fan |
- Features

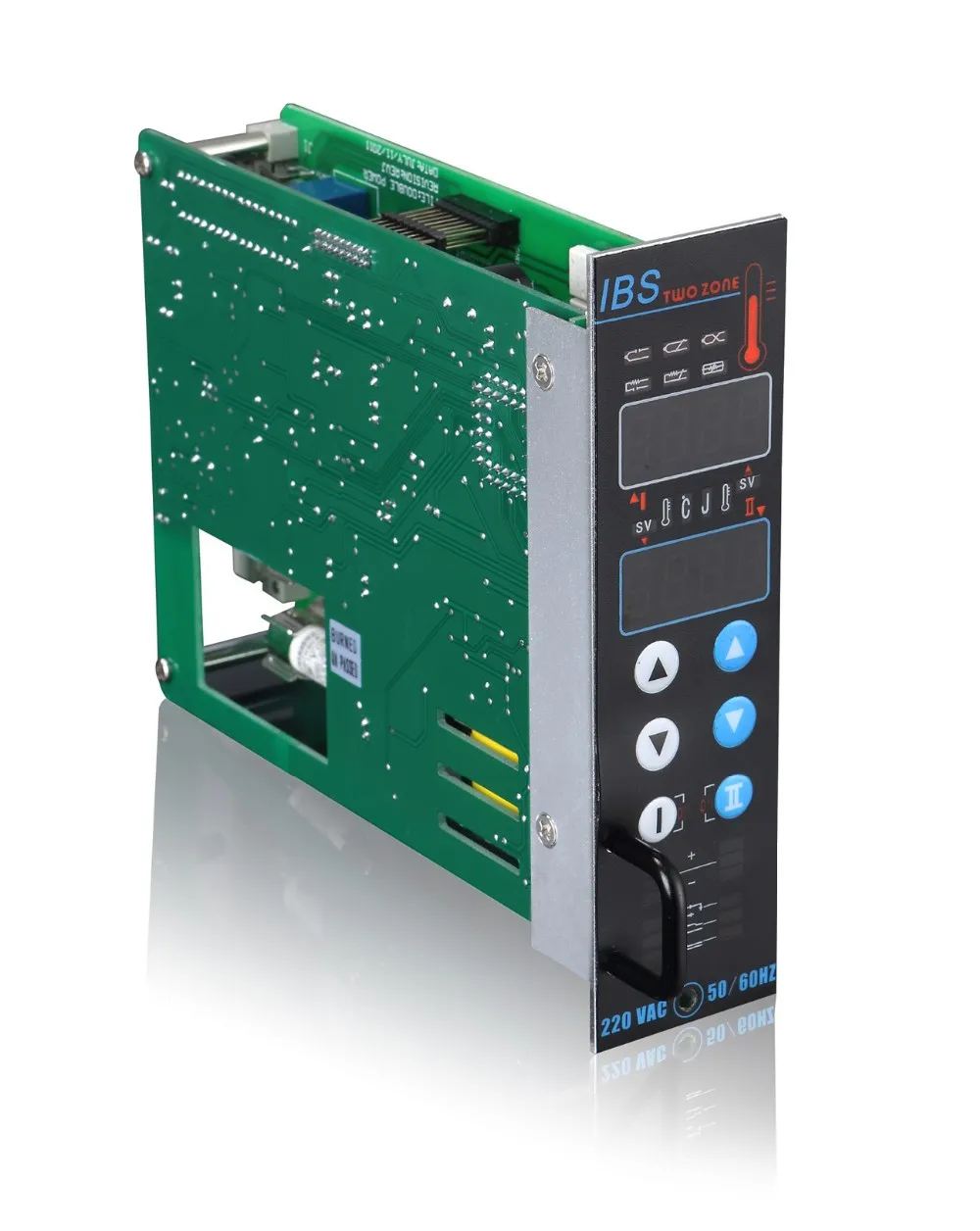

1. Two Zones modular control.
2. Smaller size, good apparence.
3. Eletronic protection against neutral malfunction.
4. Mold doctor(troubleshoot user Mold).
5. 380V input protection.
6.15A and 30A for option.
7.Use friendly.
8.Non-touch transfer.
- Wiring option (Customization support)
- Procuct Packing
- Factory
- Contact us
Shenzhen IBS Eletronic Co.,Ltd
Add:12F Room 2, Bele Spring Building ,28 Xintang Road Xintang Community, Fuyong Stree Bao'an District, Shenzhen, China
Tel:86-755 33696296/33071961
FAX:86-755-81459022/33696196
