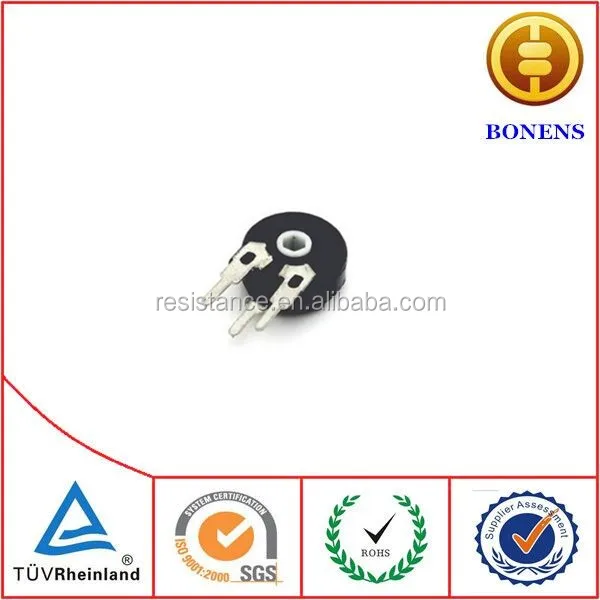

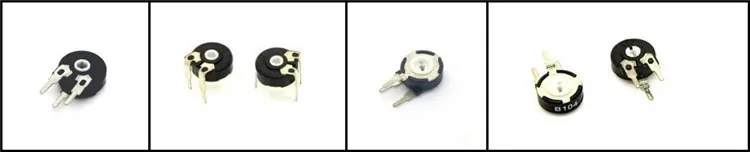

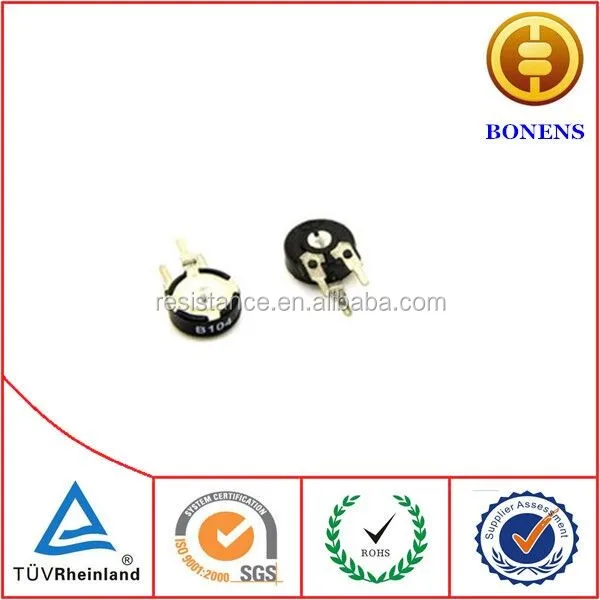

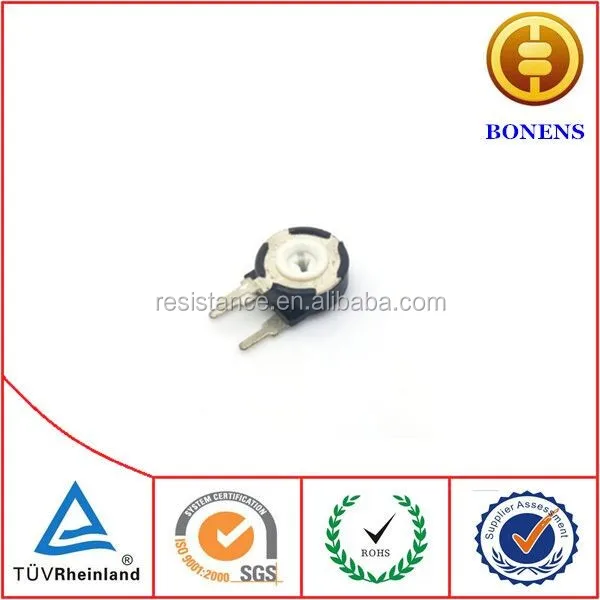

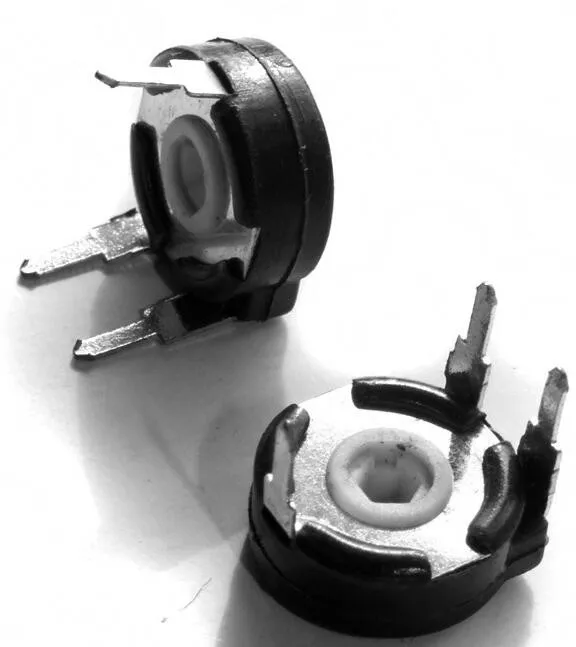

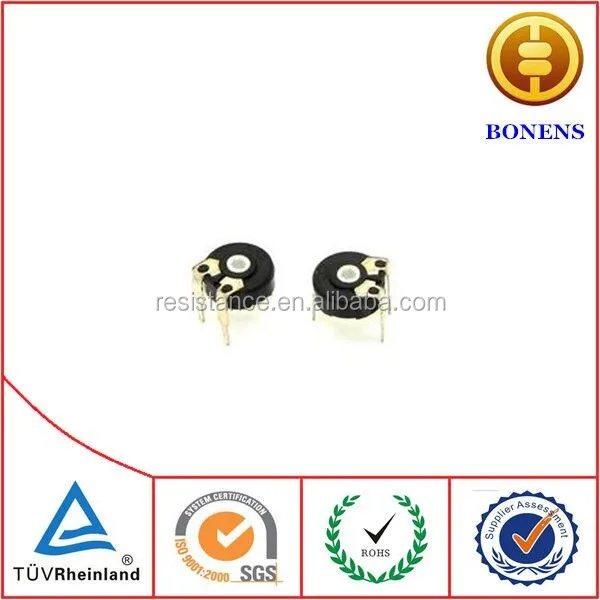

PT10 Carbon film trimmer 1k 2k potentiometer

Nominal Resistance

 From 100Ω to 1MΩ

Resistance Tolerance

 ±10%,±20%,±30%

Residual Resistance

Max. 5% of Nominal Resistance Resistance, but under 30Ω

Resistance Taper

 Linear (B)

Rated Power

  0.1 Watt

Operating Voltage

 AC50V Max.

Rotational Life

 Max. ±15% change in resistance after 100 unloaded rotations

Load Life

 Max. ±5% change in resistance after 3 hours loaded

Insulation Impedance

 ≥100MΩ (at 100V ac)

Variable Rotation Angle

270º (less ±20º)

Rotational Torque

From 20 to 450gf.cm

Stop-end Strength

less 0.5Kgf.cm

Mechanical Strength

Bakelite Base not to be broken down under a force of 1Kg

Operating Temperature

From -10°C to +70°C

Temperature Characteristics

 Resistance change within +5%~+30% after 5 hours at 70°C

Humidity Characteristics

 Max. resistance change within 20% after 350 hours at 40° and R.H 90%
