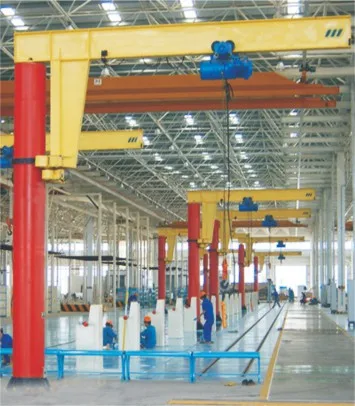

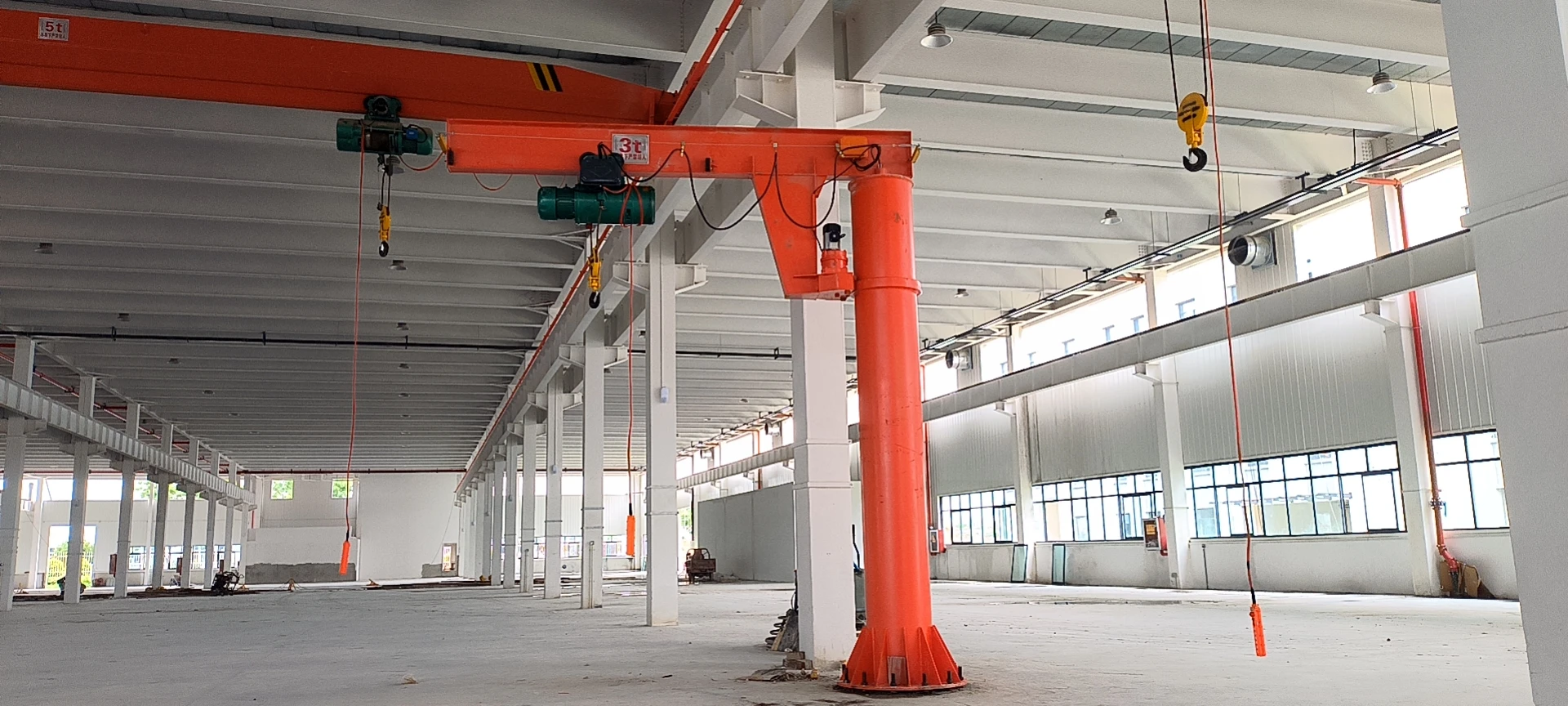

  5 ton workshop used jib crane with cantilever






Product Description







BZD Jib Crane is a kind of  small and medium-sized lifting equipment with the recent development.


Its unique structure, safe and reliable.With high efficiency, energy conservation, the provincial time,


effort, and flexible and so on. And it can operate freely in 3D space,and it can show its superiority


more especially when its working in the short-range and intensive lifting occasions.Widely used in


workshops, warehouses, docks and other fixed place.






drawing












Technology
















































































































ItemUnitParameters
Lifting capacity t10t 3t
Spanm6m4m
Wire rope electric hoist  Lifting speedm/min0.7/70.8/8
Lifting motor powerkw1.5/130.4/4.5
Cross traveling speed m/min2020
Traveling  motor kw0.8*20.4
Diameter of wire rope /D-6*37+1-2160   15MMD-6*37+1-2160   13MM
Rotating mechanismRotating speed r/min0.760.76
Rotating motor power kw1.50.8
size of column mm1090*16508*10
Weight t5.61.35
Protection class of Motor /IP54IP54
Insulation class/FF
Power supply 380v 50hz 3phase AC
Working temp ~   25℃-50℃
Control method Pendant control
Paint ZINC PHOSPHATE ANTI RUST PRIMER
3 COATS, 120 MICRON
2 COATS, 80 MICRON

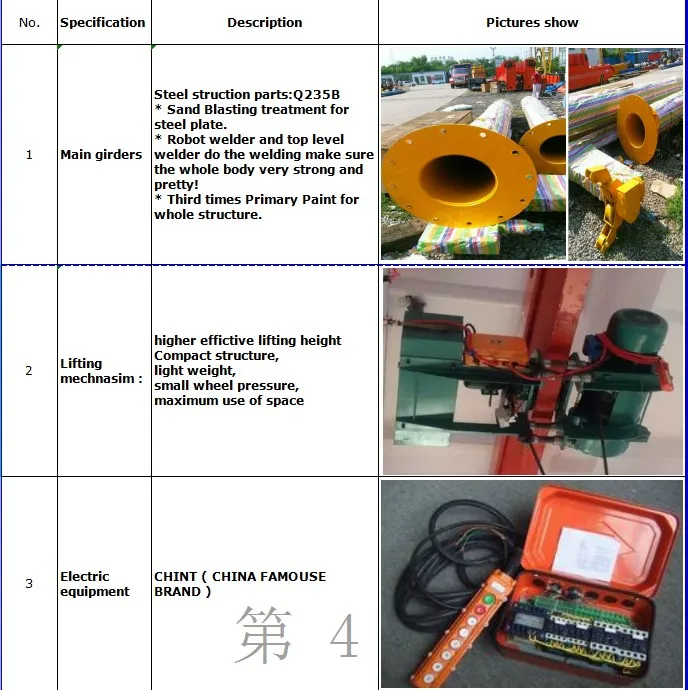

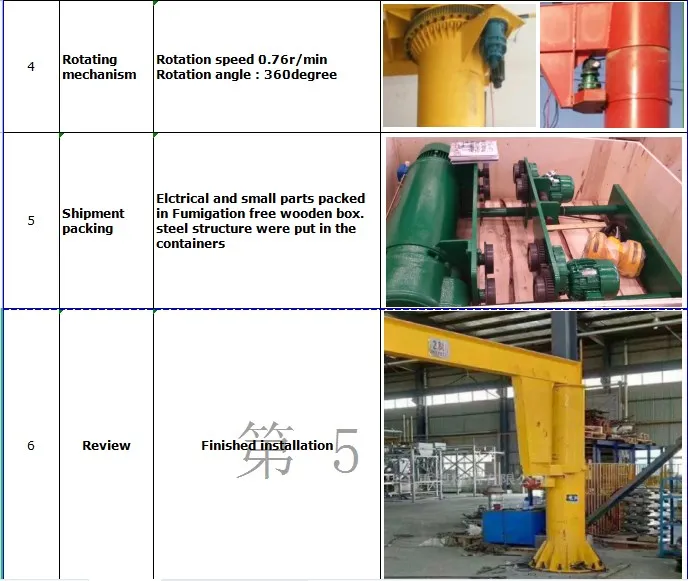

product details

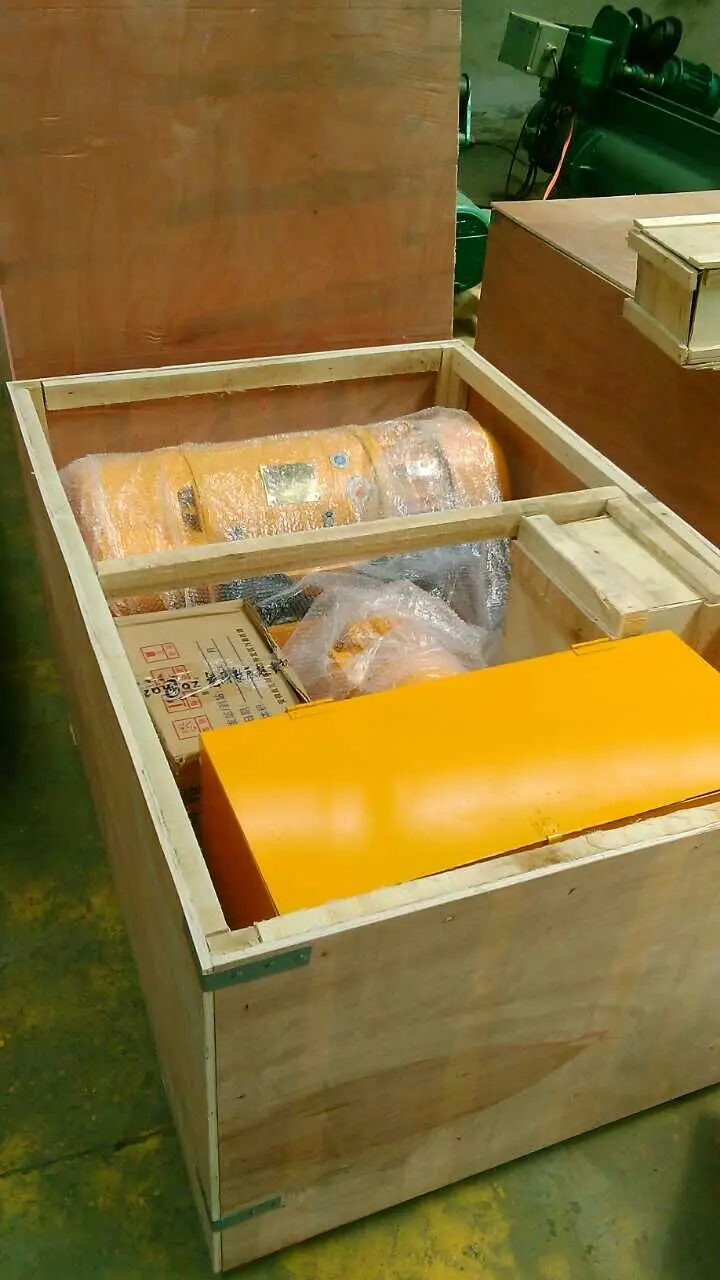

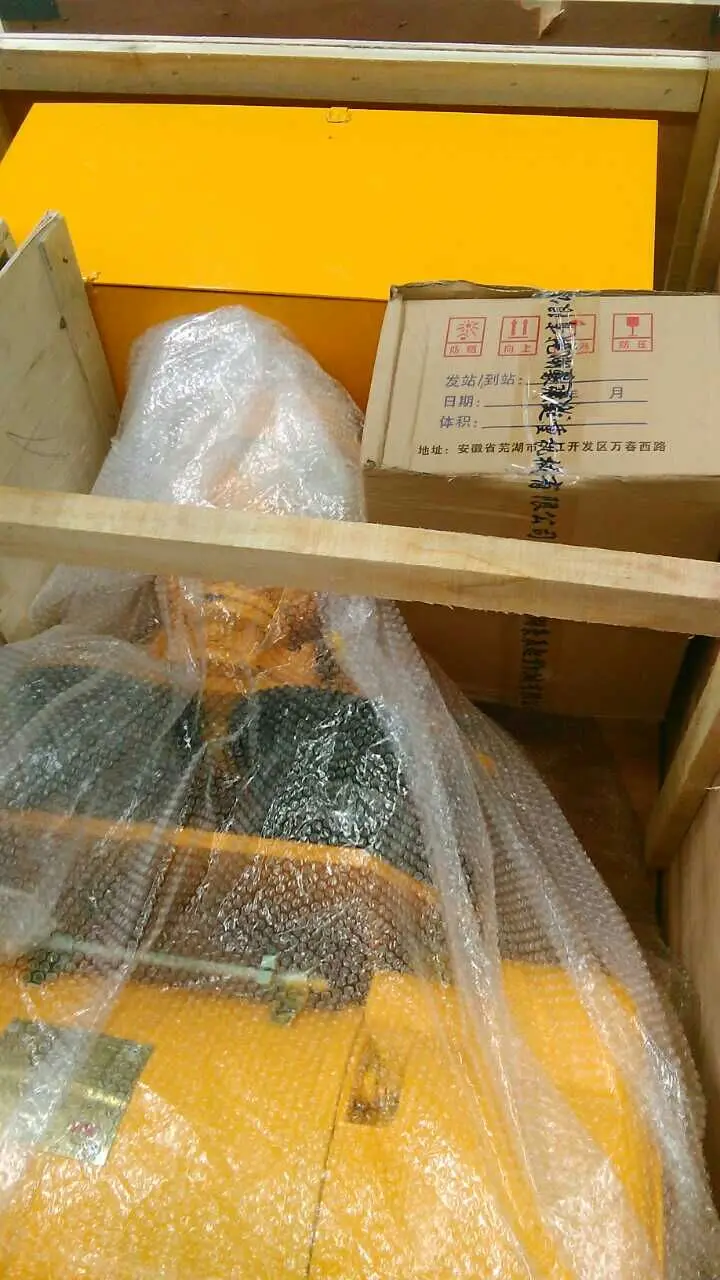

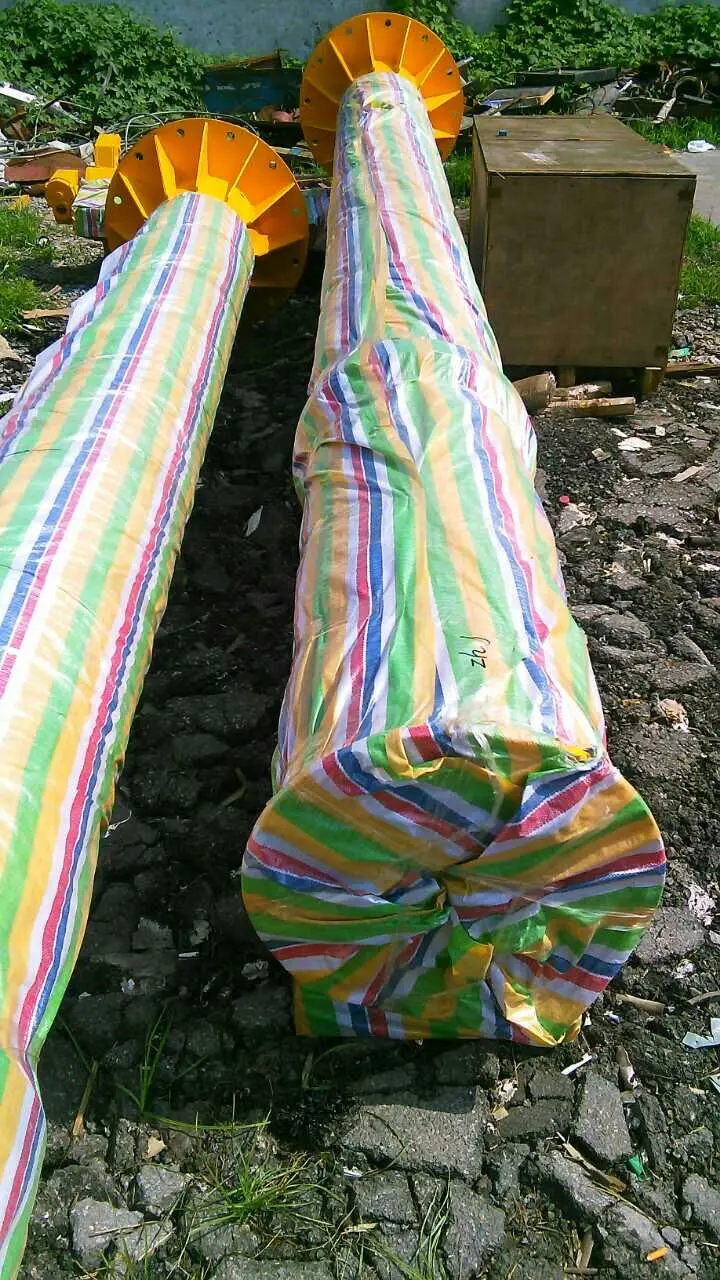

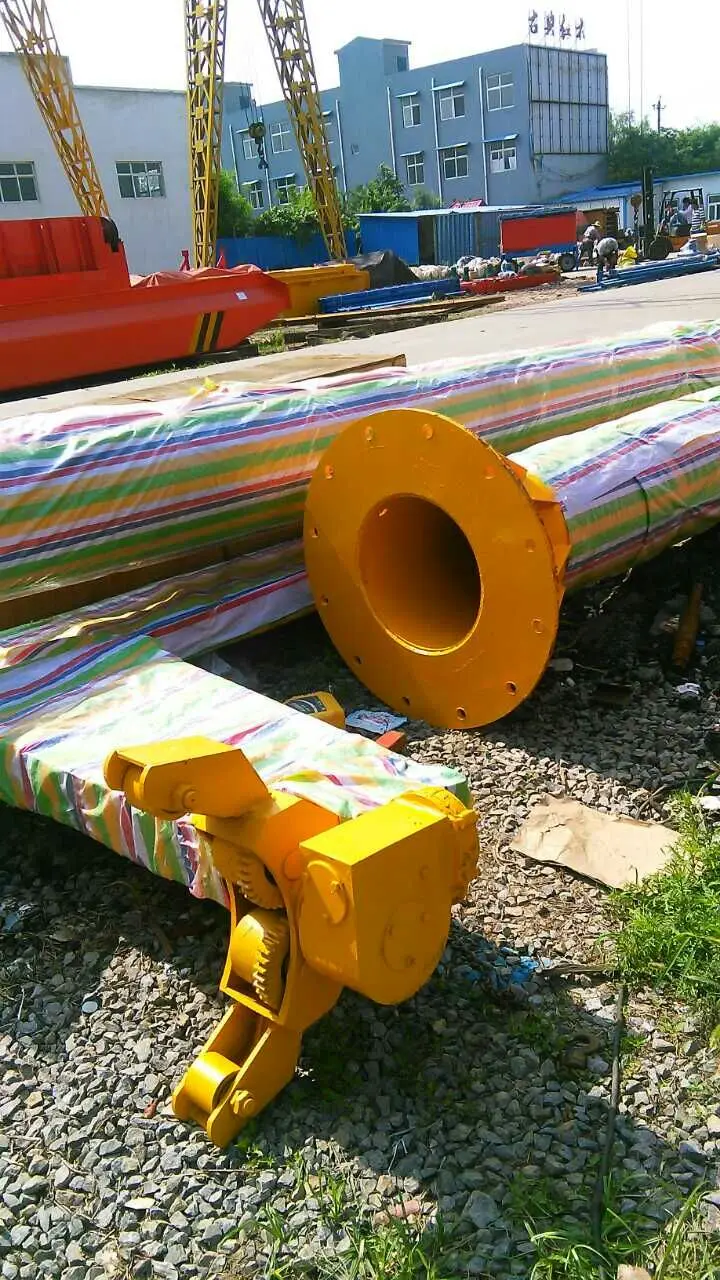

Packaging & Shipping

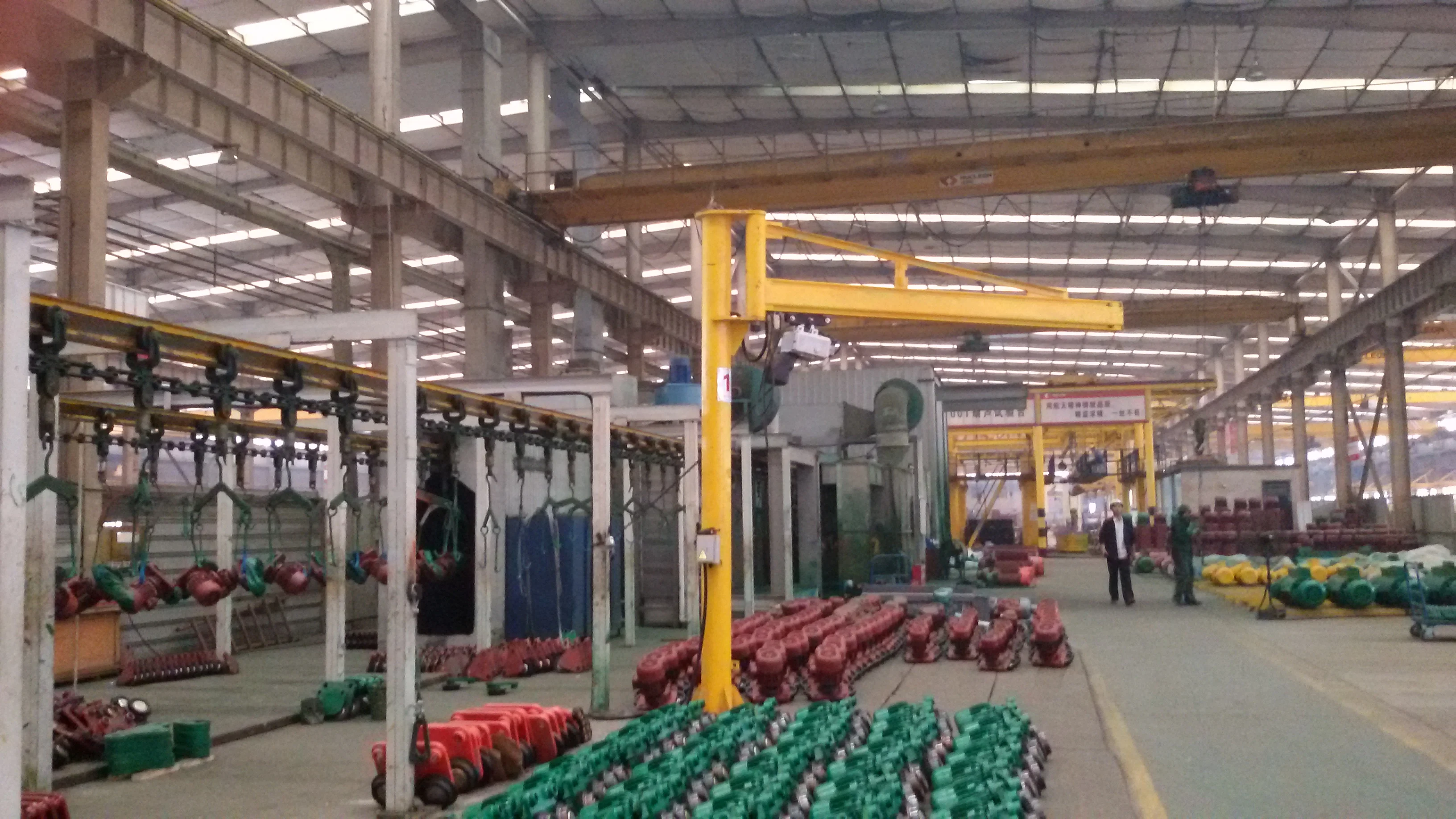

customer visit


 downLoadImg








feedback


feedback .jpg







Contact us


1_07


FAQ





In order to offer you the best price , pls kindly let me know :


1.Lifting capacity is ____ton


2.Lifting height is ____m


3.Working radius is _____m


4.360 degree rotation ?


5. What material is the jib crane to lift ?  do you need single lifting speed or double lifting speed ?


6. Power supply :380v 50hz 3ph is ok ?


7.How many sets do you need  ?


8.Do you need us delivery ? if yes , which sea port is near to you ?





The best quotation will be sent to you once these are confirmed .





I am looking forward to your reply .


Thanks and best regards


Cathy
