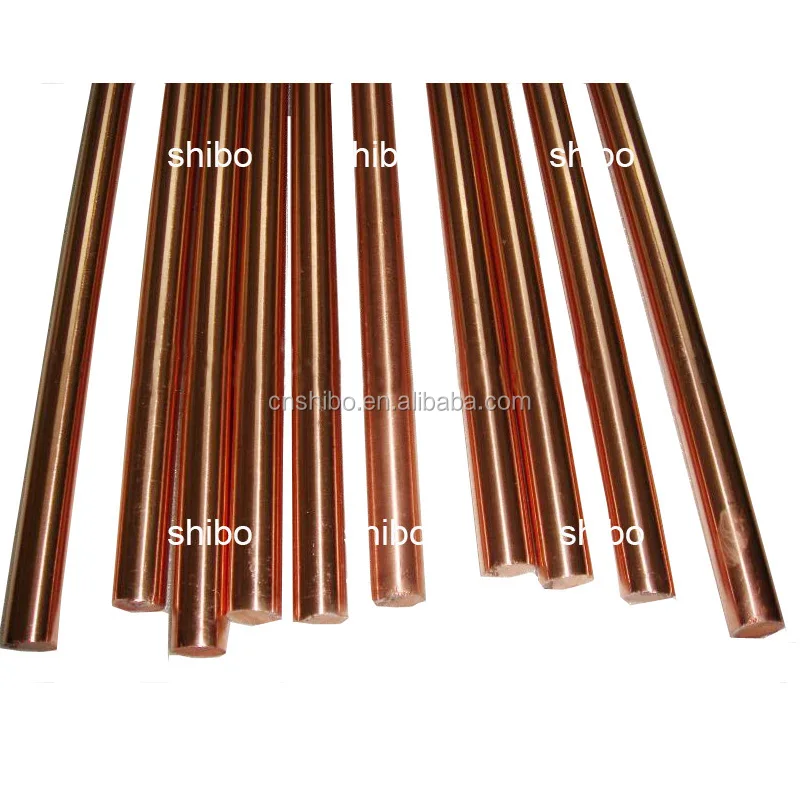

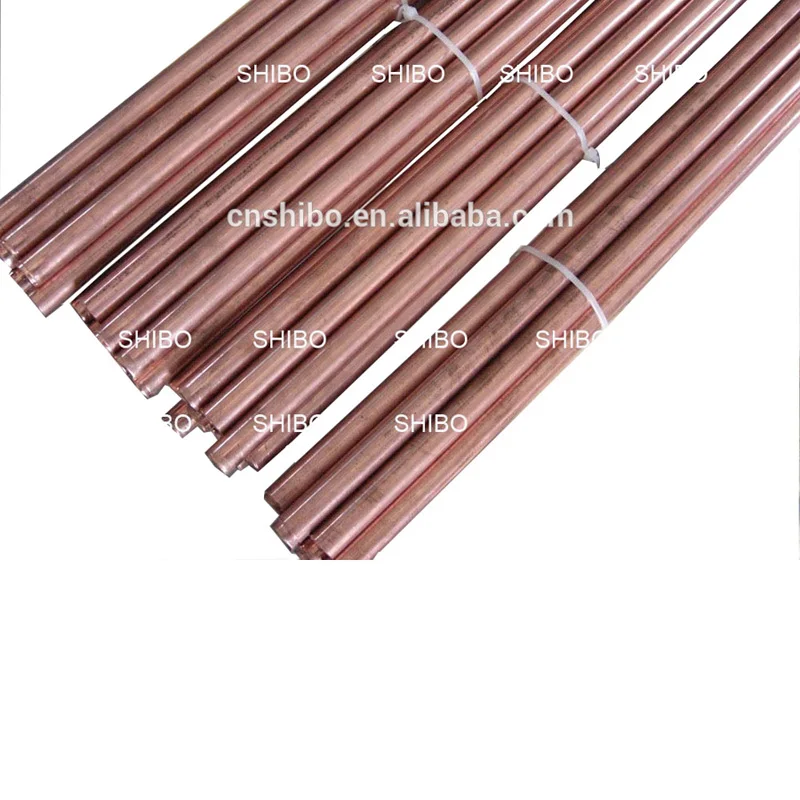

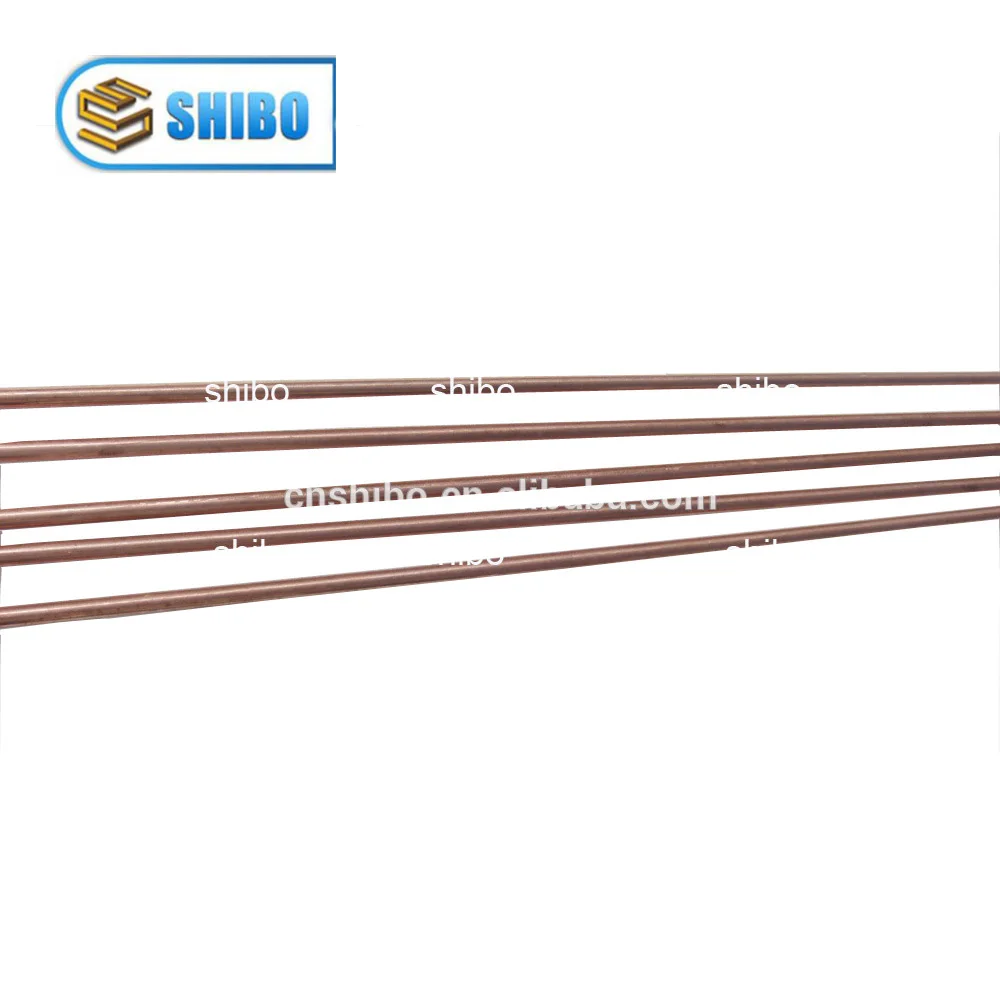

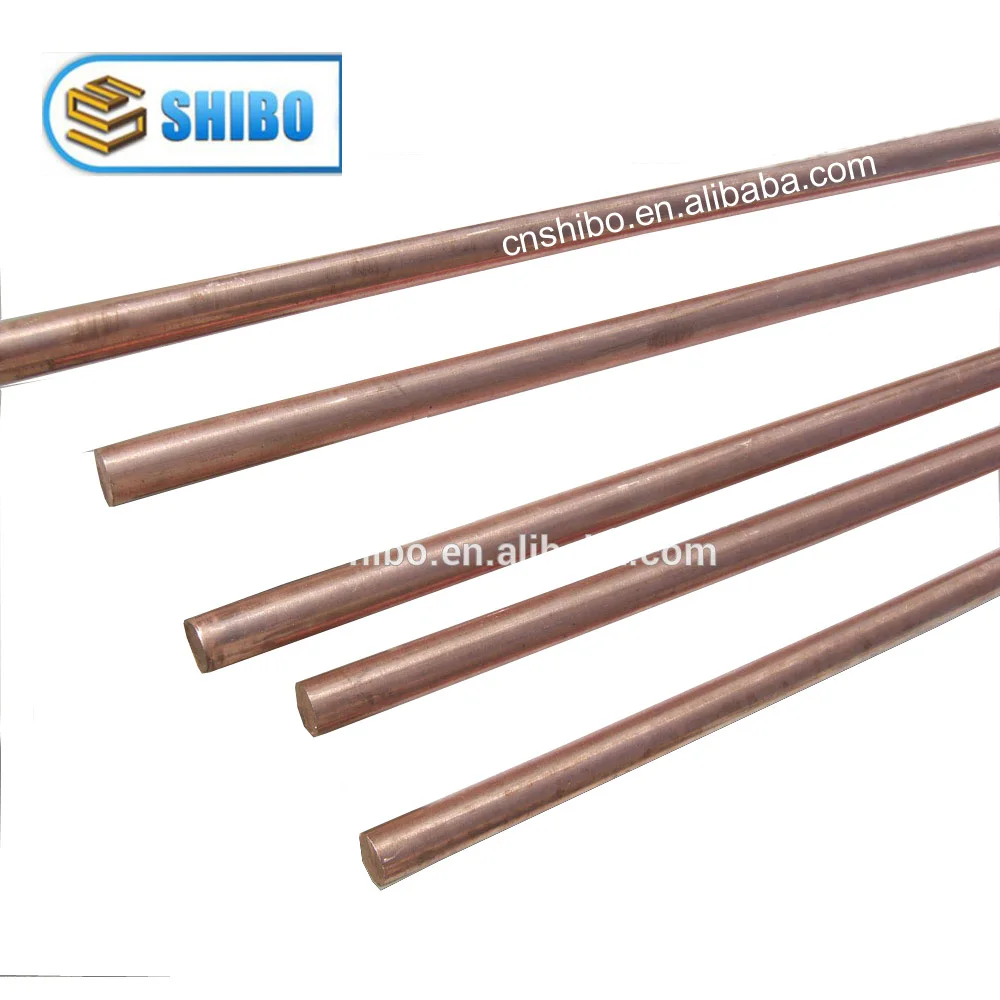

chromium copper alloy rods C18150
- Category: >>>
- Supplier: Zhengzhou Shibo Nonferrous Metals Products Co. Ltd.
Share on (60454667965):
Product Overview
Description
C18200 Chromium copper alloy
Copper alloys are generally used as lead-frame material because of their high electronic conductivity, thermal transfer property, and corrosion resistance. During the manufacturing process of lead frame, copper alloys are bent, coated, and etched. Therefore, precipitates included in copper alloys should be fine enough not to disturb uniform treated surfaces.
1) Specification:
Alloy No: C18200,C18150.
Diameter: 6-120mm
Length: 1000-3000mm
High conductivity,hardness
2) Chemical composition:
| C18200(CuCr) | ||||
| Cu | Cr | Fe | Pb | Si |
| Rem | 0.6-1.2 | 0.1 | 0.05 | 0.1 |
| C18150(CuCrZr) | ||||
| Cu | Cr | Zr | ||
| Rem | 0.5-1.5 | 0.05-0.25 | ||
3) Physical Properties
| C18200 | |||||||
| Diameter(mm) | Ultimate tensile strength(Mpa) | Yield Strength(Mpa) | Elongation % | Hardbess Rockwell(HRB) | Conductivity(% I.A.C.S) | ||
| ≤50 | 530 | 450 | 15% | 75 | 75% | ||
| 51-150 | 530 | 450 | 15% | 75 | 75% | ||
| C18150 | |||||||
| Diameter(mm) | Ultimate tensile strength(Mpa) | Yield Strength(Mpa) | Elongation % | Hardbess Rockwell(HRB) | Conductivity(% I.A.C.S) | ||
| ≤50 | 550 | 500 | 15% | 80 | 80% | ||
| 51-150 | 550 | 500 | 15% | 80 | 80% | ||
Application:
Widely used for automobile and spaceship stencil plate and contact welding stainless steel.
Ideal electrode material for seal welder.
Packing:Wood cases
Delivery time:20days
