Molybdenum Electrode plate, Molybdenum Electrode
- Category: >>>
- Supplier: Luoyang Kekai Tungsten & Molybdenum Technology Co. Ltd.
Share on (60454675957):
Product Overview
Description

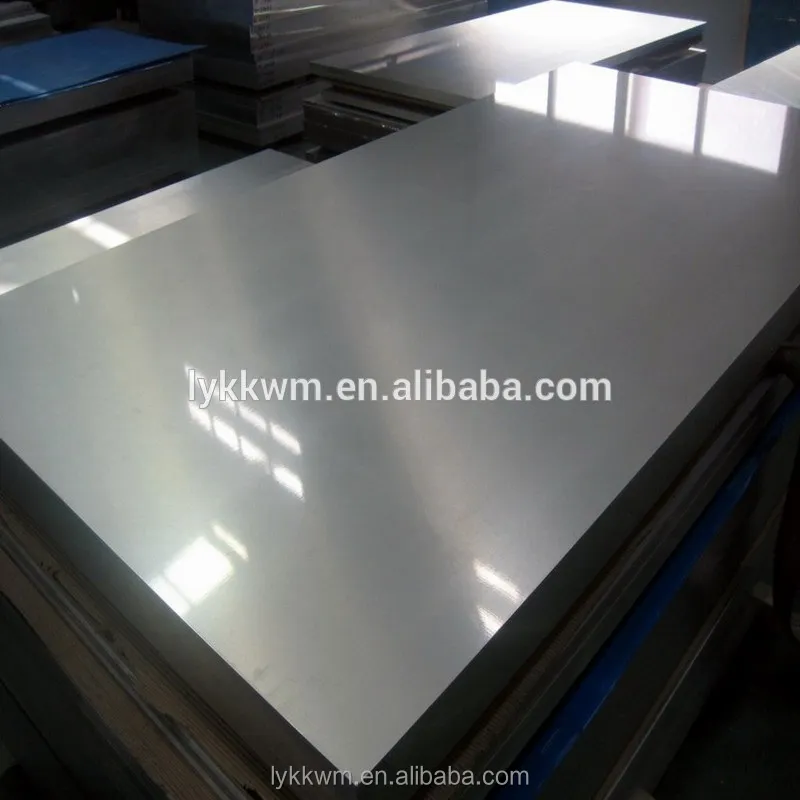

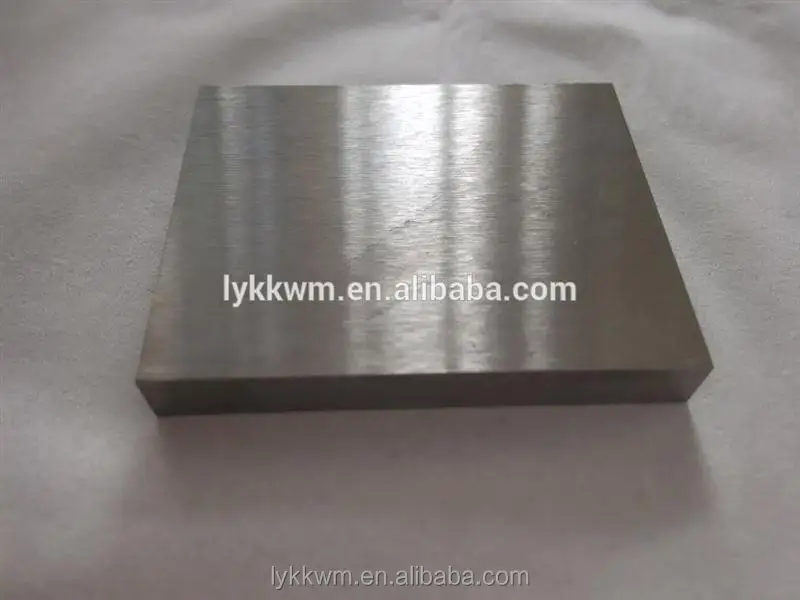

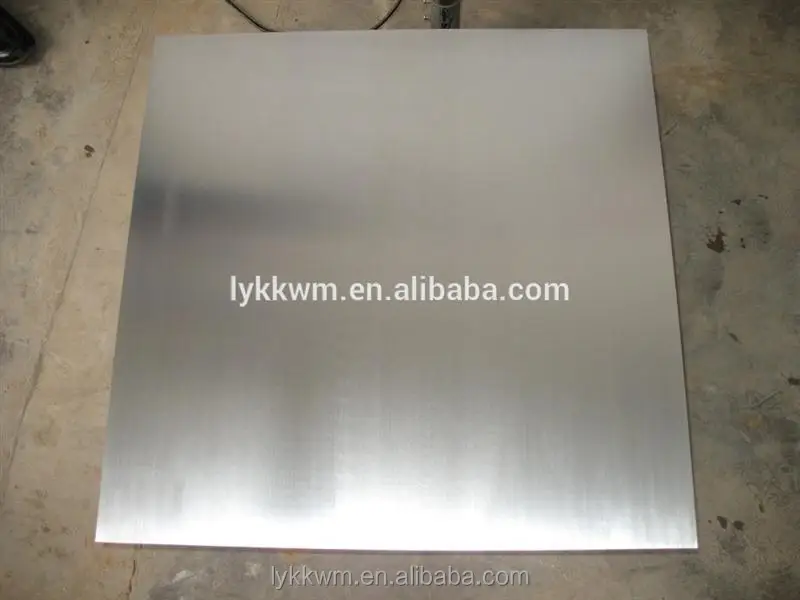

Molybdenum Electrode plate ,Molybdenum Electrode
Product Description:
Description:
1. Product name: Molybdenum Sheet
2. Standard: ASTM B386 or as required
3. Material: Mo >99.95%
4. Density: >10.2g/cc
5. Tensile strength: 610MPa
6. Elongation: > =10%
7. Using temperature: 1800℃, max temperature: 2310℃
Application:
Molybdenum plate is used for making electric light source parts, components of electric vacuum and electric power semiconductor. It is also used for producing molybdenum boats, heat shield and heat bodies in high temperature furnace. It is widely used in furnace construction mould and parts, electronic components manufacturing and semiconductor industry. In vacuum furnace and high temperature furnace and heat preservation material plate electrode, etc.
Specification:
Specification:(0.2-90) mm*max 760mm*max10m
We produce high quality molybdenum sheet as one of our hot product. We offer 3,000-5,000 kg molybdenum sheets per month and small order is also acceptable.
Surface Condition:
Surface can be supplied in a shiny, matte, satin, or as-rolled condition;
dependent upon thickness and width parameters.
Heat treatment:
Molybdenum flat products are rolled and annealed to provide the optimum condition for the desired end use.
Size:
Length(mm) | Tolerance(mm) |
<6 | ±0.1 |
6-30 | ±0.2 |
30-120 | ±0.3 |
120-400 | ±0.5 |
400-1000 | ±0.8 |
Composition:
Brand | Mo-1 | |
Mo (%) | 99.95 | |
Other Element Content (%) ≤ | Pb | — |
Bi | — | |
Sn | — | |
Sd | — | |
Cd | — | |
Fe | 0.005 | |
Ni | 0.002 | |
Al | 0.002 | |
Si | 0.003 | |
Ca | 0.002 | |
Mg | 0.001 | |
P | 0.001 | |
C | 0.005 | |
O | 0.003 | |
N | 0.001 | |
Use for example | Precision Manufacture | |
Packaging & Shipping
Packaging and shipping details:
Inspection
Every tungsten and molybdenum product is under strict nondestructive test and density detection. We offer material composition sheet and examination report of the products.

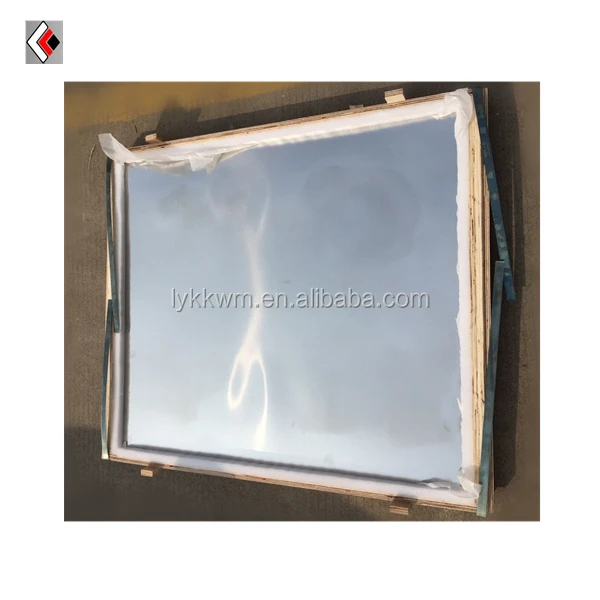

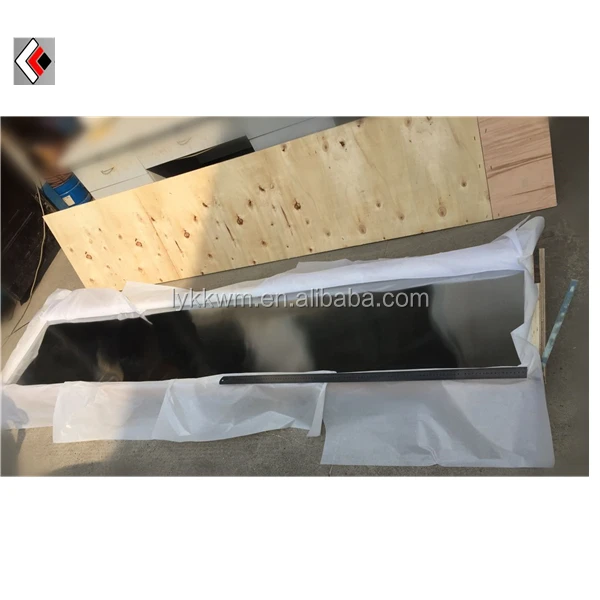

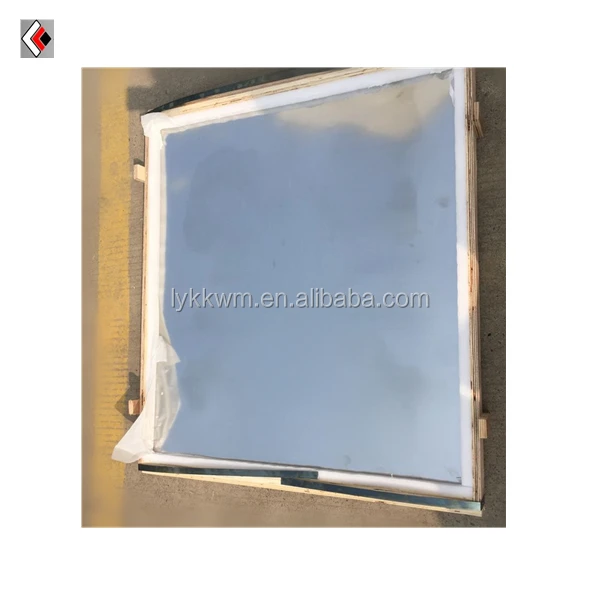

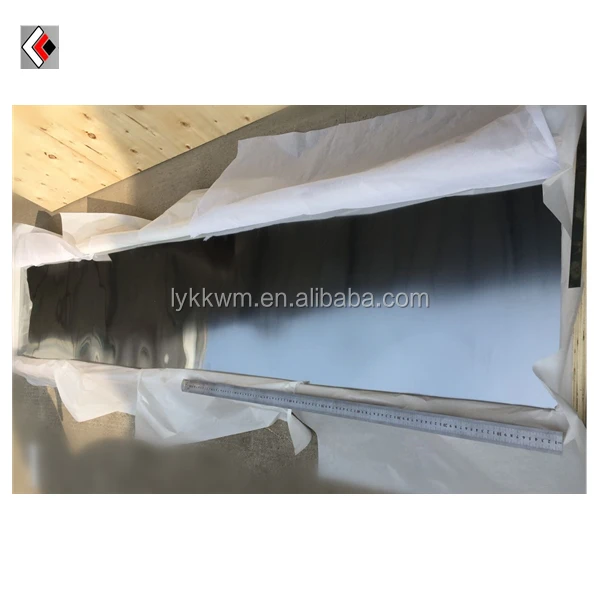

Packing:
First, packaging with moisture-proof paper
Second, packaging with kraft paper
Third, packaging with foam plastics in all side of plywood case.
Finally packing products in plywood case
Shipping:
We will ship the goods by DHL, Fedex, UPS, TNT, EMS etc. or as requires
it usually costs 4-7 days by air transportation
if you don't receive it in short time, please contact us freely.
