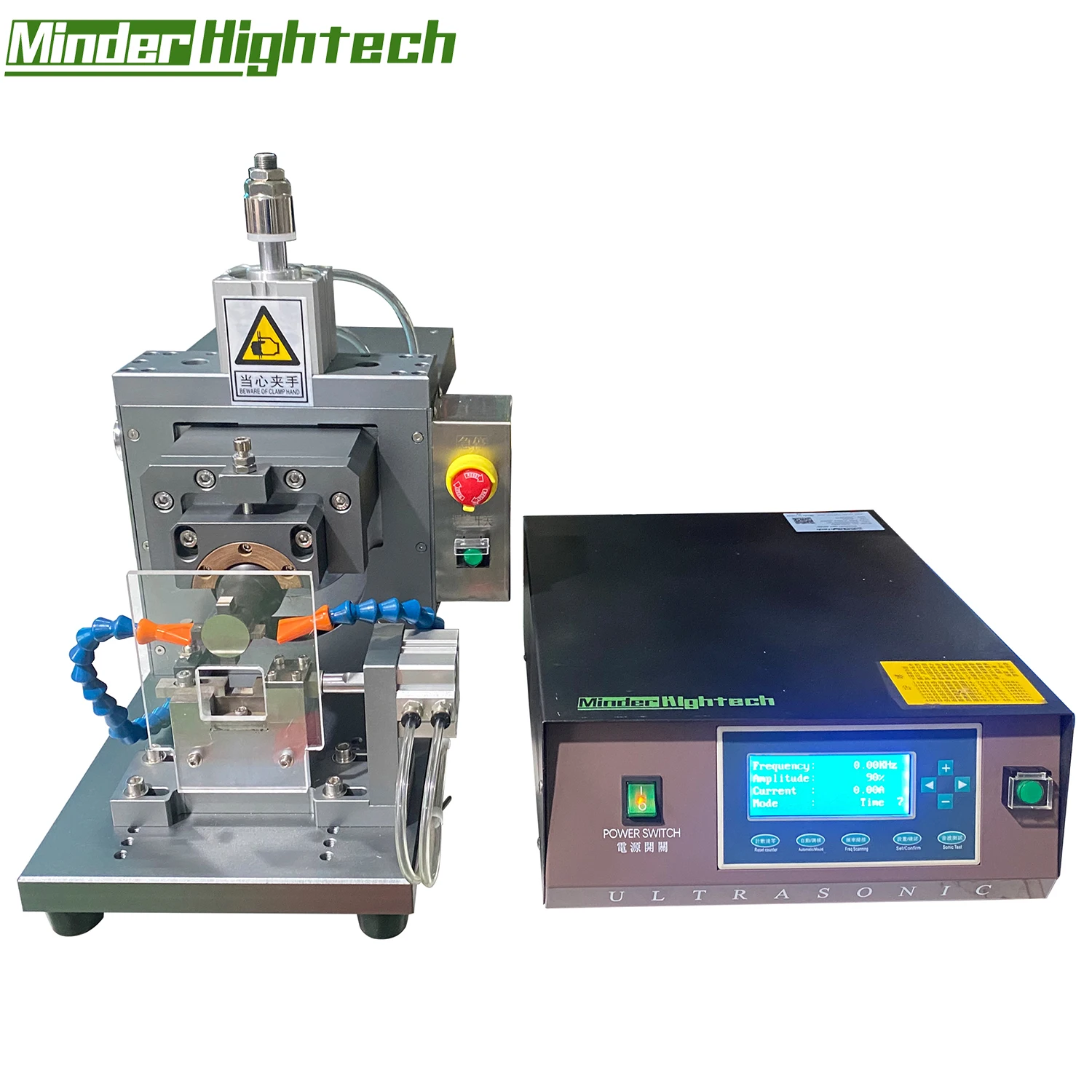

Semi Automatic Ultrasonic Copper Tube Sealing Soldering Machine
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (60455172875):
Product Overview
Description
Product Description

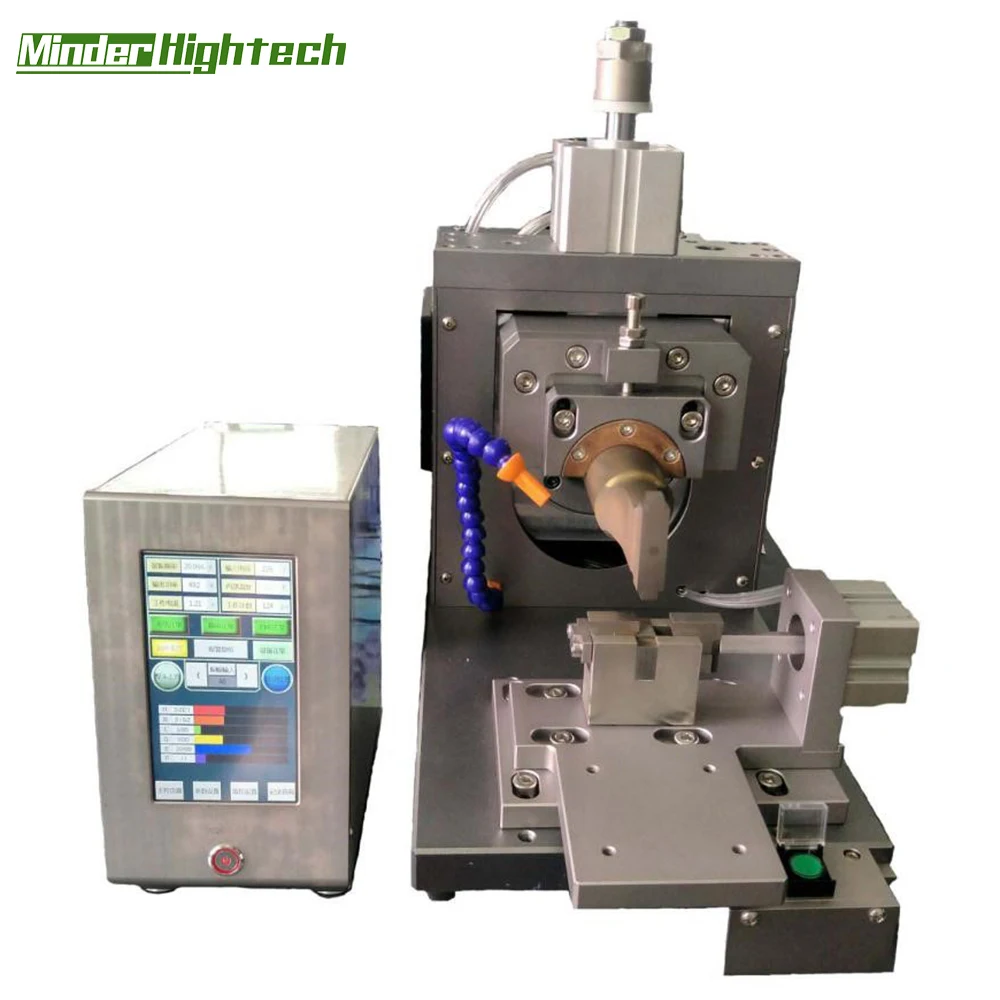

Semi Automatic Ultrasonic Copper Tube Sealing Soldering Machine
Ultrasonic sealing systems hermetically seal copper and aluminum tubes. A one-step operation crimps, seals and cuts off charged tubes in under one second. Systems are suited to automation for high levels of efficiency and productivity.
The 20kHz portable ultrasonic metal tube sealer specifically designed for explosive environments and can seal copper tubes up to 12mm in diameter. Its precise controls ensure consistent seals and are not operator-dependent, unlike alternative brazing processes.

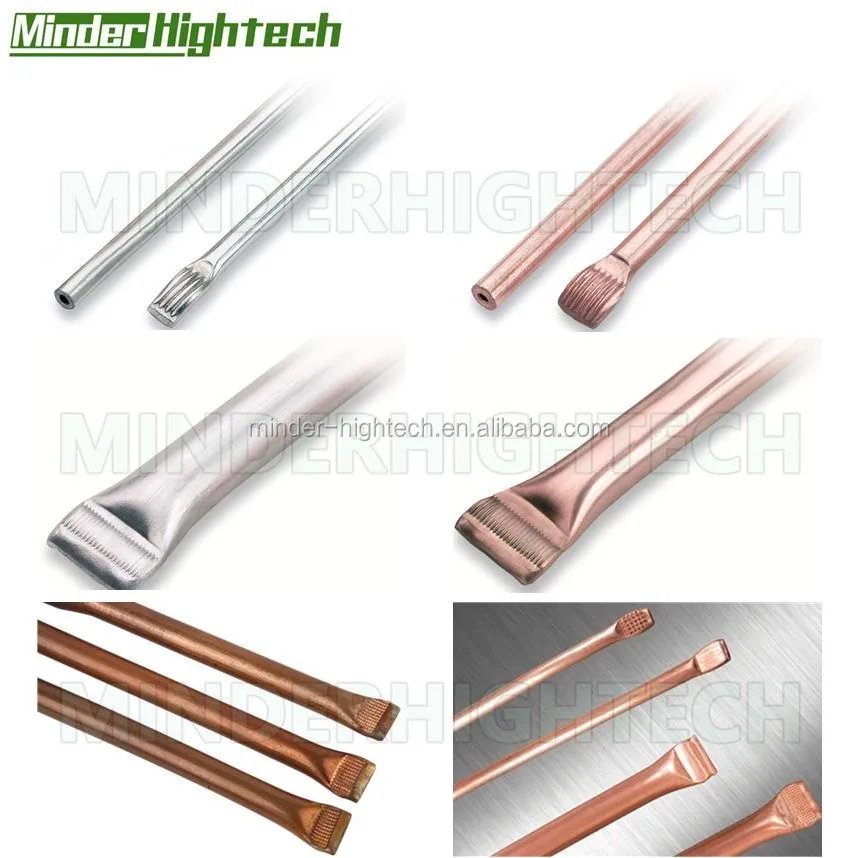

Applications include sealing charged tubes used in refrigerators, air conditioners and bulb temperature sensors, as well as capillary tubes.
Features
l Ergonomic, light-weight design for operation on the assembly line.
l Patented, quick change tooling with multiple weld surfaces for low cost operation.
lAutomatic process monitoring ensures each seal falls within preset quality limits of weld power, time and final height.
l Weld-to-height mode to compensate for tube material variations.
l Various tube sizes may be sealed in any sequence through automatic setup of weld parameters.
Advantages
l High-quality ultrasonic transducer, strong power, good stability.
l Oxidation or plating metal can be welded.
l Short weld time, no need additional flux, gas, solder.
l No welding sparks, environment protection and safety.
l Without the need for frequent replacement of amplifier due to stepless adjustment of the amplitude.
l Low energy consumption, high efficiency, no distortion, no pollution, welding firm, and convenient operation.
l Welding material does not melt non-fragile metal properties.
l Pairs of welding metal surfaces that require low, oxidation or plating can be welded.
Specification
Frequency | 20 kHz Nominal |
Power | Available in: 2000 W ~5000W |
Tubes Diameter | 4~12 mm |
Source Voltage | AC 110/220±10% V 50/60±10% Hz |
Generator Type | Digital automatic frequency tracking, generator can be adjusted the output amplitude from 5% to 100% |
Pneumatic Pressure | 0.3-0.6Mpa |
Size | Controller: 420mm(L) * 380mm(W) *200mm(H) Welder: 510mm(L) *280mm(W) *210mm(H) |
Weight | Welder : 35kg, Controller : 10kg |
Warranty | One year warranty with lifetime support |

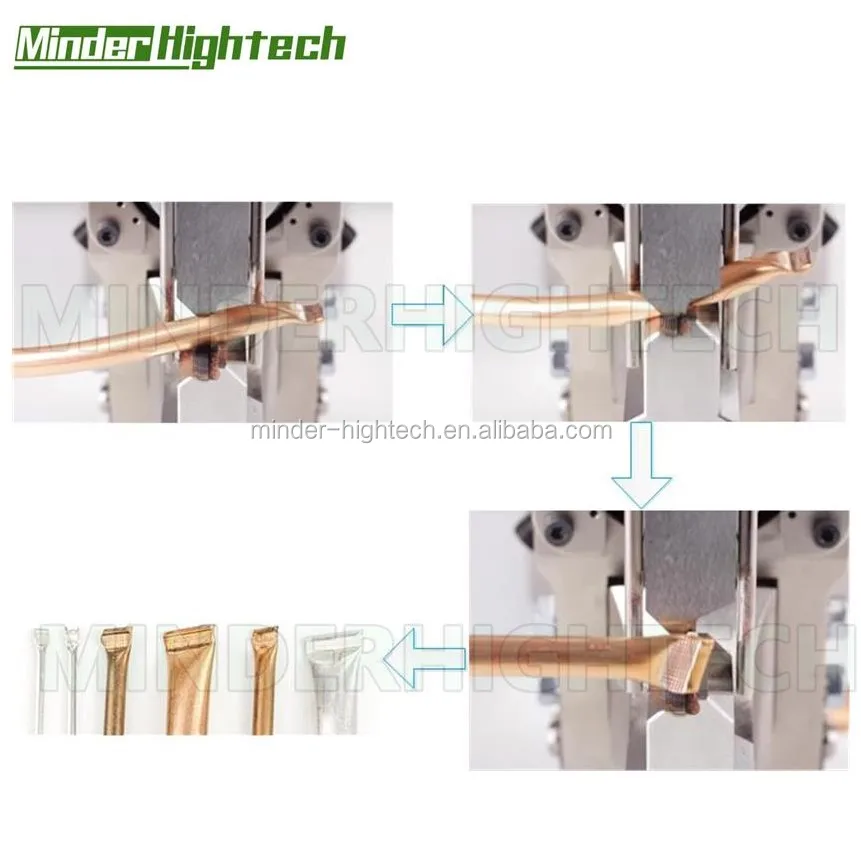

Tube Sealing Process Overview
l The operator places the tube sealer over the charged fill tube and actuates the start switch.

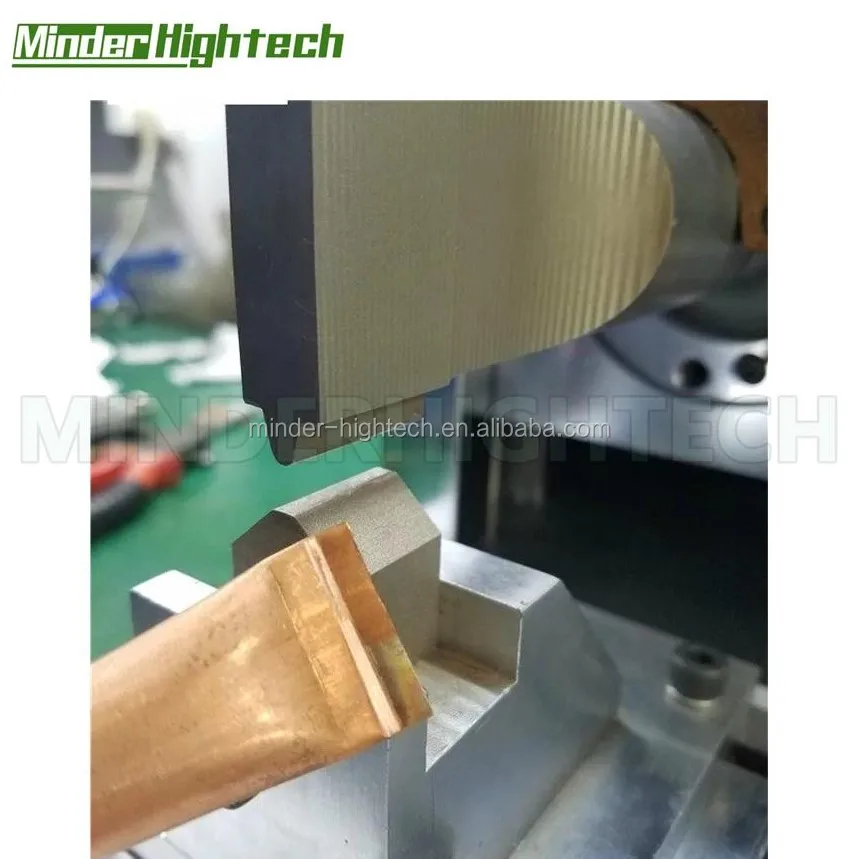

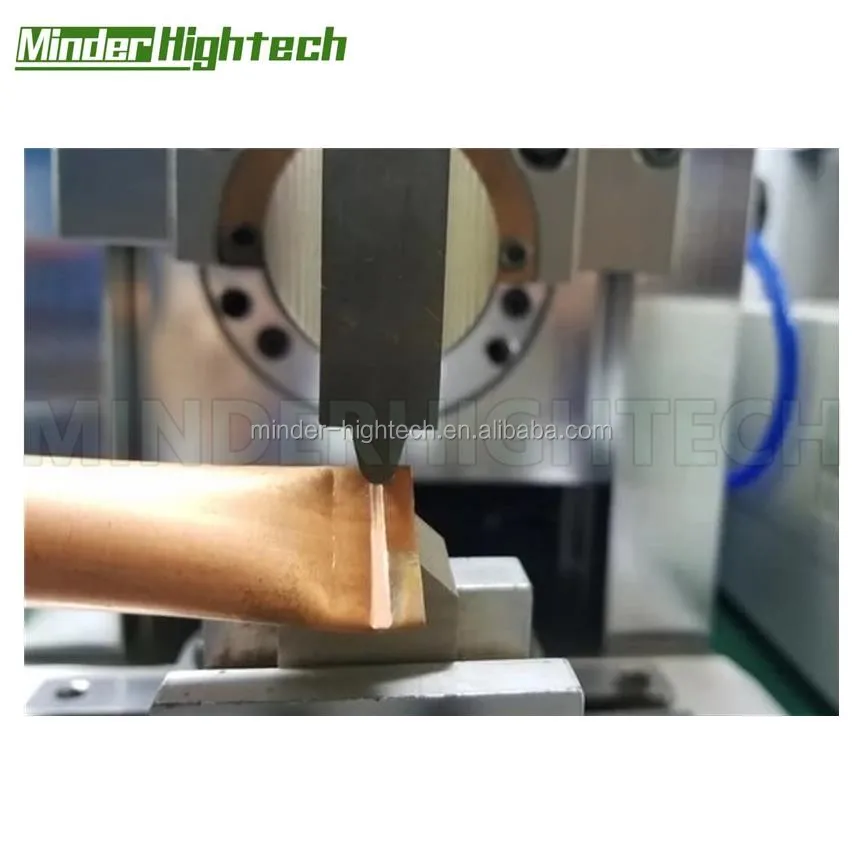

l A pneumatic cylinder advances a cam to clamp the tube closed and ultrasonic vibrations at the 20 kHz frequency vibrate the inner tube wall surfaces to form a true metallurgical weld.
l The tube is then cut off from the fill head completing the cycle in under 2 seconds.
Application area

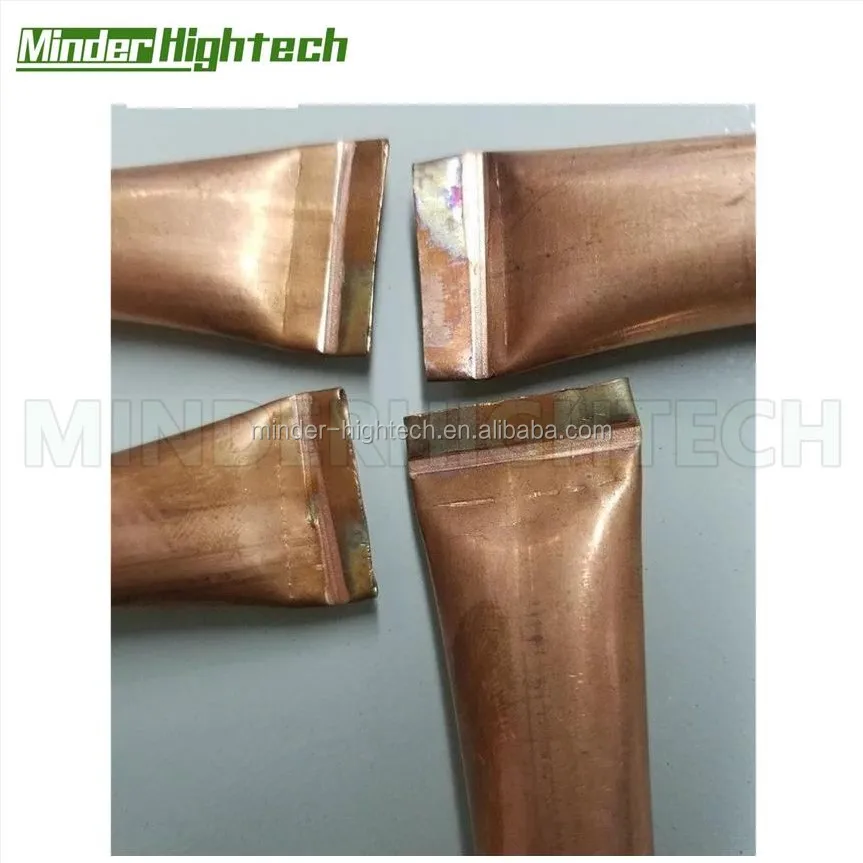

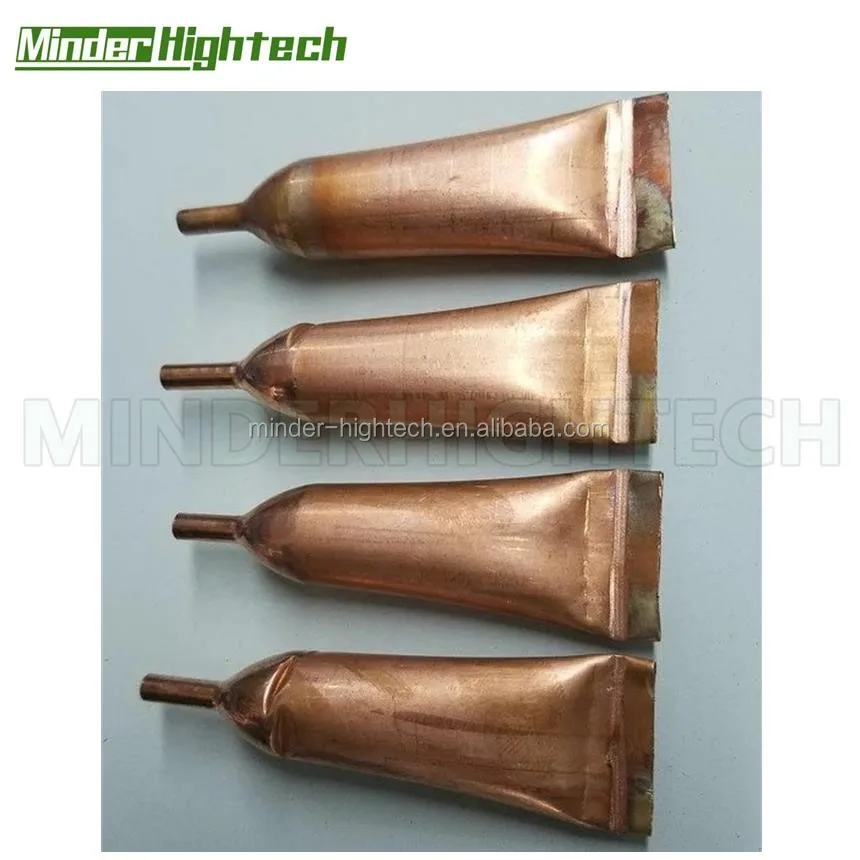

l Refrigerator and air conditioner copper tube sealing. Vacuum parts of copper tube and aluminum tube sealing.
