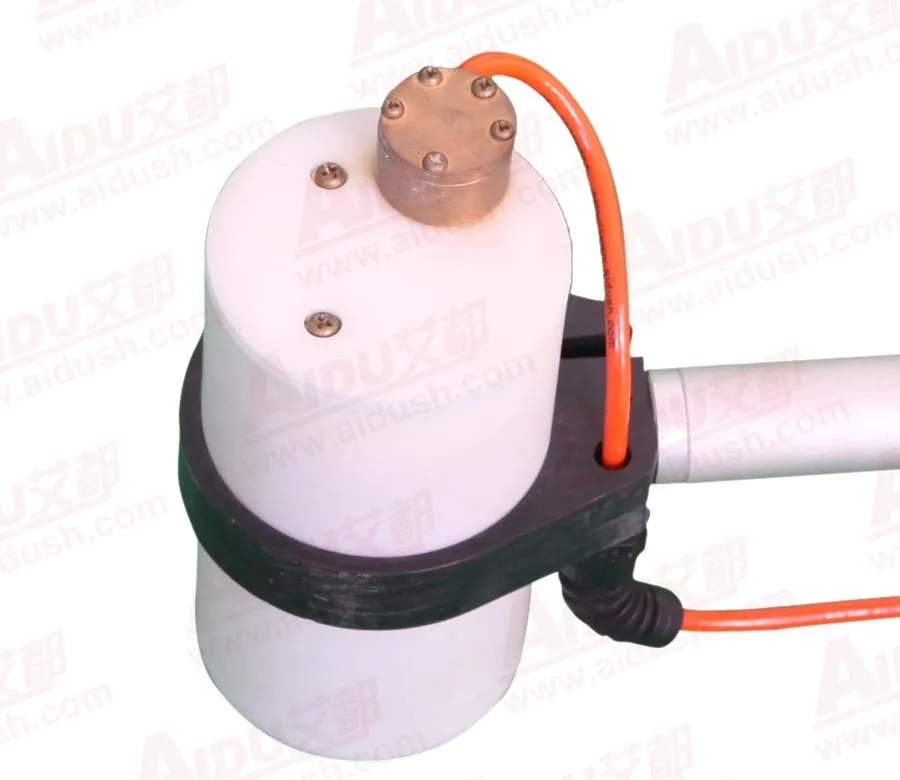

ACZ 8 Proton magnetometer small mine equipment

Share on (60455225321):


Price:

Quantity:


Product Overview

Description


ACZ-8 Proton magnetometer small gold mine equipment





Welcome to Shanghai Aidu Energy Technology Co., Ltd.

Glad to be at your service!





-----------------------------------------------------------------------magnetometer-------------------------------------------------------------------------------



Product Description



Main Characteristics:

1. High precise magnetic detector
2. Weak magnetic detectable
3. Diffrenciate high iron content metallics
4. Deep investigation depth

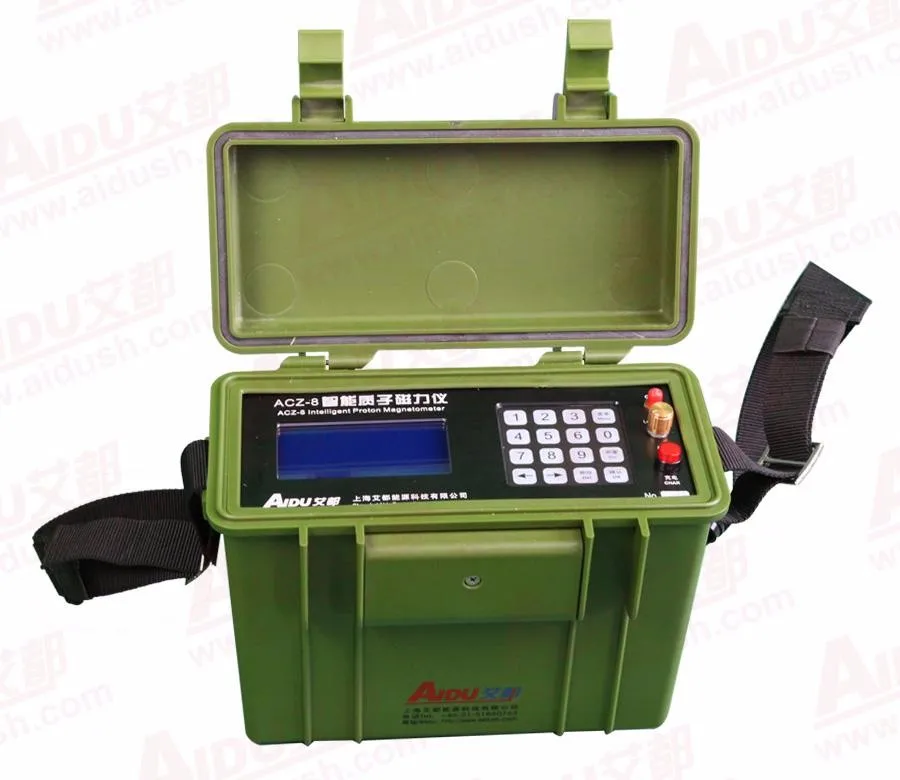

 ACZ-8-1

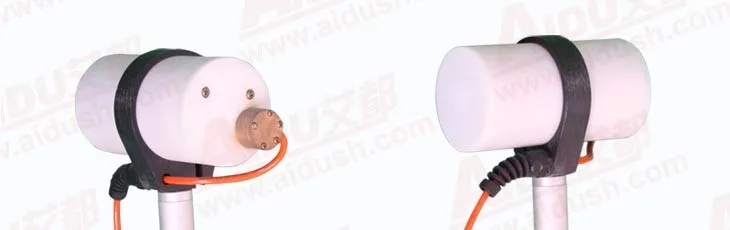

PROTON





ACZ-8 Proton magnetometer is a high sensitive device for monitoring weak magnetic, because of the free precession of hydrogen proton magnetic moment.
Its measurement accuracy is ±1nT and reslution is 0.1nT, which could absolutely detect magnetic metal and weak magnetic metal buried substance.
It also has excellent performance for detecting underground metal pipe, underwater metal pipe, metal buried substance and it could be used to detect metallic ore, magnetic prospecting geological mapping, earthquake monitoring prediction.
Large storage capacity, high resolution and flexibility. It could be used as portable, mobile and base station magnetometer.




Built-in GPS, coordinate record, navigation lights, and the connection is more simple, and the instrument is more reliable.
Full -scale automatic tuning or artificial manual tuning.
Built-in precise clock, GPS timing to ensure the clock of base stations and mobile stations is accurate synchronization.
Each point is stored with the information of the magnetic field result, point cordinate time, and temperature etc., directly output all the data with a U disk.
English interface, and automatically displays the magnetic field value curve, the operation is more easier and convinient.
Portable and light, one person can finish all the work.
Equipped with the software to do the diurnal correction and create the contour map and profile map.













Application:



1. Widely used in mineral exploration(such as iron ore, lead and zinc, copper etc.).


2.With mining exploration, research the ore body’s buried depth, occurrence and continuity, and study the shape and size of the ore body, estimate the deposit, oil and natural gas exploration, research the geological structure and tectonics of oil and gas etc..


3. The diurnal correction of aviation and marine ground magnetic survey, fault location, archaeologic, engineering exploration, such as pipeline detection, earthquake precursor monitoring, and volcano observatory, as well as other environmental and disaster geological work.

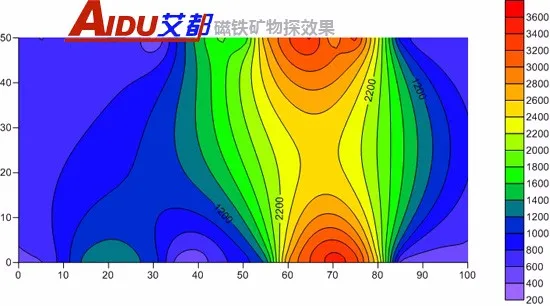

MAGNETOMETER EFFECTmagnetometer test on site







Technical parameters:



Measuring range20,000 nT~100,000nT
Measurement accuracy±1nT
Resolution±0.1nT
Allowed gradient≤6,000nT/m
Measurement interval of the base station2~60s, set as your requirement
GPS positioning accuracy<2.5m
Data storage capacity100,000 points , with Power Failure Protection
LCD320x240 graphic LCD with backlight
Input keyboard16 keys
Data portUSB2.0
supply powerbuilt-in rechargeable lithium battery
Working temperature-10 ℃~+50 ℃





Packaging & Shipping

Packaging:  Waterproof shell, Aluminum suitcase.Top grade packing.

Shipment: Within 7 days after production. By air or by sea.

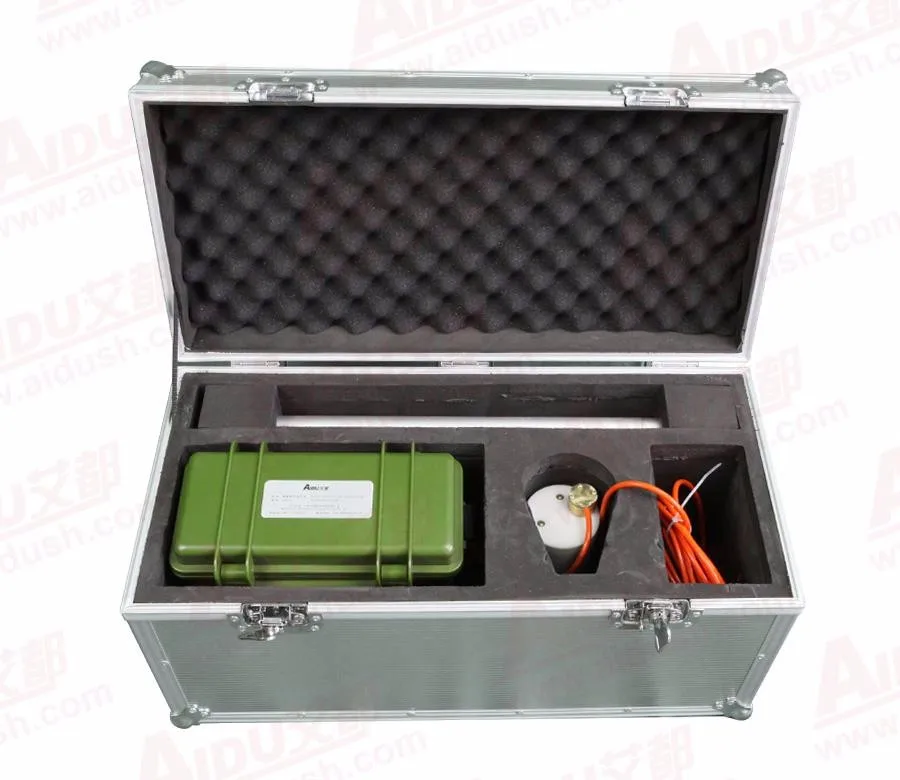

ACZ-8-2

Our Services





1. Lifelong Maintenance


In 7 days after sale, if our products can't be used because of the quality problem, we promise that they could be retuned, replaced and their guarantee period is 48 months.





2. Lifelong free upgrade


Software free upgrade, Hardware chargeable upgrade.





3. Product training


We supply video, instruction and engineer overseas training. We will teach you until you find water or mine.





4. Immediate response


If there are any technical problem, We will timely reply you in 24 hours.

Company Information



Shanghai AIDU Energy Technical Co.,Ltd is a high technology enterprise, which is set up of R&D, manufacturing and sales. We have 40 years history in R&D.



We obtain 2 Invention Patents
We obtain High Technology Enterprise Certificate
We win national financial support for innovation



-en

Invention Patents



-3

Factory



-EN

FAQ



What is One-stop service?



We manufacture prospecting instrument, exploration machine. And we could also supply you analysing instrument, Ore dressing equipment. You could purchase all related devices and accessories from us.









How to set an order?



1. Underline order:

You could contact Ms. Mollida by her skype: mollidahuang; her whatsApp/wechat: +86 15202263578. She we communicate with you timely and let you know the order details underline.



2. Online order:

You could set your order directly on alibaba. They will guarantee you the whole business process with Trade Assurance. Just click "Start Order", let us start our cooperation!







 -1
