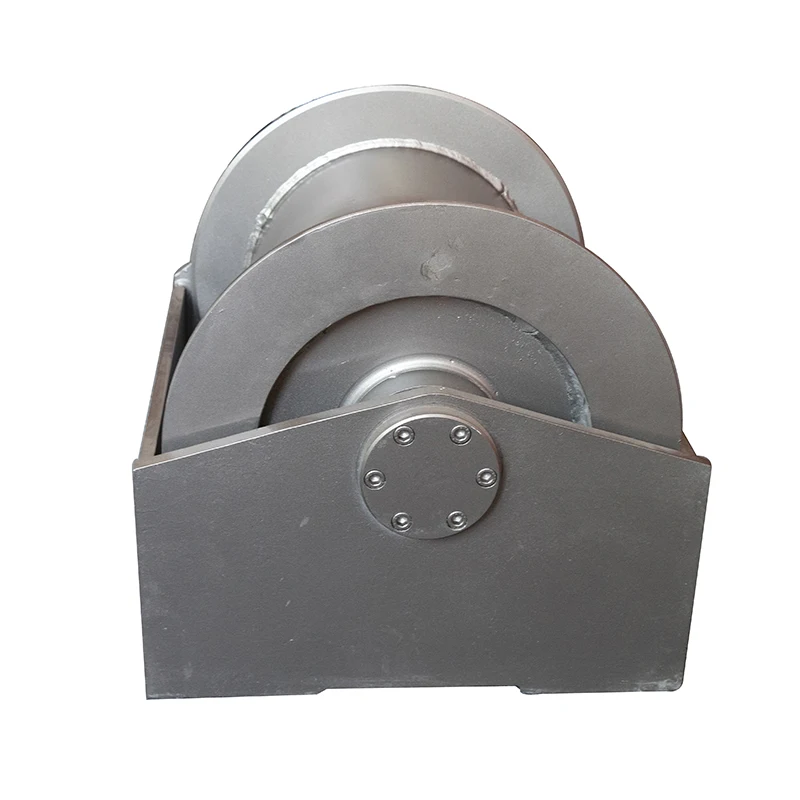

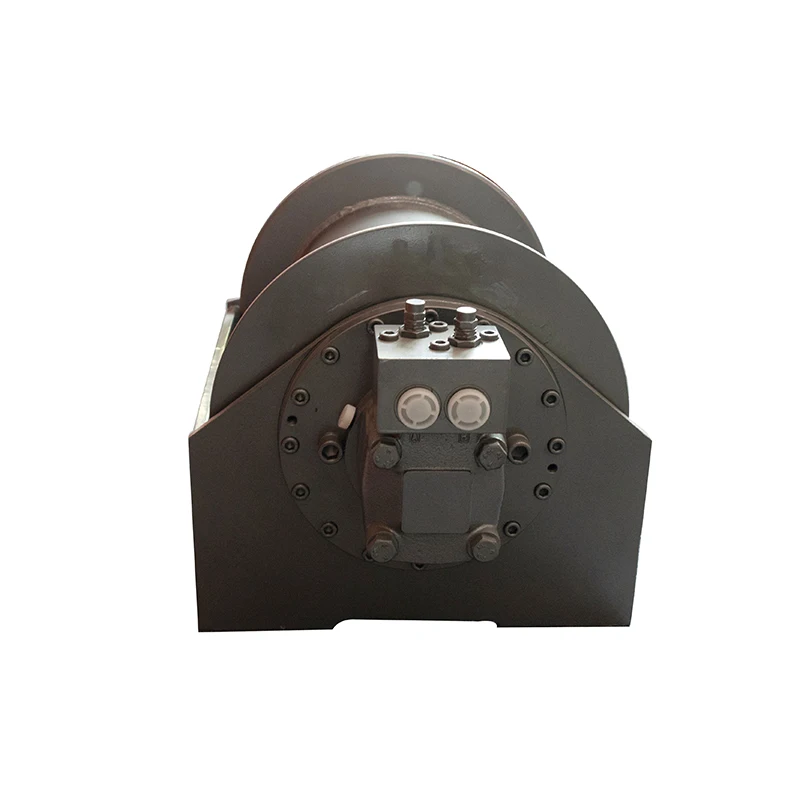

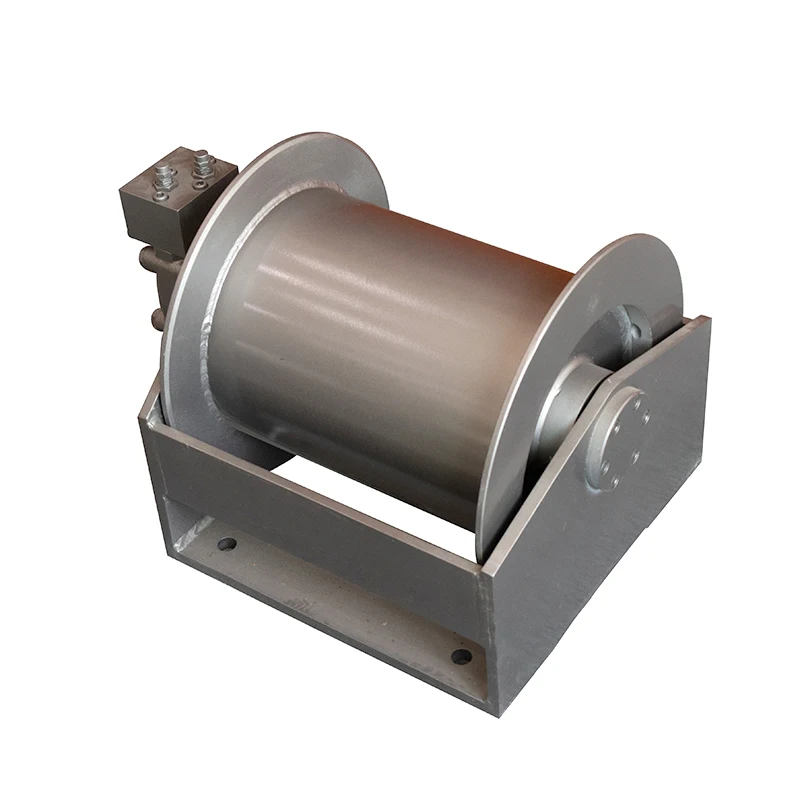

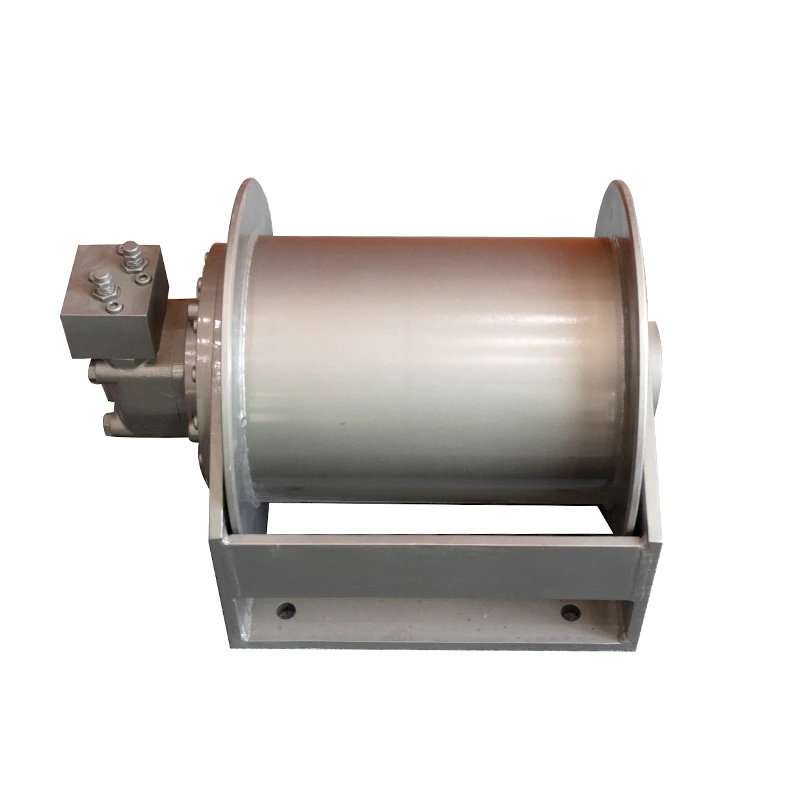

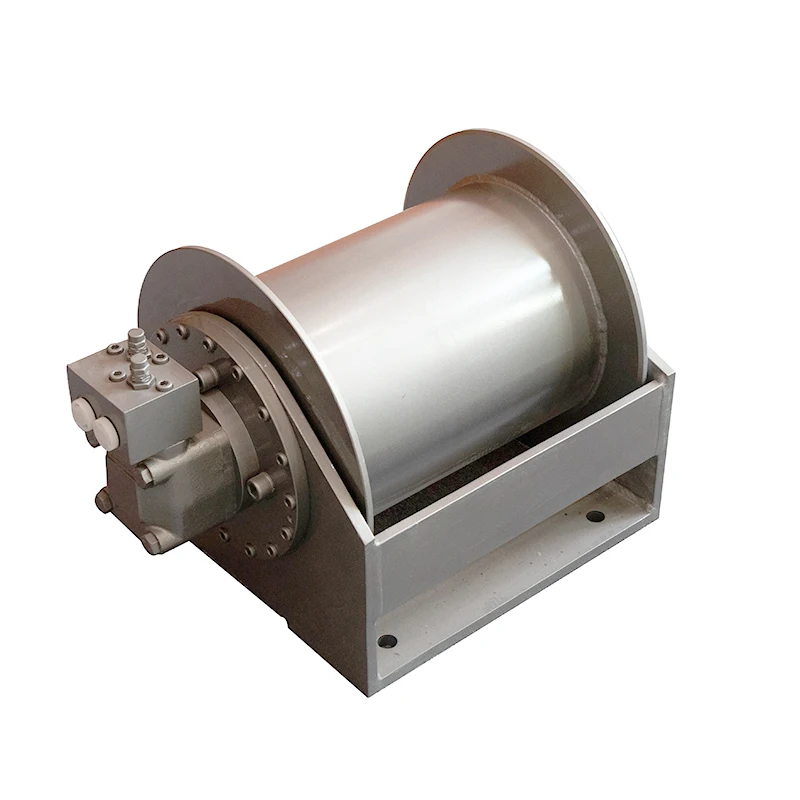

ziHYD/THOTH 5 Ton double drum hydraulic towing winch motor

Product Overview

Description



1.Hydralic Winch is made up of inner BM orbit hydraulic motor, planet gearbox decelerator, mechanism brake, ect.



2. Hydraulic Winch adopts steel structure's machine frame using thread conjuction, the control system of which includes shuttle valve and balance valve,ect. Having compact design and small size.



3.  Hydraulic Winch adapts to lifing and traction facilities, such as shipping, port, car, ect.



 TECHNICAL DATA

Type	(Max Pull)*10N		Working Pressure(Mpa)	Rope Layers (n°)	Suggesied Rope Diameter(mm)	Rope Capacity(m)	Displacement(mr/r)	Max Rope Speed(m/min)		Associated motor	Weight(kg)
	Firstn°	Lastn°						Firstn°	Lastn°
ZYJ2B	2300	1850	13.9	4	12	80	1890	34	40	BM4-320	130
ZYJ2Ba	2300	1850	13.9	4	12	80	1890	34	40	BM4-320	125
ZYJ2.5B	2500	1990	13	4	13	120	2400	30	36	BM5-400	209
ZYJ3B	3000	2400	13	4	13	120	3000	26	32	BM5-500	210
ZYJ3.5B	3500	2800	13	4	13	120	3750	22	28	BM5-630	211
