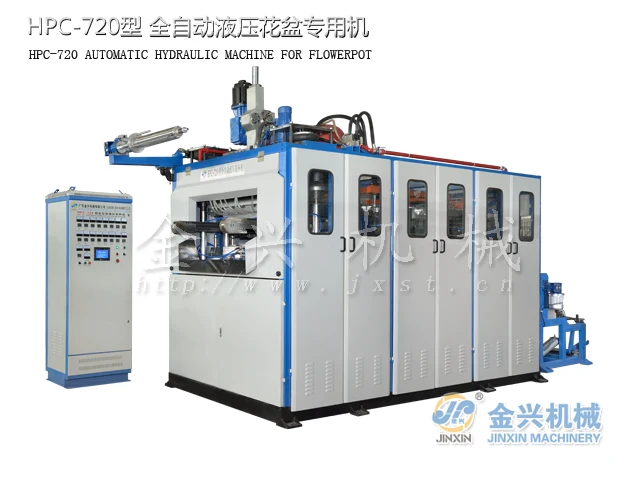

JinXin brand automatic hydraulic plastic flower pot thermoforming making machine

Product Overview

Description

JinXin brand automatic hydraulic plastic flower pot making machine

Parameter

Mode No. / Parameter	HPC-720
Available Material	PP,PE,PET,HIPS,GPPS
Formed Area(mm)	720x450
Formed Depth(mm)	120/180
Formed Speed(cycles/min)	10-30
Max. Width(mm)	720
Thickness(mm)	0.3-2
Power of The Whole Machine(kw)	≤55
Air Wastage(Mpa)	0.6-0.8
Water Wastage(m3/h)	≤0.5
Dimension(mm)	6200x2800x2600



Function

1.The machine adopts hydraulic pressure system to produce products, stable running, small noise, good mold locking ability.

2.Electromechanical, gas, hydraulic pressure integration, PLC control, high precision frequency conversion.

3.Completely automatic and fast production speed. By installing different molds to produce different products.

4.Adopt imported famous brands of electric and pneumatic fittings, stable running, reliable quality and long life.

5.The whole machine is compact, one mould has all functions, such as pressing giving, forming, cutting, cooling, punching and finished product blowing. Short process, high quality of finished products and meet the national sanitary standard.

6.The machine is fit for producing PP, PE, PET, HIPS, GPPS and other plastic products. Specialized in making flowerpot, with punching container.

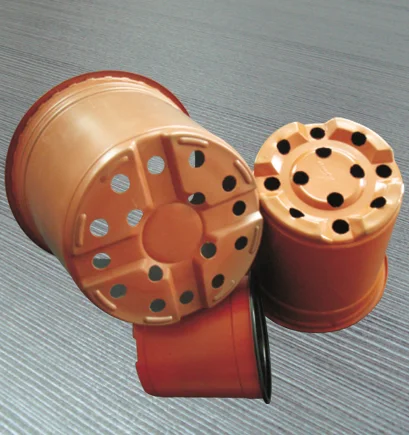

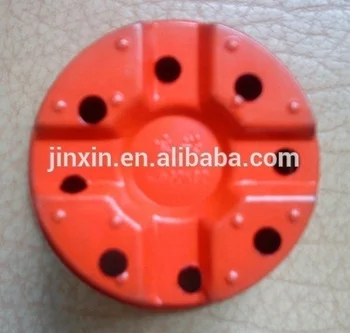

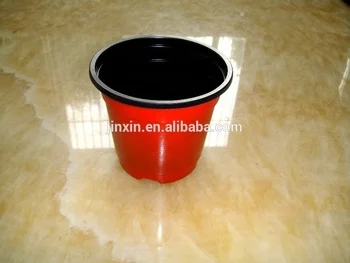

Sample
