Oscillation tube Toshiba 8T85RB,HF Triode tube ,Electron Tubes 8T85RB
- Category: Oscillators old >>>
- Supplier: Dongguan Jingyi High Frequency Machinery Co. Ltd.
Share on (60455892652):
Product Overview
Description
Japan Canon 8T85RB Oscillator Tube
Product Description
1. We have Japan Toshiba Brand tube and China made Jingguang Tube for customer choose
2. We can provide oscillation tube for 1.5 KW to 300 KW high frequency welding machine
3. PLS inform us the tube model for the quotation

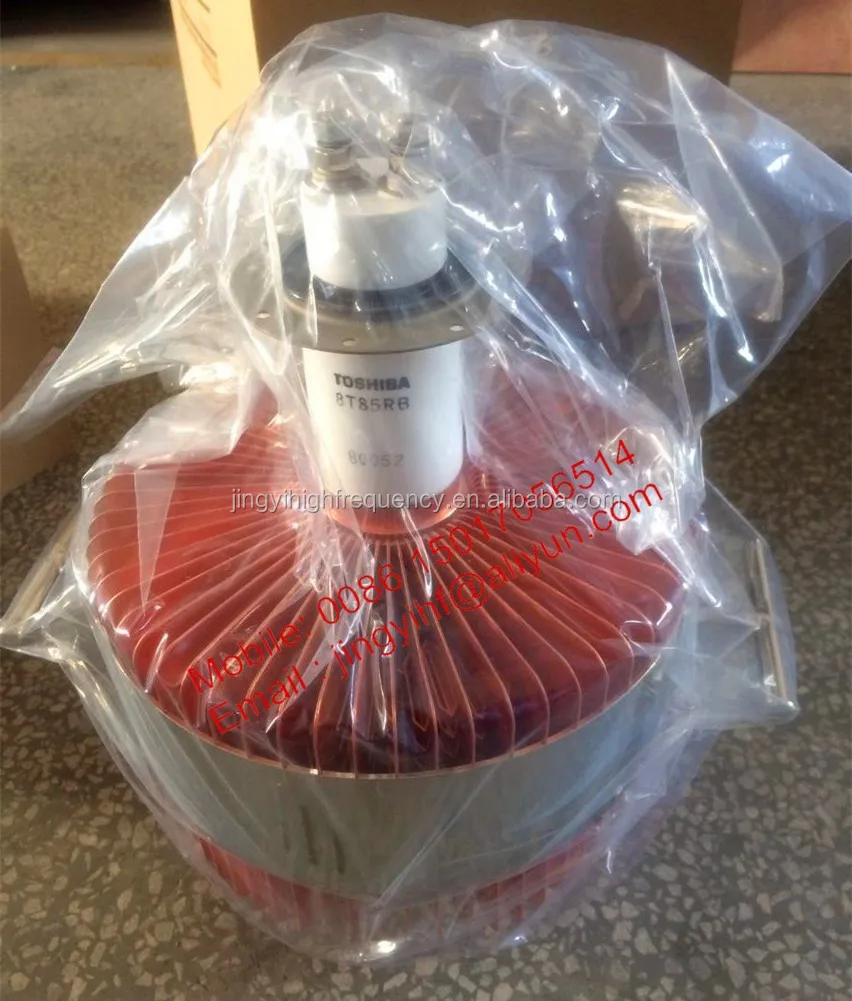

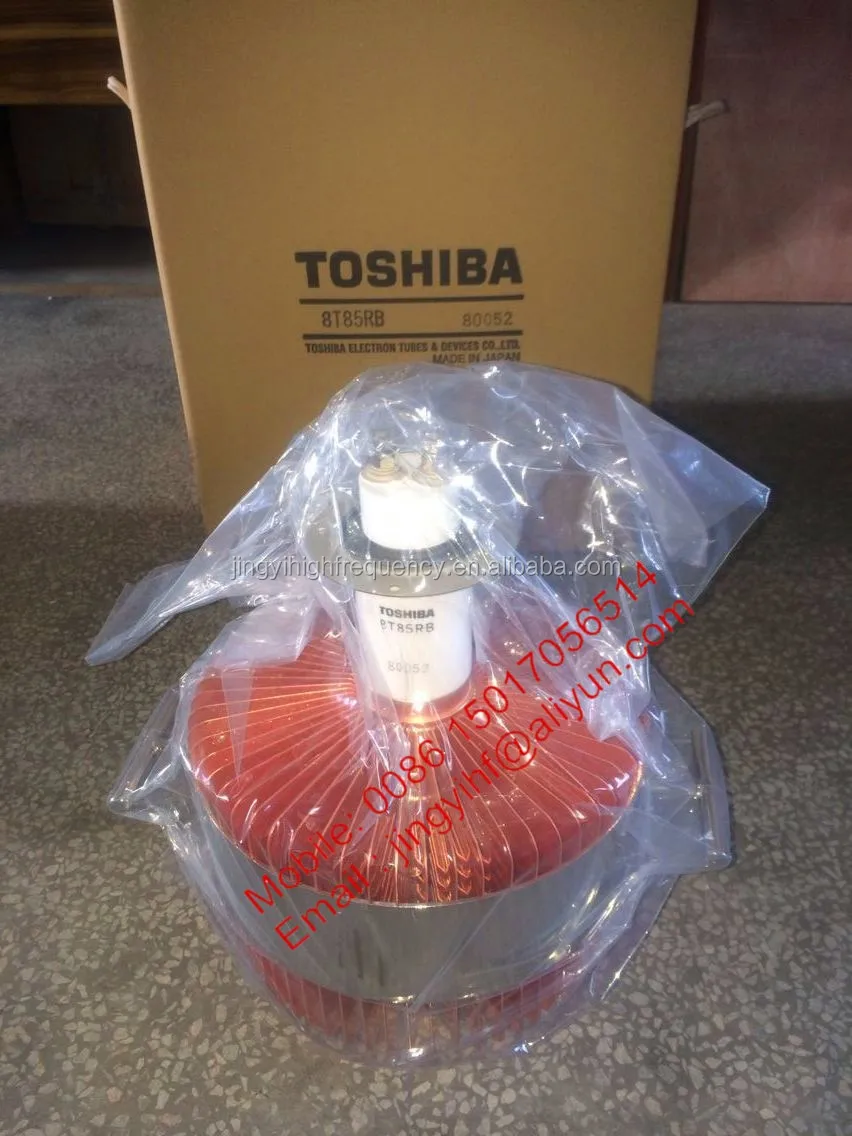

4. The tube with Paper box and delivered by DHL, UPS or Fedex, TNT, EMS.
5. We are professional High frequency welding machine factory in China, we can supply all kinds of accessories for high frequency welder.
Models For Choose:
E3062E E3085 E3109 E3069 E3130 E3185 E3050/9T75 E3116 E3132

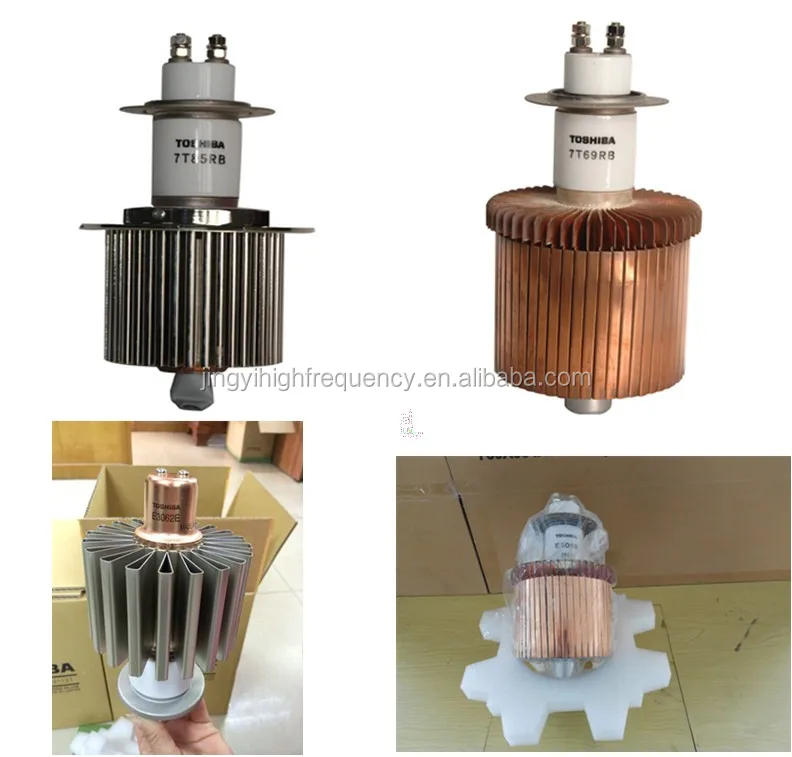

6T58RA 7T62R 7T84RB 7T85RB 7T69RB
8T20B 8T20RB 8T30A 8T64B 8T64RB 8T69JB 8T30RA
8T85RB 8T25RA 8T25 8T61A 8T72B 8T87B 8T87RB 8T61A 8T72B
9T64B 9T71C 9T94A 9T38A/LD961 9T40 9T83 E3050/9T75
3-500Z FU-998FA FU-834FA FU-998F FU-501 FU-605 FU606 FU8785F FU-33/833A/833C
TB5-2500/7092FU/606/6T50 TB4-1250/5867 TB3-750/5867A/TY4-400
6T51 5727 813
3CX800A7 3CX2500H3 3CX2500F3 3CX1500A7 3CX15000H3 3CX3000A7 3CX3000F7
3CW20000H3 3CW30000H7 3CXH10000D3 3CXH1000H3 3CX800A7 3CX4500F3/YU108 YU148
4CX250B 4CX500A 4CX3500A 4CX2000 4CX2000C 4CX5000A 4CX7500A
ITL5-1 ITL12-1 ITL15-2 ITK15-2 CTK15-2
FD-911S FD-912S FD-934S FD-935S
7F37R 7F71R 8F67R 8F68R 8F76R 9F45
RS3021 RS3150

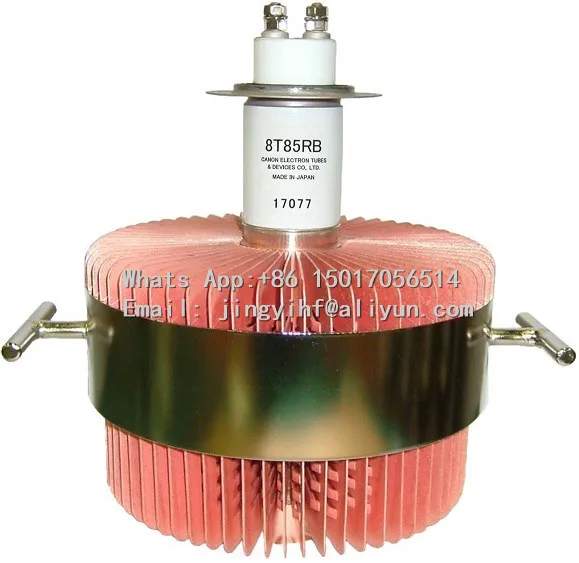

8T85RB

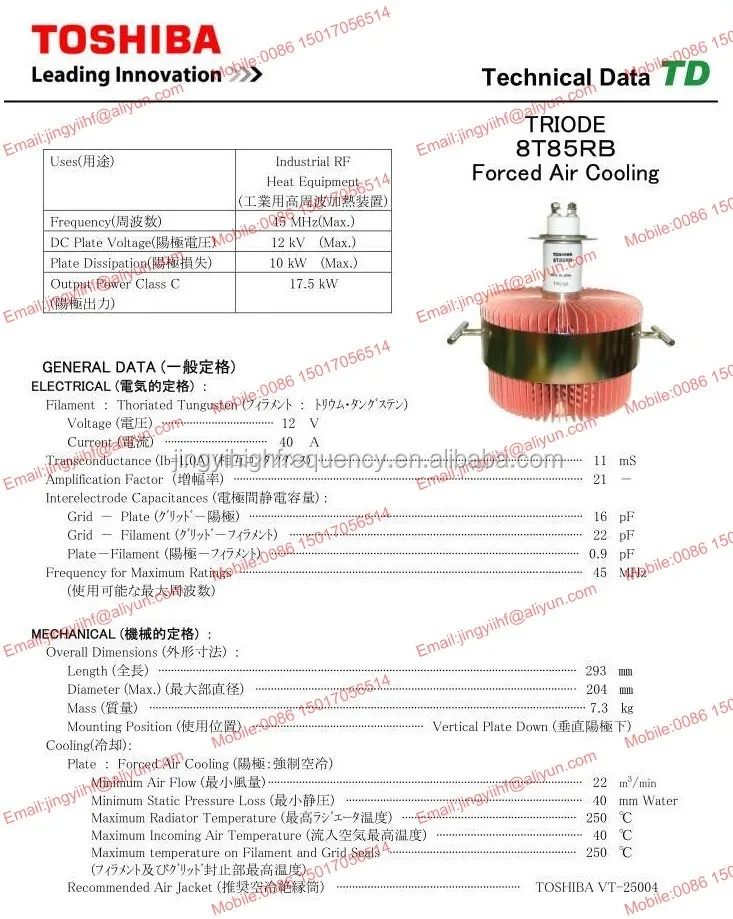

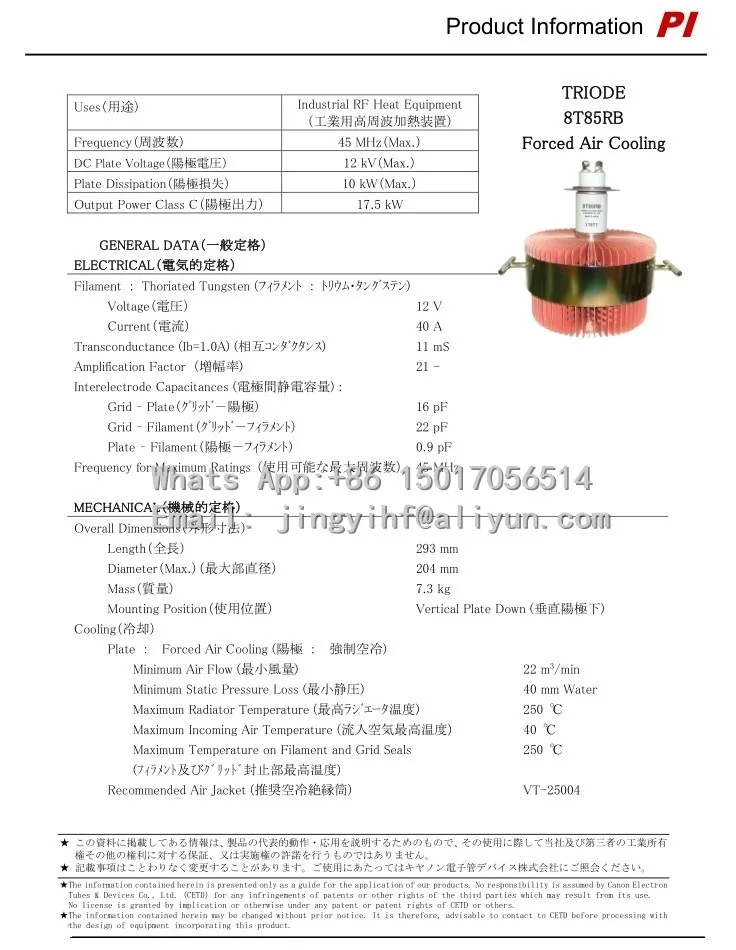

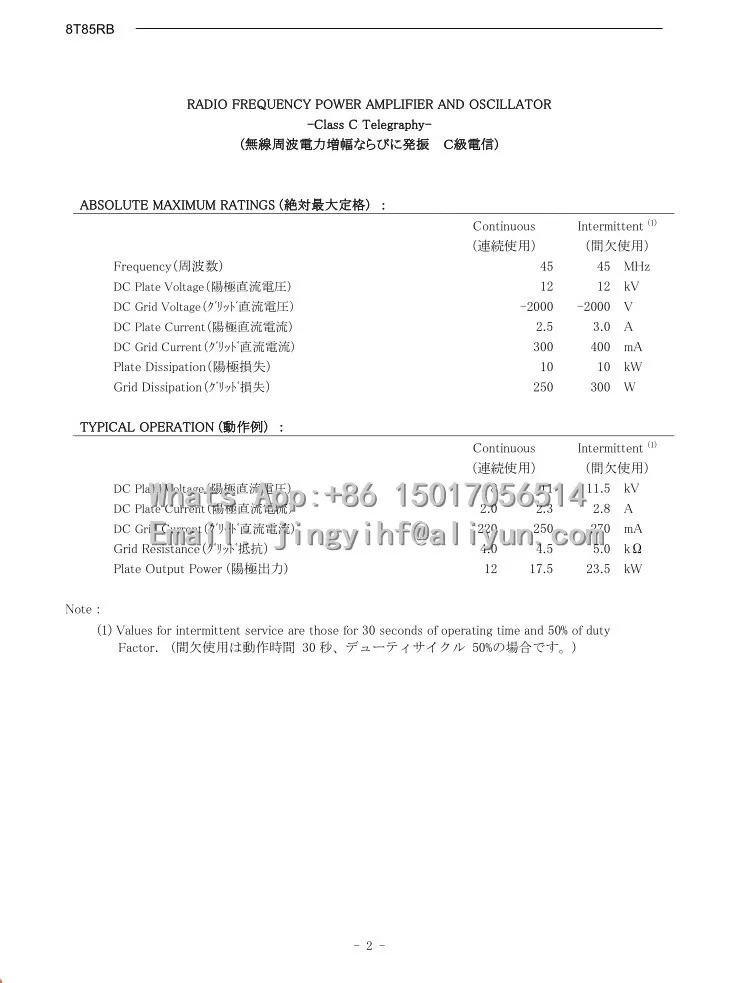

ISO9000 Triode 8T85RB electron tubes are high-power metal ceramic triode, their anodes cooled by forced air, and their maximum anode dissipation power is 10kW; when at a frequency not higher than 45MHz, their output powers may attain to 12kW. They are mainly applied in industrial high-frequency heating equipments for oscillations or in radio equipments for amplifications.
Ceramic triode (30-600KW) | |||
Type | FU-8785F | ||
Equivalent on abroad | 8T85RB | ||
Output power(KW) | 12 | ||
Cathode | Cathode materials | Thoriated Tungsten | |
Voltage(V) | 12 | ||
Current(A) | 40 | ||
Main electric parameters | Amplification factor | 21 | |
Inter-electrode Capacitances (PF) (Cathode earthed)
| Filament-Grid | 22 | |
Filament-Anode | 0.9 | ||
Anode-Grid | 16 | ||
Maximum | Maximum anode dissipation (KW) | 10 | |
Maximum grid dissipation (W) | 250 | ||
Maximum anode DC voltage (KV) | 12 | ||
Maximum frequency (MHz) | 45 | ||
Cooling | F | ||
Weight (kg) | 9 | ||
Additional: The information here may be modified with the products variation. Cooling: F--Forced air cooling S--Water cooling Z--Vapor cooling | |||
