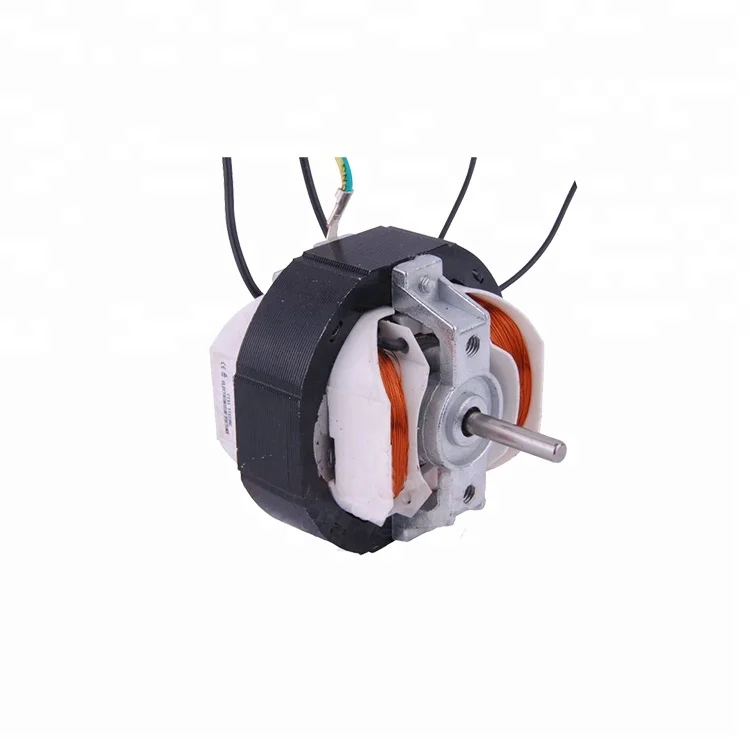

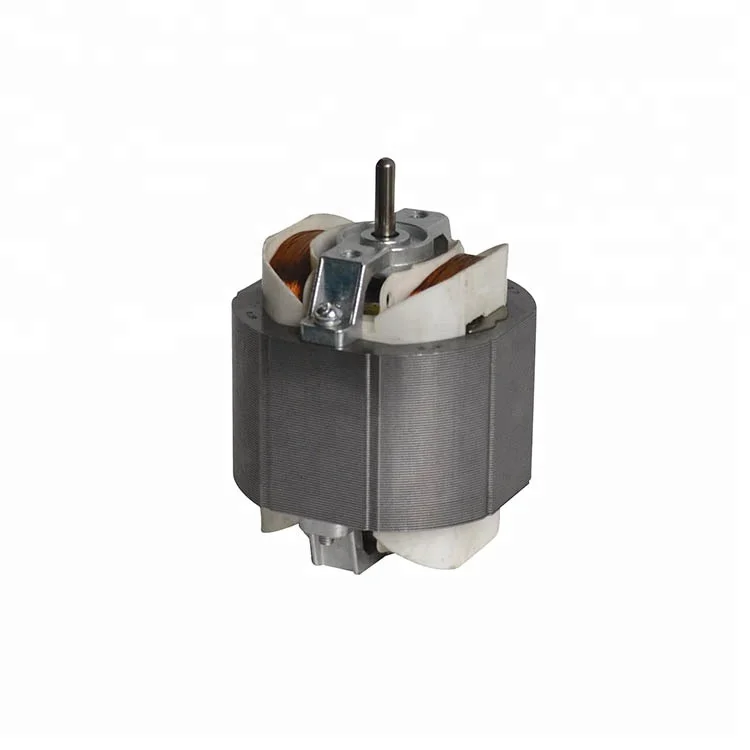

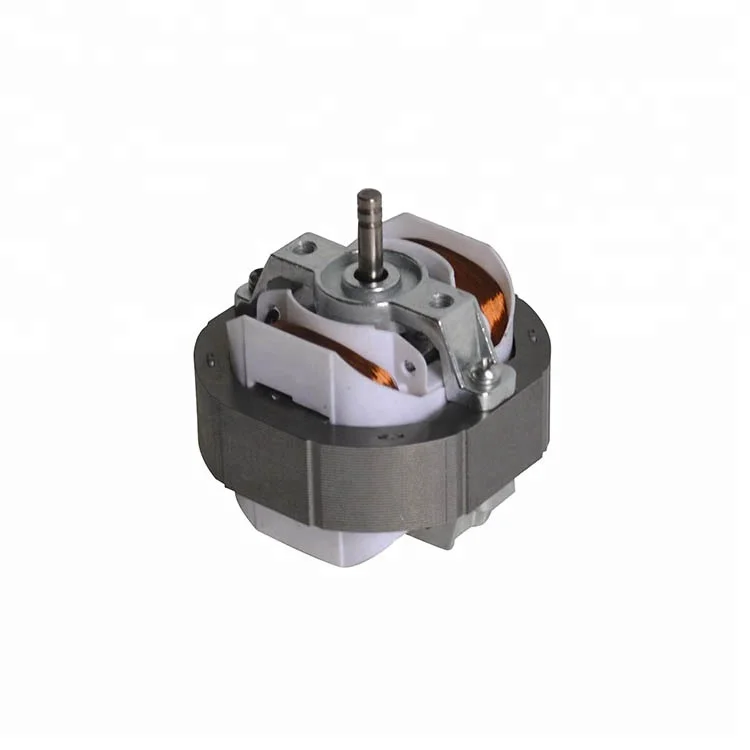

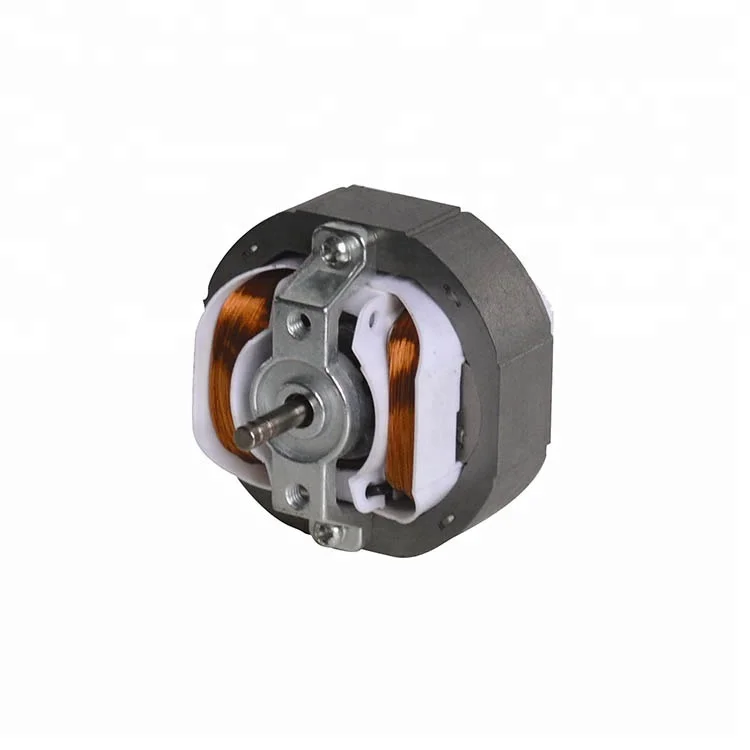

Copper Wire Shaded Pole Motor Of Hand Dryer High Quality Approve by CE TUV

YJ58 motor is shaded pole motor with single phase, 2 shaded pole and running at rated voltage of 220-240 V, 50/60 Hz, or 110-120 V, 60 Hz. They are widely used in ventilation systems of household and industrial field, heater etc household appliance.

All material conform to RoHS.
The input power is from 8 W - 40 W, which is relative to the stack thickness and coil parameters.
The insulation class of motors is B or F.
Some motor are impedance protection and the some motor are thermal fuse protected.
The applicable ambient temperature if from -10°C - 40°C.
Because our standard motors adopt sleeve bearing, we suggest installing these motors horizontally. On request  motors can be furnished with ball bearing.
The average service life of motors is over 10000 hours.
Before operating the motor, make sure the earth wire of the motor connected with external grounding device.

Products Name	YJ58 Shaded Pole Motor
Voltage	110-120 V 60 Hz or 220-240 V 60 Hz
Bearing Type	Sleeve Bearing or Ball Bearing
Rotation	CW or CCW
Speed Level	1 Level (1500  -2500 RPM), or 2 level  (1500 -2500 RPM)
Power	8 - 40 W
Insulation Class	E , or B, or F

Our Certifications

Packing & Delivery

Packing Details  : Double corrugated paper box, inner plastic foam box, 60pcs/carton

Delivery Details : 60 days

Two layer plastic foam box, and use film and desiccant;

Use tape and belt to seal the box

Neatly placed on the pallet

For LCL, Use Film to cover goods and palets, than package by belt

LCL goods, send to warehouse

FCL, Neatly and orderly put carton in the caontiner.

Our Company

Component Workshop

Winding Workshop

Assemble workshop

Warehouse

Our Service

Rapidly feedback

We will feedback to you within 24 hours

OEM / ODM

OEM/ODM are available

Free Samples

We can supply 3 pcs free samples for checking and test.

Customer Photo

Attend every kinds fair to Italy, Germany, Polan, Russion, Turkey, India, etc

Go to visit customer and welcome customer to visit and checking our factory any time.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 60 days if the goods are in stock.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
