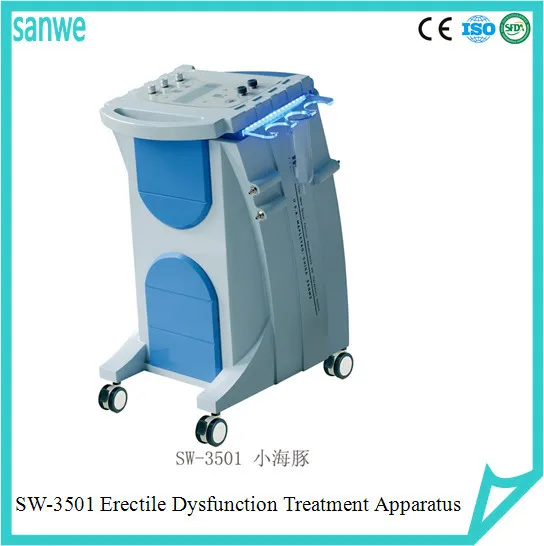

SW-3501 Male Sexual Dysfunction Therapy Instrument (Click)

SW-3003 Trolley Type Infrared Inspectio Equipment for Breast (Click)
SW-3003 Trolley Mammography Diagnostic Instrument (Click)
SW-3004 Infrared Oxygen Inspection Machine (Click)
Neck Massager Instrument (Click)
Cervical Neck Massager (Click)
SW-3101 Gynecology Mastopathy Treatment Instrument (Click)
SW-3101 Mammography Therapy Instrument (Click)
SW-3303 Digital Video Colposcope (Click)
TRM-2DC Multi-function Prostate Treatment Instrument(Click)
SW-1200A Portable Ultrasound Scanner (Click)
SW-3001 Portable Infrared Inspection Equipment for Breast (Click)
1) Apparatus Introduction
It is an electrical and optical high-tech diagnosis system merging computer technology, optics, imaging study, ergonomics principles and colposcopy, so that it can have more accurate evaluation on the border sector where we are not able to see by our naked eyes and bring more comprehensive solution to diagnosis and treatment of diseases.
2)Apparatus Features
1.High-definition and professional camera imported with original packing,dynamic AF,video blocking ,adding with special progressive scan and DSP intelligence control technology (intelligent color control)can realize digital video camera.

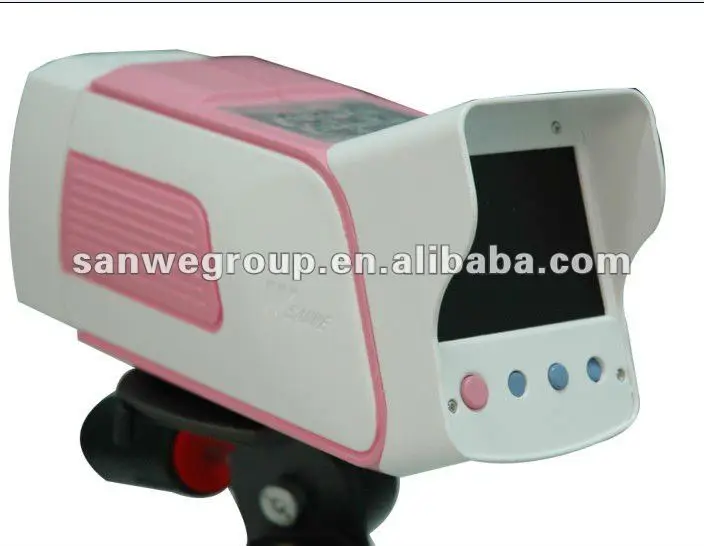

2.Built-in 3.5 inch high-definition color monitor, can realize double-monitor display.
3.Professional discrete graphics and high-definition video graphics.
4.The bracket can be adjusted arbitrarily 360degree.
3)Technical Parameter
Camera:
1.High-definition and professional camera imported with original packing, image noise-detection ,DSP intelligence control technology ,progressive scan.
2.Built-in 3.5 inch high-definition color monitor.
3.Professional bracket,360 degree expansion and revolution.
4.1/4 Super HAD color CCD and 800.000 pixels.
5.Horizontal resolution: more than 540 lines.
6.Video input port :digital video output and S-video ,Video ,NTSC,PAL system.
7.Focusing distance :150-550mm
8.Optical zoom:24 times, digital zoom:12 times
9.Magnification factor :288times
10.Field range:2.5~30mm
11.Camera white balance :auto AWB pattern for inner photometry.
12.Camera focusing quick automatic focusing or manual focusing ,also for software interface control

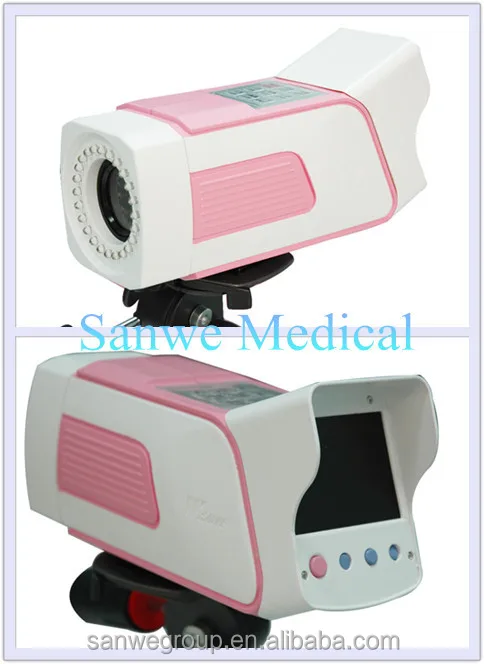

Light source: Imported high lumen LED circular multipoint cold light source (super luminance, can be used for 150.000 hours ,light intensity can be continuously adjustable).
Computer:Brand computer

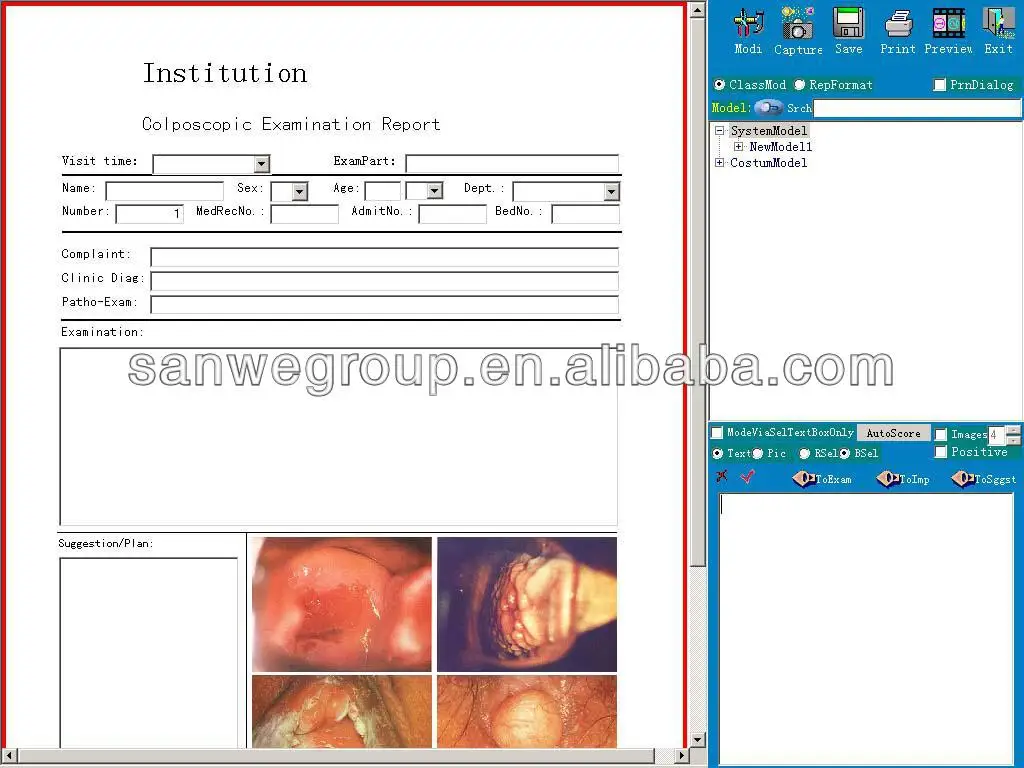

Software: Professional digital optical colposcope software.
Characteristic
1.High-definition and professional camera imported with original packing ,dynamic AF , Video blocking, intelligence control technology(intelligent color control),can realize digital video camera.
2.Built-in 3.5 inch high-definition color ,can realize double-monitor display.
3.Professional discrete graphics and high-definition video graphics.
4.The bracket can be adjusted arbitrarily with 360 degree.
Model | SW-3304 |
Resolution | 540TVL |
Optical Zooming | 1-24X |
Image Output interface | S-Video, Video ,NTSC,PAL |
Focus distance | 150~550mm |
Field View | Φ=2.5~320mm |
Depth of View | 3-300mm |
Focus Mode | Fast Auto Focus or manual or controlled by software |
Light Source type | Import high white-LED RING LIGHT (can work for 150000 hours |
Image freeze control | Button selection /Software selection/ foot switch selection |
Power suppy voltage | 220V , 50-60 Hz |
Option | With printer ,work station and software package |
Other | Build-in 3.5 inch high definition color monitor |
Besutiful design |
|
Bracket | Can be adjusted arbitrarily with 360 degree |
Magnification factor | 288 times |
Software | Professional digital colposcope software |
| Green filter function |
| 1300,000 pixels |

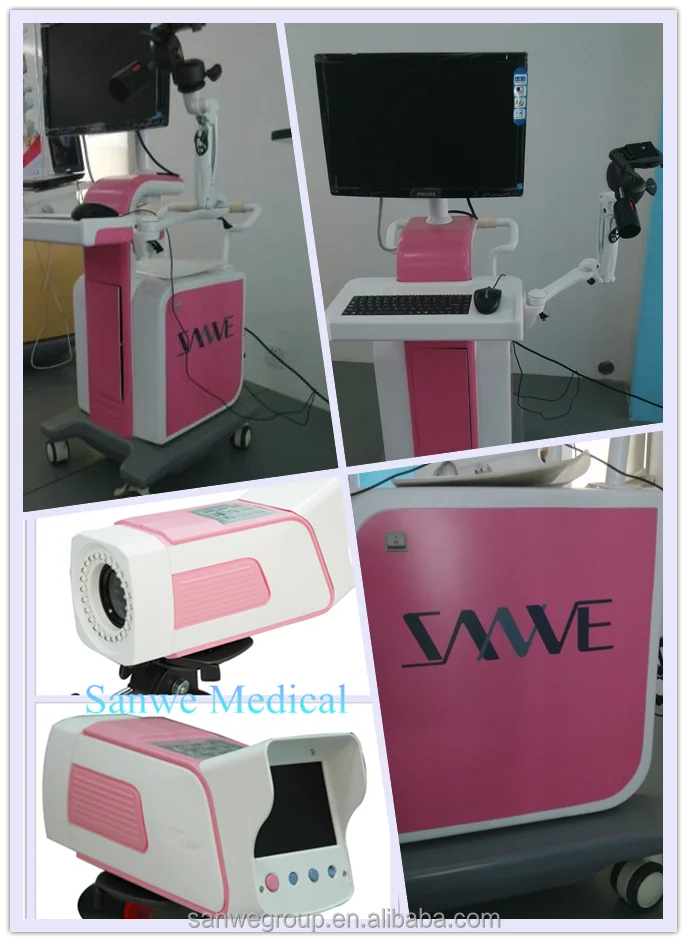

| Trolly type car |
Other functions | Continuous optical zoom adjustment, magnification display, the reaction time of acetic acid, the electronic green filter, image freeze. etc. |

Packing details
Packing size:
1)62X77X100cm
2)38X62X62 cm
Gross weight: 84 KGS
Others
Warranty:18 monthes
Payment term:T/T in advance
Delivery period:3-5 days after payment
