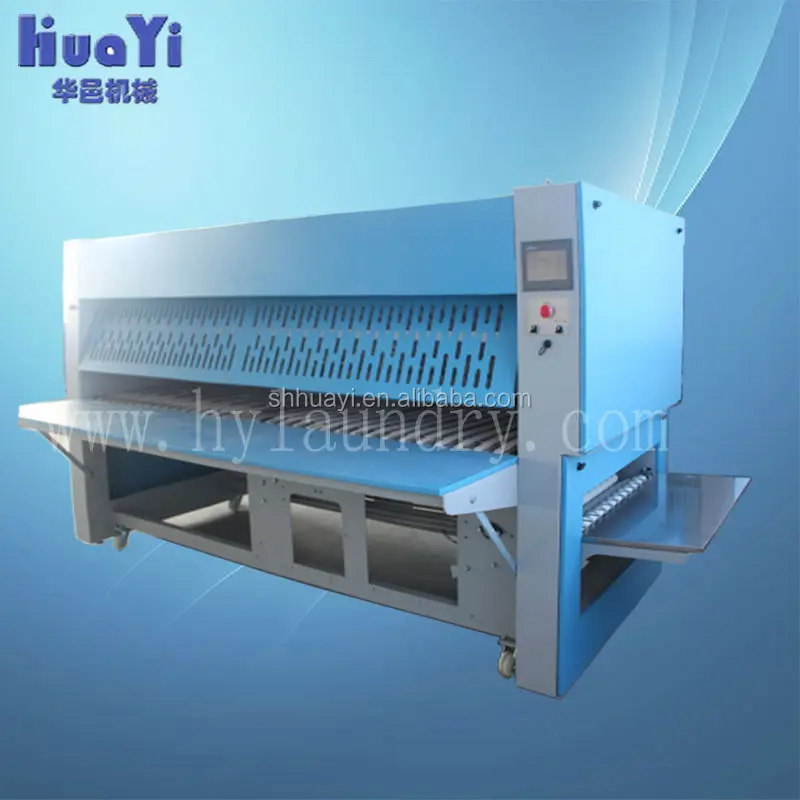

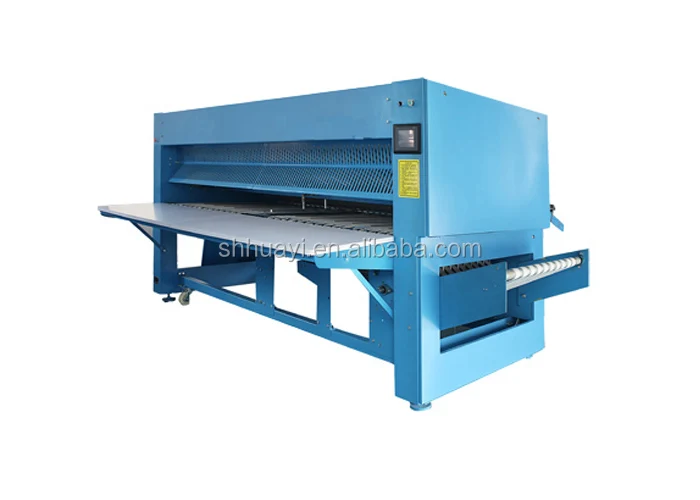

automatic fabric sheet/clothes metal manual folding machine

Product Overview

Description





1.Newly developed ZD3000V automatic folder, an essential option for flat work ironer where automatic folding application is necessary.

 Precision folding capability,auto sheet width series and

 Huayi’s advanced intelligent control system makes the equipment simple to operate and yet flexible in application.  fully automatic laundry folding machine for bedsheet

 Equipped with user friendly MHI and operating program software.

2.Reliable micro-processor-based control system with touch screen display panel.

3.Two sets of independent motor drive systems each with VFD controller,folding speed of 50m/min.

Total of five folds with two primary folds and three cross folds.Maximum width of 3000×3000mm.

4.Self diagnostic fault alarm systems with display,safety operation control features,easy trouble shooting and daily maintenance.

5.Anti-static control feature improves operational efficiency and stability.

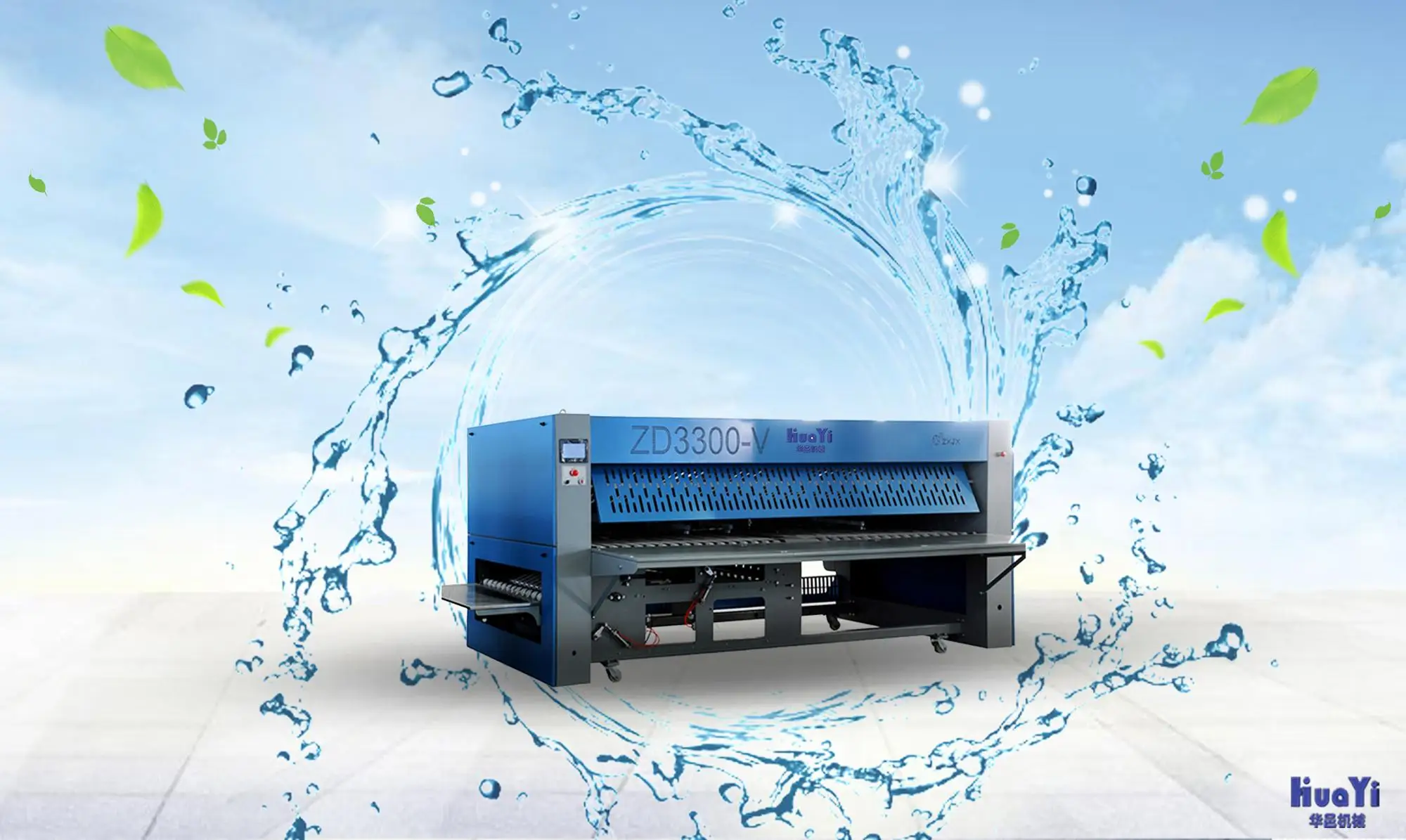

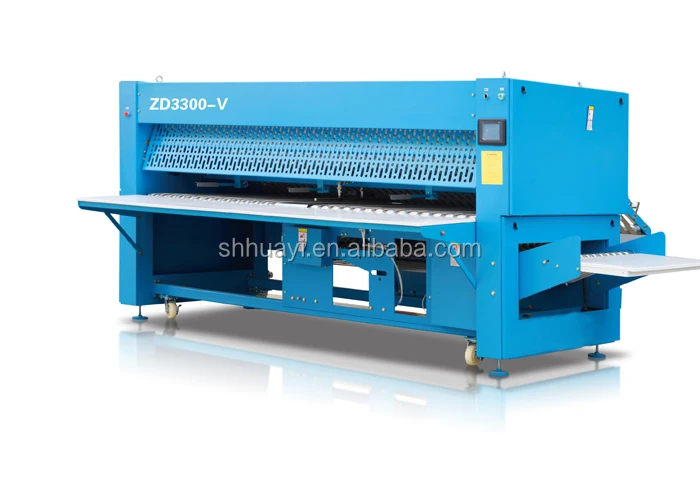

Model	ZD3000-V	ZD3300-V
Capacity(kg)	25	55
Maximum folding width(mm)	3000	3300
Maximum folds times/tayer	5/32	5/32
Max Folding speed(m)	50	50
Rated voltage(VZHz)	AC380/50	AC380/50
Motor power(KW)	1.3	1.3
Air inter pipe¢(inch)	G1/2"	G1/2"
Min compressed air pressure(MPa)	6.5	6.5
Air consumption(L/mm)	500	500
L×W×H(mm)	4200×2800×1760	4416×2800×1760
Machine Weight(kg)	1600	1600

fully automatic laundry folding machine for bedsheet
