plasma cutting machine inverter smooth cutting performance CUT 100

Product Overview

Description

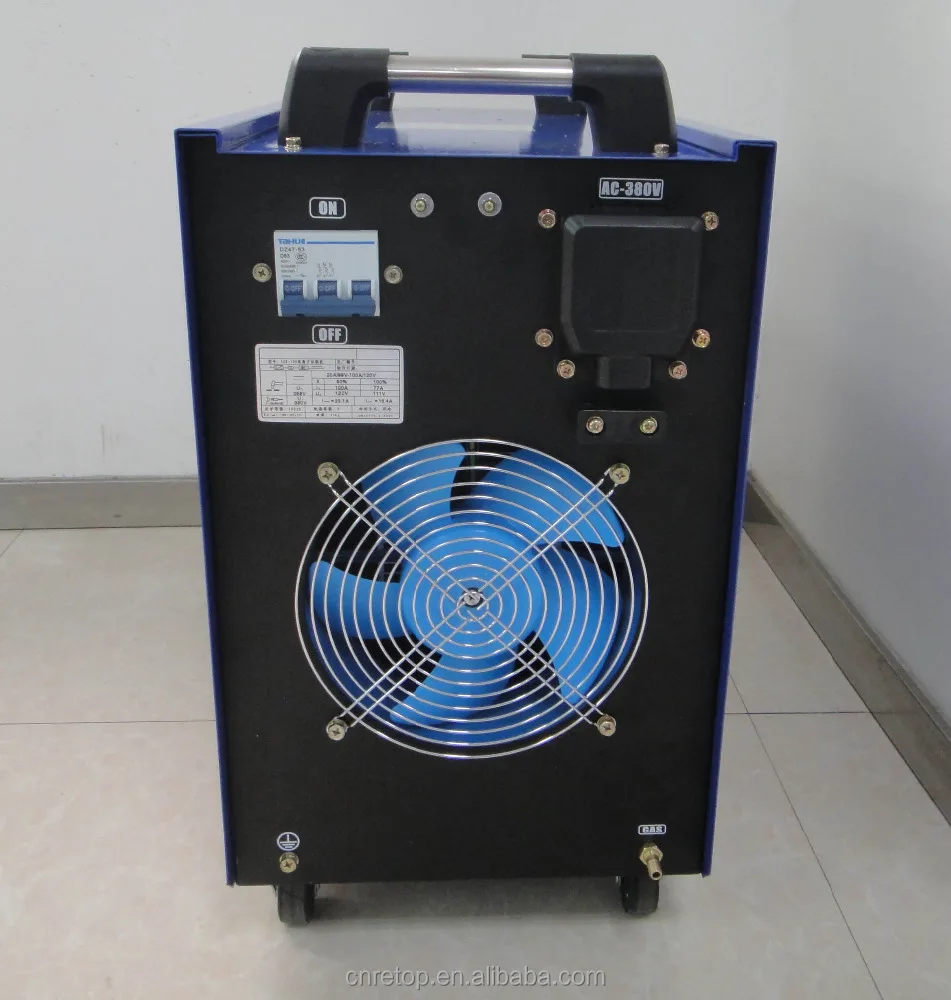

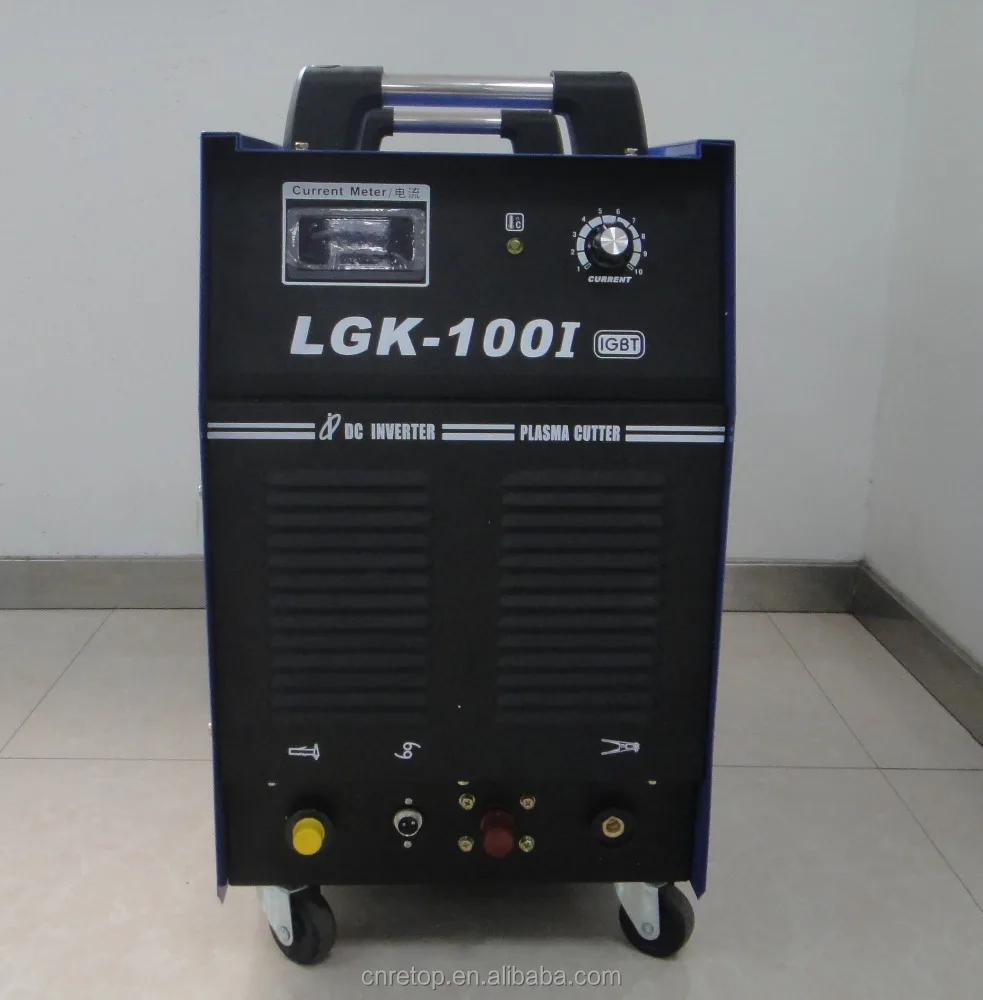

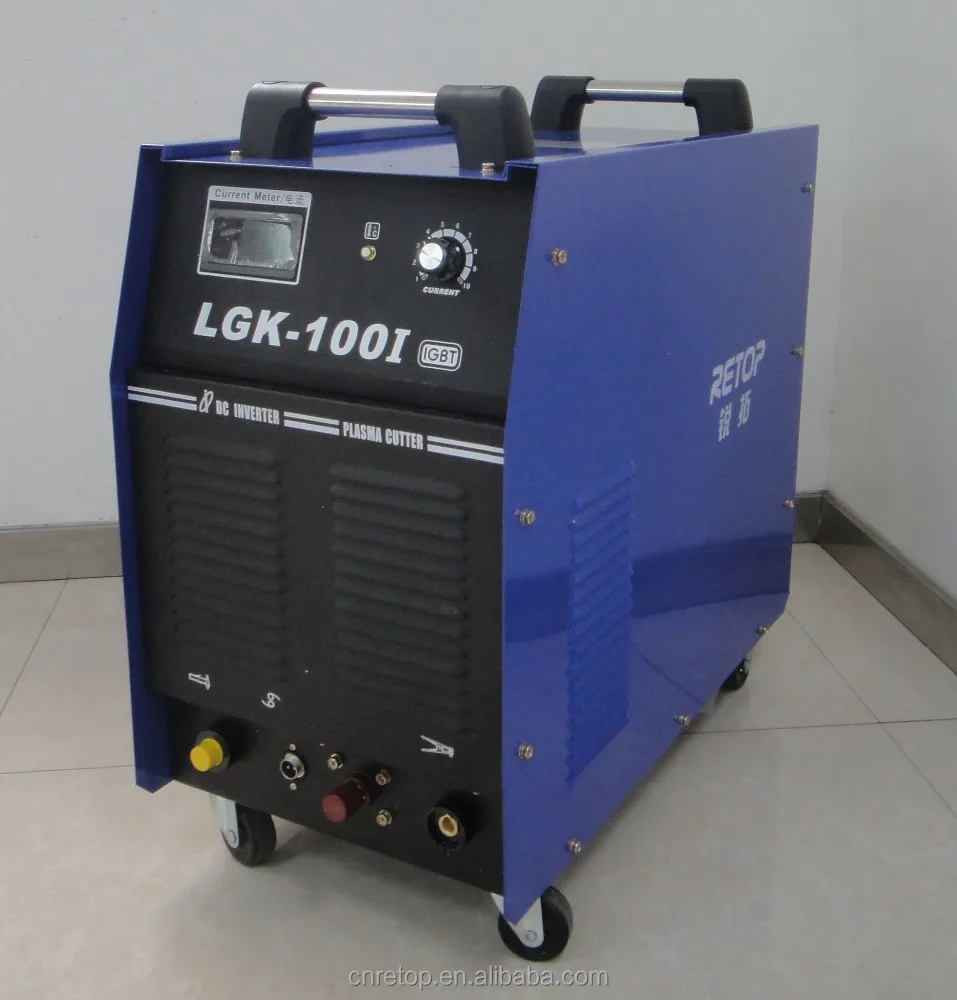

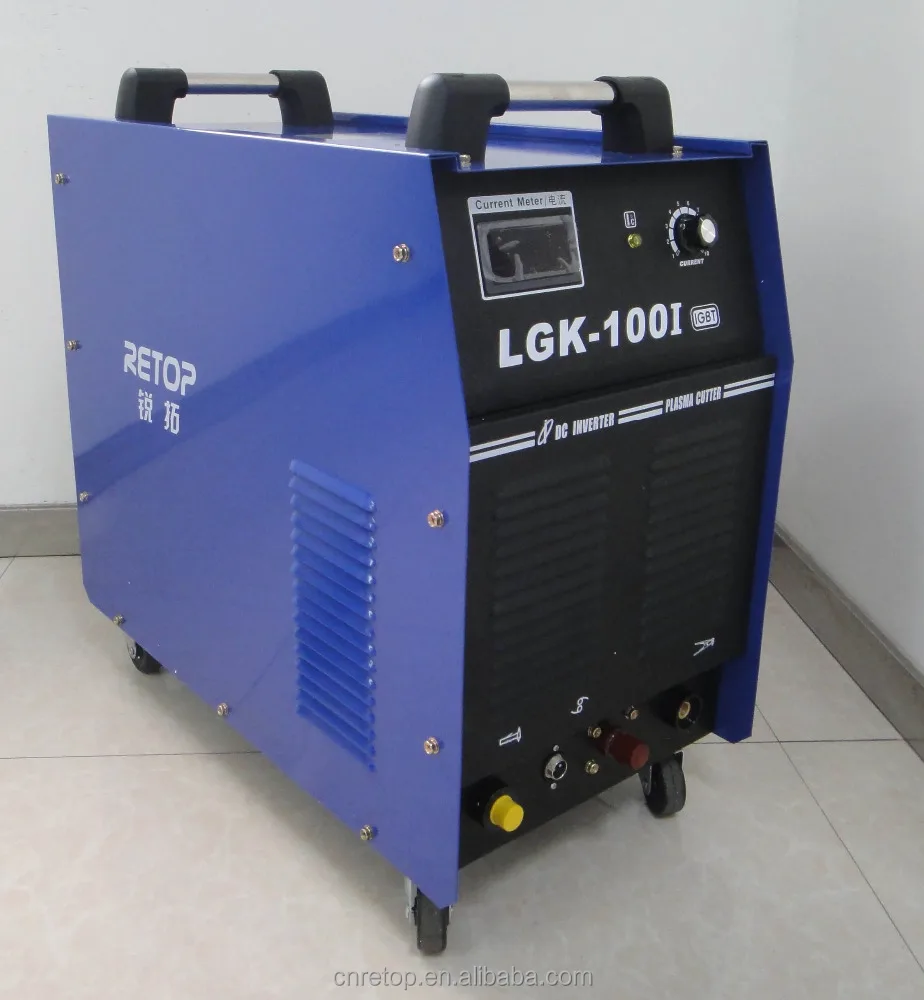

plasma cutting machine inverter smooth cutting performance CUT-100



HOT Product

RETOP HOT Product
BX6-250	MMA-200MI	MIG-200PI	TIG-160A

FEATURES AND BENEFITS:

* Feed-back circuit is controlled by advanced IGBT technology, output current is stable.

* Cutting current can be adjusted continuously from 20Amps to Max current, be able to meet the demands of different materials, thickness and cutting speed.

* Non-contact arc starting mode without HF, little interference to the nearby electronic equipment.

* Applicable to cut carbon steel, stainless steel, galvanized steel, copper and aluminium, etc.

* Input voltage is three phases 380V 15%.

* With protection functions of short phase, over or low voltage, overheat or low air pressure.





TECHNICAL SPECIFICATIONS:

Input Power (V):	AC380V±15%
Input Power Frequency (Hz):	50/60
No-load Voltage (V):	268
Rated Input Current(A):	23.1
Welding Amperage Range (A):	20~100
Rated Output Voltage(V):	120
Duty Cycle (%):	60
No-load Loss (W):	80
Arc-starting:	HF
Efficiency (%):	85
Power Factor (COSφ):	0.93
Insulation Grade:	F
Protection Grade:	IP21S
Recommended Air Pressure (Mpa):	0.45~0.55
Cutting Thickness (mm):	1~40
Net Weight (kg):	39
Dimensions (mm):	590*345*485





QUALITY & INSPECTION

* Cooperate with good reputation suppliers

* QC check from spare parts to finished products

* Strict accelerated aging testing on every each machine before packaging



PACKAGE

* Standard export cartons with plastic foam normally

* Customized package also available per your requirements



PAYMENT TERMS

* T/T

* Confirmed irrevocable letter of credit (L/C) opened in our favor
