Product Description

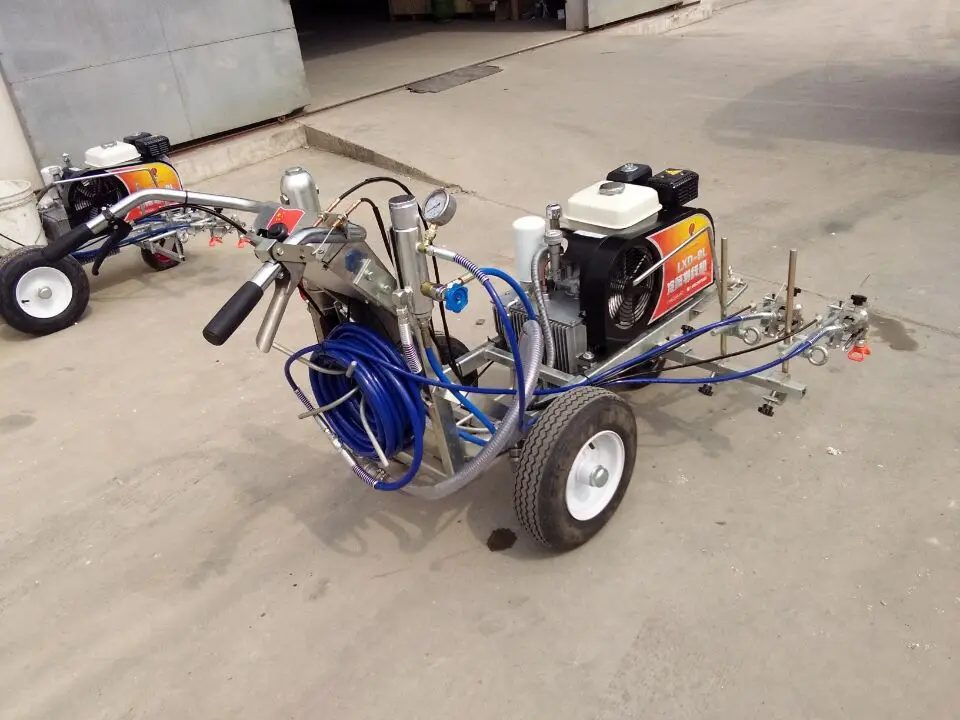

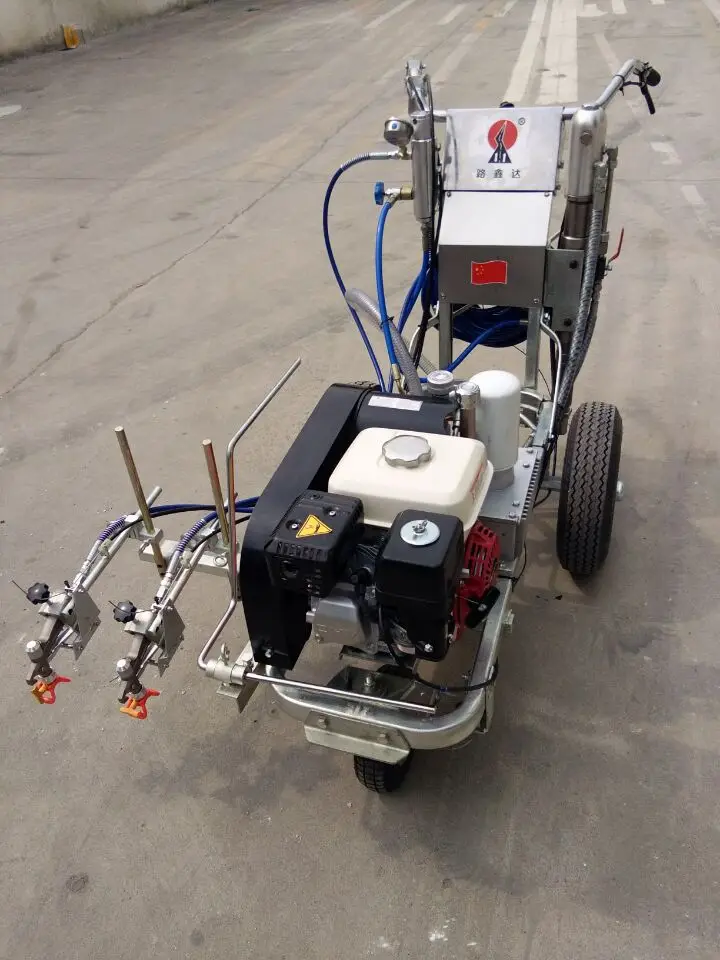

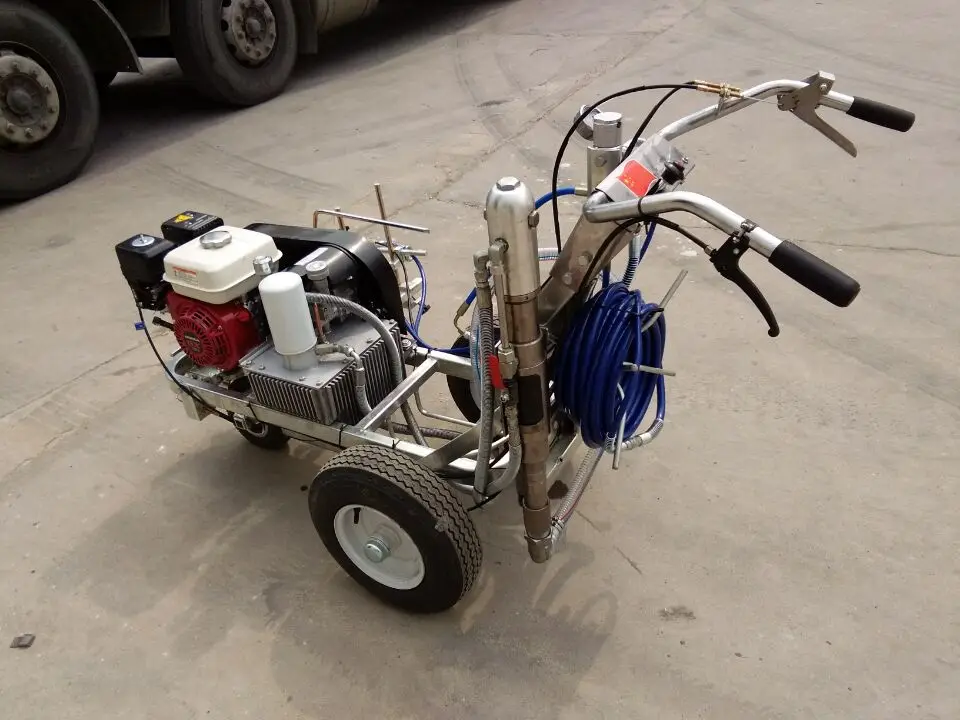

Model 1: LXD6L cold paint road marking machine

LXD6L cold paint road marking machine is special equipment to normal temperature road line construction. It is suitable for roads, highway, parking lot,airport, station.it can mark a straight line, dotted line, curve, zebra crossing, arrows, etc. It is the spray equipment with high pressure,equal discharge and airless. It use gasoline engine to drive single plunger pump to work,which can generate high pressure inside the machine.The spray lines are common in thickness and angles are clear. Because of the direction bar in the spraying gun, the line can be adjusted to certain width conveniently.

Technical Parameter  of LXD6L cold paint road marking machine
power	5.5HP gasoline engine
Work pressure	10-18Mpa
Flux	6L/min
Width	50-300mm(single gun)
Thickness	0.2-0.6mm
Size	1180×860×1000mm
Net weight	145kg

Model 2: LXD18L cold paint road marking machine

LXD18L cold paint road marking machine is special equipment to normal temperature road line construction. It is suitable for roads, highway, parking lot,airport, station.it can mark a straight line, dotted line, curve, zebra crossing, arrows, etc.

LXD18L cold paint road marking machine is the spray equipment with high pressure,equal discharge and airless. It use gasoline engine to drive single plunger pump to work,which can generate high pressure inside the machine.The spray lines are common in thickness and angles are clear. Because of the direction bar in the spraying gun, the line can be adjusted to certain width conveniently. Equipped with the computer line controller, the space between dotted lines can be changed according to the project requirements.

Technical Parameter of LXD18L cold paint road marking machine
power	9HP gasoline engine
Work pressure	10-18Mpa
Flux	18L/min
Width	50-300mm(single gun) 50-500mm(double gun)
Thickness	0.2-0.6mm
Spray gun	Double gun can work together
Size	1800×1020×1100mm
Net weight	180kg

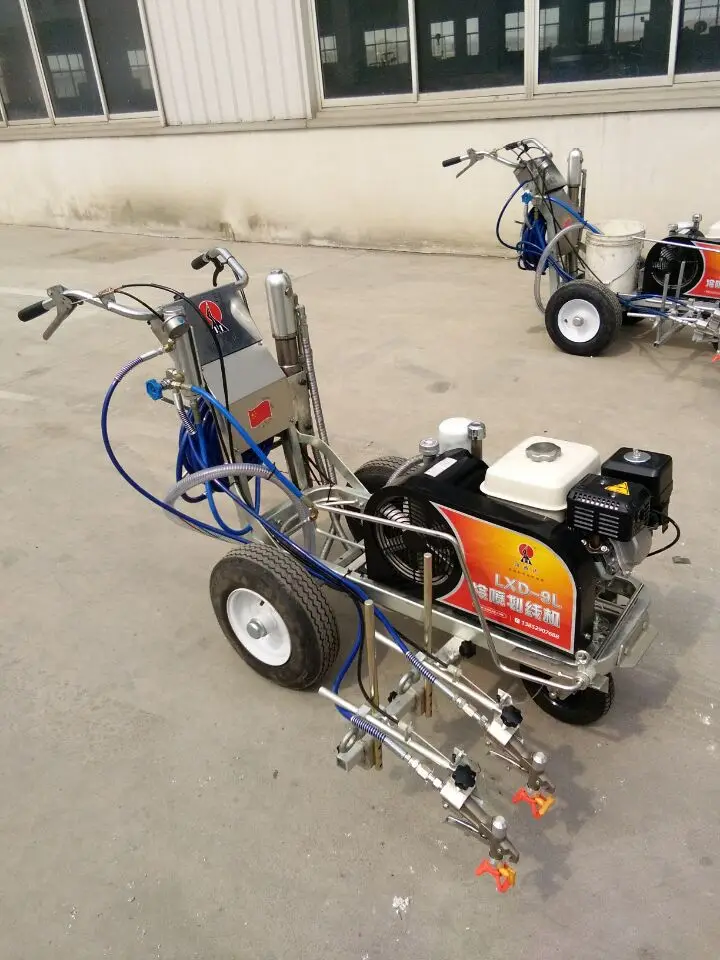

Model 3: LXD9L cold paint road marking machine

LXD9L cold paint road marking machine is the fastest among our cold paint marking machines,its working speed can reach 13kh/h, Since it has powerful hydraulic system which make sure it work well under harsh environment.

Technical  Parameter  of LXD9L cold paint road marking machine
engine	5.5PS (Honda)
Pump	built-in Reversing hydraulic pump(import from German)
Max flow	9L
Max spray pressure	23MPS
Max working speed	13km/h
Single spray gun	0.048
Double spray gun	0.033
Aluminium oil tank capacity	13L
weight	130kg
size	1660*1050*1000mm

Cold Paint

Cold Solvent Road Marking Paint is environment friendly  product,it consists of Modified Acrylic resin, colored aggregate, filler material and etc. it is suitable for application to bituminous and concrete roads. It can be successfully applied to airless or air auxiliary spraying equipment.

BAISC INFORMATION
Product Name	Normal Temperature Road Marking Paint
Use For	Concrete and asphalt floor
Components	Titanium dioxide, natural calcium carbonate, filler materials…
Appearance	Solvent
Standard	JT/T280-2004
Color	White, Yellow, Red, Blue, Green, Black
Weight	25kg/barrel, 15kg/barrel, 5kg/barrel
Density	45g/ cm³
Film Thickness	700μm

PHYSICAL CHARACTERISTICS
Abrasion Resistance	22.4mg
Solid content	68.6%
Viscosity	121 KU
Flexibility	1mm
Luminance factor	0.85
Drying Time After Marking	9 mins
Shelf Life	Up to 24 months
Storage	Store in a tightly sealed container in a cool & dry place

FEATURES

High usage ratio

It’s an environmental paint

Tough and wear-resistant

Fast drying under a wide range of climatic conditions

Not faded easily marking line

Easy to be applied with different equipment

Various of color to be choose

Glass Beads

Specification
Product:	Retro reflective glass beads
Item number :	BS6088B
Appearace:	Colorless,Clean white powder ,No obvious impurity
Roundness:	BS6088B≥80%,BS6088A≥70%
Refractive index:	≥1.5
Specific gravity:	2.4-2.6g/cm3
Heavy metal:	<200ppm
Coated	silicone

Related Products

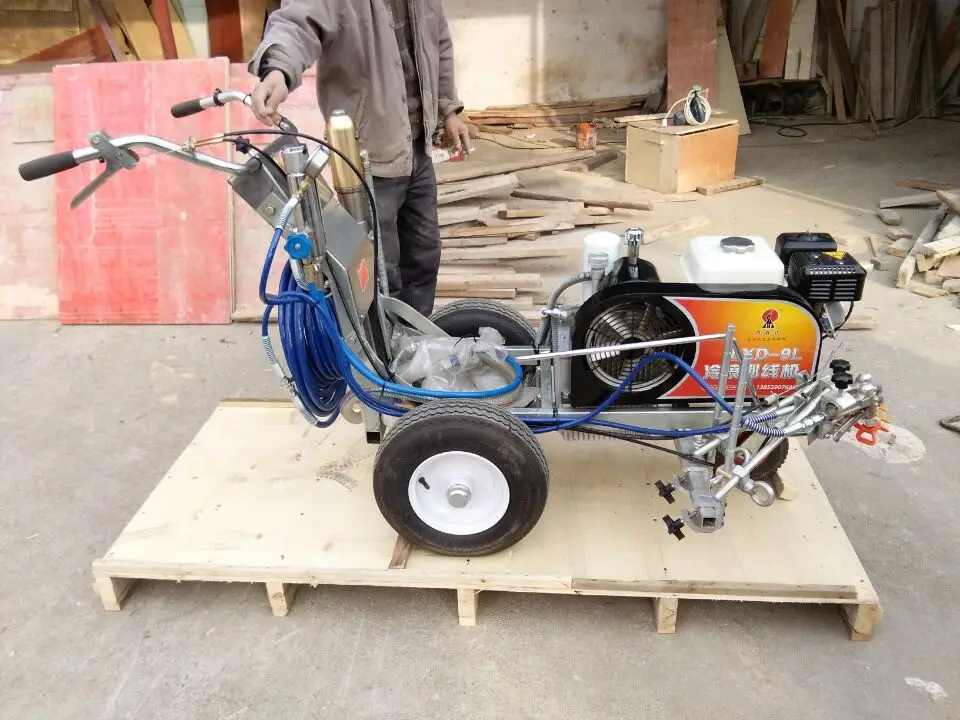

Packing & Delivery

Packaging
Size	1400mm(L) * 850mm (W) * 1050mm(D)
Weight	180kg
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
