CY3B CY3R класс пневматический цилиндр беспилотного типа, пневматические цилиндры
- Category: Pneumatic Cylinders >>>
- Supplier: Ningbo Airtop Pneumatic Hydraulic Co. Ltd.
Share on (60456923493):
Product Overview
Description
Product Description

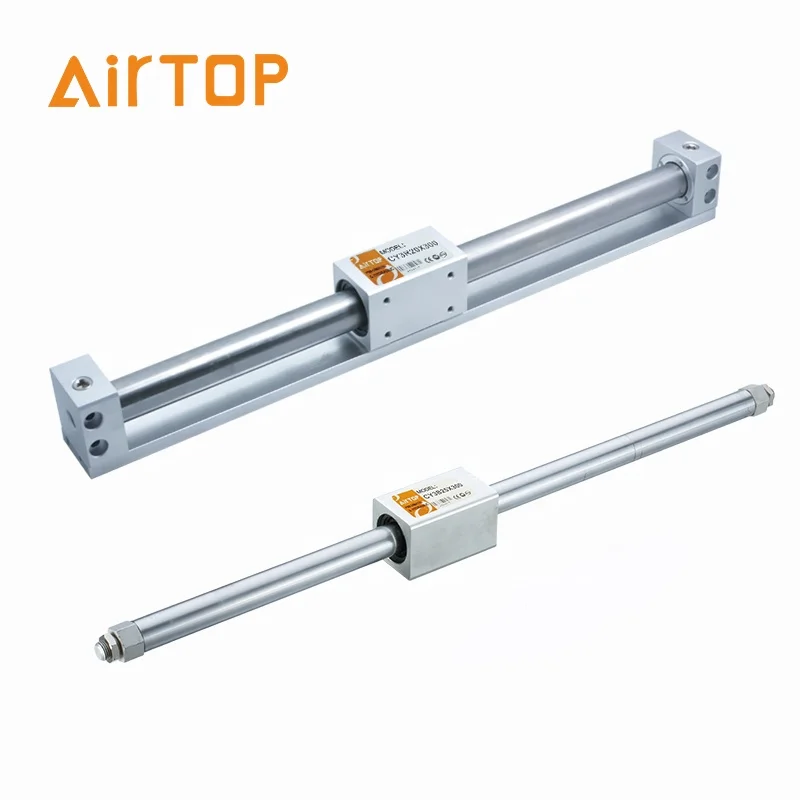

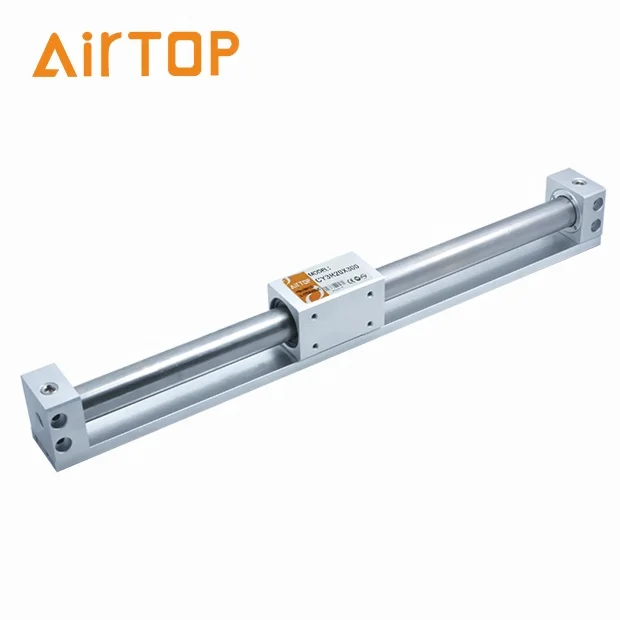

CY3B class pneumatic rodless cylinder type , pneumatic cylinders
Product Feature:
1. CY3B, CY3R series magnetically coupled rodless cylinder, with bore size from φ15mm to φ40mm;
2. A 70% longer wear ring length achieves an improvement in bearing performance compared to the CY1B;
3. Wear ring made of special resin achieves ideal lubrication and better durability;
4. By using special dust proof ring, the minimum working pressure is reduced by 30%;
5. Mounting size is same as CY1B/R series.
Specification:
Bore Size (mm) | 15 | 20 | 25 | 32 | 40 |
Fluid | Air | ||||
Max. Pressure | 0.7 MPa | ||||
Min. Pressure | 0.16 MPa | 0.15 MPa | 0.14 MPa | 0.12 MPa | |
Working Temperature | -10 ~ +60℃ | ||||
Speed Range (mm/s) | CY3B: 50 ~ 400, CY3R: 50 ~ 500 | ||||
Cushion | Both End Rubber Bumper | ||||
Stroke Tolerance (mm) | 0 ~ 250: +1.0 0, 251 ~ 1000: +1.4 0, 1001 ~ : +1.8 0 | ||||
Magnetic Holding Force | 137 N | 231 N | 363 N | 588 N | 922 N |
Port Size | M5X0.8 | G1/8 | |||
* Note: NPT, PT thread also available.
Stroke:
Bore Size (mm) | Standard Stroke (mm) | Max. Stroke (mm) | |
*Without Switch | With Switch | ||
15 | 50, 100, 150, 200, 250, 300, 350, 400, 450, 500 | 1000 | 750 |
20 | 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800 | 1500 | 1000 |
25 | 3000 | 1200 | |
32 | 1500 | ||
40 | 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | ||
*Note: Only for CY3B series.

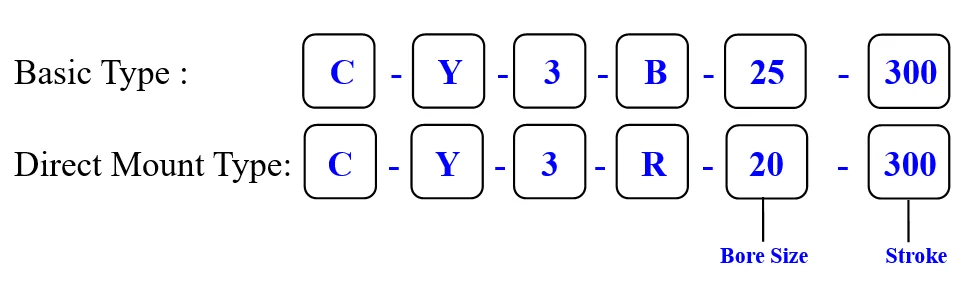

How to order ?

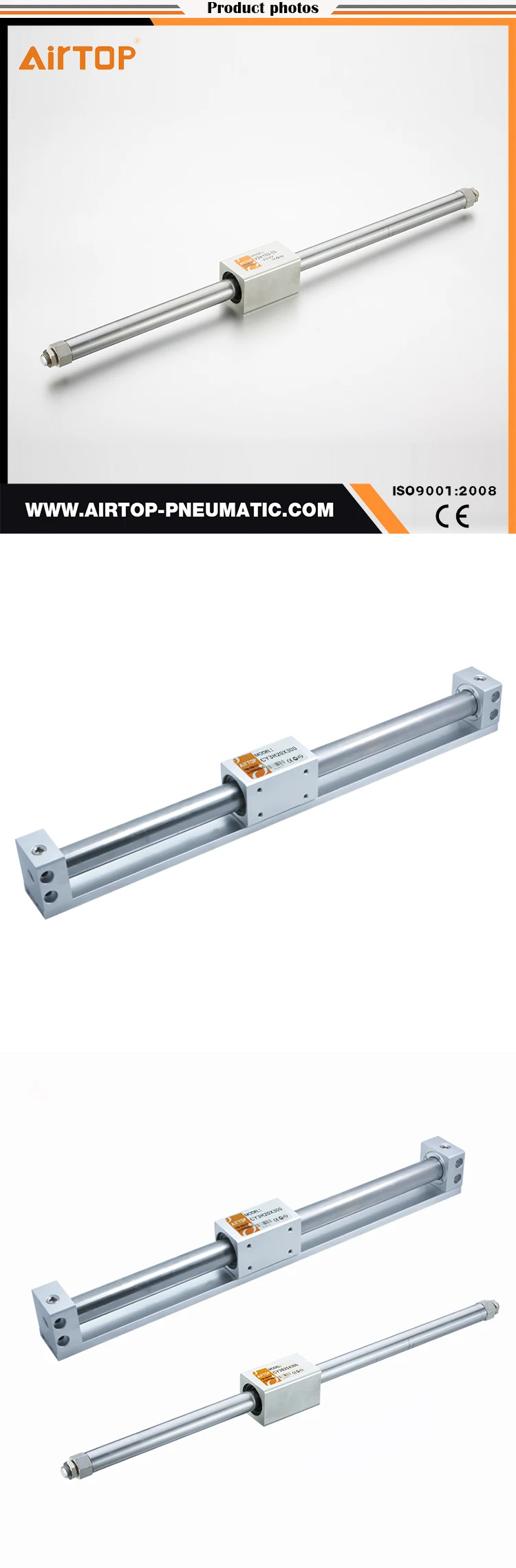

Product Photos
