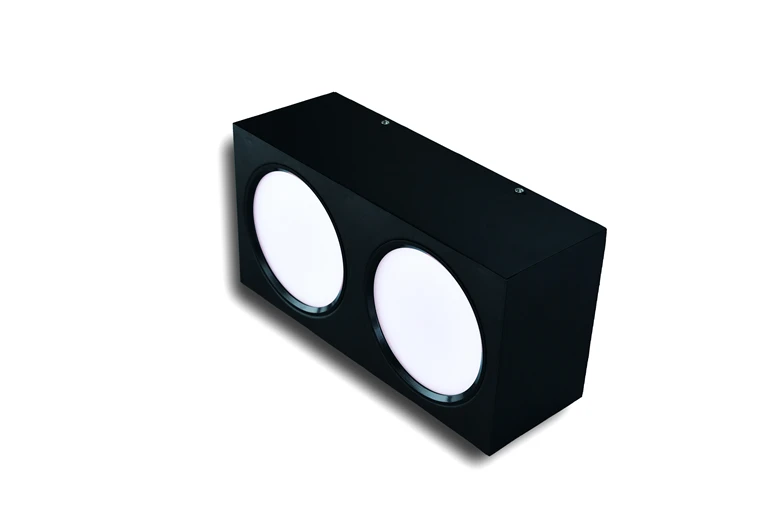

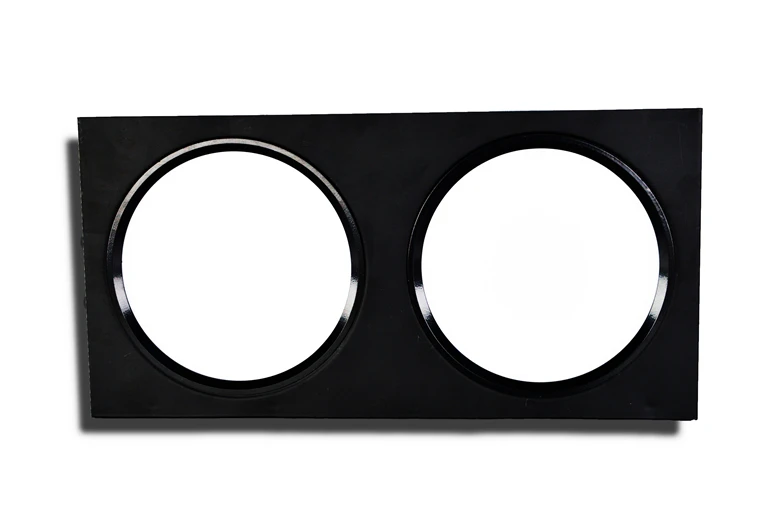

Square Suspended Down Light _O
- Category: >>>
- Supplier: Changchun Cedar Electronics Technology Co. Ltd. [Jilin China]Changchun
Share on (60457115773):
Product Overview
Description
Applications
Commercial Lighting, Home, Office, Hotel, Public Area
Features
- Standard hanging structure, easy installation and maintenance
- Simple and elegant light source design: Perfect match with aluminum enclosure
- Uniform light, no glare, no noise
- Lifespan: >35000h, low maintenance cost, low carbon and save energy
- Anti-fog design: Keeping insects out and accumulating dust, easy to clean, more reliable
Model List
Square Suspended Down Light | |||||||||||
Model | Watts(W) | LED | Input Voltage(V) | Luminous Flux(lm) | Color Temperature(K) | CRI | PF(AC 220V) | Dimension(mm) | Weight (kg) | Material | Lifespan(h) |
CD-DL158-13C/N/WG1 | 13 | SMD 5730 | AC 176-240 | >950 | 2700-6500 | >80 | >0.85 | 171*171*120 | 0.91 | Spray Paint with Iron | >35000 |
CD-DL325-26C/N/WG1 | 26 | SMD 5730 | AC 176-240 | >1900 | 2700-6500 | >80 | >0.85 | 340*171*120 | 1.62 | Spray Paint with Iron | >35000 |
Remark: All the above tested data deviation:±10% . | |||||||||||
Dimension
L.I.D. Diagram
A.A.I. Figure
Power Contrasts
Power Consumption Contrasts | ||||||
Item | Cedar Square Suspended LED Down Light | Fluorescent Down Light | ||||
Watts(W) | 13 | 26 | 13 | 26 | 2*26 | 26 |
Lifespan(h) | 35000 | 35000 | 35000 | 7000 | 7000 | 7000 |
Power Consumption/Year(KWH) | 113.88 | 227.76 | 113.88 | 271.56 | 543.12 | 271.56 |
Remark: The above data was calculated by lamps lit 7*24. | ||||||
Parameters
| Basic Info | Items | Square Suspended Light | Square Suspended Light |
| Model | CD-DL158-13C/N/WG1 | CD-DL325-26C/N/WG1 | |
| Aspect | Material | Iron | Iron |
| Body Color | Black | Black | |
| Dimension | L171*W171*H120 | L340*W171*H120 | |
| Electrical | Watts(W) | 13 | 26 |
| Input Voltage(V) | AC 176~240 | AC 176~240 | |
| Frequency | 50~60Hz | 50~60Hz | |
| Power Mode | Internal | Internal | |
| Power Factor | >0.9 | >0.9 | |
| Power Efficiency | >87% | >87% | |
| Optical | LED Brand | Jingke/Hongli | Jingke/Hongli |
| LED Type | SMD 5730 | SMD 5730 | |
| LED Qty.(pcs) | 24 | 48 | |
| Luminous Flux(lm) | 950 | 1900 | |
| CCT(K) | 2700~6500 | 2700~6500 | |
| Light Color | Cold,Natural,Warm | Cold,Natural,Warm | |
| CRI(Ra) | >80 | >80 | |
| Beam Angle(°) | 100° | 100° | |
| Dimmable | Unavailable | Unavailable | |
| Application | Mounting Size(mm) | / | / |
| Socket | / | / | |
| Install Mode | Ceiling Mounted | Ceiling Mounted | |
| Operation Temperature(℃) | -10℃~40℃ | -10℃~40℃ | |
| Operation Hummidity(RH) | 10%RH-90%RH | 10%RH-90%RH | |
| Storage Temperatures(℃) | -40°~80° | -40°~80° | |
| Lifetime(hrs) | >35000 | >35000 | |
| Protection | Ingress Proctection | IP20 | IP20 |
| Waterproof | / | / | |
| Energy Saving | 50% | 50% | |
| Constrasted to | 26W Fluorescent Lamp | 2*26W Fluorescent Lamp | |
| Packing | Unit Net Weight(Kg) | 0.91 | 1.62 |
| Unit Gross Weight(Kg) | 0.993 | 1.761 | |
| Unit Packing(mm) | 178*180*134 | 350*180*130 | |
| Qty./Carton(pcs) | 20 | 10 | |
| Carton Size(mm) | 690*380*380 | 690*360*380 | |
| 20FT Qty() | 240 | 240 |
