mini led pixel strip 3535 30 leds digital led strip
1. So thin. So mini. So teeeeeeny-tiny. It's the 'skinny' version of our classic digital Pixel strips!
2. These digital Pixel strips have 30 digitally-addressable pixel Mini LEDs per meter and are very affordable and are only 7.5 mm wide, 5 mm if you remove the strip from the casing. Strips are available with black flex and white flex PCB,
3. There are 30 RGB mini 3535 LEDs per meter, and you can control each LED individually! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
4. The mini led pixel strip 3535 30 leds is made of flexible PCB material, and comes with a weatherproof sheathing. You can cut this stuff pretty easily with wire cutters, there are cut-lines every 1.27"/32.5mm (1 LED each). Solder to the 0.1" copper pads and you're good to go. Of course, you can also connect strips together to make them longer.
5. The way the pixels are controlled by Arduino, Glediator, DMX( Artnet), Raspberry pi, T1000s/T300K and etc.
mini led pixel strip 3535 30 leds
| Item No. | mini led pixel strip 3535 30 leds |
| LED quantity | 30 LEDs/m |
| LED type | sk6812 mini 3535 LED |
| Wattage | 6 watts |
| Pixel pitch | every 33.33mm cuttable |
| PCB width | 5mm |
| Working volatage | DC5V |
| PCB color | Black and White |
| Light color | Multi-color, digital RGB,Every LED individual Control |
| Connector | 2pin JST-SM connector / 3pin JST-SM connector |
| Controller | Artnet/ Arduino/ AVR/Raspberry pi/T1000s/DMX512/DMX decoder |

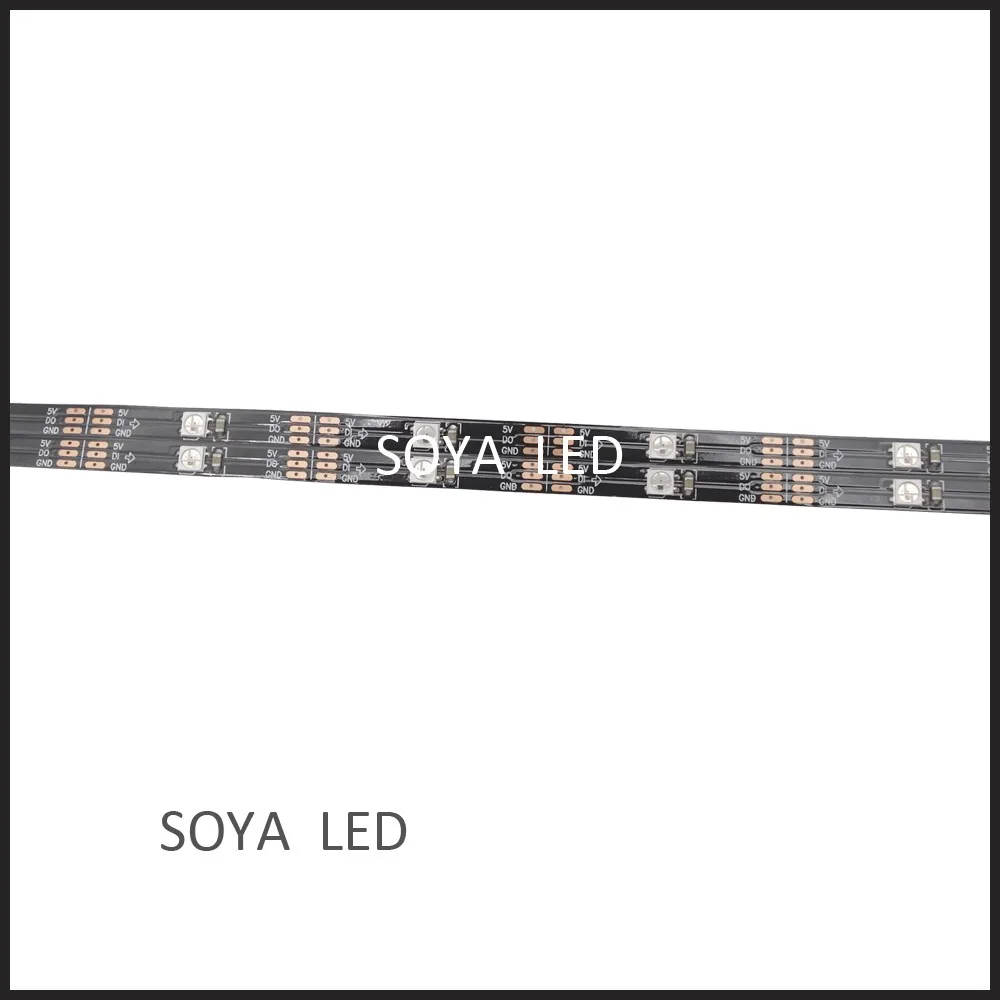

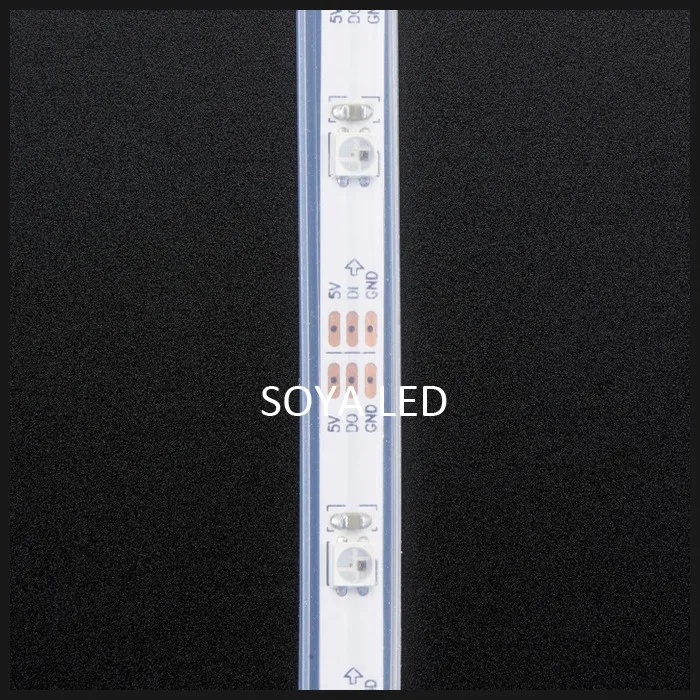

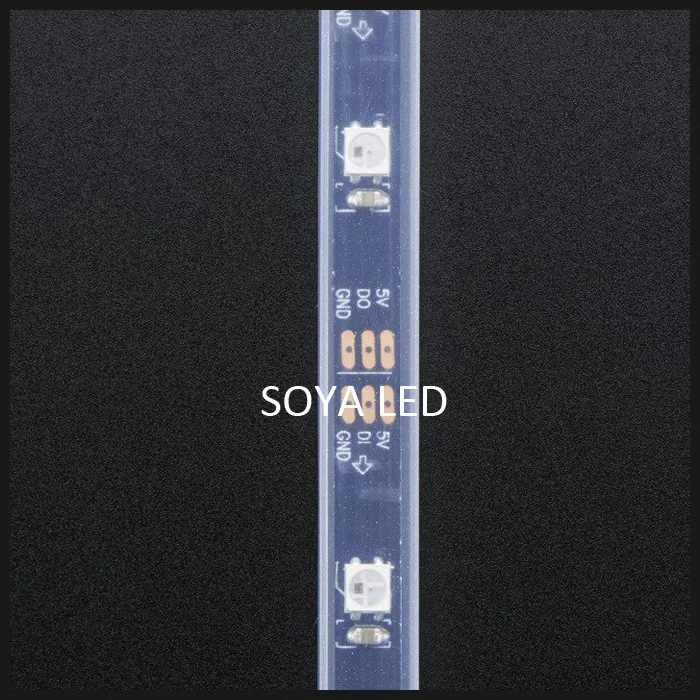

mini led pixel strip 3535 30 leds detailed images



Trade Terms
1. Payment Terms:
T/T, Western Union, Aliexpress Escrow
2. Lead Time:
Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,
OEM products: 10--15days (Customized PCB board).
3.Warranty:
2 years warranty since the data of purchase our LED products.
4. Delivery Way:
DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
