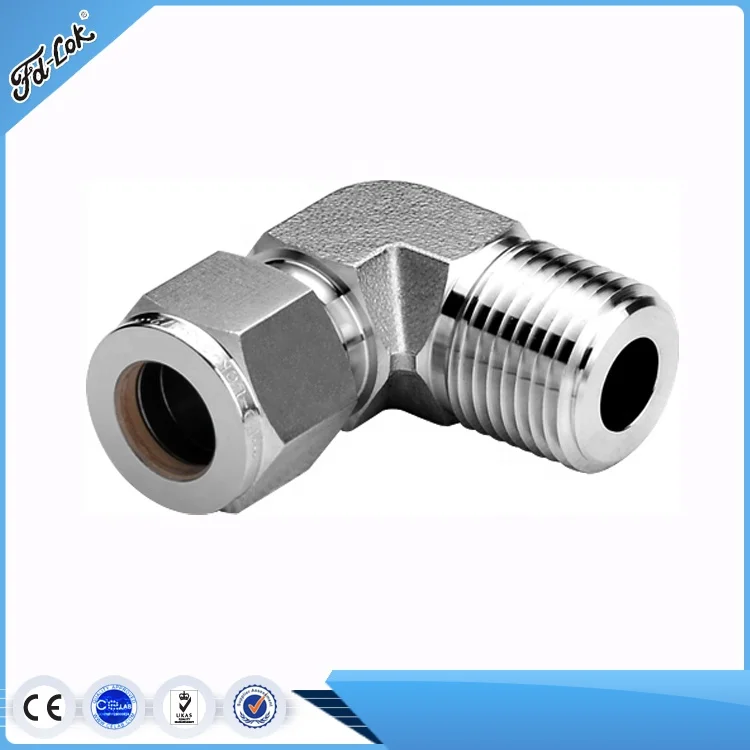

SS316 Male elbow fitting double ferrule tube fitting

Specifications
Tube Fitting
1.Prime,High Quality
2.Standards:NPT,BSP,ISO,DIN
3.Material:ss304,316,316L
4.Certificates:ISO9001:2008, CE
Top-Selling Quick Connect Tube Fittings
Feature:
1.Prime,High Quality

2.Standards:NPT,BSP,ISO,DIN

3.Material:ss304,316,316L

4.Certificates:ISO9001:2008, CE

5.Brand Name: FD-LOK

6.Place of Origin: Zhejiang, China (Mainland)

Details:

1.Sizes range from 1/16" to 11/2" and 2 mm to 38 mm.

2.Diverse materials and configurations are available.

3.Precision machined components ensure perfect deformation of the ferrules and tubing.

4.Female nut threads are silver-plated to minimize the friction with the body threads.

5.Radius junction design with elbows provides smooth flow path.

6.Every fitting is stamped with size, material, and heat code.

7.Fittings are easy to disconnect and retighten.

8.Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads.

Material\tMinimum Temperature\tMaximum Temperature

Stainless Steel\t-325°F(-198°C)\t800°F(426°C)

Brass\t-325°F(-198°C)\t400°F(204°C)

Alloy 400/R-405\t-325°F(-198°C)\t800°F(426°C)
