Rubber Bale Cutter/Hydraulic Rubber Cutter Machine /Rubber Sheeting Cutter with CE

Product Overview

Description

   Rubber Bale Cutter/Hydraulic Rubber Cutter Machine /Rubber Sheeting Cutter    with CE



1.Mainly uses

The bale cutter is mainly used to cut natural rubber, synthetic rubber, and other plastics materials, especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber.  The cutter is matched with working track, which makes rubber feeding much more convenient



2.structure

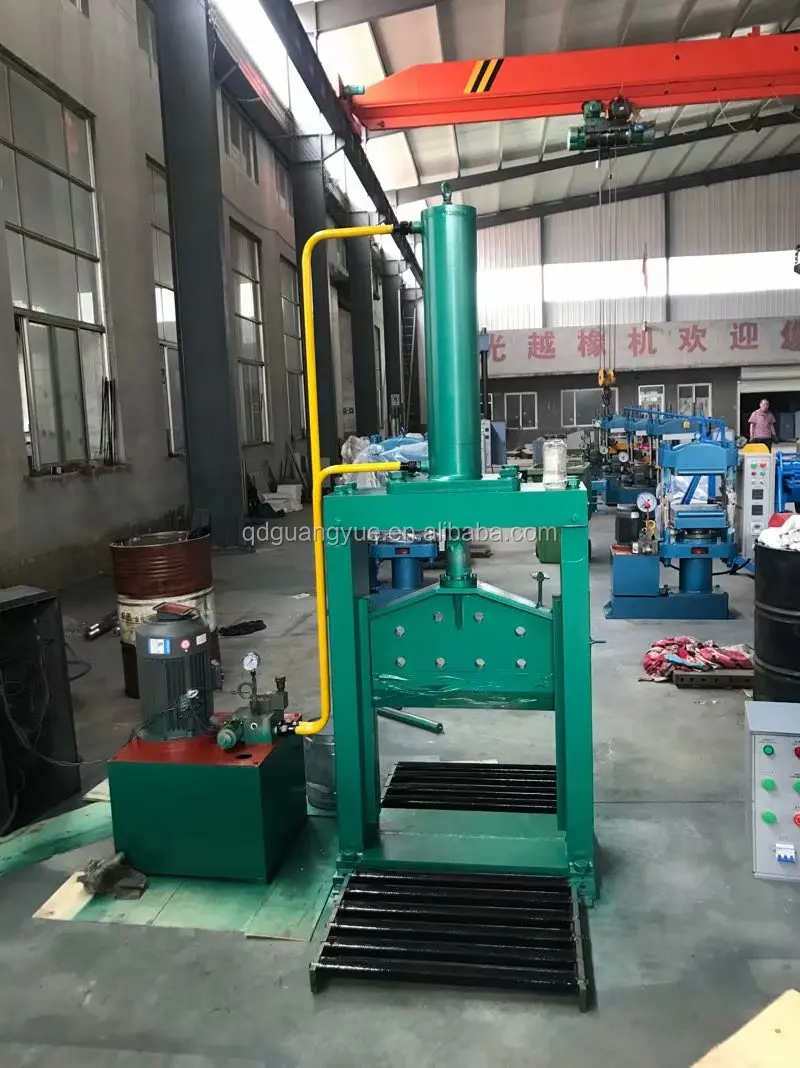

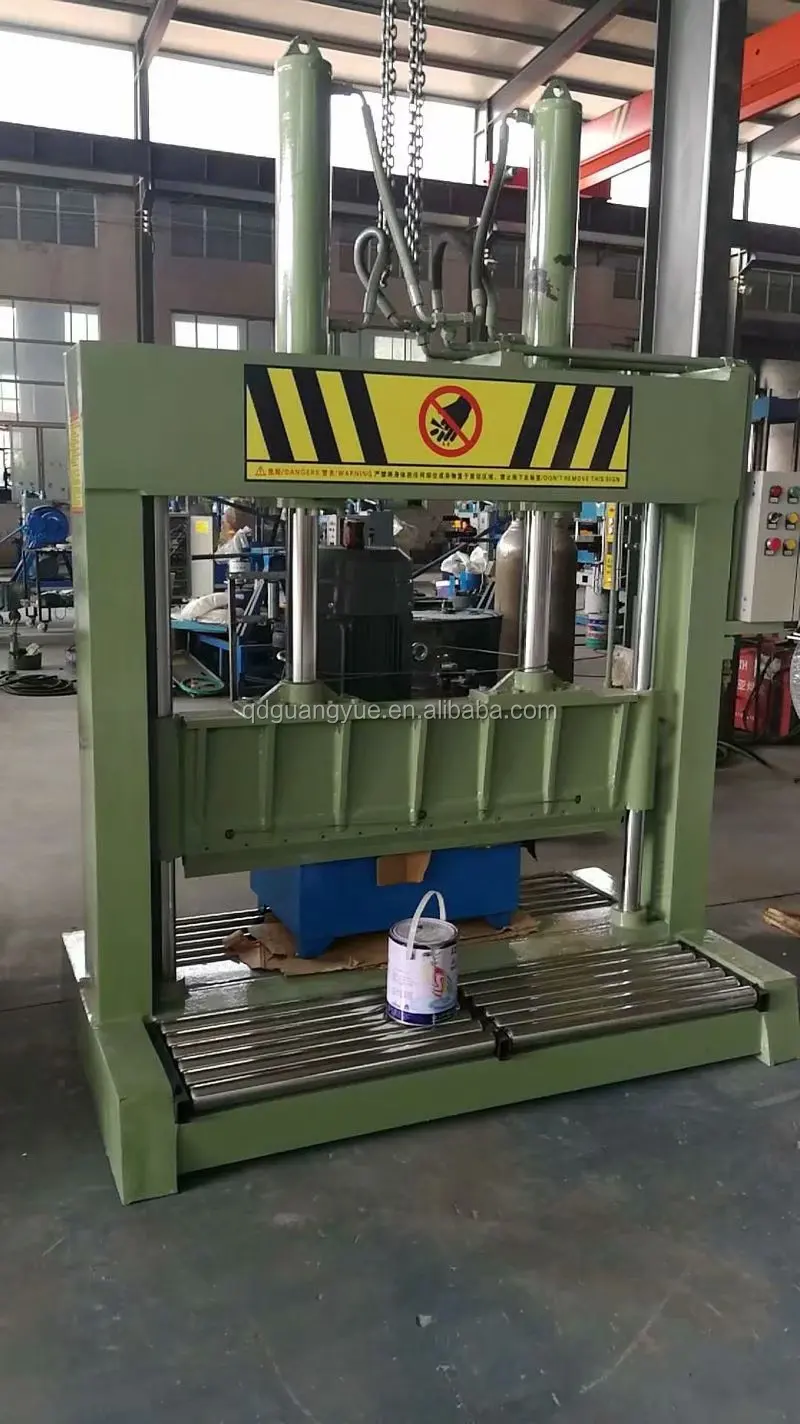

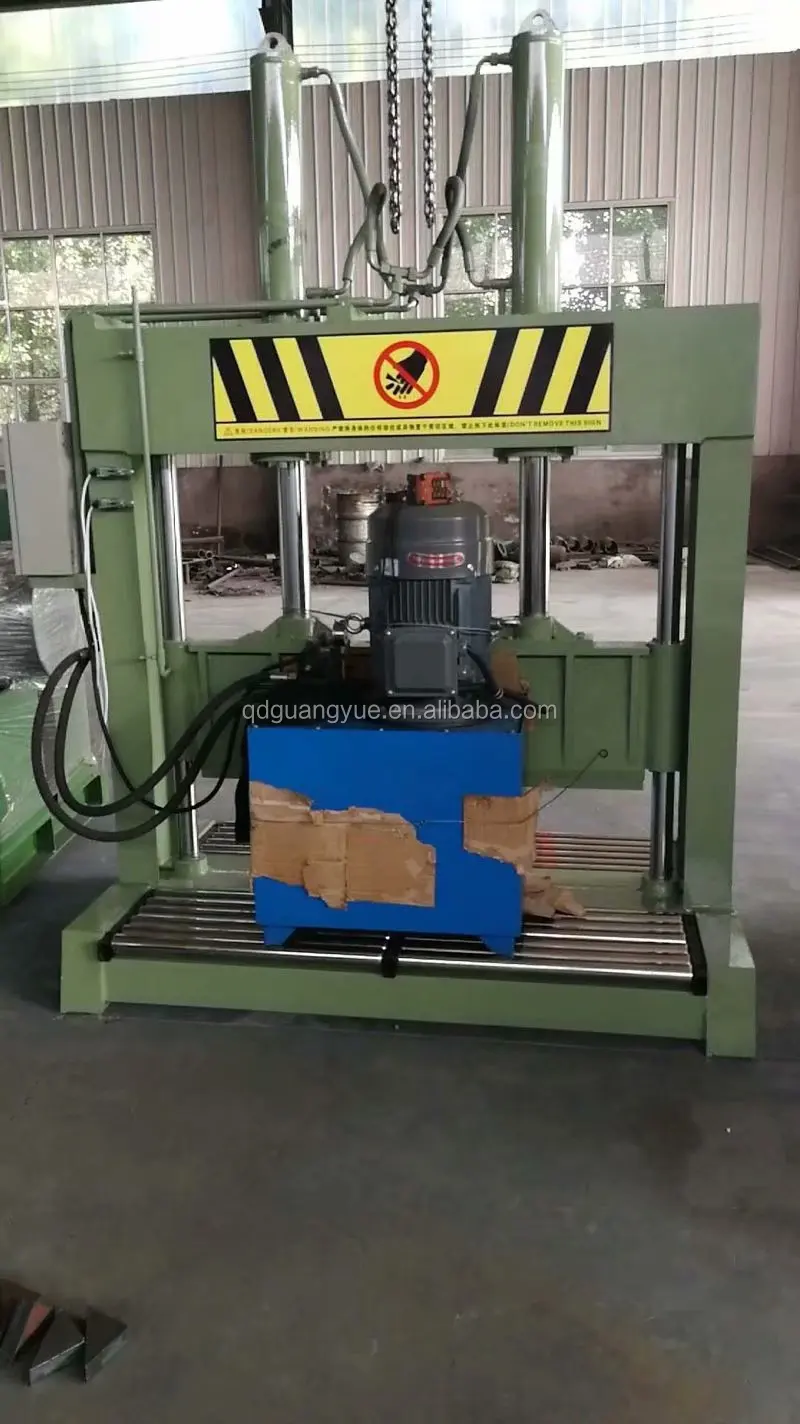

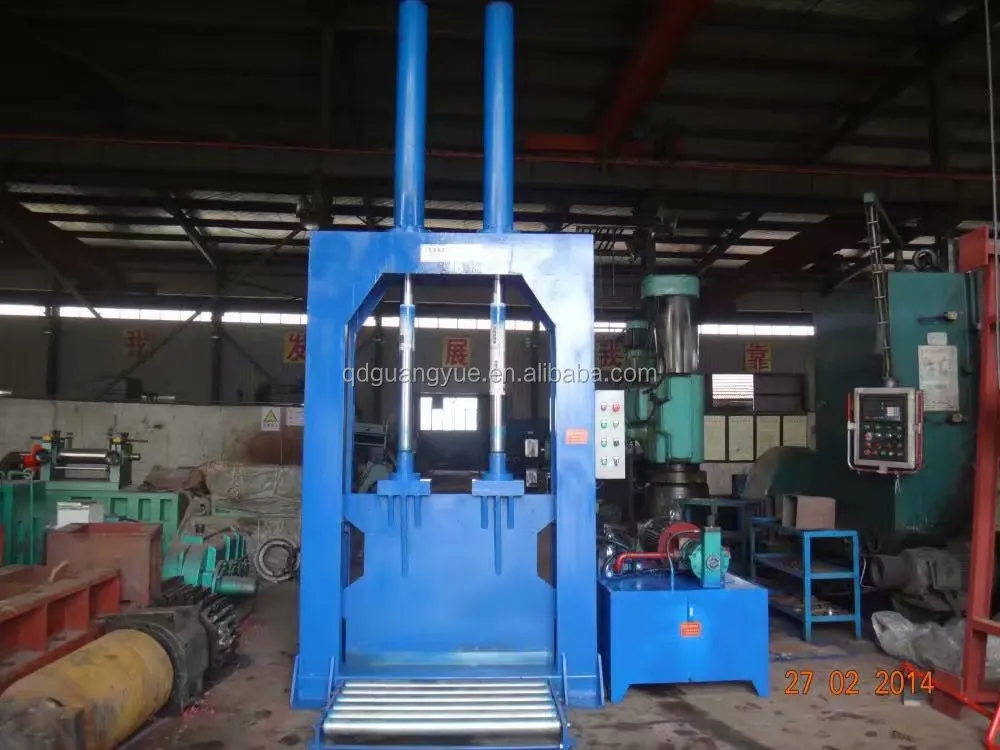

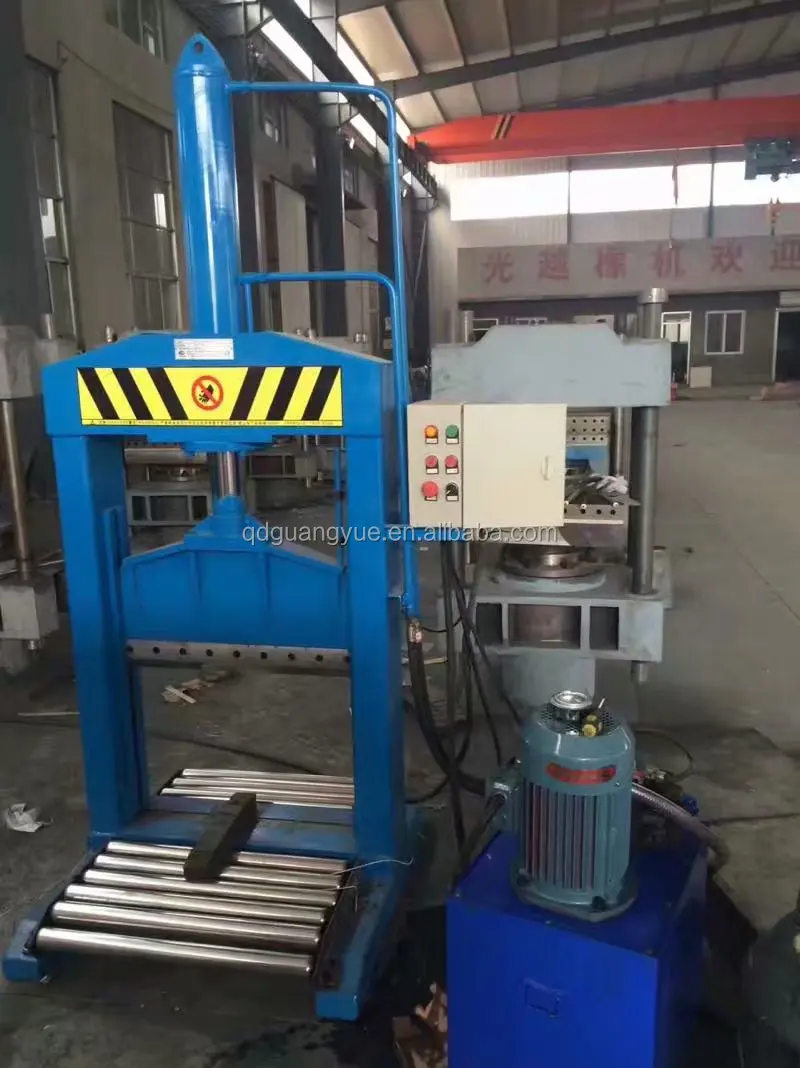

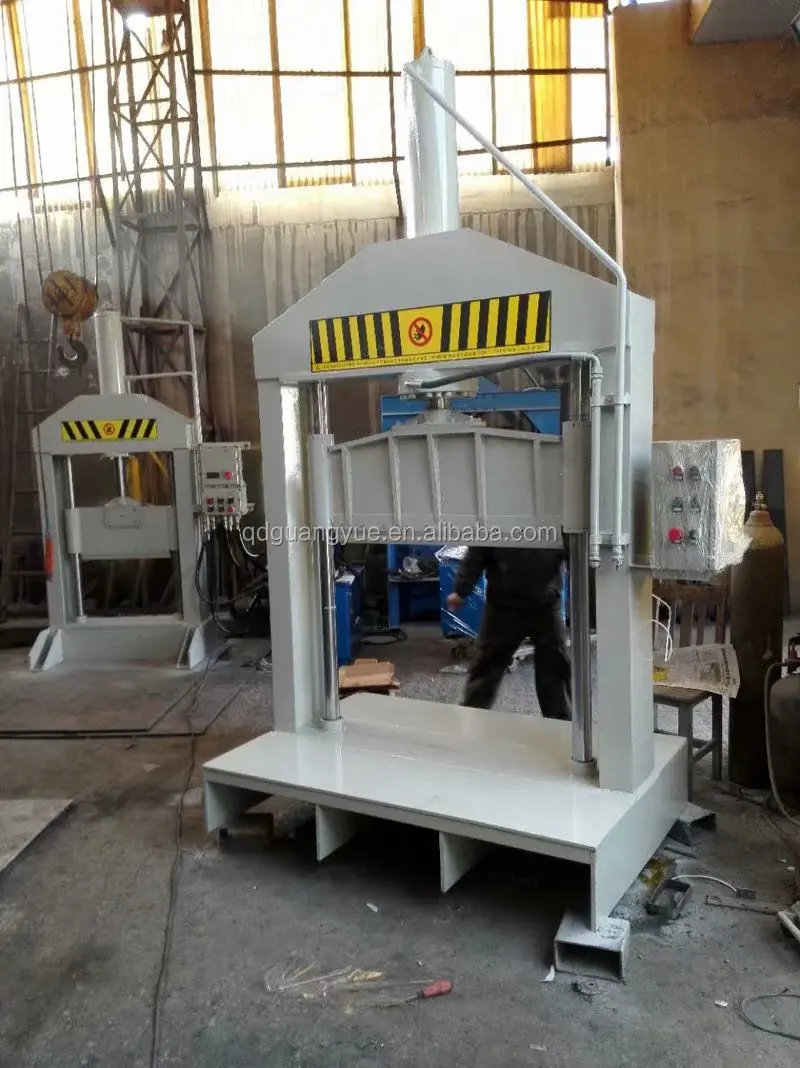

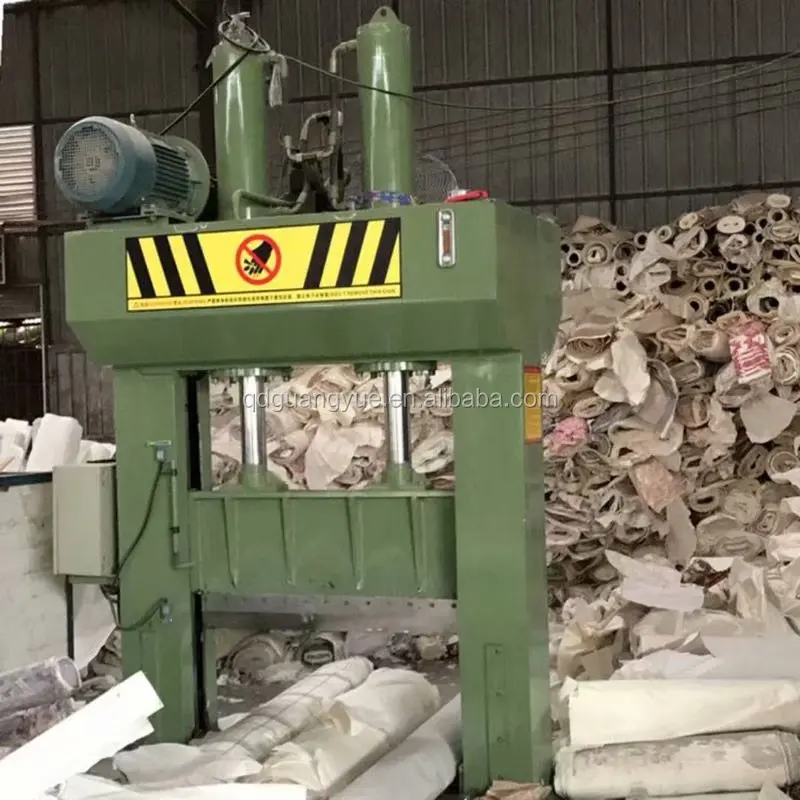

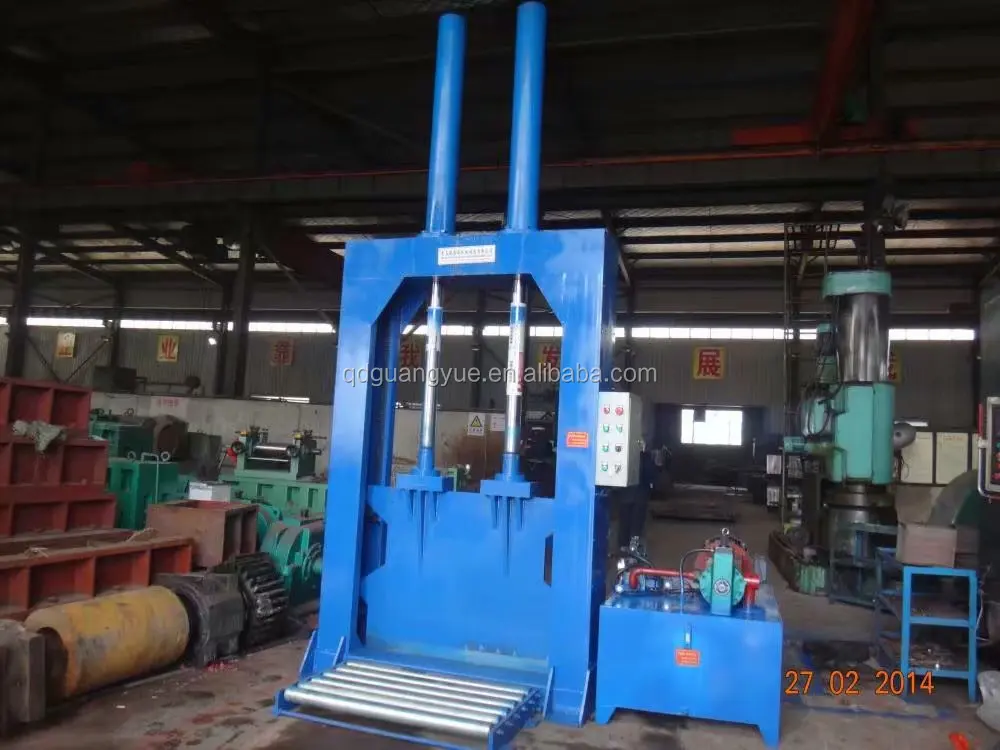

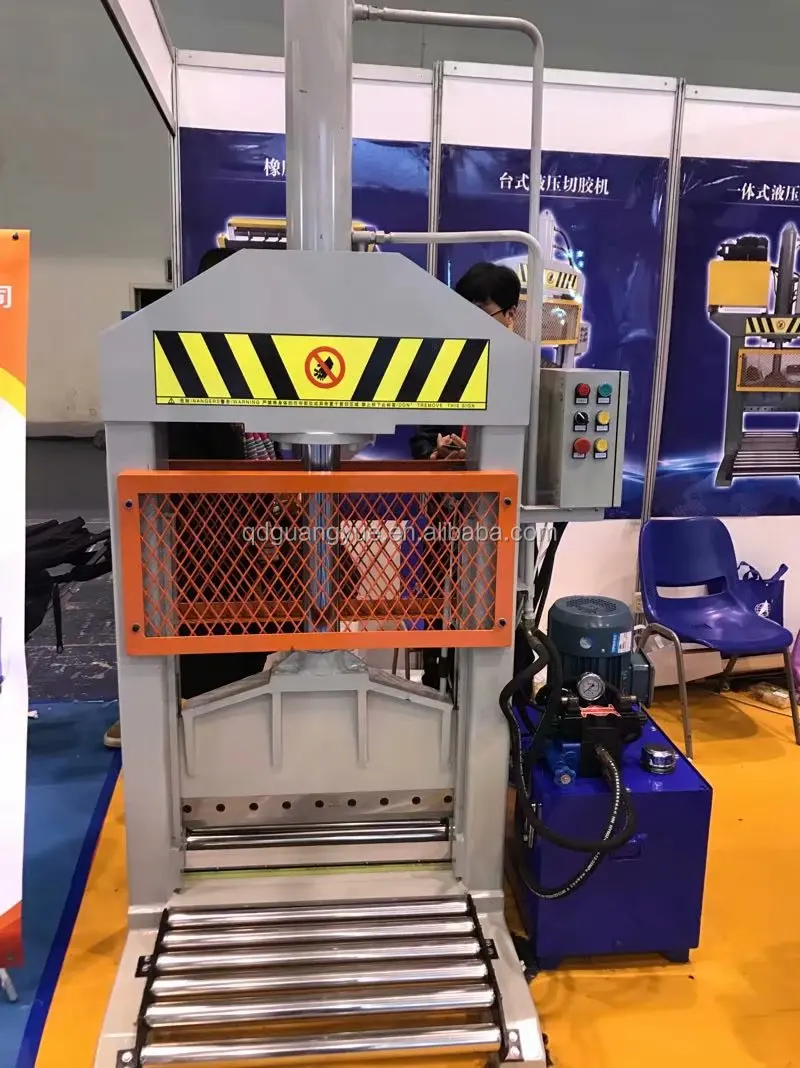

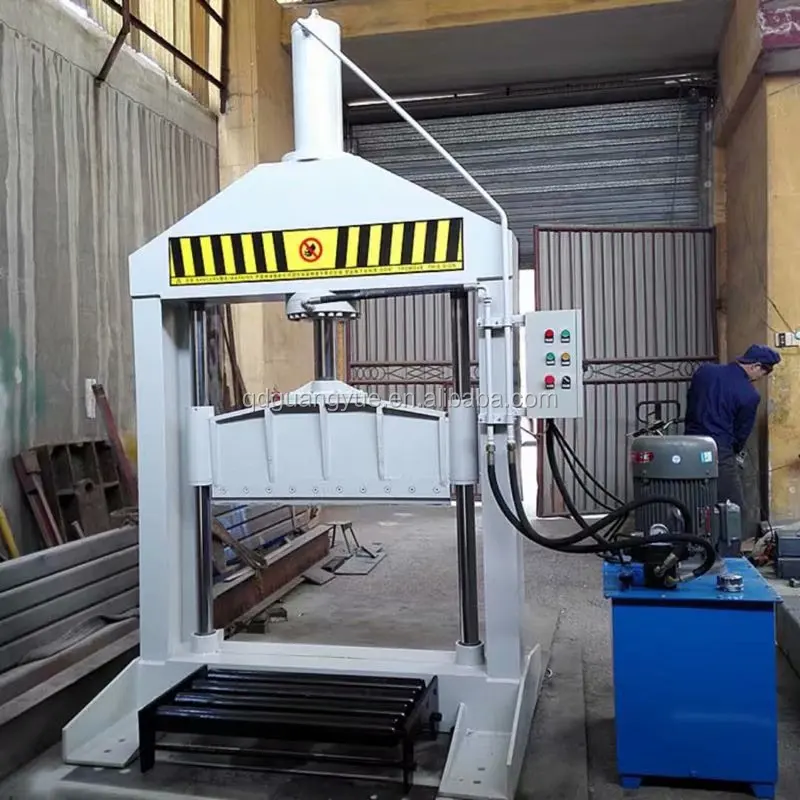

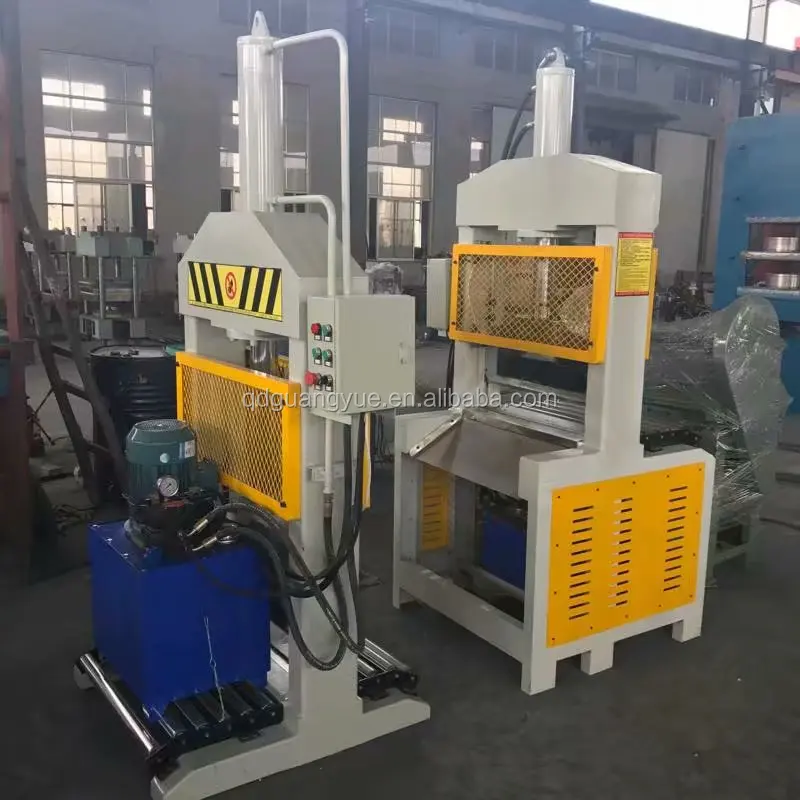

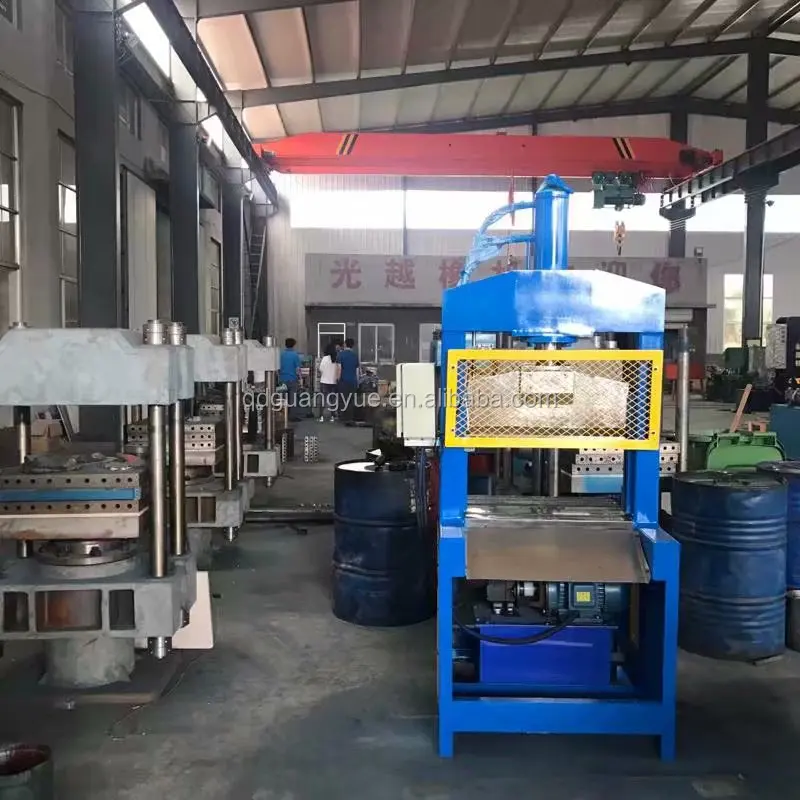

This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife.  When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.  Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder



3.Characteristics:

1. low noise

2. constant temperature  3. automatic pressure mataining and pressure supplement

3.It has solid construction, reasonable design, high production efficiency, easy operation.

4. Cutting knife is controlled by hydraulic system, and reciprocating motion.

5.CE standard ISO9001 certified.





Model		XQL-660	XQL-760	XQL-1000
Cutting width(mm)		660	760	1000
Knife stroke(mm)		680	680	680
Total pressure(KN)		80	125	200
Cylinder diameter(mm)		150	150	150
Stroke taken time(s)		16~25	16~25	16~25
Motor power(kw)		5.5	5.5	5.5
Overall dimension(mm)	L	1900	2000	2240
	W	720	720	720
	H	2580	2580	2580
Weight(ton)		1.1	1.5	2.0
