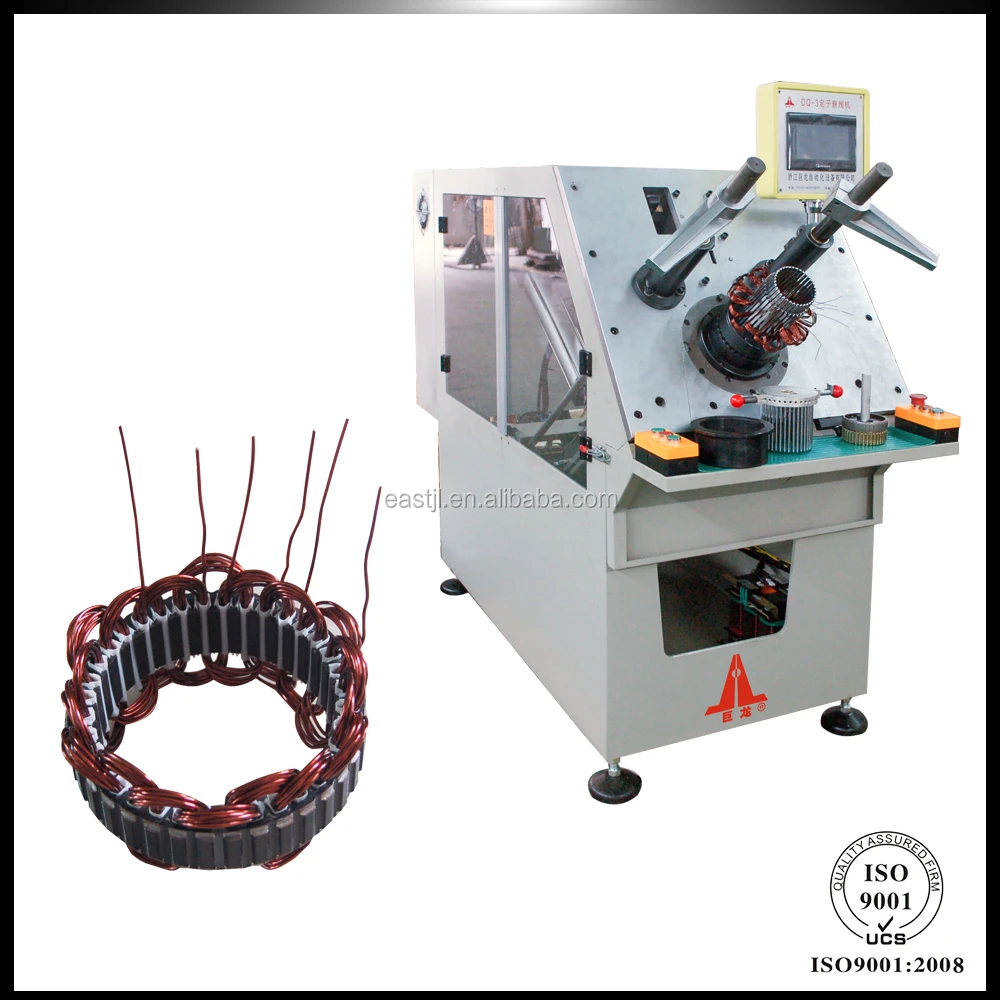

DQ-2 wholesale china factory automatic stator slot winding coil inserting machine









Features:





Suitable for automobile generator stator three-phase one-time embedded and cover groove wedge of special equipment. Mitsubishi PLC control. Color touch screen operation and fault diagnosis, servo motor drive ball screw and push into the coil into the slot, the stroke control is accurate, uniform speed, the use of integrated wire tooling, replacement is simple and convenient, long service life, high efficiency.











Technicai Parameters








































Input voltageAC380V±10% 50Hz

Air pressure


0.5~0.7MPa

Total power


4kw
Stator IDΦ60~Φ120mm
Stator OD≤Φ210 mm
Core thickness

20~130mm


Slots36/48
Wire Range

0.15~1.6mm
