China Hight Quality Conventional Lathe Machine Price
US $3850-$4520
Токарный станок AWR28HPC для ремонта колес, токарный станок с ЧПУ для изготовления литых колес
- Category: Manual Lathe >>>
- Supplier: Taian Hiscience Machinery Co. Ltd.
Share on (60457561262):
Product Overview
Description

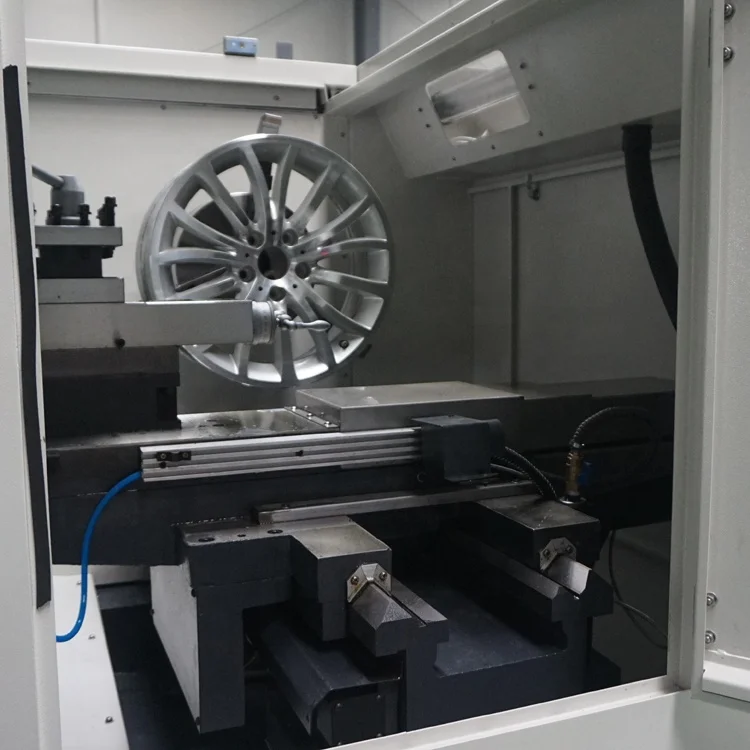

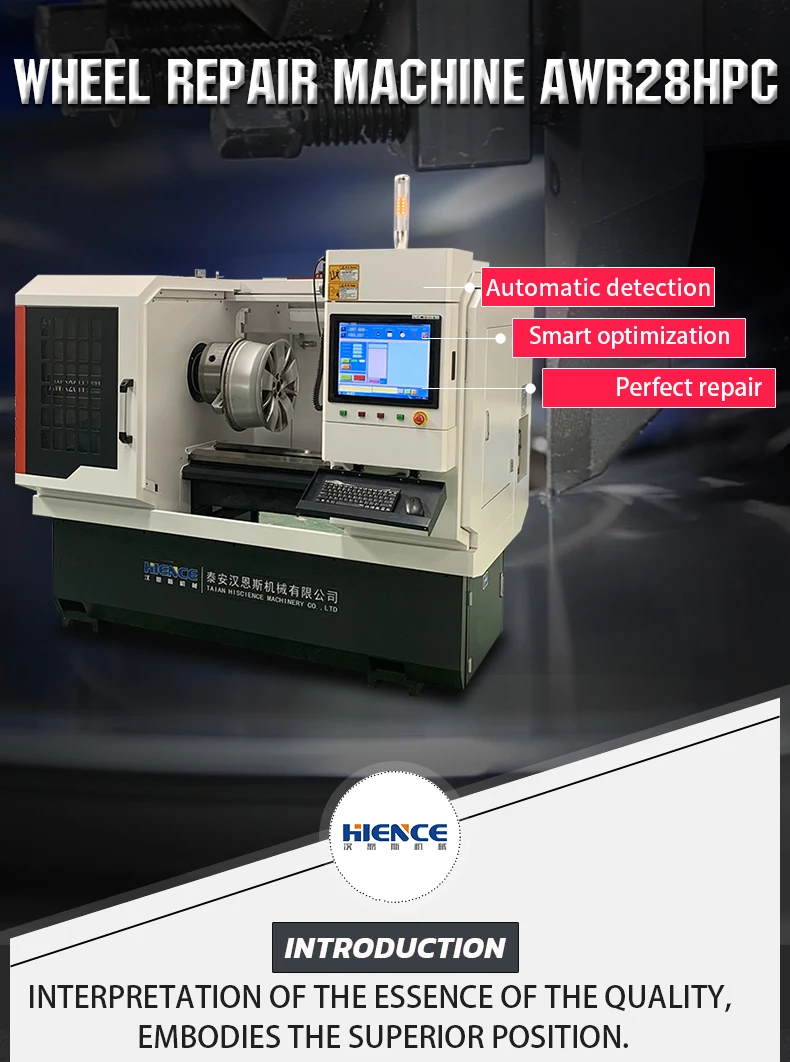

In order to meet the request for alloy wheel end-face repair, our company has developed newest PC controller type wheel repair lathe to repair damaged wheel face. The machine use 17-inch touch instrial PC, so the machine get rid of complicated operation and many useless CNC controller button. and all steps will finished on PC controller.

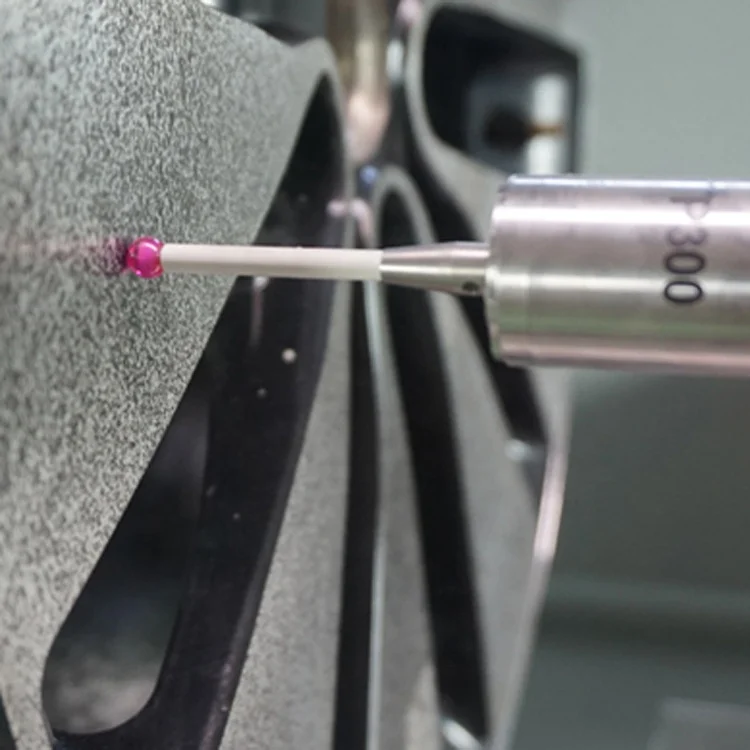

1.Can probe and cutting alloy wheels automatic. Can set start and end detection point by one key.

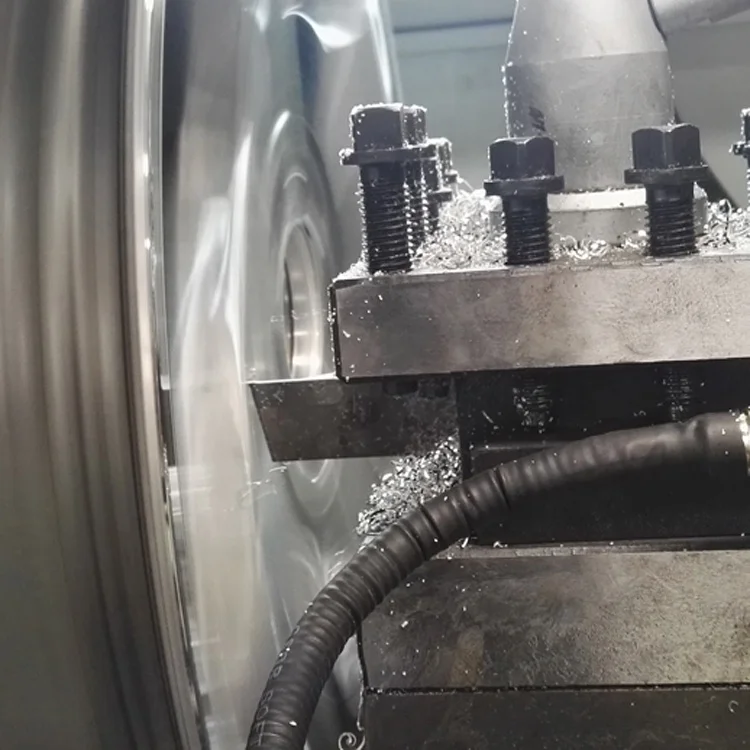

2.Can probe and cut different difficult deep dish wheels by longer probe and longer cutter.

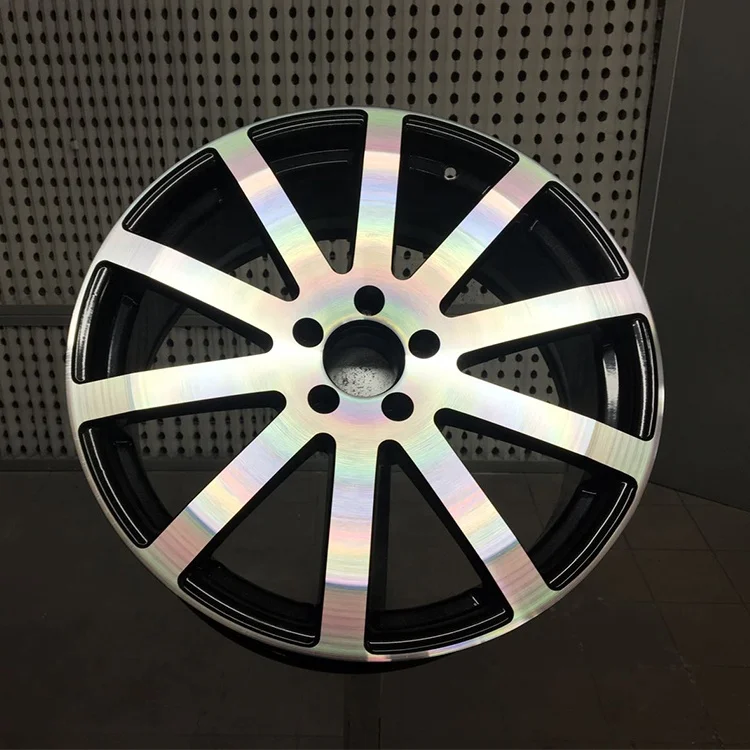

3.Can realized different cutting effect according to your request by adjust detection parameters, can realize rainbow line.
4.Can save program for next save models wheels, so no need to probe again for same model wheels. Can save time and money.
5.We offer detailed training video and manual with machine,you can learn the machine by yourself.
AWR28H-PC | ||
Max. swing over bed (mm)(inch) | Φ770(30’) | |
Max. Diameter of wheel(mm) (inch) | Φ710(28’) | |
390 | ||
Max. Stroke of the Z-axis (mm) | 880 | |
Width of the rail (mm) | 300 | |
Length of the rail (mm) | 1320 | |
Size of the three-jaw chuck (inch) | 13’ | |
Range of spindle speed (RPM) | ||
Spindle speed control | ||
Spindle bore (mm) | Φ60 | |
Taper of spindle bore | 1:20(Φ90) | |
Taper of spindle nose | ||
Adjustable stroke of carrier in X direction | 100mm | |
Max. size of tool post | ||
Stations of tool carrier | 4 position | |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm | |
Moving speed of post | (Z) long 8m/min, (X) cross 6m/min | |
Motor power | 7.5KW | |

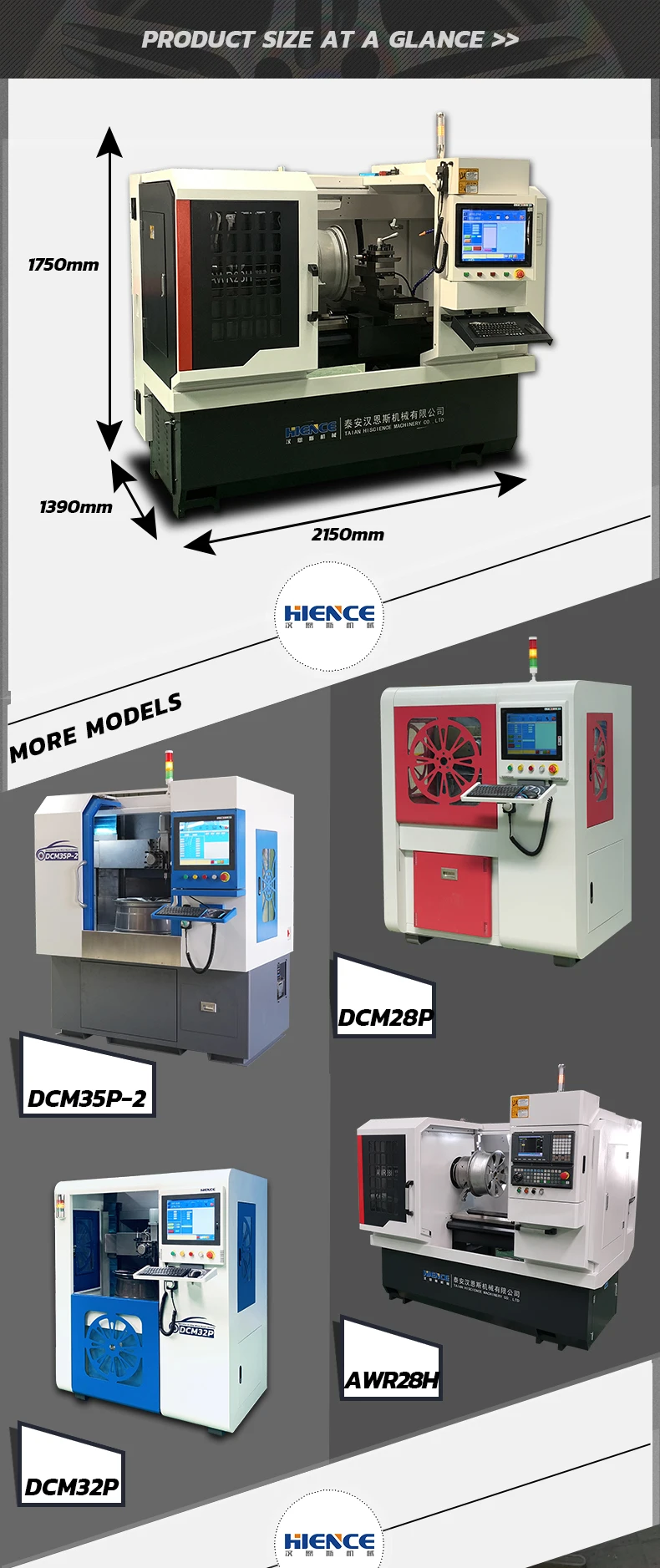

Machine size | (L/W/H) (mm) | 2200/1620/1870 |
Package size | ||
Weight | 2200KGS | |
1)Q: What is PC Alloy wheel repair machine?
A: PC alloy wheel repair machine is developed based on CNC wheel repair machine for alloy wheel repair or refurbishment. PC machine adopt 17’’ muti-function touch screen industrial PC, can opereate easier and high efficient. We have improve the performance and add more function on the machine.
A: PC alloy wheel repair machine is developed based on CNC wheel repair machine for alloy wheel repair or refurbishment. PC machine adopt 17’’ muti-function touch screen industrial PC, can opereate easier and high efficient. We have improve the performance and add more function on the machine.
2)Q: What Max wheel size the wheel machine can cut?
A: We have many model machine can meet different customer’s request. It is no problem for most of wheel size 22’’, and can up to 32’’.
A: We have many model machine can meet different customer’s request. It is no problem for most of wheel size 22’’, and can up to 32’’.
3)Q: Can the machine cut special wheel,such as deep dish wheel?
A: The machine can probe and cut special wheel, it is no problem for deep dish wheel. We have self developed professional wheel repair software, can repair all wheel and can realize rainbow line effect.
A: The machine can probe and cut special wheel, it is no problem for deep dish wheel. We have self developed professional wheel repair software, can repair all wheel and can realize rainbow line effect.
4)Q: If your machine all steps are operated on machine, not need go to computer?

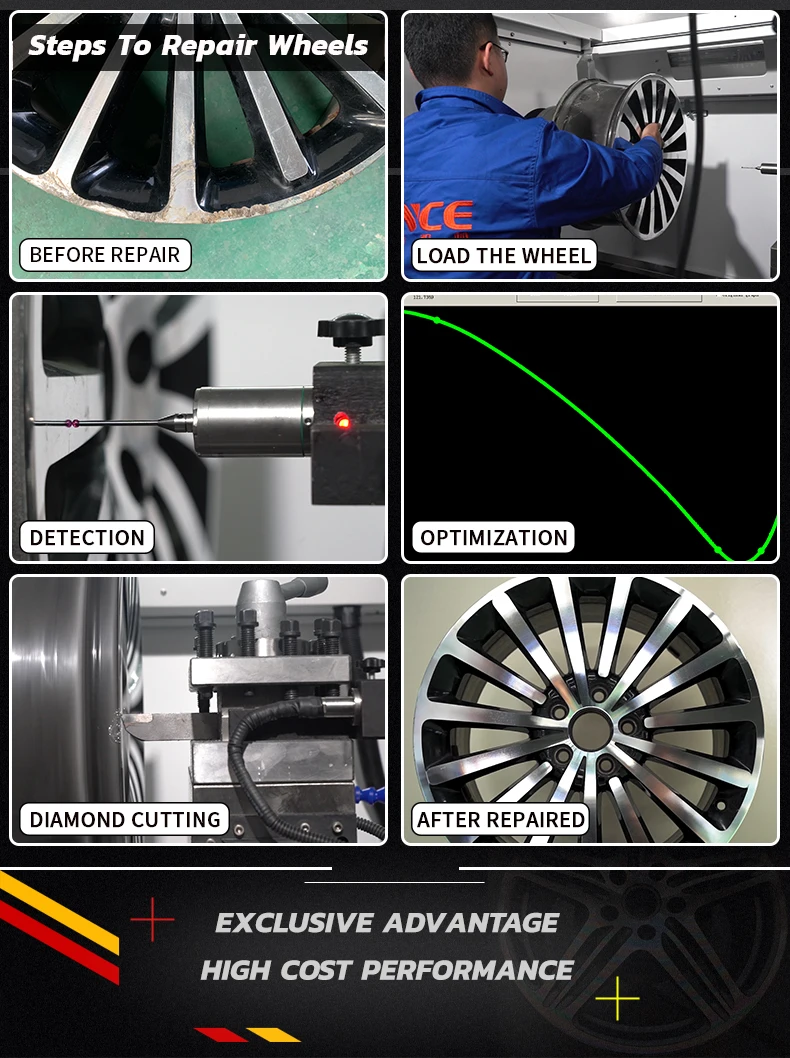

A: Detection, optimization and cutting can be finished in one system in a time.
A: Detection, optimization and cutting can be finished in one system in a time.
5)Q: Is it easy to learn?
A: Yes, Friendly man- machine interface, easy to learn and the people without professional training can learn the operation easily in one hour. We also offer training video and detailed operation manual with machine.
A: Yes, Friendly man- machine interface, easy to learn and the people without professional training can learn the operation easily in one hour. We also offer training video and detailed operation manual with machine.
6)Q: Is it easy to use?
A: Sure. The machine adopts 17 inch touch screen industry integrated machine,wireless key&mouse are set up and the mouse can be used together with the touch screen. The customer can establish their own database of different models of wheels and the saved data can be used in the cutting of same model.
A: Sure. The machine adopts 17 inch touch screen industry integrated machine,wireless key&mouse are set up and the mouse can be used together with the touch screen. The customer can establish their own database of different models of wheels and the saved data can be used in the cutting of same model.
7)Q:What is your service for the machine.
A: The machine warranty is 1 year. The machine support the remote assistance, and any problems can contact with our company to start the after sale service.The software support remote upgrade, enjoy life free upgrade to the latest version.
A: The machine warranty is 1 year. The machine support the remote assistance, and any problems can contact with our company to start the after sale service.The software support remote upgrade, enjoy life free upgrade to the latest version.
