Glass making holes machine for working drilling holes
- Category: Glass Processing Machinery >>>
- Supplier: Liaoda (LAD) Glass Machinery Co. Ltd.
Share on (60457572293):
Product Overview
Description
Glass making holes machine glass drilling machine
Specifications:1. For flat glass
2. with two drills
3. glass thickness:3-19mm
4. the rigid and anti-corrosive spindle enables maintenance free.
Glass drilling machine:
a. Two drilling spindles, one at the lower side and another upper. When the glass is put on the table, it is fixed pneumatically and the lower spindle will rise up automatically to drill from the bottom side if the glass. Then the upper spindle will drill the top side of the glass and thus, the hole is drilled through.
b. The cooling water runs inside the core drill so that the cooling effect is directly acted onto the glass without any loss.
c. Tapping or chamfering can be made on the hole for particularly purpose.
d. The spindle design is sophisticated such that it is strong enough for 24 hours running a day. The rigid and anticorrosive spindle enables maintenance free.
e. Customer designed drilling machine alvailable. With extra hole diameter, glass size. Also able to drill holes on water sink.
Warrtanty: 12 months
Main Technical Specification:
| Model Number | YD-HD-5/80 |
| Distance from hole centre to C-stand (mm) | 1100 |
| Hole diameter(mm) | 3~80 |
| Glass thickness(mm) | 3~25 |
| Concentric tolerance(mm) | ± 0.5 |
| Compressed air consumption (IT/min) | 0.3-1 |
| Pressure (kg/cm 2) | 8 |
| Power (kw) | 3 |
| Outer dimention (m) | 2.2 x 2 x 1.6 |
| Weight (kg) | 600 |
Machine photo:
Machine Parts photos:

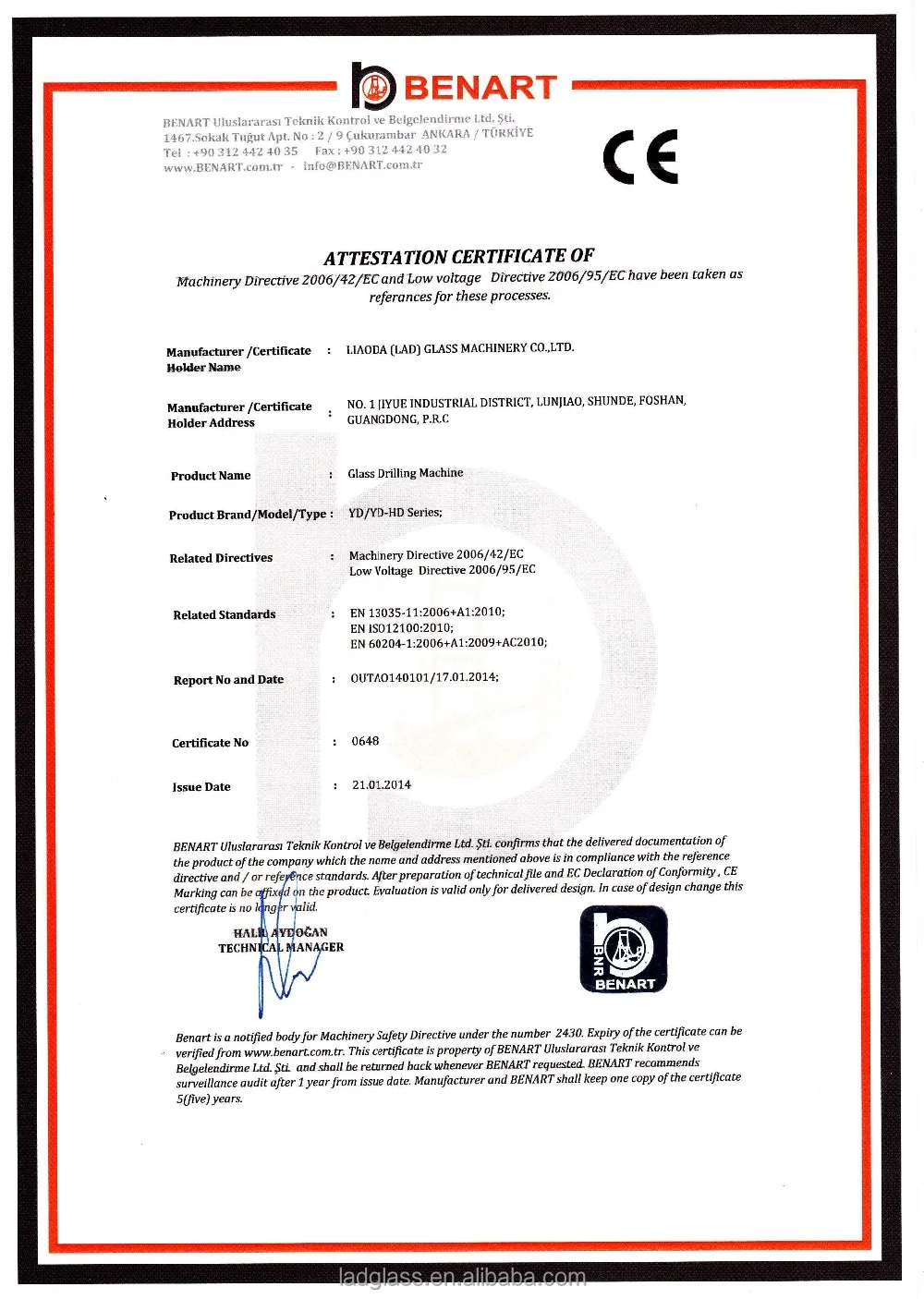

Machine CE & SGS Certificate:
Guarantee And After-sale Service:
- One year guarantee for whole machine.
- 24 hours technical support by e-mail.
- Ues-friendly English software,user manual and detailed Videos/CD.
We will provide all spare parts needed for maintenance of the equipments.
Profrofessional after-sales service team support face-to-face trainning and installation to customer's factory.
Why choose Ladglass?
1.Widely used in different industry
2.High precision and reputation
3.CE Certificate High quality parts
4.Competitive price
5.Fast delivery
6.Best service
Welcome your inquiry and we will try our best to help you choose a right machine!
