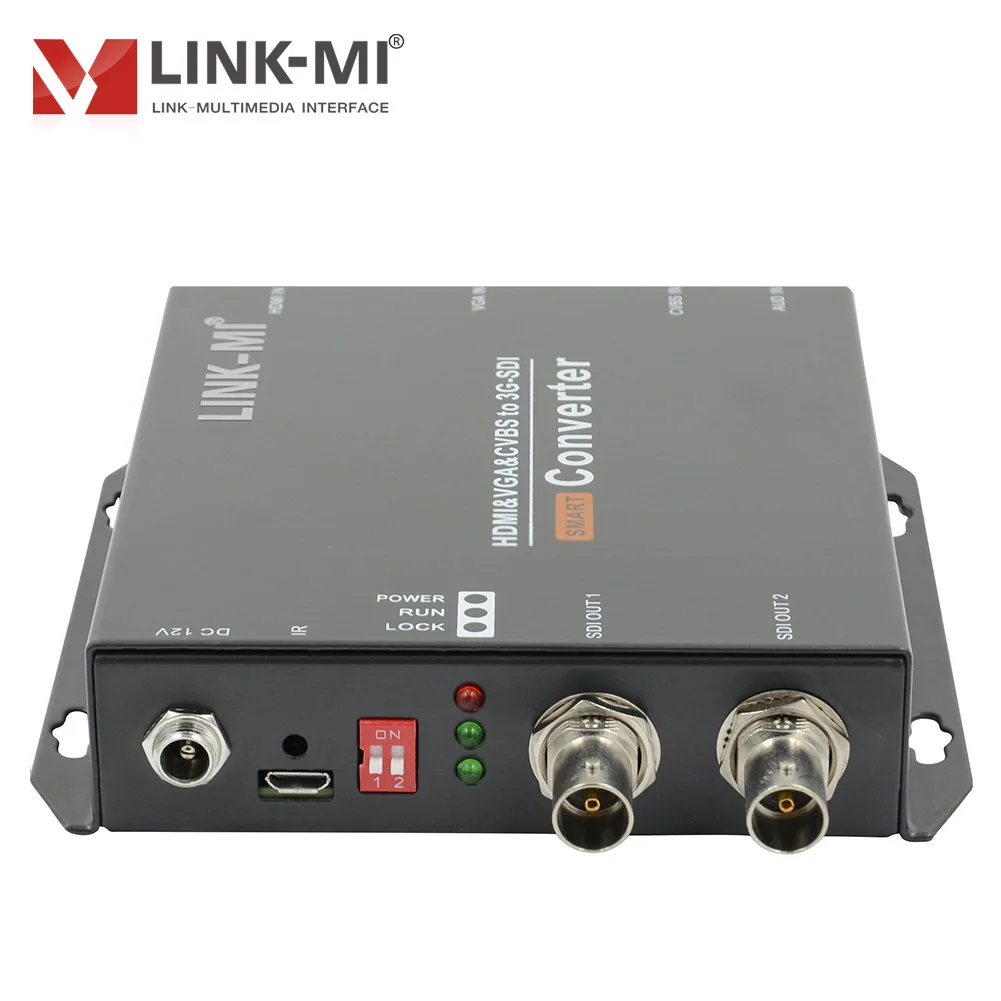

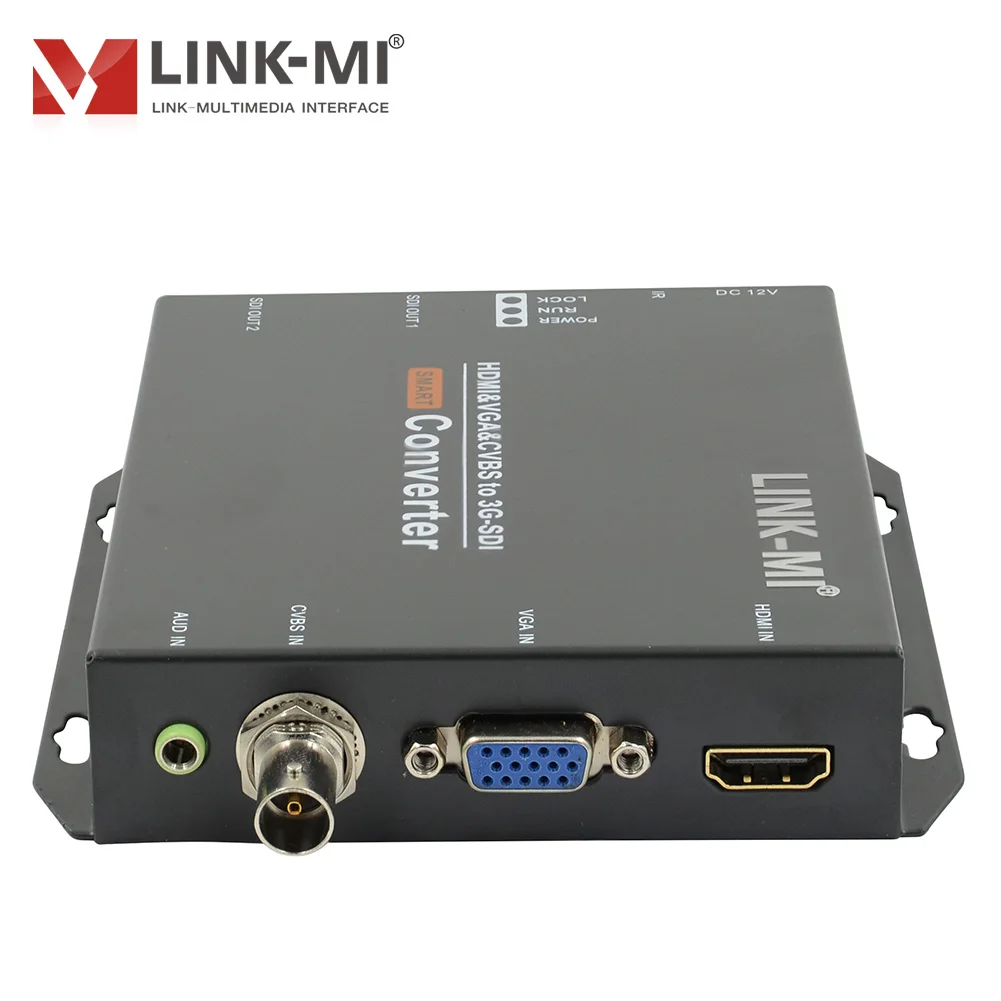

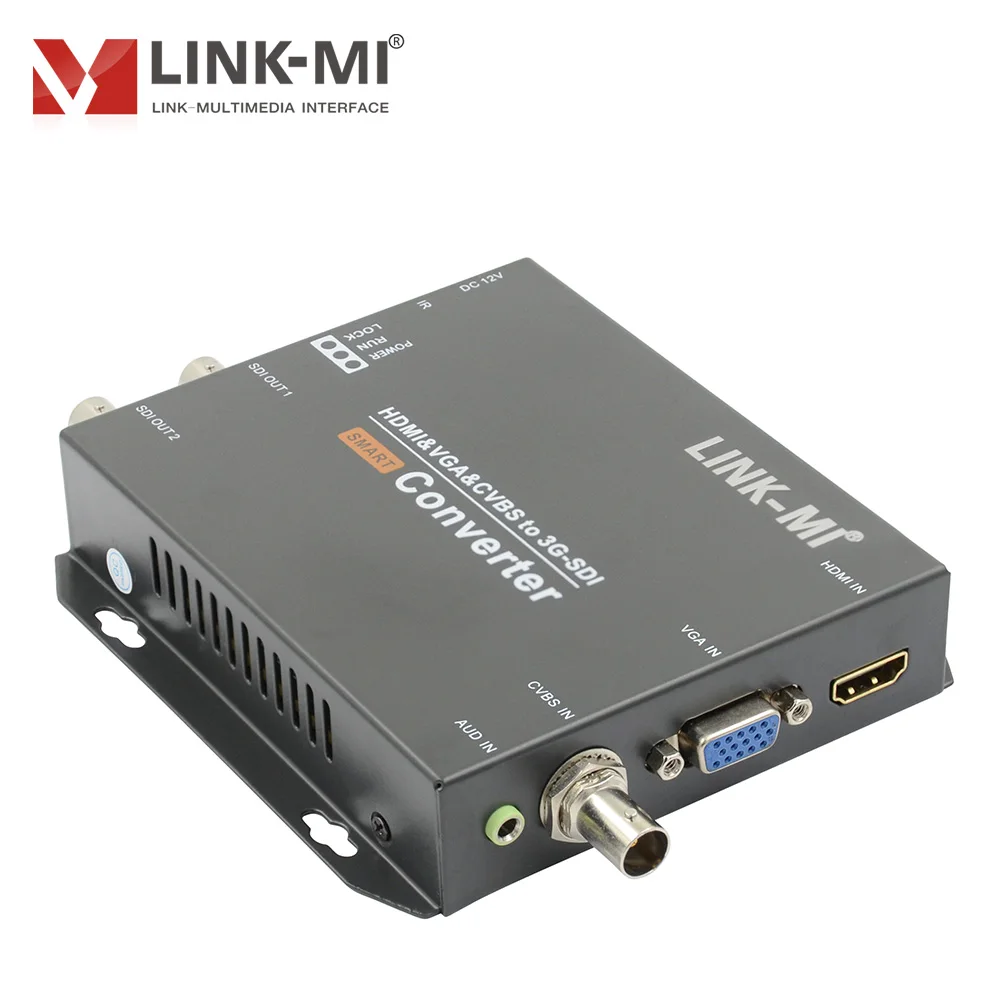

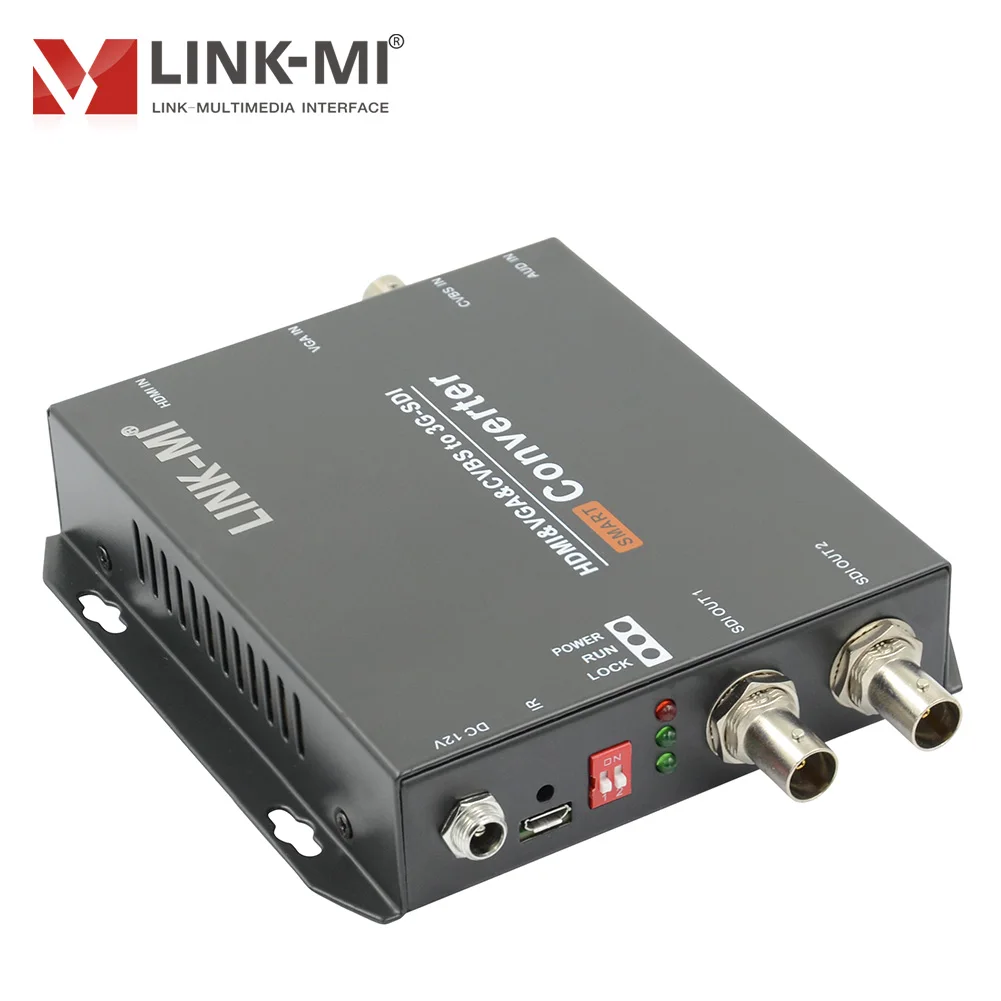

HDMI&VGA&CVBS to SD/HD/3G SDI Multifunction Video Converter

HDMI&VGA&CVBS to SD/HD/3G SDI Multifunction Video Converter

Brand Name:   LINK-MI

Model No.:       LM-CV190

Product Type:  HDMI/VGA/CVBS multiple signal to 3G/HD-SDI 120m/200m Media Converter

    LINK-MI LM-CV190 HDMI+VGA+CVBS to SDI Converter is a high-quality, high-performance video signal conversion products, product support HDMI 1.3, HDCP 1.1 standards, support HDMI, VGA and CVBS signal input and output compatible with SD/HD/3G-SDI digital video/audio signals. Our converter with professional design and compliance with the SMPTE standard, quality as broadcast grade signals, support the transmission distance up to 200 m HD-SDI, 3G-SDI signals up to 120 meters [Note: Meets Belden 1694A cable standards, SDI standard signal indicators]. Unlike the traditional converter products in current market, our HDMI+VGA+CVBS to SDI Converter which built in a professional image conversion processing chip, and with HDMI/VGA/CVBS video image enhancement, noise reduction, de-interlacing (optional) function, support the user-adjustable to set the saturation/brightness/contrast , and through automatic scaling and frame rate conversion, any input format video signal can be converted to a standard SD/HD/3G-SDI, compatible with all common HDMI, VGA and CVBS signals.

1. Support the HD-SDI transmission distance up to 200m, 3G-SDI signals up to 120 meters (pass the TEKTRONIX/PHABRIX professional test and verify).
2. Compatible with HDMI 1.3, HDCP 1.1 and various VESA standard signal and up to 1920x1080@60Hz VGA signal, support PAL/NTSC CVBS signal.
3. With image enhancement, noise reduction, de-interlacing (optional) function,automatic scaling and frame rate conversion, compatible with various signal format.
4. Support HDMI DDC and VGA DDC.
5. Optional SDI output (support to or not support 3G-SDI)
6. Support lock SDI output signal, insure the signal no black screen and splash screen when switching.
7. Dual SDI signal output simultaneously.
8. Output blue/black screen warning when video lost.
9. Input/output signal format OSD display.

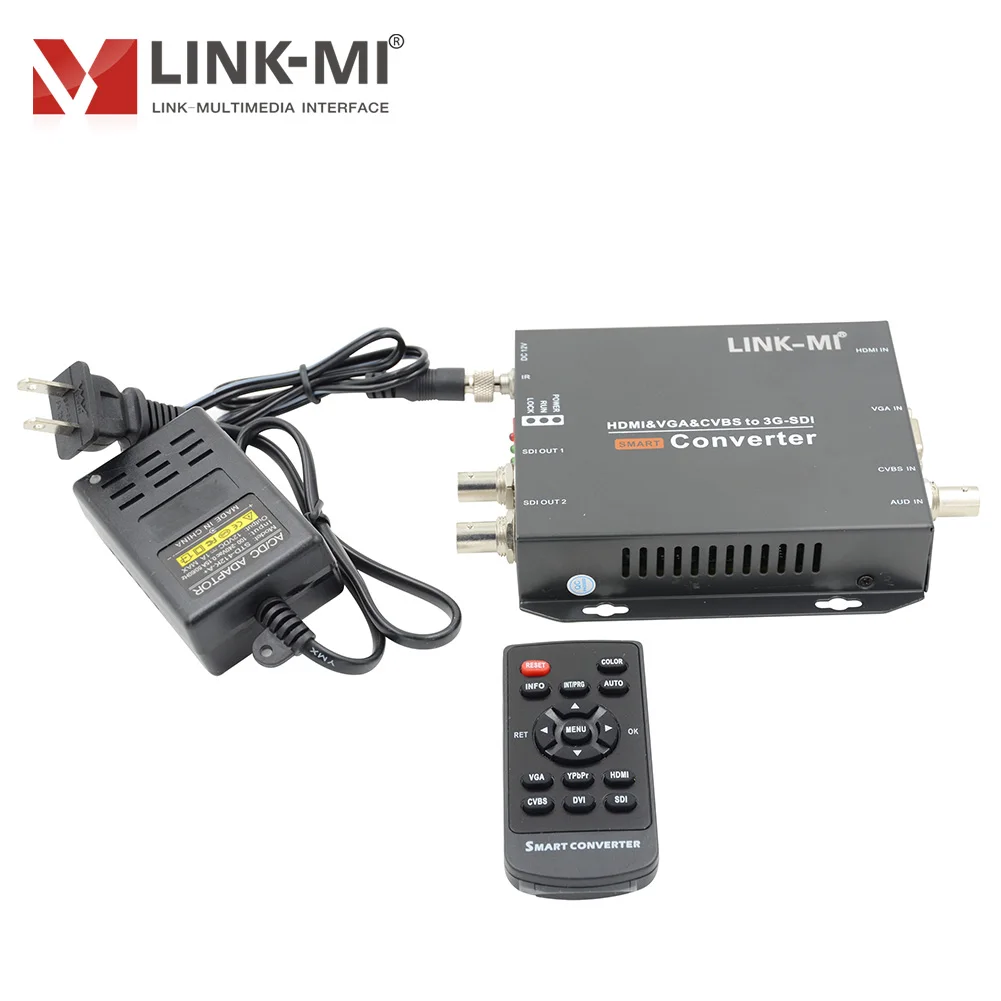

10. Remote control operator, Chinese/English menu interface.
