Thermoelectric cooler module peltier temperature controller

Product Overview

Description

Thermoelectric cooler module Peltier temperature controller

High performanceTEC

• Features

The solder melting point is138℃, and all products with ROHS compliant.
Compression strength 1Mpa.When tightening the screws with balanced stress and take care to avoid breaking the TEC.
The surface both of heat absord side and heat sink touched the TEC should be flat. recomend the flatness within 0.03mm.
Coat uniformly the two sides of TEC with a layer of thermally conductive grease, avoiding the over high thermal resistance resulting in reducing the cooling performance.
Working any condition under the Vmax and Imax.

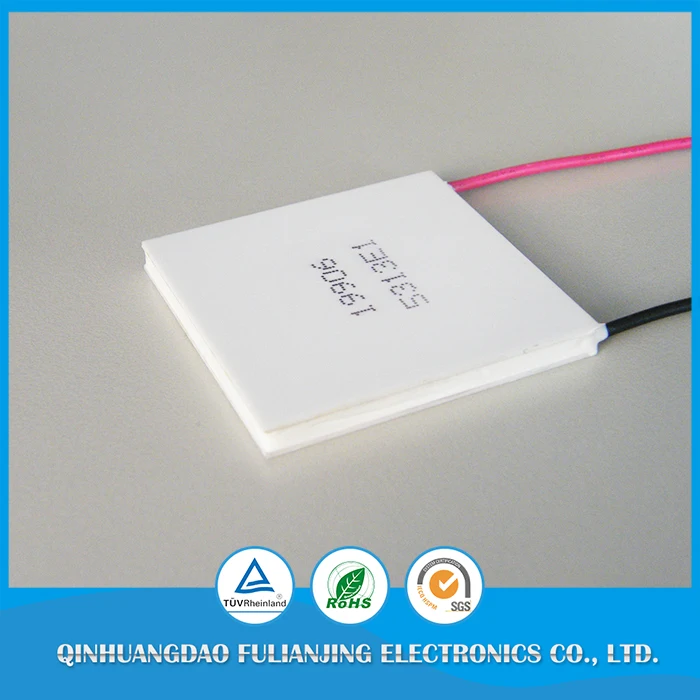

1. Product Pictures of Thermoelectric Peltier

2.Product description of thermoelectric peltier

40 * 40 * 4.0 mm Thermoelectric Peltier Module ROHS
Dimensions: 40 * 40 * 4.0 mm



Features

Small and lightweight
Free choice of configuration
Since there are no moving parts, there is no vibration or noisy
With only a power cord, it is easy to handle



couple	199
Imax	6A
Vmax	24.1V
Qmax	83.5W
soldier	without Pb







Model number	Imax(A)	Vmax(V)	Tmax(℃)	Qmax(W)	Tmax(℃)	Qmax(W)	Dimensions(mm)
			Th=27℃		Th=50℃		L	W	H
TEC1-1703NC	3.5	2.1	68	3.9	75	4.3	15	15	4.70
TEC1-3103NC		3.8		7.0		7.7	20	20
TEC1-3503NC		4.2		7.9		8.7	15	30
TEC1-7103NC		8.6		16.0		17.8	30	30
TEC1-12703NC		15.4		29.0		32.0	40	40
TEC1-12703AC		15.4		29.0		32.0	40	40
TEC1-1704NC	4.0	2.1	68	4.2	75	4.6	15	15	4.60
TEC1-3104NC		3.8		7.5		8.3	20	20
TEC1-3504NC		4.2		8.4		9.2	15	30
TEC1-4904NC		5.9		13.5		15.2	25	25
TEC1-7104NC		8.6		19.6		21.6	30	30
TEC1-12704NC		15.4		32.0		35.2	40	40
TEC1-12704AC		15.4		32.0		35.2	40	40
TEC1-1705NC	5.0	2.1	68	5.5	75	6.1	15	15	4.00
TEC1-3105NC		3.8		10.0		11.1	20	20
TEC1-3505NC		4.2		11.0		12.3	15	30
TEC1-7105NC		8.6		23.0		25.7	30	30
TEC1-12705NC		15.4		41.0		45.8	40	40
TEC1-1706NC	6.0	2.1	68	7.1	75	7.9	15	15	4.00
TEC1-3106NC		3.8		13.0		14.5	20	20
TEC1-3506NC		4.2		14.5		16.1	15	30
TEC1-7106NC		8.6		29.0		31.4	30	30
TEC1-12706NC		15.4		53.0		59.3	40	40
TEC1-12706AC		15.4		53.0		59.3	40	40
TEC1-1707NC	7.0	2.1	68	7.5	75	8.3	15	15	3.70
TEC1-3107NC		3.8		13.6		15.1	20	20
TEC1-3507NC		4.2		15.4		17.1	15	30
TEC1-7107NC		8.6		31.0		34.6		30
TEC1-12707NC		15.4		55.0		61.5	40	40
TEC1-12707AC		15.4		55.0		61.5	40	40
TEC1-1708NC	8.5	2.1	68	10.0	75	11.1	15	15	3.50
TEC1-3108NC		3.8		18.0		20.1	20	20
TEC1-3508NC		4.2		20.0		22.3	30	15
TEC1-6308NC		7.6		37.4		41.8	40	20
TEC1-7108NC		8.6		42.0		46.9	30	30
TEC1-12708NC		15.4		75.0		83.9	40	40
TEC1-12708AC		15.4		75.0		83.9	40	40
TEC1-12710AC	10.5	15.4	68	93.0	75	102.0	40	40	3.30
TEC1-12712AC	12.5	15.4	68	110.0	75.0	121.0	40	40	3.70
TEC1-12715AC	15.0	15.4	68	130.0	75.0	145.0	50	50	4.15
TEC1-19903AC	3.5	24.1	68	49.0	75.0	53.0	40	40	4.70
TEC1-19904AC	4.0	24.1	68	55.7	75.0	61.2	40	40	4.60
TEC1-19906AC	6.0	24.1	68	83.5	75.0	91.9	40	40	4.00
TEC1-19908AC	8.5	24.1	68	118.0	75.0	130.0	40	40	3.50
TEC1-19910AC	10.5	24.1	68	148.0	75.0	163.0	40	40	3.30
TEC1-19913AC	13.0	24.1	68	200.0	75.0	224.0	40	40	3.40
TES1-3102NC	2.0	3.8	68	3.7	75	4.0	15	15	4.8
TES1-7102NC		8.6		8.5		9.4	20	20
TES1-12702NC		15.4		15.2		16.9	30	30
TES1-12702AC		15.4		15.2		16.9	30	30
TES1-3103NC	3.0	3.8	68	6.5	75	7.2	15	15	3.9
TES1-4903NC		6.0		10.3		11.3	20	20
TES1-7103NC	3.0	8.6		15.0		16.7	20	20
TES1-12703NC		15.4		27.0		30.1	30	30
TES1-12703AC		15.4		27.0		30.1	30	30
TES1-3104NC	3.9	3.8	68	8.1	75	8.8	15	15	3.7
TES1-7104NC		8.6		18.7		21.8	20	20
TES1-12704NC		15.4		33.4		37.3	30	30
TES1-12704AC		15.4		33.4		37.3	30	30
TES1-3106NC	6.0	3.8	68	12.2	75	13.6	15	15	3.2
TES1-7106NC		8.6		27.9		31.2	20	20
TES1-12706NC		15.4		50.5		56.5	30	30
TES1-12706AC		15.4		50.5		56.5	30	30



Application
GAS Analyzers, Photonic and medical systems, CPU cooler and scientific instrument.
Calibration Equipment, Air Conditioner, PCR.
Wine Shelf, Infraed Sensor, Comminication base station.
