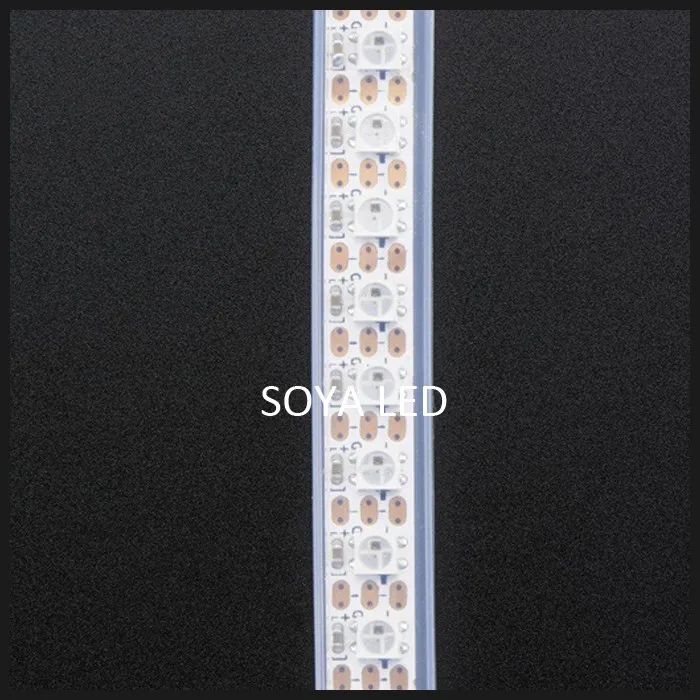

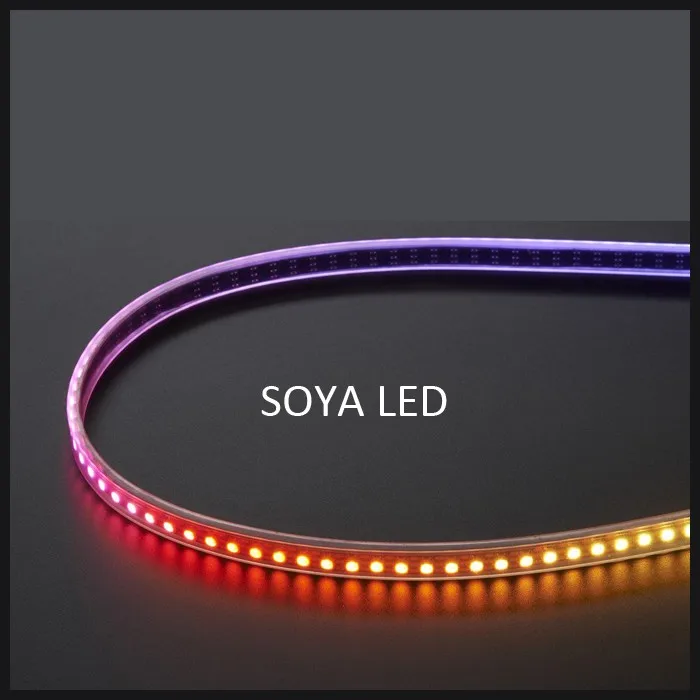

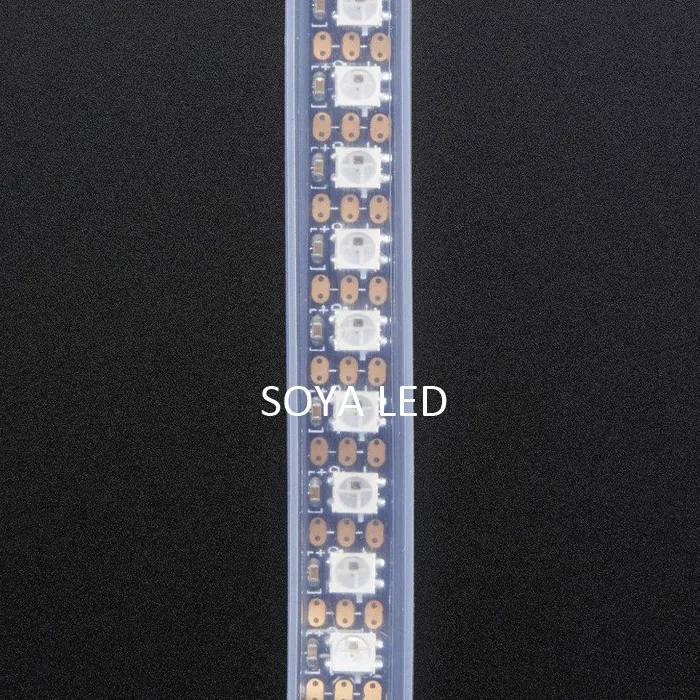

ws2812b mini led pixel strip 3535 144 leds silicone coating
Product Description
1. So thin. So mini. So teeeeeeny-tiny. It's the 'skinny' version of our classic digital Pixel strips!
2. These sk6812mini LED digital Pixel strips have 144 digitally-addressable pixel Mini LEDs per meter and are very affordable and are only 7.2 mm if you remove the strip from the casing. Strips are available with black flex and white flex PCB,
3.There are 144 RGB mini 3535 LEDs per meter, and you can control each LED individually! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
4.The mini led pixel strip 3535 144 leds is made of flexible PCB material, and comes with a weatherproof sheathing. You can cut this stuff pretty easily with wire cutters, there are cut-lines every 0.27"/6.94mm (1 LED each). Solder to the 0.1" copper pads and you're good to go. Of course, you can also connect strips together to make them longer.
5.The way the pixels are controlled by Arduino, Glediator, DMX( Artnet), Raspberry pi, AVR, T1000s/T300K and etc.
Product features
1. This 7.2mm flexible led rgb digital strip 144 led support 144 leds 1 meter/ roll, 30 leds/60 leds are 5 meter /roll maximum.
2. The bare pcb board is narrow only 5mm for 30 leds, 60 leds. 144 leds mini strips only 7.2mm.
3. The LEDs are controlled by shift-registers built into each LED lamp. In order to drive the strip you need 5v, GND and DATA-easy!
Item No.
ws2812b mini led pixel strip 3535 144 leds silicone coating
LED quantity
144 LEDs/m
LED type
ws2812b 3535
Wattage
35 watts
Pixel pitch
every 6.944mm cuttable
PCB width
7.2mm
Working volatage
DC5V
PCB color
Black and White
Light color
Multi-color,digital RGB,Every LED individual Control
