RG6 RG59 CCTV bnc f connector compression type zinc and brass optional
- Category: >>>
- Supplier: Jiangsu Xixia Communication Technology Co. Ltd.
Share on (60457808971):
Product Overview
Description
We produce all kinds of f connectors plug RG6 RG59 CCTV bnc f connector compression type zinc and brass optional
At the same time, we produce RG6 RG59 CCTV bnc f connector compression type zinc and brass optional, RG6 RG59 CCTV bnc f connector compression type zinc and brass optional, and RG6 RG59 CCTV bnc f connector compression type zinc and brass optional RF Connectors 100,000 pcs each every day.

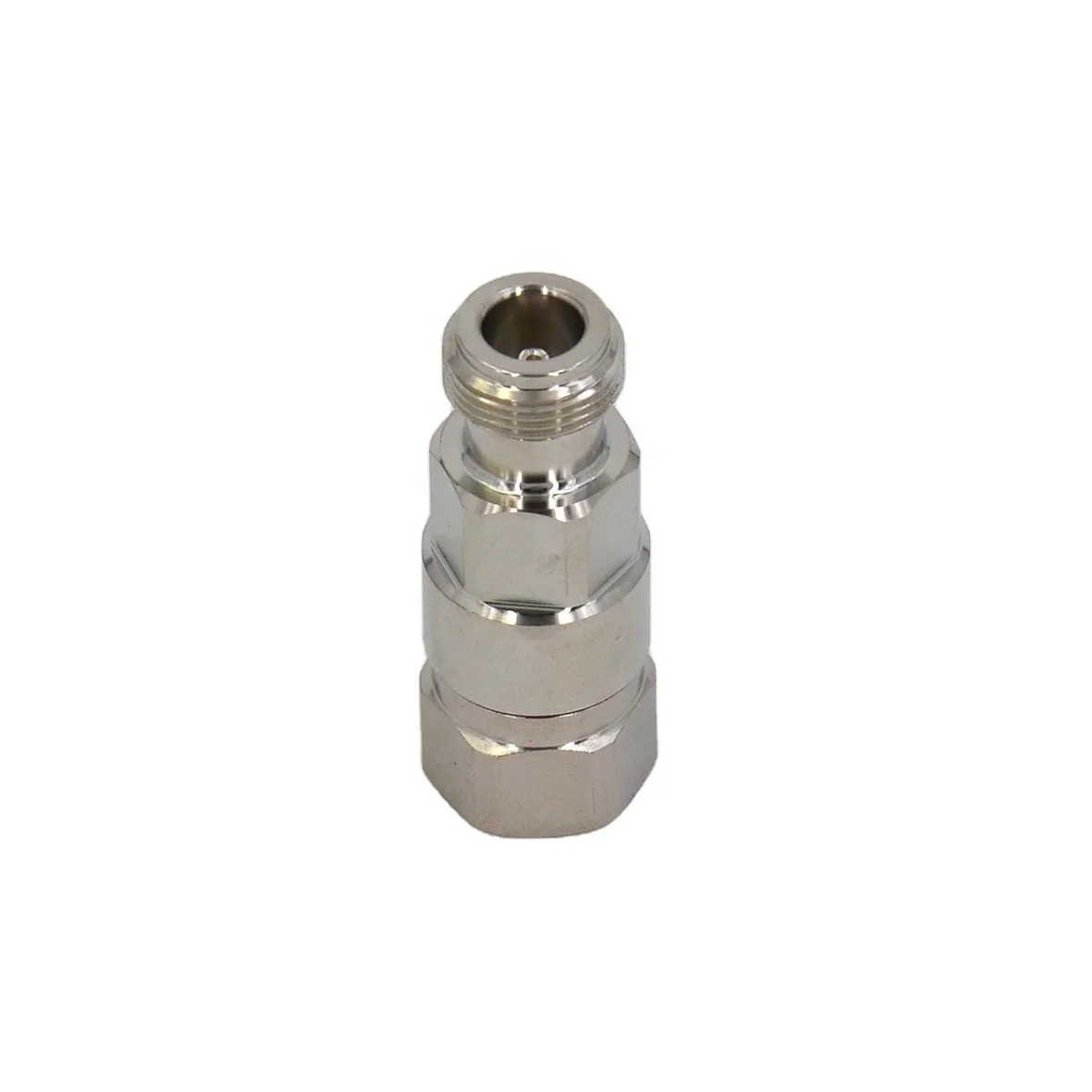

The photo of f connectors plug RG6 RG59 CCTV bnc f connector compression type zinc and brass optional:

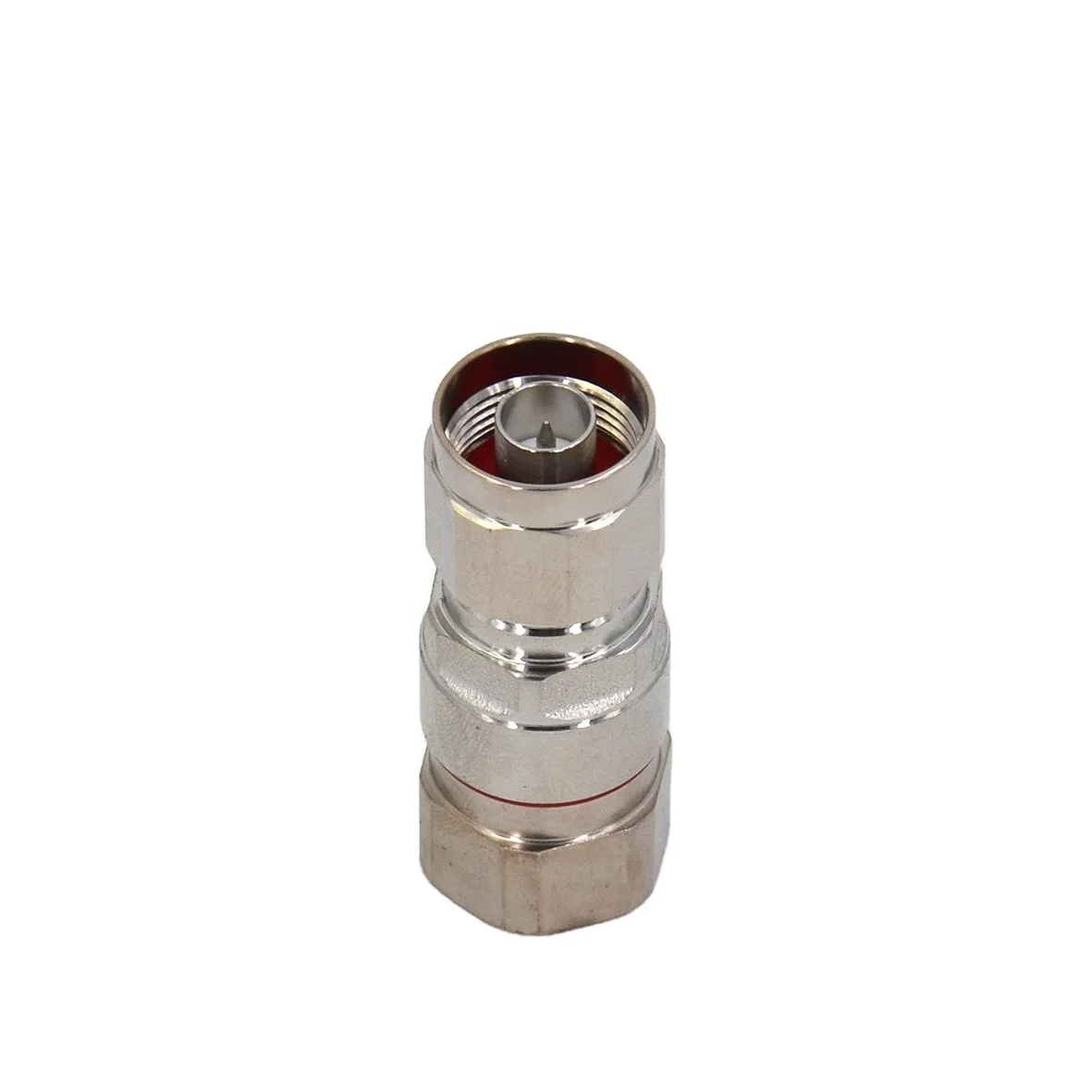

More photos and images of RG6 RG59 CCTV bnc f connector compression type zinc and brass optional:
The image of RG6 RG59 CCTV bnc f connector compression type zinc and brass optional:
Product Description
Features
F connectors series are economically priced connectors specially designed for use with NTSC TV ANTENNA and other similar applications.
F type joining devices use for 75 Ω cable assign system,especially CATV,broadcast television network,It can already be used for having impedance to mate the occasion required and can be used in not mating the occasion too.It is joined ,inserts helping jointly that its characteristic is whorl ,the price is suitable .
F connector for RG6, RG59, RG11, RG58 Coaoxial Cable male and female
each kind of F connector
rg6/rg59/rg58/rg7/rg11
made of zinc or copper
nickle plated
| Angle | : | Straight Type, Right Angle, PCB Mounted Type F Connector |
| Application | : | Commercial |
| Contact Plating | : | Gold or Nickel |
| Finish, Housing | : | nickel plated |
| Impedance | : | 75 Ohms |
| Material, Contact | : | Brass |
| Material, Dielectric | : | Polypropylene |
| Material, Housing | : | Brass |
| Mating Type | : | Threaded |
| Mounting Type | : | pcb mount |
| Primary Type | : | F |
| Termination | : | Solderless |
| Type | : | PCB Jack |
Technical Characteristics:
Temperature Range |
| -40 to +60°c |
Vibration |
| 100m/s2 (10-500Hz). 10g |
Impedance |
| 50Ω,75Ω |
Frequency Range |
| DC to 1GHZ |
Working Voltage |
| 170V r.m.s at sea level |
Withstanding Voltage |
| 500V r.m.s at sea level |
Contact Resistance | Center contact | ≤10m Ω |
| Outer contact | ≤5m Ω |
Insertion Loss |
| ≤0.24dB(6GHz) |
Insulation resistance |
| ≥1000M Ω |
Center Conductor Retention Force |
| ≥0.2N |
Voltage Standing Wave Ratio | Straight | ≤ 1.20/6GHz |
| Right angle | ≤ 1.30/6GHz |
Durability(mating) |
| ≥ 500cycles |
Application:
Antennas | Broadcast | Radios |
Electronic test equipment | Serial digital and analog interface | terminals |
airport | bank buildings | highways |
prison | electricity | Telecommunications |
railway stations | schools | factories |
Non-professional radio antenna connections | ||
Company Information
About us:
Xixia communications is a famous enterprise in R&D, production and sales of RF coaxial connectors, surge arresters, cable assemblies (Jumper cables) and antenna feeder clamps, leaky cable clamps. Our products are widely used in the field of mobile communications, like China Mobile, China Unicom GSM, CDMA, 4G TD/LTE base stations, microwave communication devices and rail transit communication network construction.
The company adopts the advanced systems management of ISO9001 system control, "5S" on-site management, materials management system to protect the company's product quality and ensure the production operations.
We are confident that we are best manufactory you can trust in China, should you have any enquires, pls feel free to contact us.
Application:
Certifications
Packaging & Shipping
Packaging
Normal packing: 1pc per inner packaging, 10pcs per carton, bulk packaging or Individual packing requirement is acceptable.
Shipping
1. By Sea: Delivery from Shanghai seaport
2. By Air: Delivery from Shanghai airport
2. By Express: Post by DHL, EMS, UPS, TNT, etc.
Factory view
Metalworking workshop
Connector Workshop
Jumper Workshop
High-end Jumpers and Cables workshop
Our laboratory
Electrial Facility
Agilent 20GHz Network Analyzer Third-order Intermodulation Analyzer
Environmental Facility
Salt-spray Tester High-Low temperature test Chamber
QUALITY IS OUR CULTURE!
