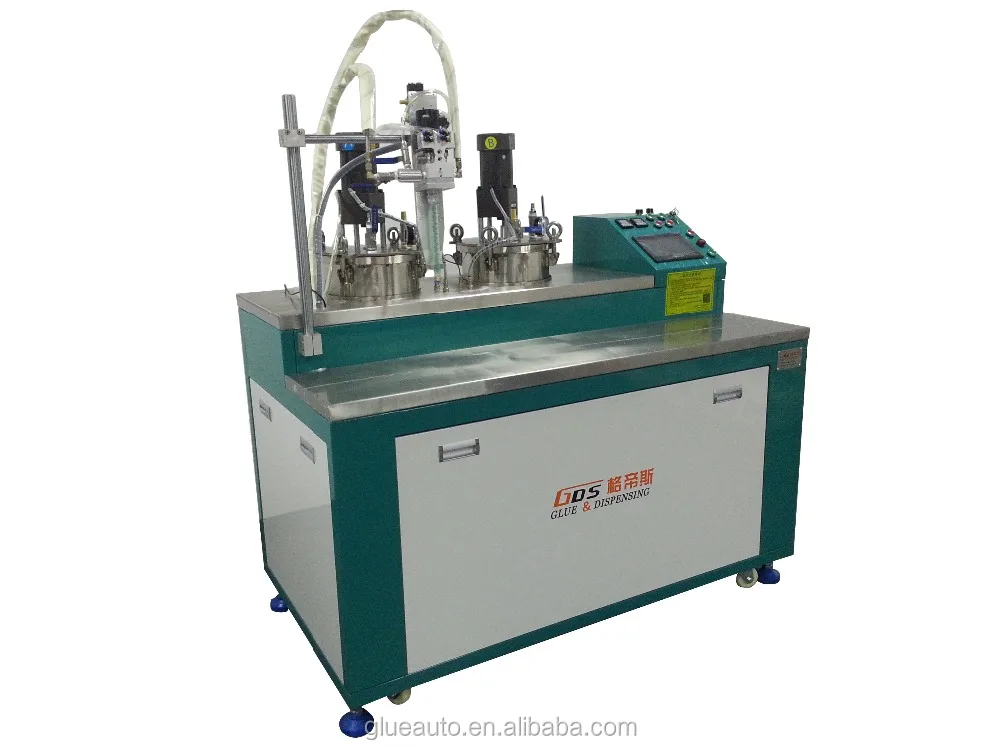

Semi automatic AB Glue Mixing and Dispensing Machine with accurate metering pump AB Glue Potting Machine
- Category: >>>
- Supplier: Zhongshan GDS Automation Equipment Co. Ltd.
Share on (60457920996):
Product Overview
Description
Principle Description
- AB glue are stored in two containers separately. A and B glue are injected into the mixing pipe separately through precise calculation of two metering pumps based on needs. After well mixing and stirring, mixed glue is injected to glue distributors or products.
Machine Feature
- Touch screen operation,teaching programming, easy to learn;
- Based on glue nature, precise gear pump or rotary-plunger pump can be assembled to guarantee metering accuracy;
mixing proportion:100:10~100:100 adjustable, Glue Dispensing Volume is also adjustable based on needs;
Two 304 stainless steel glue containers to store A glue and B glue separately to make sure glue will not solidify in long term reservation;
According to glue nature, glue container vacuum de-foaming, pre-heating,mixing pipe automatic cleaning functions are optional;
Technical Parameters
Model | MG-315 |
Mixing proportion | 100:100~100:10(1:1~10:1) adjustable |
Metering Method | Precise Gear Pump or rotary-plunger pump |
Mixing Method | Static Mixing or Dynamic Mixing(based on glue nature) |
Glue Dispensing Volume | 0.3~30 ml/S(based on mixing proportion) |
Mixing Accuracy | ±1% |
Glue Extrusion Accuracy | ±1% |
Glue Container Capacity | 30L 304 Stainless Steel Barrel |
Glue Viscosity | Max≤20000CPS |
Glue Additive Proportion | MAX≤100(Glue):100(Additive)(1:1) |
Glue Additive Size | Max≤400tsp |
Control Mode | PLC+touch screen |
Programming | Teaching Programming |
Working Air Pressure | 0.5-0.8Mpa |
Working Power | AC220V 50HZ/2000W(stirring,vacuuming, heating not included) |
Working Temperature | 0-40℃ |
Working Humidity | 20-90% no Condensation |
Dimension | 1500*950*1500mm(WxDxH) |
Weight | About 250KG |
Optional Functions | Glue container stirring, pre-heating, vacuum de-foaming, automatic cleaning |
Suitable Glue:Double-component glue, such as organic silicone, epoxy, PU, acrylate etc.
Applications:Large size products with large volume of glue, such as underground lamp, underwater lamp, water-proof battery, guardrail tube cap, HID ballast, pulse igniter, transformer, rectifier, aquarium water pump, start capacitor, storage battery, PCB board of household appliances etc.
