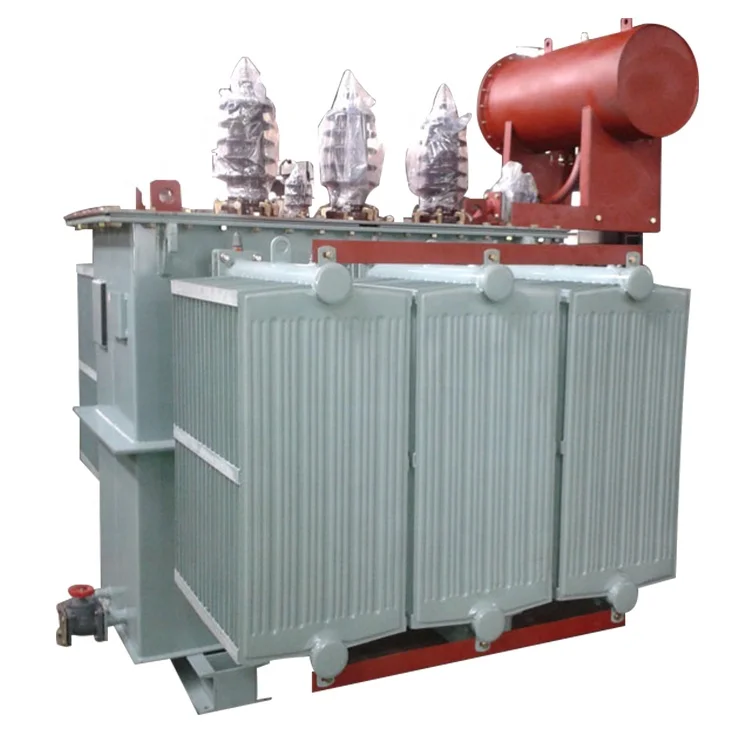

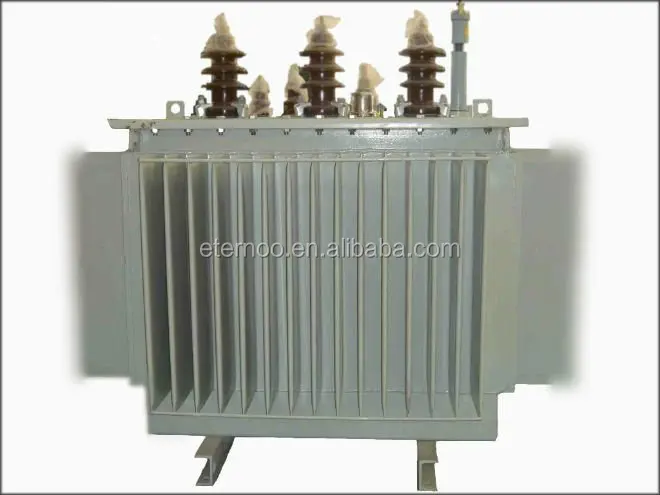

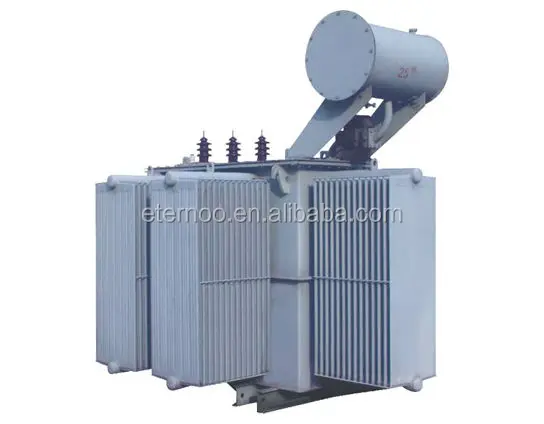

Oil type electric transformer manufacturer

Product Overview

Description



Rated Power(KVA)	Rated Voltage (KV)		Short Circuit Impedance 75C%	Vector Group	No-Load Loss (KW)	On-Load Loss 75°C(KW)	No-Load Current (%)	Weight(kg)			Outline Dimension     (L×W×H, MM)	Gauge (mm)
	HV	LV						Oil	Active part	Total
10	6	4	4	Y,yn0	45	260	0.66	75	115	260	680×585×1020	300×300
20					75	440	0.66	80	160	315	724×605×1050	300×300
30					100	600	0.63	75	165	315	1035×625×1020	400×400
50				D,yn11	130	870	0.6	105	245	450	1100×660×1110	400×450
63	6.3				150	1040	0.57	120	305	530	1130×680×1165	400×450
80					180	1250	0.54	130	325	570	1160×655×1195	400×450
100					200	1500	0.48	145	380	590	1210×720×1230	400×450
125					240	1800	0.45	155	415	760	1280×750×1350	400×550
160	10				190	2200	0.42	160	530	805	1330×770×1280	550×550
200					330	2600	0.39	205	585	1040	1390×820×1325	550×550
250					400	3050	0.36	240	720	1165	1410×805×1375	550×650
315					480	3650	0.33	280	905	1510	1490×860×1390	550×650
400					570	4300	0.3	290	990	4655	1560×905×1410	550×750
500					680	5150	0.3	325	1215	1950	1615×940×1538	660×750
630			4.5		840	6200	0.27	455	1460	2290	1700×980×1610	660×850
800					980	7500	0.24	455	1610	2520	1750×995×1660	820×850



steel wire bending machine















     ETERNOO MACHINERY CO., LTD is one professional and excellent Corporation engaged in designing and producing machinery and materials for the field of Prestressed Concrete Industry and Post Tensioning Industry in China, which is a manufacture and an international trading enterprise.

    The company established in year 2008, under the guidance of reform and opening-up policy and with the help of government at all levels, with all of our staffs hardworking, has continuously developed at steady speed. At present,    Our company has a total staff of 60, a workshop area of 2400m2, mechanical equipment manufacturing base at Zhengzhou. The company,with stable strength advantages in the brand, quality, technology, market, scale and benefit, has been making contribution to the local economic development.











Q1:  Is it easy to operate your machine?

A1: Yes, very easy. No need special training actually, we will send you operation videos, and you or your worker will clearly know how to operate and how to adjust the height.

Of course, if you feel necessary to be trained, customer could come to our factory, or we send technician to customer's country.



Q2: what is the power supply of machine?

A1: generally it is 380V, 3PH, 50HZ, but we could also make 400V/420V/440V/ 50HZ/60HZ, as customer requires.



Q3: what is the steel bar diameter your machine could deal with?

A3: 4mm, 5mm, 6mm, 7mm, 8mm etc. One machine work with one wire diameter.



Q4: what is the machine warrenty:

A4: 13 months after machine delivering from our factory. ( we give one month more for considering shipping time)
