Product Overview
Description
AGF12 automatic ampoule filling and sealing machine , ampoule glass machine for pharmaceutical injection
Product Description
Main application:
AGF12 automatic ampoule filling and sealing machine , ampoule glass machine for pharmaceutical injection is mainly used for filling and sealing of ampoule in pharmaceutical factories.
Characteristic:
1)This machine adopts many stations step conveyer system and balcony type structure. It adopts uniform speed starwheel to input bottles, which inputs stably and almost no breaking bottles.
2)Walking beam is three section type, which has short pitch, better rigidity. It moves more stably, improves running stationarity and product qualification rate.
3)It adopts appearance patent technology. There is no joint on table board, and no sanitary blind angle to connection of machine part.
4)It can equip with glass pump, metal pump, peristaltic pump or ceramic pump as customer’s request. Control method can adopt mechanic control or servo control. Piston pump adopts new type bidirectional, quick installing patent technology.
Technical parameters:
Type | Suitable sizes | Output | Consumption of gas | Consumption of oxygen | Power | Net weight | Overall dimensions |
AGF18/1-2 | 1-2ml ampoules | 30000-46000 pcs/h | 0.05Mpa 0.8m3/h | 0.3-0.5Mpa 2.4m3/h | 2.6kw | 3400kg | 4150×1800×1380mm |
AGF16/1-5 | 1-5ml ampoules | 20000-42000 pcs/h | 0.05Mpa 0.75m3/h | 0.3-0.5Mpa 2.2m3/h | 2.6kw | 3400kg | 4150×1800×1380mm |
AGF14/1-10 | 1-10ml ampoules | 10000-38000 pcs/h | 0.05Mpa 0.7m3/h | 0.3-0.5Mpa 2.0m3/h | 2.6kw | 3400kg | 4150×1800×1380mm |
AGF12A/1-20 | 1-20ml ampoules | 10000-33000 pcs/h | 0.05Mpa 0.6m3/h | 0.3-0.5Mpa 1.8m3/h | 2.6kw | 3400kg | 4150×1800×1380mm |
AGF12/1-10 | 1-10ml ampoules | 10000-34000 pcs/h | 0.05Mpa 0.6m3/h | 0.3-0.5Mpa 1.8m3/h | 2.6kw | 3000kg | 3700×1800×1380mm |
AGF10A | 1-20ml ampoules | 6000-28000 pcs/h | 0.05Mpa 0.5m3/h | 0.3-0.5Mpa 1.5m3/h | 2.6kw | 3000kg | 3700×1800×1380mm |
AGF10/1-5 | 1-5m ampoules | 10000-28000 pcs/h | 0.05Mpa 0.5m3/h | 0.3-0.5Mpa 1.5m3/h | 2.6kw | 2600kg | 3200×1710×1380mm |
AGF8/1-20 | 1-20ml ampoules | 6000-24000 pcs/h | 0.05Mpa 0.4m3/h | 0.3-0.5Mpa 1.2m3/h | 2.6kw | 2600kg | 3200×1710×1380mm |
AGF4/1-20 | 1-20ml ampoules | 4000-12000 pcs/h | 0.05Mpa 0.25m3/h | 0.3-0.5Mpa 0.7m3/h | 2.6kw | 2200kg | 2800×1710×1380mm |

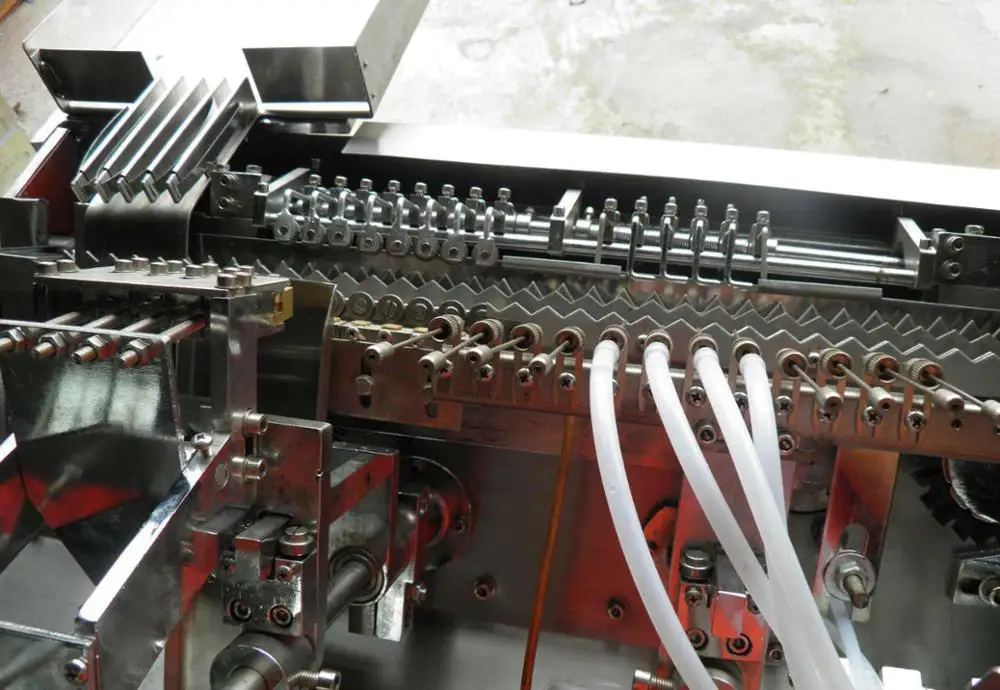

Sample of Ampoule filling and sealing machine:
