We produce all kinds of solar connector Special Type Metal automatic electric car jack f connector for tv antenna
At the same time, we produce Special Type Metal automatic electric car jack f connector for tv antenna, Special Type Metal automatic electric car jack f connector for tv antenna, and Special Type Metal automatic electric car jack f connector for tv antenna RF Connectors 100,000 pcs each every day.

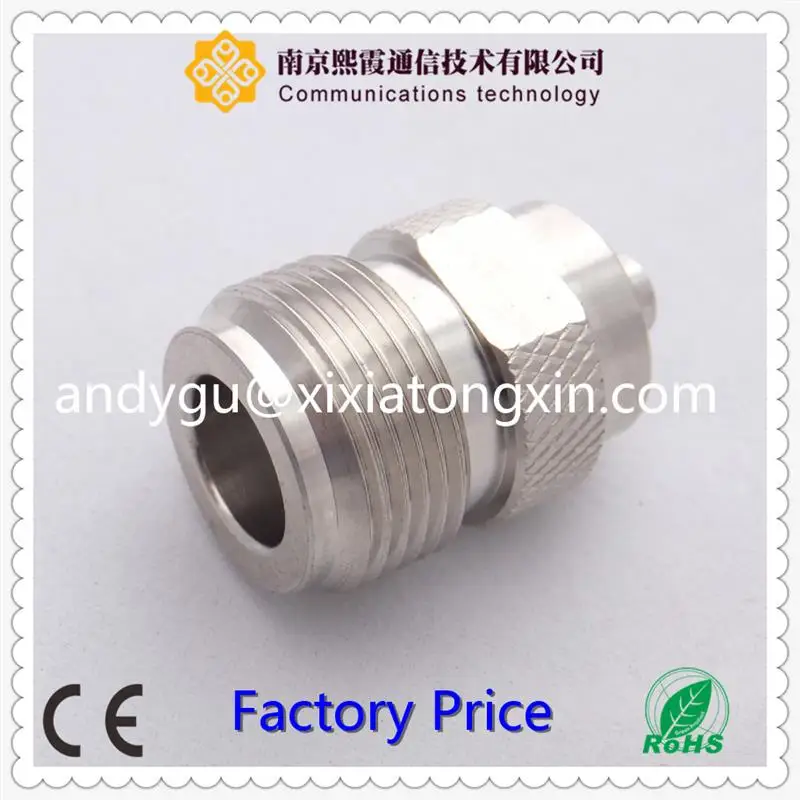

The photo of solar connector Special Type Metal automatic electric car jack f connector for tv antenna:
More photos and images of Special Type Metal automatic electric car jack f connector for tv antenna:
The image of Special Type Metal automatic electric car jack f connector for tv antenna:
Product Description
Features
F connectors series are economically priced connectors specially designed for use with NTSC TV ANTENNA and other similar applications.
F type joining devices use for 75 Ω cable assign system,especially CATV,broadcast television network,It can already be used for having impedance to mate the occasion required and can be used in not mating the occasion too.It is joined ,inserts helping jointly that its characteristic is whorl ,the price is suitable .
F connector for RG6, RG59, RG11, RG58 Coaoxial Cable male and female each kind of F connector rg6/rg59/rg58/rg7/rg11 made of zinc or copper nickle plated
Angle
:
Straight Type, Right Angle, PCB Mounted Type F Connector
Application
:
Commercial
Contact Plating
:
Gold or Nickel
Finish, Housing
:
nickel plated
Impedance
:
75 Ohms
Material, Contact
:
Brass
Material, Dielectric
:
Polypropylene
Material, Housing
:
Brass
Mating Type
:
Threaded
Mounting Type
:
pcb mount
Primary Type
:
F
Termination
:
Solderless
Type
:
PCB Jack
Technical Characteristics:
Temperature Range
-40 to +60°c
Vibration
100m/s2 (10-500Hz). 10g
Impedance
50Ω,75Ω
Frequency Range
DC to 1GHZ
Working Voltage
170V r.m.s at sea level
Withstanding Voltage
500V r.m.s at sea level
Contact Resistance
Center contact
≤10m Ω
Outer contact
≤5m Ω
Insertion Loss
≤0.24dB(6GHz)
Insulation resistance
≥1000M Ω
Center Conductor Retention Force
≥0.2N
Voltage Standing Wave Ratio
Straight
≤ 1.20/6GHz
Right angle
≤ 1.30/6GHz
Durability(mating)
≥ 500cycles
Application:
Antennas
Broadcast
Radios
Electronic test equipment
Serial digital and analog interface
terminals
airport
bank buildings
highways
prison
electricity
Telecommunications
railway stations
schools
factories
Non-professional radio antenna connections
Company Information
About us:
Xixia communications is a famous enterprise in R&D, production and sales of RF coaxial connectors, surge arresters, cable assemblies (Jumper cables) and antenna feeder clamps, leaky cable clamps. Our products are widely used in the field of mobile communications, like China Mobile, China Unicom GSM, CDMA, 4G TD/LTE base stations, microwave communication devices and rail transit communication network construction.
The company adopts the advanced systems management of ISO9001 system control, "5S" on-site management, materials management system to protect the company's product quality and ensure the production operations.
We are confident that we are best manufactory you can trust in China, should you have any enquires, pls feel free to contact us.
Application:
Certifications
Packaging & Shipping
Packaging
Normal packing: 1pc per inner packaging, 10pcs per carton, bulk packaging or Individual packing requirement is acceptable.
