Electric Driven RISEN PZ-3 Gunite Machine for Dry mix Shotcrete 3m3/hour
Product Description

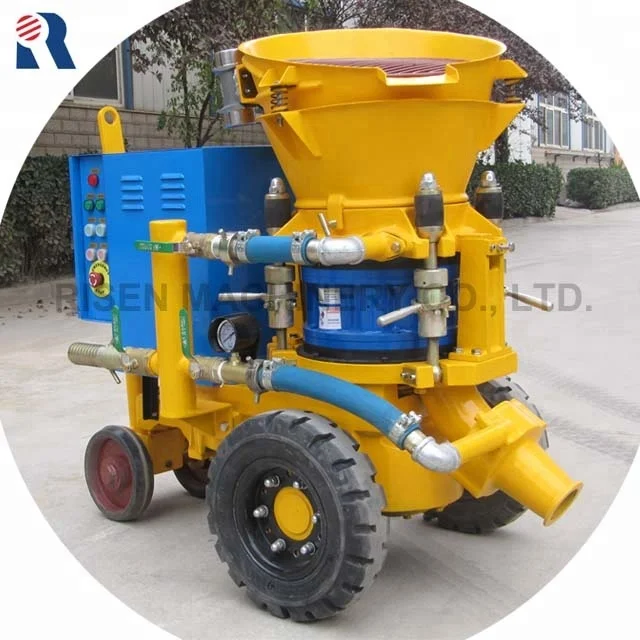

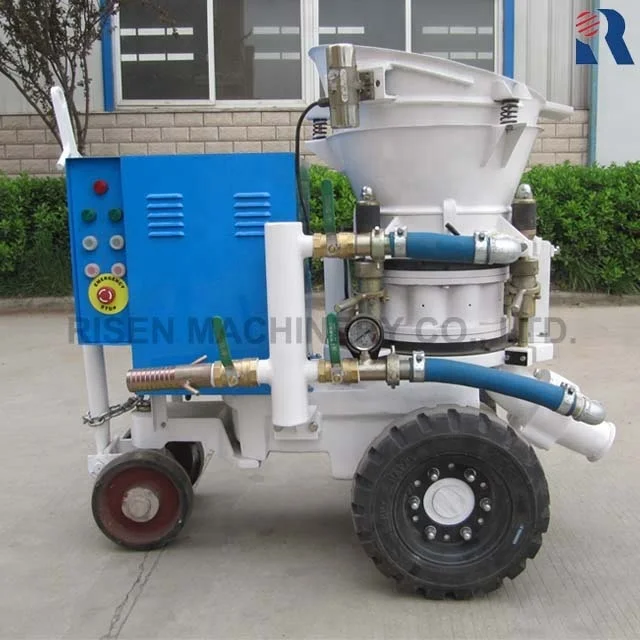

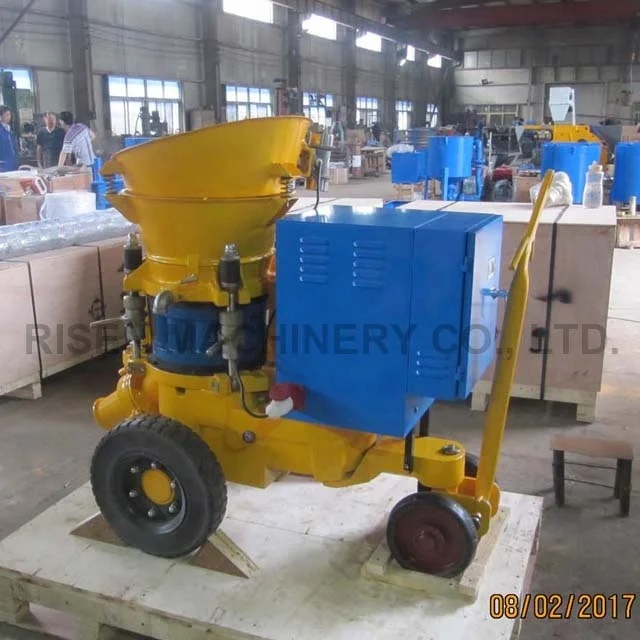

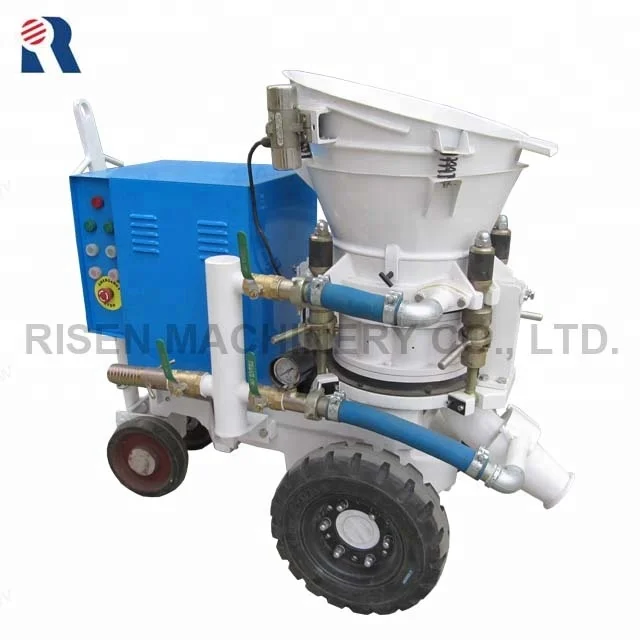

Electric Driven RISEN PZ-3 Gunite Machine is a small size rotary shotcrete machine driven by Electric motor, applied for spraying the dry or damp concrete mixture in the tunnel, swimming pool, slope engineering, deep foundation project, undermines, etc. And, it has been designed specially for steel fibre spraying.
The RISEN PZ-3 is a popular model among RISEN PZ series shotcrete machines. Based on its mature work principle and excellent quality, the RISEN PZ-3 has been exported to Malaysia, Philippines, Australia, Finland, Argentina, South Africa, Sri Lanka, Nepal, Lebanon, etc.
Technical Data
Output Capacity:
3 cubic meter/hour
Maximum Conveying Distance:
200 m (660 ft)
Desired Shotcrete Ingredient Ratio:
Cement/sand and gravel < 0.35
Maximum Aggregate Size:
10 mm (2/5”)
Inner Diameter of Conveying Hose:
42mm (1 5/8”) or 51 mm (2”)
Working Compressed Air Pressure:
29 ~ 87 psi (0.2 ~ 0.6 MPa)
Conveying Air Consumption:
175 ~ 210 cfm (5 ~ 6 cubic meter / min)
Ideal Rotor Speed:
13 rpm
Main Motor Power:
E-motor, 4kW (5.4 hp)
Dimensions:
1350 x 680 x 1130 mm
Net Weight:
430 Kg
Noise:
Less than 80dB
Chasis:
Rubber wheel*
Note: *Steel Skid or Railway Steel Wheel is optional.

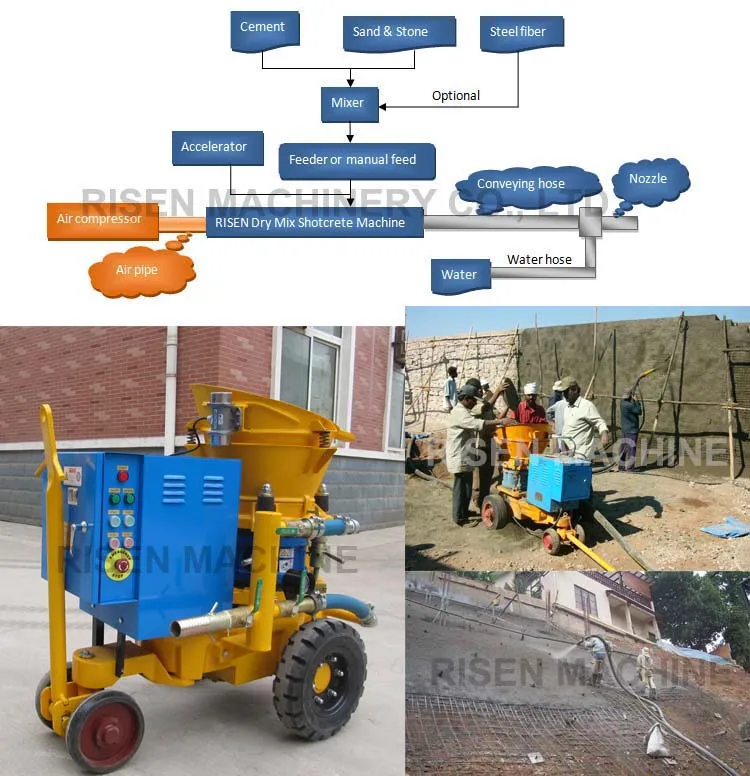

Application
Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns’ inner liner.
Features
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.

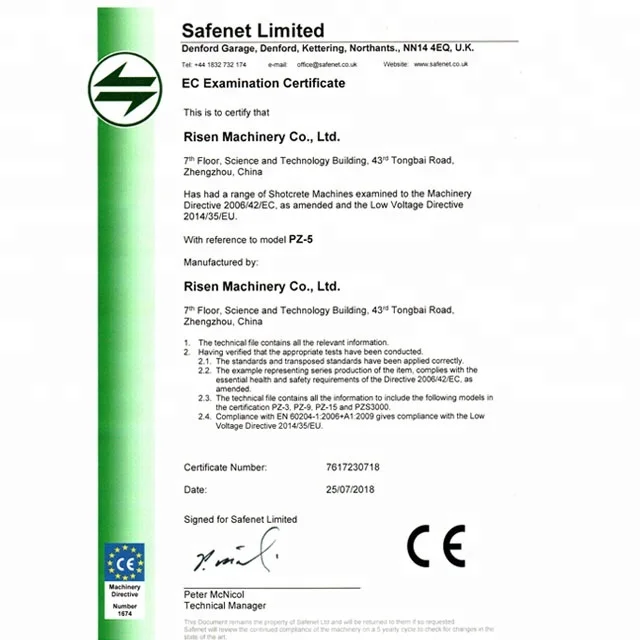

For the most specific risks of this machine, safety and compliance with the essential health and safety requirements of the Directive 2006/42/EC.
