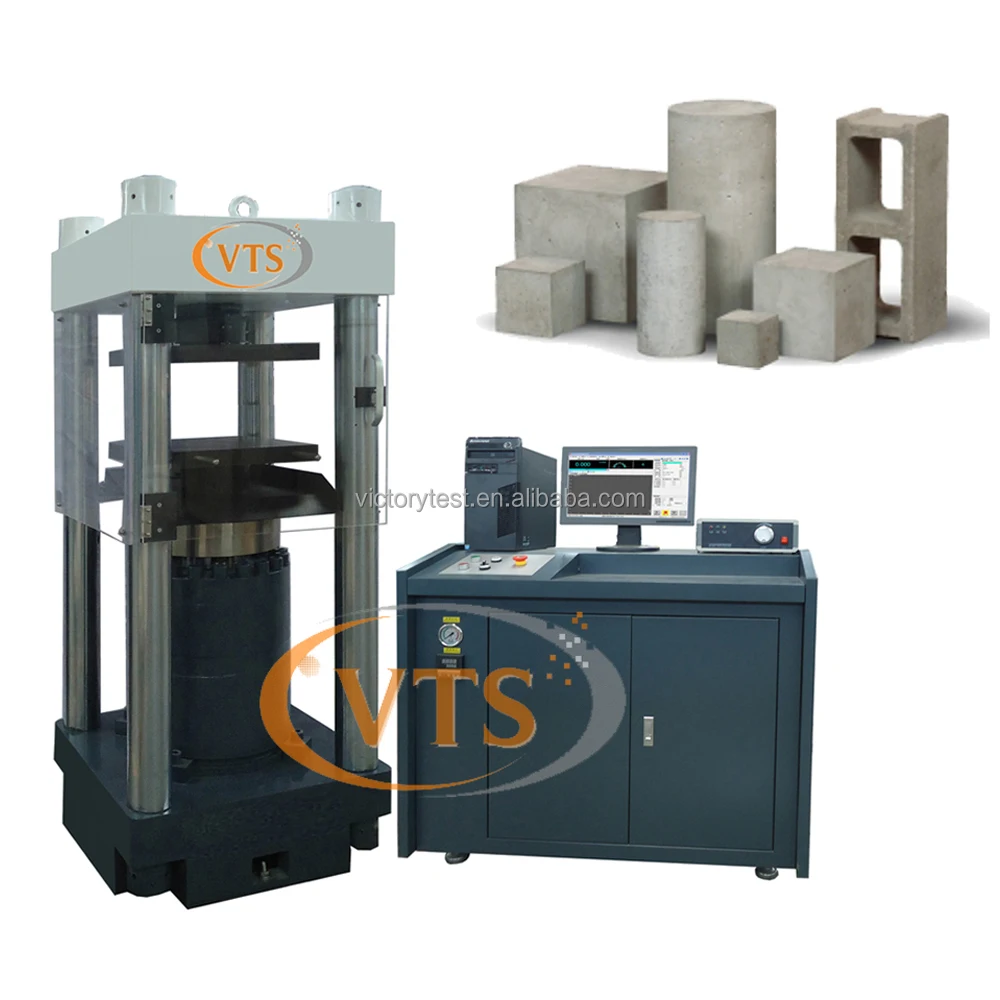

2000kN 3000kN Concrete Compressive Strength Testing machine with computer control

1. Application and Functions

This newly designed computer controlled electro-hydraulic compression testing machine adopts bidirectional oil cylinder, piston quickly up/down, it improves testing efficiency. It has 200mm large piston stroke, more flexible to test large specimen that has big deformation. It can be used for compressive strength test of concrete, cement, brick, stone and other building materials.

2. Main technical parameters

1. Maximum load: 3000kN
2. Measuring range of testing force: 1%-100%FS
3. Accuracy of testing force: ±1%
4. Upper and lower pressure plate size:Φ300×Φ400mm
5. Distance between upper plate and lower plate: 380mm
6. Maximum piston stroke: 200 mm

7. Displacement measuring range: 0- 200mm

8. Displacement measuring resolution: 0.01mm
9. Power supply: 3-phase, 380V±10%, 50Hz
10. Overall dimension of host machine (L×W×H) (mm): 520×520×1600

11. Overall dimension of power pack (L×W×H) (mm): 1100×640×1000
12. Total weight: 2000kg
