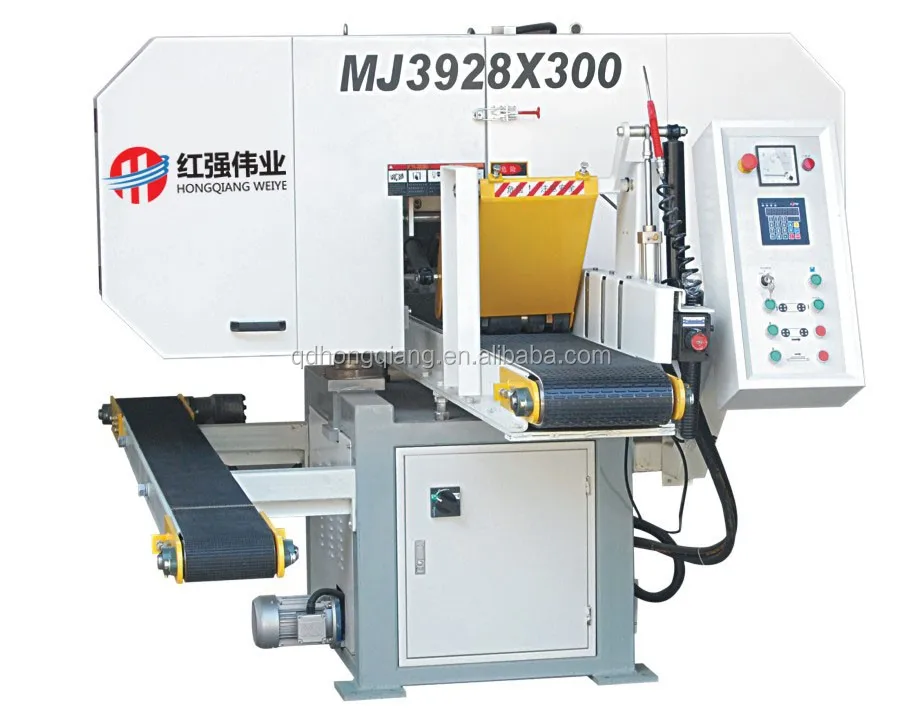

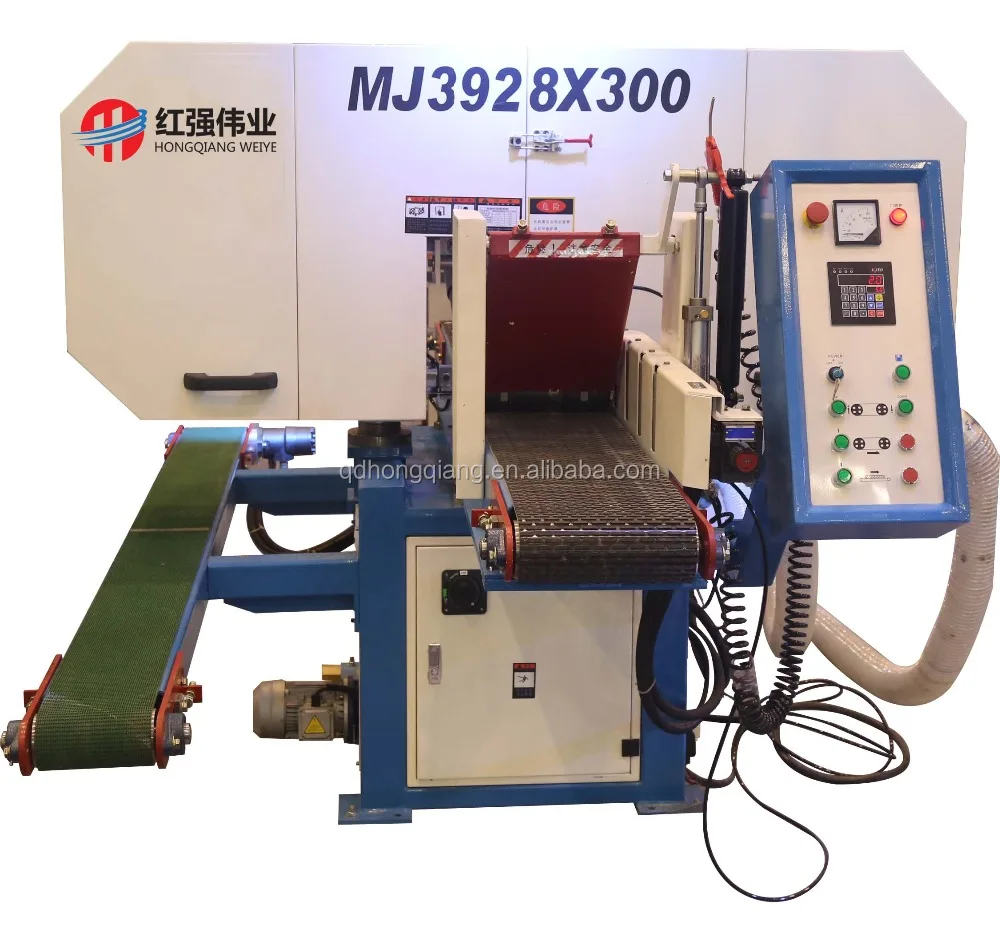

MJ3928 * 300 деревообрабатывающий станок ленточная пила/горизонтальный ленточный резак
- Category: Wood Saw Machines >>>
- Supplier: Qingdao Hongqiang Weiye Machinery Co. Ltd.
Share on (60458711124):
Product Overview
Description
Product Description
1. Equipped with personalized micro-computer interface, and digitalize thickness display for quick and accurate saw blade position, ensure a simple and convenient operation.
2. High-precision rotary encoders with precision ball screw, which achieves low noise, small torque fluctuations and
long-termmaintenance, also ensure the greater accuracy of sawing thickness.
3. Assisted material revert system, which can ensure a higherefficiency and more energy saved.
4. The PLC integrated control system, assures a simple and steady operation.
5. Automatic hydraulic saw blade tensioning compensation system to ensure the best tension state of the working saw blade and extend the useful life of the saw blade.
6. The conveyor belt is driven by a hydraulic or electric motor, which provides steady operation, constant and powerful driving
power, so as to ensure the work piece is well shaped and smooth.
7. Specially designed with multi units of pinch roller setting, which ensure the work piece can be firmly pressed when cutting, it is also a guarantee of operation safety.
8. Saw wheel is made by medium carbon steel, convex saw wheel avoids saw blade sliding off.
9. Water-cooling system provides high efficiency cooling and cleans wood dust on saw teeth.
10. The thickness tolerance is only 1.1-1.6mm, compared with other processing methods, it can save approximately 20% of material, and this is the most effective way of reducing costs.
2. High-precision rotary encoders with precision ball screw, which achieves low noise, small torque fluctuations and
long-termmaintenance, also ensure the greater accuracy of sawing thickness.
3. Assisted material revert system, which can ensure a higherefficiency and more energy saved.
4. The PLC integrated control system, assures a simple and steady operation.
5. Automatic hydraulic saw blade tensioning compensation system to ensure the best tension state of the working saw blade and extend the useful life of the saw blade.
6. The conveyor belt is driven by a hydraulic or electric motor, which provides steady operation, constant and powerful driving
power, so as to ensure the work piece is well shaped and smooth.
7. Specially designed with multi units of pinch roller setting, which ensure the work piece can be firmly pressed when cutting, it is also a guarantee of operation safety.
8. Saw wheel is made by medium carbon steel, convex saw wheel avoids saw blade sliding off.
9. Water-cooling system provides high efficiency cooling and cleans wood dust on saw teeth.
10. The thickness tolerance is only 1.1-1.6mm, compared with other processing methods, it can save approximately 20% of material, and this is the most effective way of reducing costs.
Specification
Max working size | 300*300mm |
Distance to the working table | 3-200mm |
Width of conveyor belt | 285mm |
Diameter of saw wheel | 711mm |
feed speed | 0-18m/min |
lift motor power | 0.18kw |
saw wheel motor | 15kw |
hydraulic pressure | 55kg/cm³ |
diameter of vacuum tube | 102mm*2 |
saw blade size | 4572*27*0.9mm(1" saw wheel ) |
4572*41*1.27mm(1.3" saw wheel ) | |
saw road | 1.2-2.2mm |
Net weight | 1500KG |
Overall dimensions | 3000*1950*1850mm |
Details Images
hydraulic motor system
conveyor belt

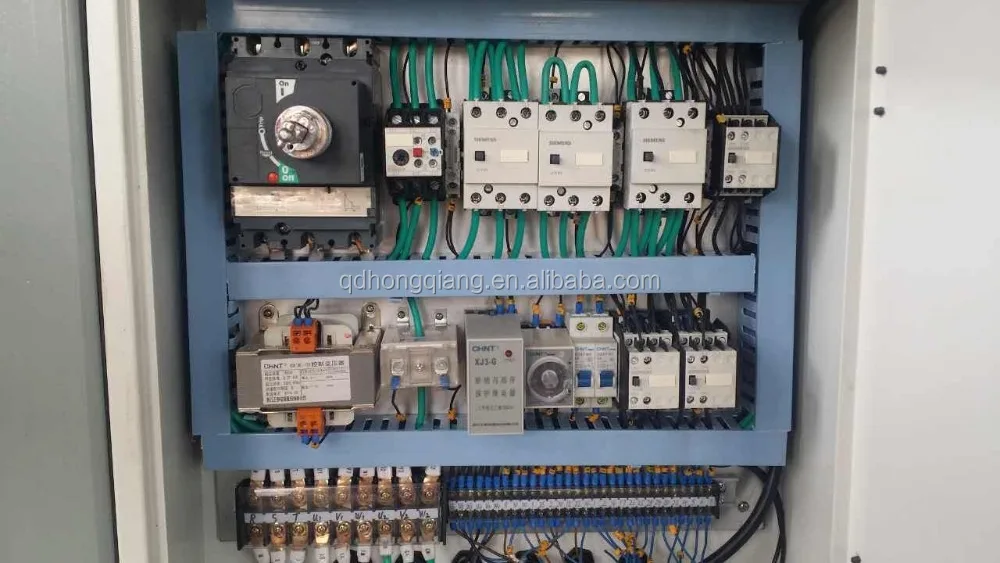

SIMENS electric panel
Carbide saw blade
big heavy saw wheel
machine back
Application
The machine can be used for the wooden house and floor and others wood
