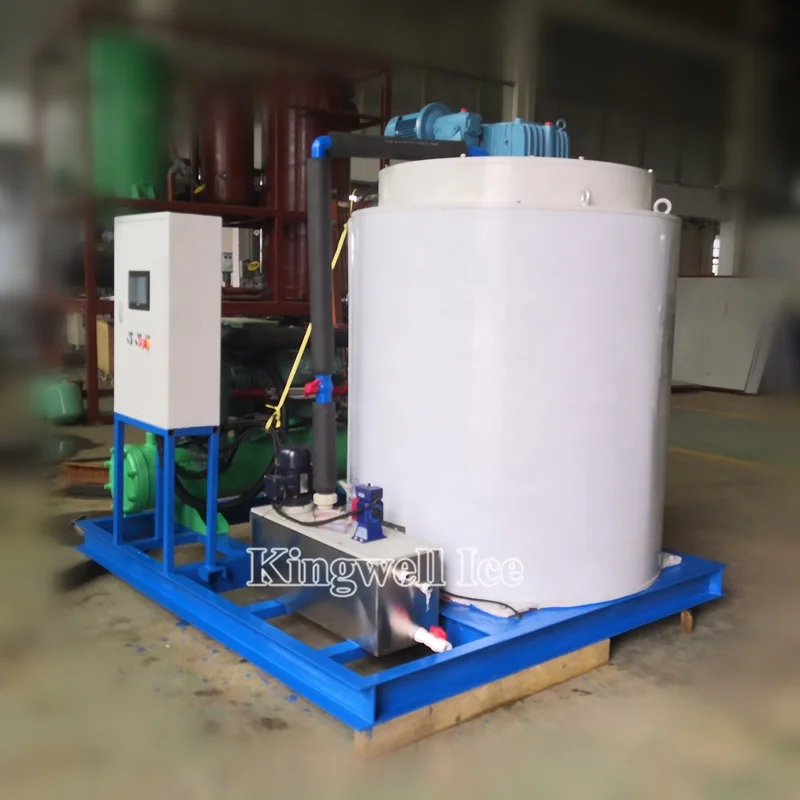

Kingwell F Series Flake Ice Machine produces flake ice , which can be widely used in many industries. We have two types: fresh water type and seawater type. The daily capacity ranges from 500kg to 20tons in 24 hours(Or we can custom made as per your requests). Customers can choose the type according to their sites and supply water.

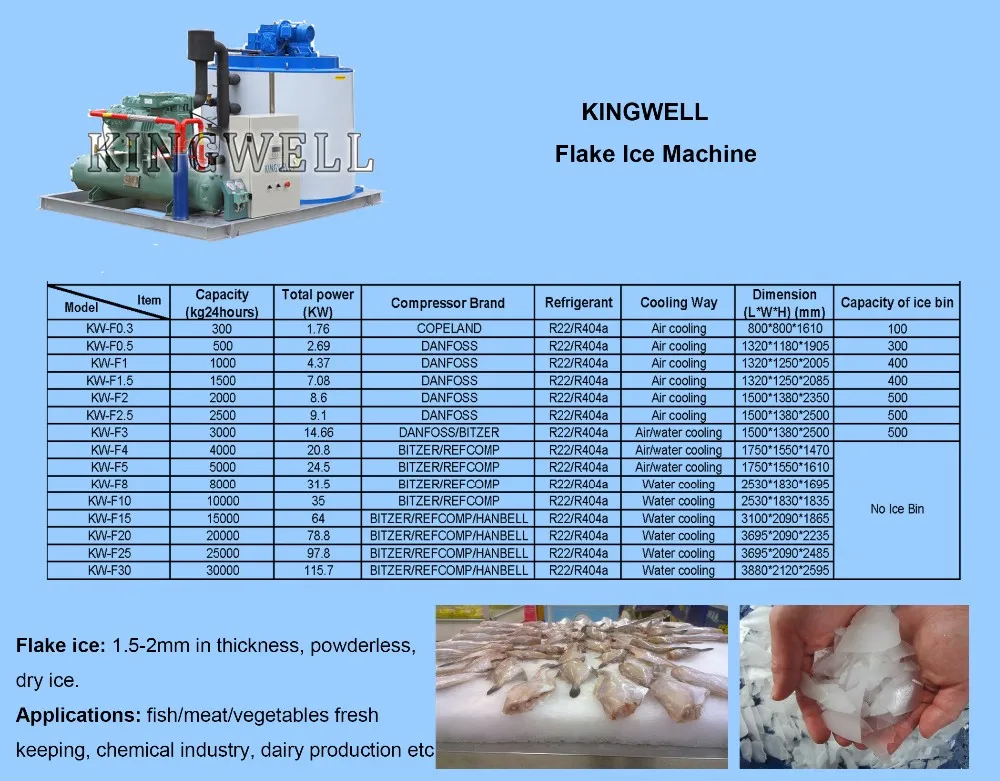

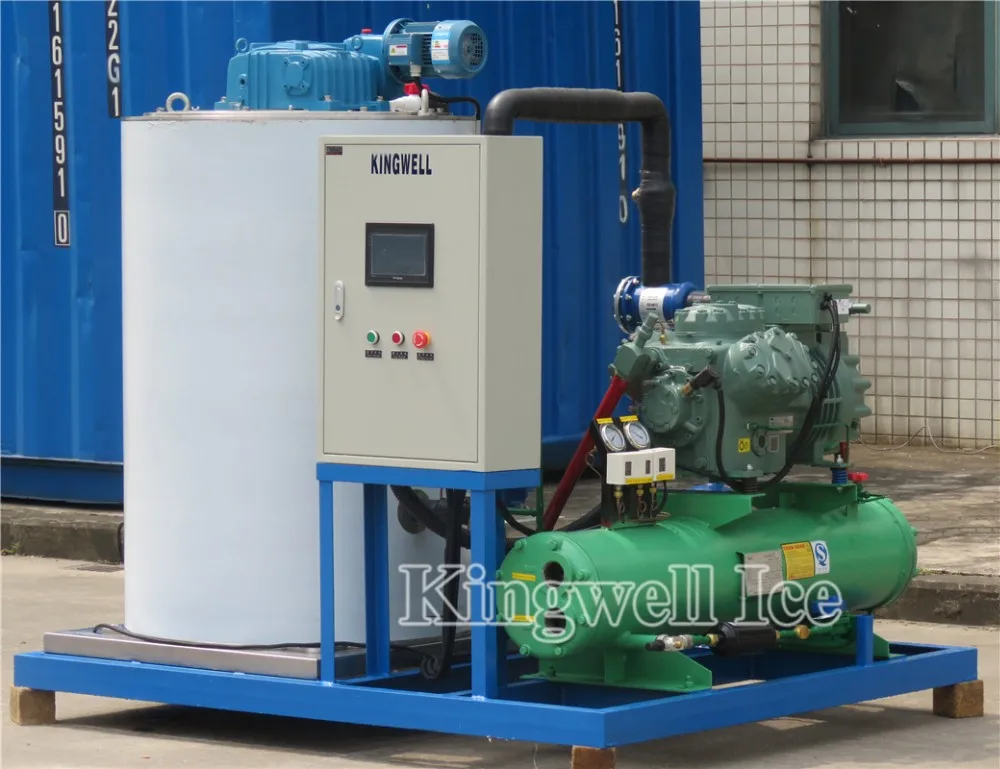

SPECIFICATIONS FOR 5 TON FLAKE ICE MACHINE | ||||||
Comprosser | Brand | Refcomp/Bitzer | ||||
Horse power | 25HP | |||||
Quantity | 1 set | |||||


1). Scientific design and many years of engineering experience.
2). High efficiency and energy saving.
3). Simple maintenance and convenient operation
4). Outstanding electric control system, PLC program control system, ice discharge automatically: hygienic and labor-saving;
5). Emergency Alarm: Your people will be alarmed once the emergency happens;

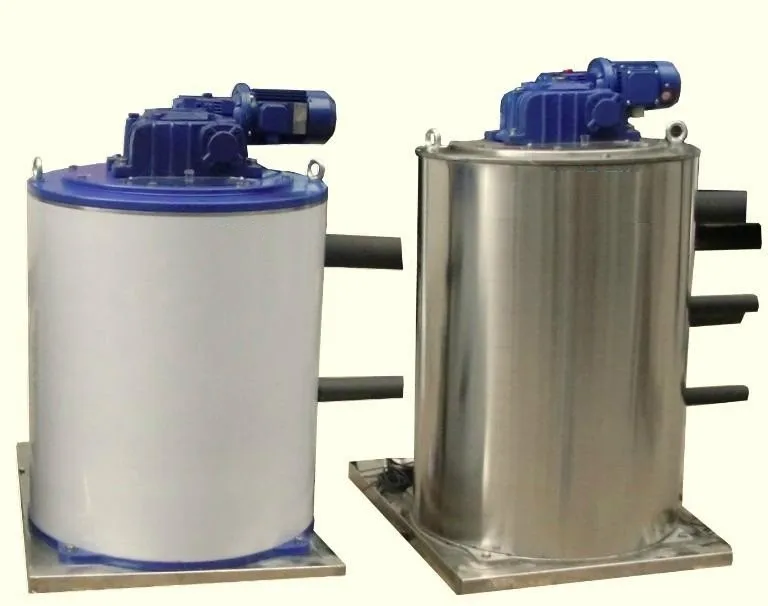

6). Use stainless steel 304 / 316 or carbon steel evaporator drum. The scratching-style system inside machine ensures constant running at the lowest power consumption, exquisite welding and processing technology ensure high-efficiency heat transfer and energy saving.
7). Once formed, Ice flakes are dry, clean, beautiful in shape. Sanitary and convenient.
8). Without any acute edges and damage concerns. Ice flakes cannot damage the surfaces of refrigerated objects but
are extremely suitable for storage and deliver

Widely used for refreshing vegetable, fruit, food stuff in supermarket; blast cooling for processing of fishery products and butchery; cooling process in fermentation, dairy production; chemical dyes; cooling in concrete and mining, etc.;

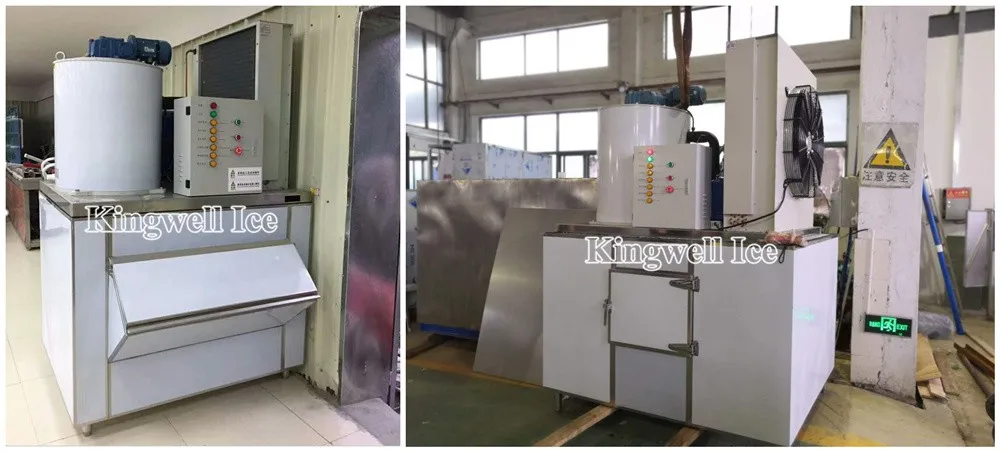

500-3000kg/day flake ice machine

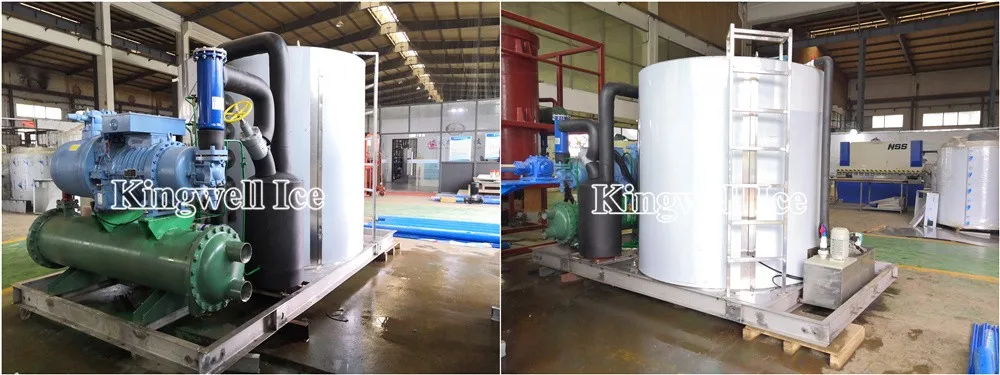

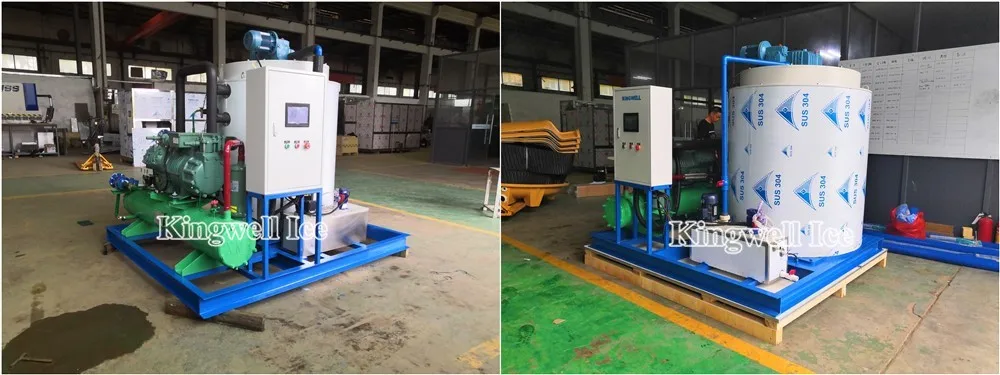

10ton/day flake ice machine

30ton/day flakek ice machine

Flake ice is dry, pure, powder-less, not easy to block.Its thickness is about 1.8mm-2mm, without edges or corners
which can protect the cooling food, fish, seafood ad other products;

1). carbon steel or stainless steel 304 for fresh water.
2). Stainless steel 316 for sea water.

1-10tons machine uses semi-hermetic piston compressor;
12-30tons uses screw compressor.
Packaging 1 | ||
Capacity of machine | 500kg- 10ton/day | |
Weight | less than 2 T | |
Packaging Details | It's packed in plywood case. | |
Packaging | ||
machine's capacity | 10-30ton/day | |
Weight | 2-5 T | |
Packaging Details | Packed in plastic film | |
