Product Overview

Description


 .

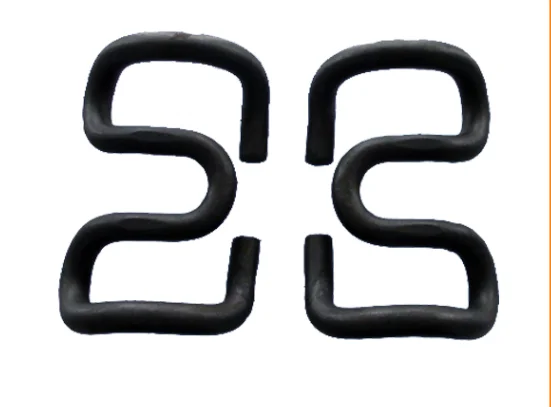

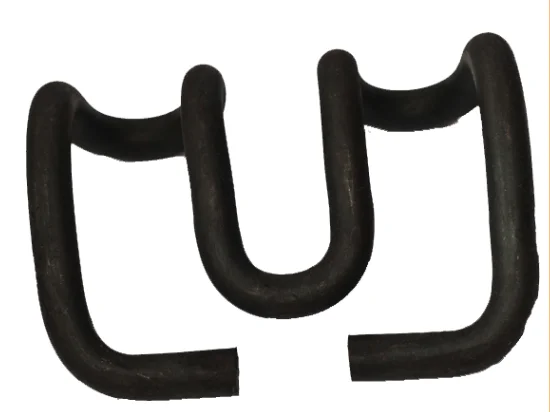

Elastic Rail Clip For Steel Rail



1. E type Railway fastening system:



E clip, Insulator, Shoulder, Rail pad.







2. Vossloh type Railway fastening system:



Tension clip:  SKL14, SKL12, SKL1, SKL3



Spike, Plain washer, Plastic dowel, Guide Plate.







3. Nabla Railway fastening system :



Nabla clip, Insulator, double end screw spike, Special spring washer, Hex nut, Plainwasher.







4. KPO type Railway fastening system:



KPO clip, Hs bolt, Hex nut, Double coil spring washer, Screw spike, Base plate.







5. Railway Gauge Lock Clip



Railway Gauge Lock Clip, Screw Spike







6. Railway Deenik Clip



Deenik Clip, Shoulder, Insulator.



Specificaitons:

Brandyichen
NameDeenik Clip / Railway Clip/ Rail clip / Elastic Rail clip / Tension clamp / Rail clamp
Typee2055, e2009 e1817, e1809, e1609, PR401, PR309, PR601, SKL1, SKL3, SKL12, SKL14, Nabla clip, gauge lock clip
 Or according to customers’ Drawing or Sample.

Material60Si2MnA60Si2CrA55Si2Mn38Si7
Chemical composition(%)C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
HardnessFor e clip: 44-48HRC
For skl clip: 42-47HRC
Fatigue lifefor Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking
Surfaceplain (oiled), Oxide black, color painting
Standard refersDIN17221, BS970, GB/T1222
