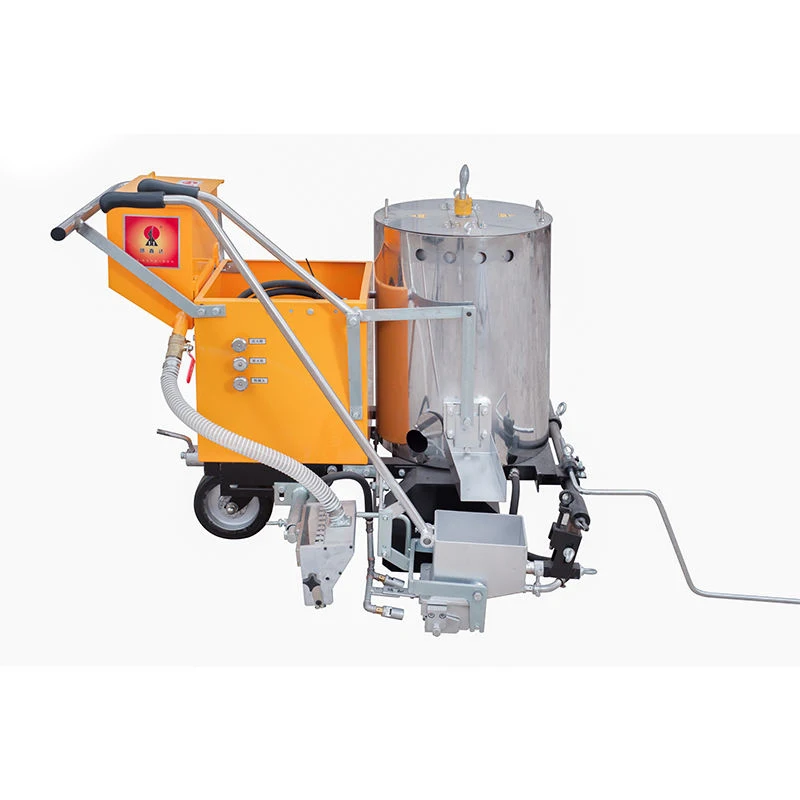

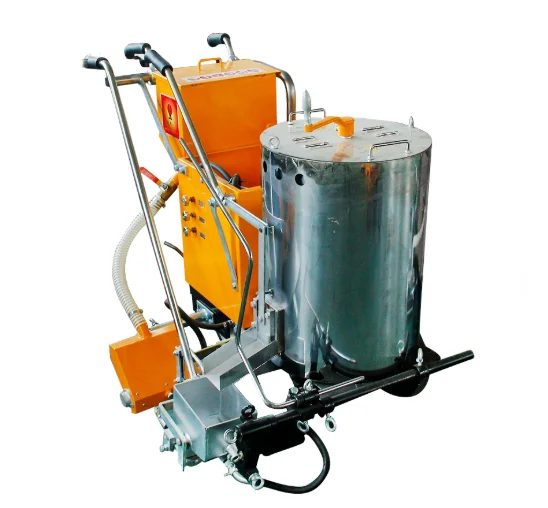

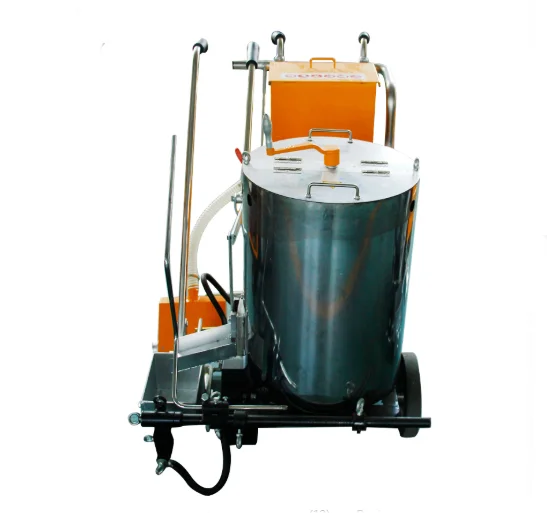

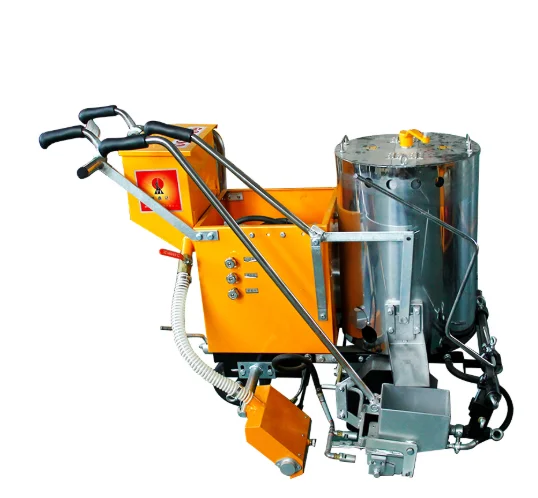

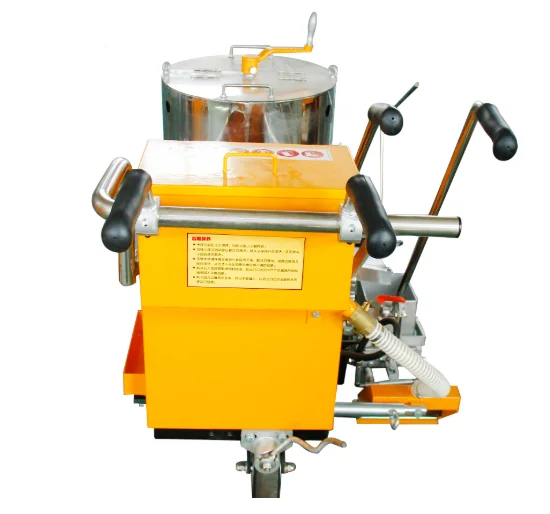

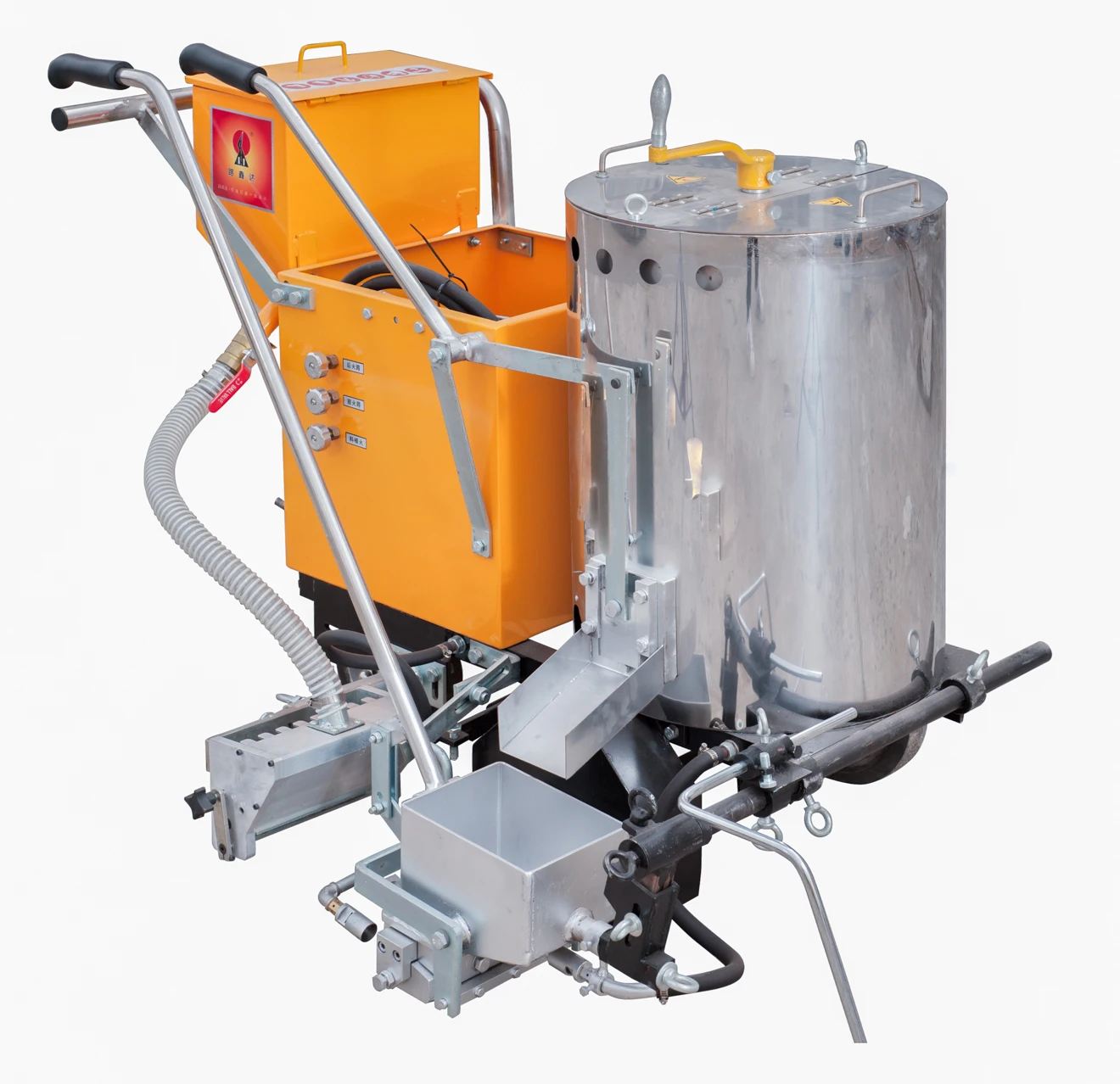

Thermoplastic road marking machine is the key equipment used in thermoplastic road marking construction,it need to work together with thermoplastic preheater.

The marking shoe is made of high-precision cast iron,which can make the road line orderliness,uniform thickness and more beautiful.

The grounded knife of marking shoe can adapt to different kinds of road.

The glass beads dispenser can dispense glass beads automatically.

The paint tank has double layer of stainless steel,which can keep warm and insulate against heat,it can help save energy and avoid form scalding.

The machine has advantage of high efficiency,high quality,easy to operate and convenient for maintenance.

If you have a lot of work,you can connect it with our boost vehicle,which can help you save workforce and improve efficiency.




Marking equipment


high-precision integrated marking shoe,screeding type,standard configuration: 150mm


Grounded blade


Inlaid hard alloy,and also have pure alloyed grounded blade for your choice


Paint container


Double layer stainless steel,equipped with inserted dismountable manumotive stirring device,the container is removable &
interchangeable for quick color changes


Glass beads container capacity


10kg


Glass beads container


Automatic spreader


Glass beads dispenser


100/150/200/250/300/400/450mm(optional)


Line thickness


1.0-3.0mm(adjustable)


Line marking width


50/100/150/200/250/300/400/450mm(optional)


Heating temperature


180~210℃


Heating Mode


Liquefied petroleum gas heating


Gas tank


15kg



Wheel



High temperature resistance soft rubber,rear wheel equipped with localiser to make the machine walk along the straight line


Speed


1.5km/h


Driving method


Hand-push


Machine Weight


126kg


Dimension


1150×850×950mm









860





product applicaiton113


112

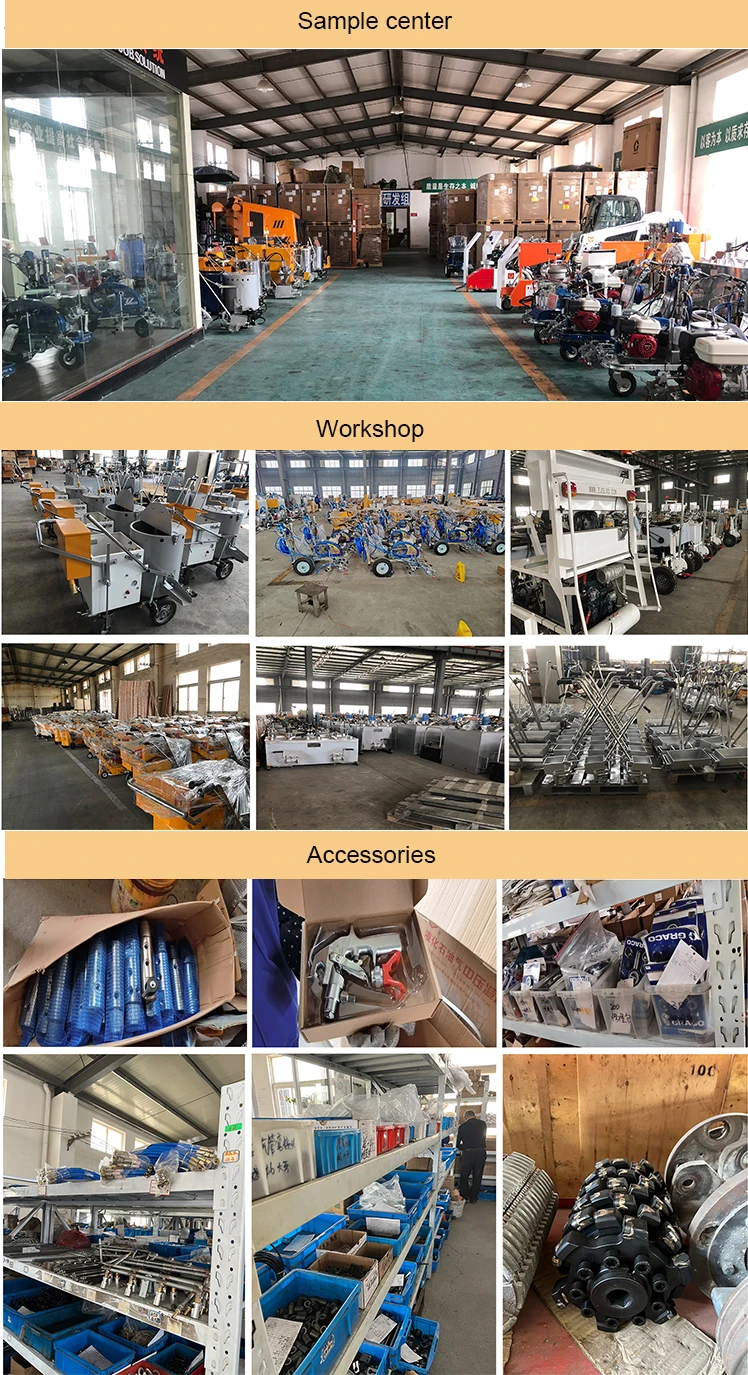

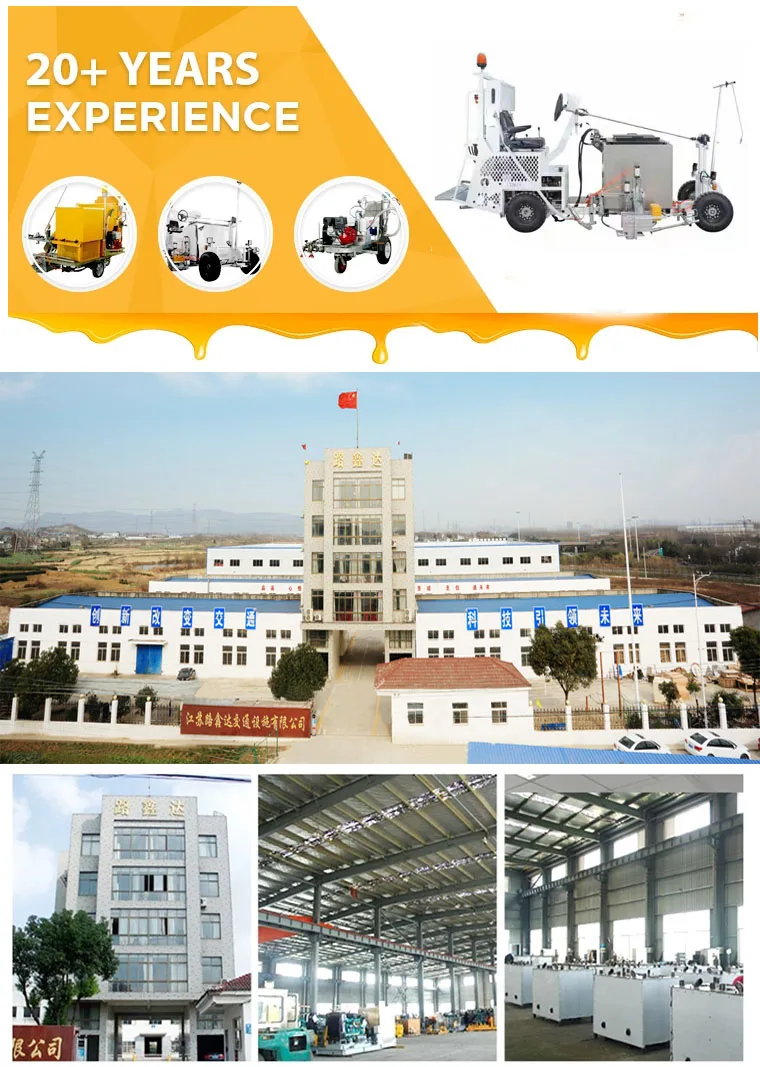

facotry workshop

certificationexhibition1



packing&shippingpacking&logistics

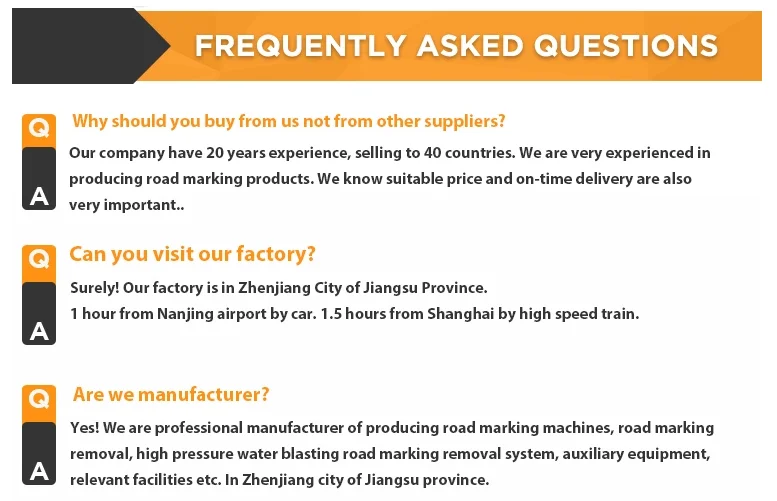

FAQ
