Product Overview
Description

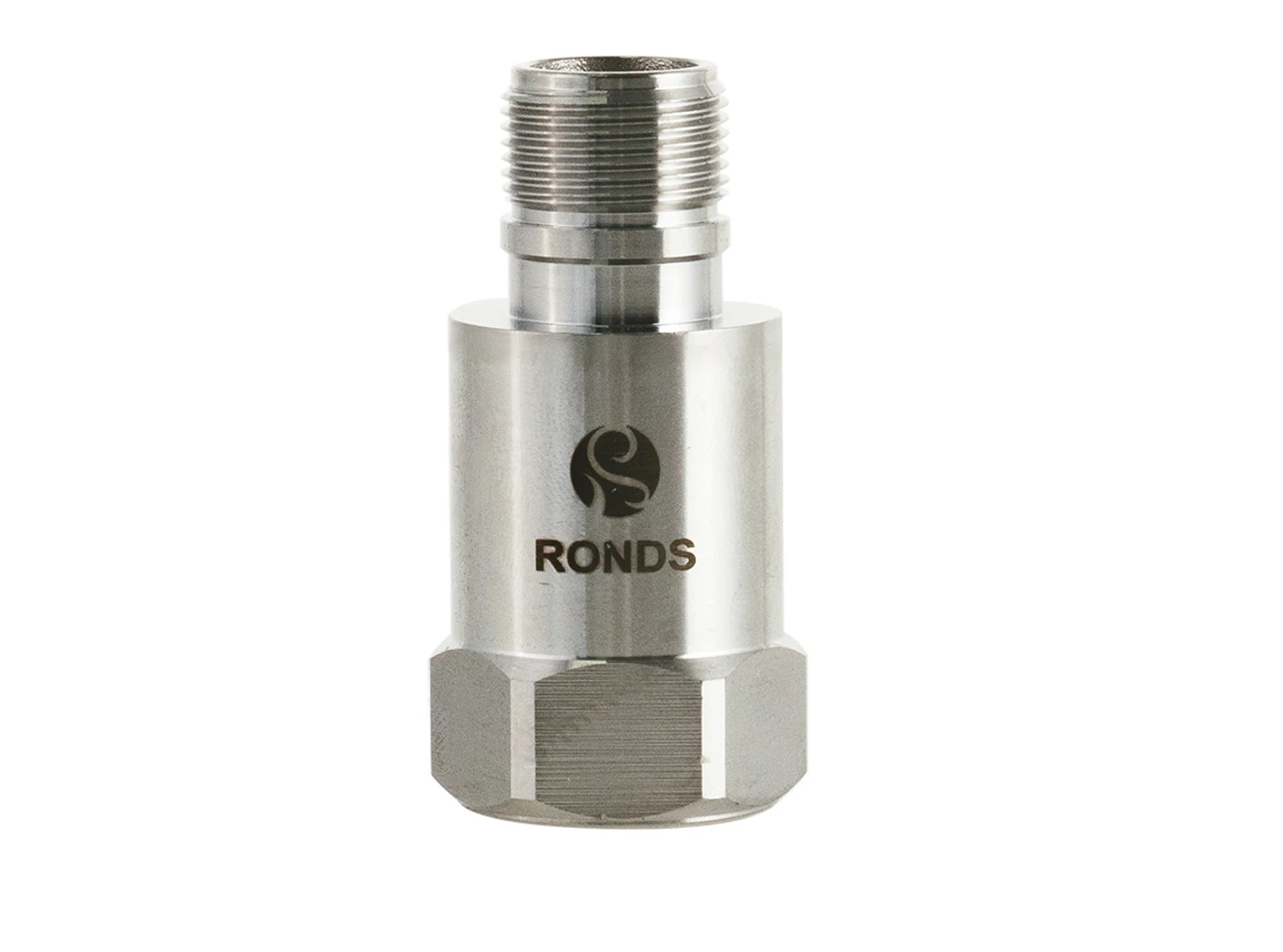

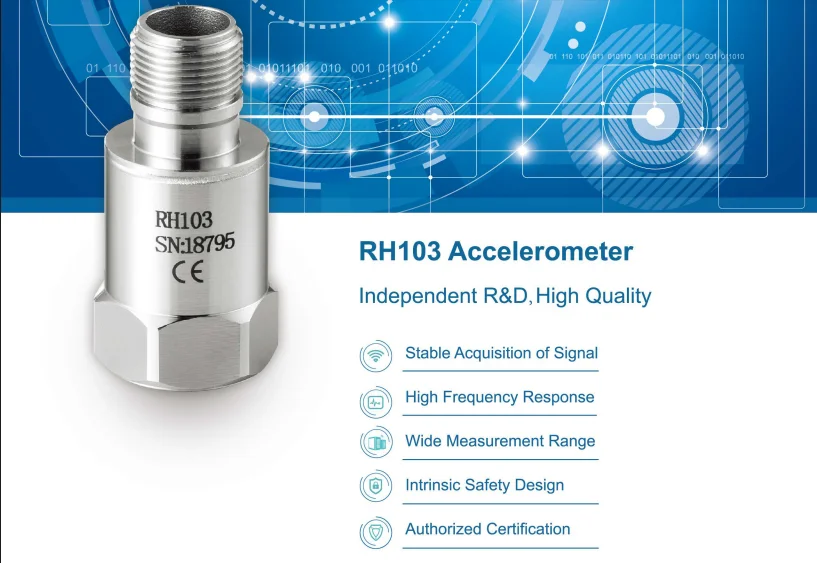

Vibration Transducer RH103:
Built-in IEPE circuit, isolation output, constant flow source power supply.
Laser seal welded.
Using military connector, can be used for the on-site industrial on-line monitoring with bad environment.
Technical parameter:
Parameter | Index | Remarks |
Sensitivity | 100mv/g |
|
Acceleration Range | 80g |
|
Amplitude Linearity | 1% |
|
Frequency Range | 0.5~12KHz |
|
Resonance Frequency | 23KHz |
|
Transverse Sensitivity | ≤5% |
|
Mount screw thread | 6mm |
|
Bias Voltage | 10-12VDC |
|
Constant Current | 2-20mA, Typical 4mA |
|
Voltage Excitation | 18-30VDC, Typical 24VDC |
|
Output Impedance | <150Ω |
|
Casting Dielectric Resistance | >108Ω |
|
Maximum Shock Level | 5000g |
|
Weight | 81g |
|
Dimensions | Diameter × Height, 23×50.9(mm) |
|
Sealing arrangements | Laser welding |
|
Transducer composition | Plane shear |
|
Casting Material | 316L Stainless Steel |
|
Output Mode | Top Output,2core Mil-C-5015 |
|
Temperature Range | -40~+120°C |
|
Mount Torque | About 2.7~6.8N.m (M6) |
|
Anti-explosion options | ||
Anti-explosion Identification | ExiaIICT4 | Used for 0 Area, 1 Area, 2 Area |
Temperature measuring options (not standard configuration, optional) | ||
Measuring Range | 0~120°C |
|
Sensitivity | 10mv/°C |
|
