PS20 300300mm Travel linear slide axis Electric Lifting Platform Motorized Lab Jack Elevator Optical Sliding Lift

Product Overview

Description

Structure Specifications

1   Item Number: PS20-300

2   Travel Range: 300mm

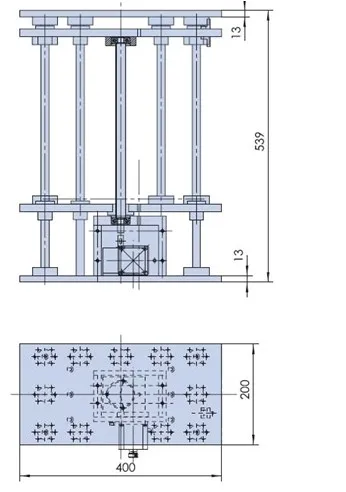

3   Dimension of Platform: 400mm x 200mm

4   Drive Mechanism: Gear Motor with High Precise Ball Screw

5   Travel Guide: Slide Rail

6   Stepper Motor (1.8°): 57BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle

7   Material – Finish: Aluminum Alloy - Black-Anodized

8   Load Capacity: 50kgs

9   Weight: 23kgs

Accuracy Specifications

1   Minimum Adjust Distance: 0.8μm

2   Max Velocity: 3mm/sec

3   Repeatability: 5μm

4   Absolute Accuracy: 15μm

5   Backlash: 4μm

6   Lost Motion: 3μ
