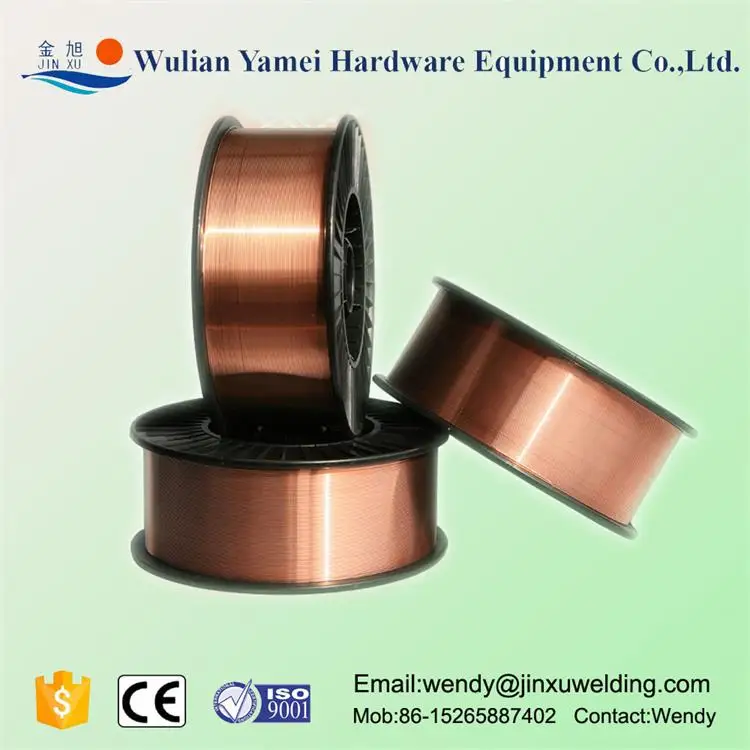

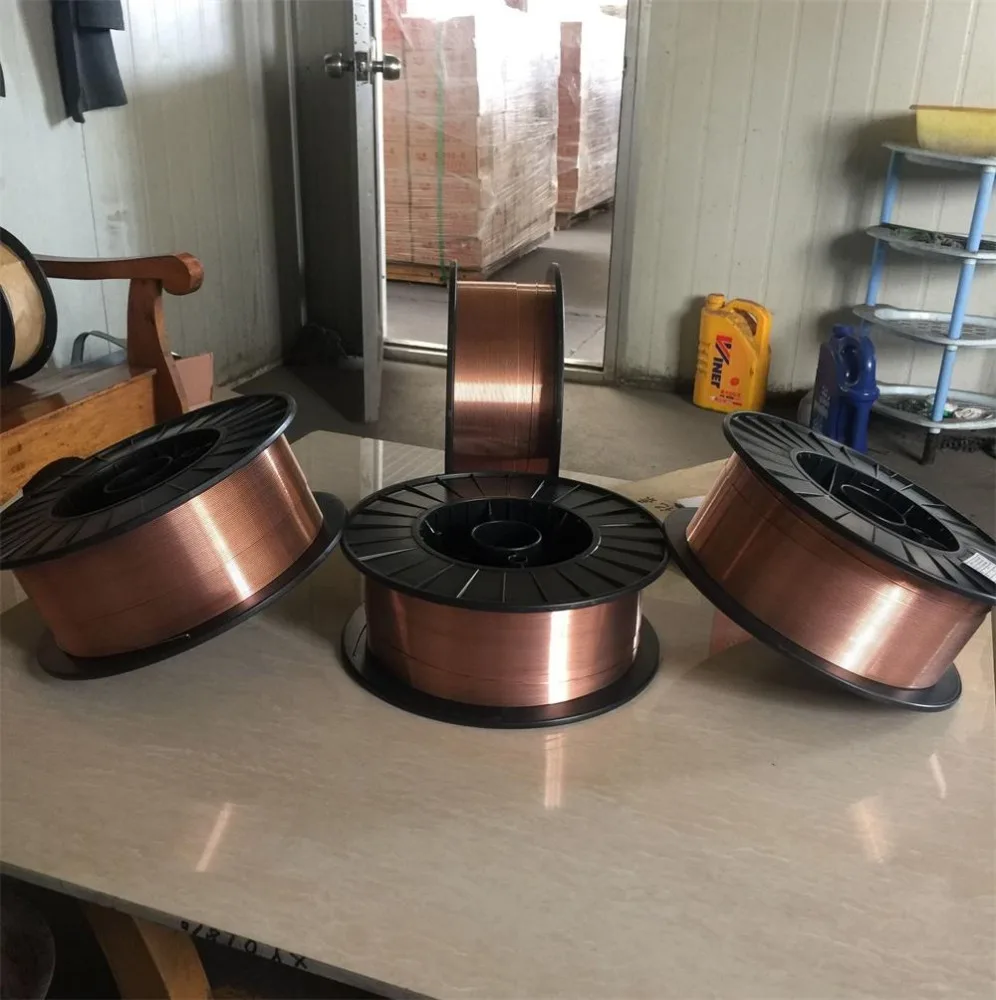

Our welding wire is a copper coated low alloy steel wire shielded by 100% CO2 with all position welding.It has a very good performance and higher efficiency in welding. And it has low blowhole sensitivity.
Name: mig welding wire er70s-6
Model No.: ER70S-6(AWS A5.18)
Brand Name: JINXU
Place of Origin: Shandong,China
Material: Mild steel wire
Diameter: 0.8mm,0.9mm,1.0mm,1.2mm,1.6m
Net Weight: 1kg/ 5kg/15kg/20kg per spool
Chemical composition of mig welding wire er70s-6:
C
Mn
Si
S
P
Cu
Standard value
0.06-0.15
1.40-1.85
0.80-1.15
≤0.035
≤0.025
≤0.50
Sample value
0.08
1.51
0.92
0.020
0.016
0.20
Chemical composition of deposited metal:(%)
C
Mn
Si
S
P
Cu
0.07
1.50
0.76
0.014
0.015
0.15
Mechanical properties of deposited metal:
Tensile strength δ(Mpa)
Yield Point δ0.2(Mpa)
Elongationδ5(%)
AKV Impact Value(J)
Shielding gas
Standard value
≥500
≥420
≥22
≥27(-30℃)
CO2
Typical value
558
472
27
98
CO2
Diameter&Recommended Current(AC/DC):
Dia(mm)
φ0.80
φ0.90
φ1.00
φ1.20
φ1.60
Welding Current(A)
40-140
50-170
70-250
80-350
170-550
Arc Voltage
16-21
16-25
17-27
18-30
23-43
1.It has super mechanical performance for our mig welding wire er70s-6, such as fast melting rate,high depositing efficiency, stable arc,perfect seam,small weld metal stomatal sensitivity
2.When working,it has little spatter, reduce smoke production
3.After work,the slag is easy to remove
4.It also has excellent rust protection and electrical conductivity
5.And low hydrogen content in the weld and lower nitrogen content, excellent crack resistance
Packaging & Shipping
Usually Packing Size:
Wire Dia. (mm)
Spool Dia. (mm)
Net Weight (kg/spool)
0.80mm / 0.90mm /
1.00mm / 1.20mm /
1.60mm
D100mm
1kg
D200mm
5-10kg
D270mm
(D300)
15-20kg
K300mm
250kg

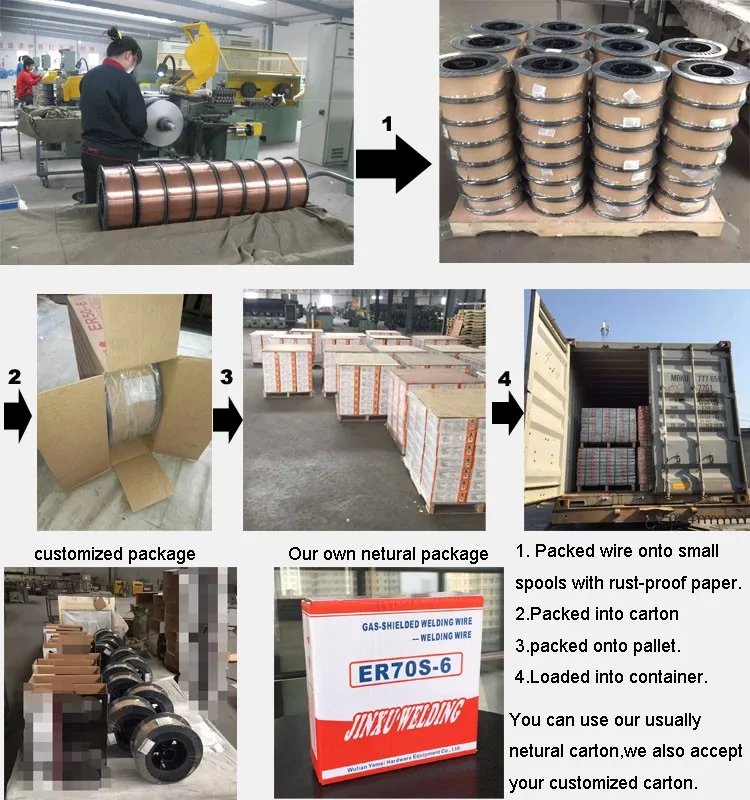

Packing Process:

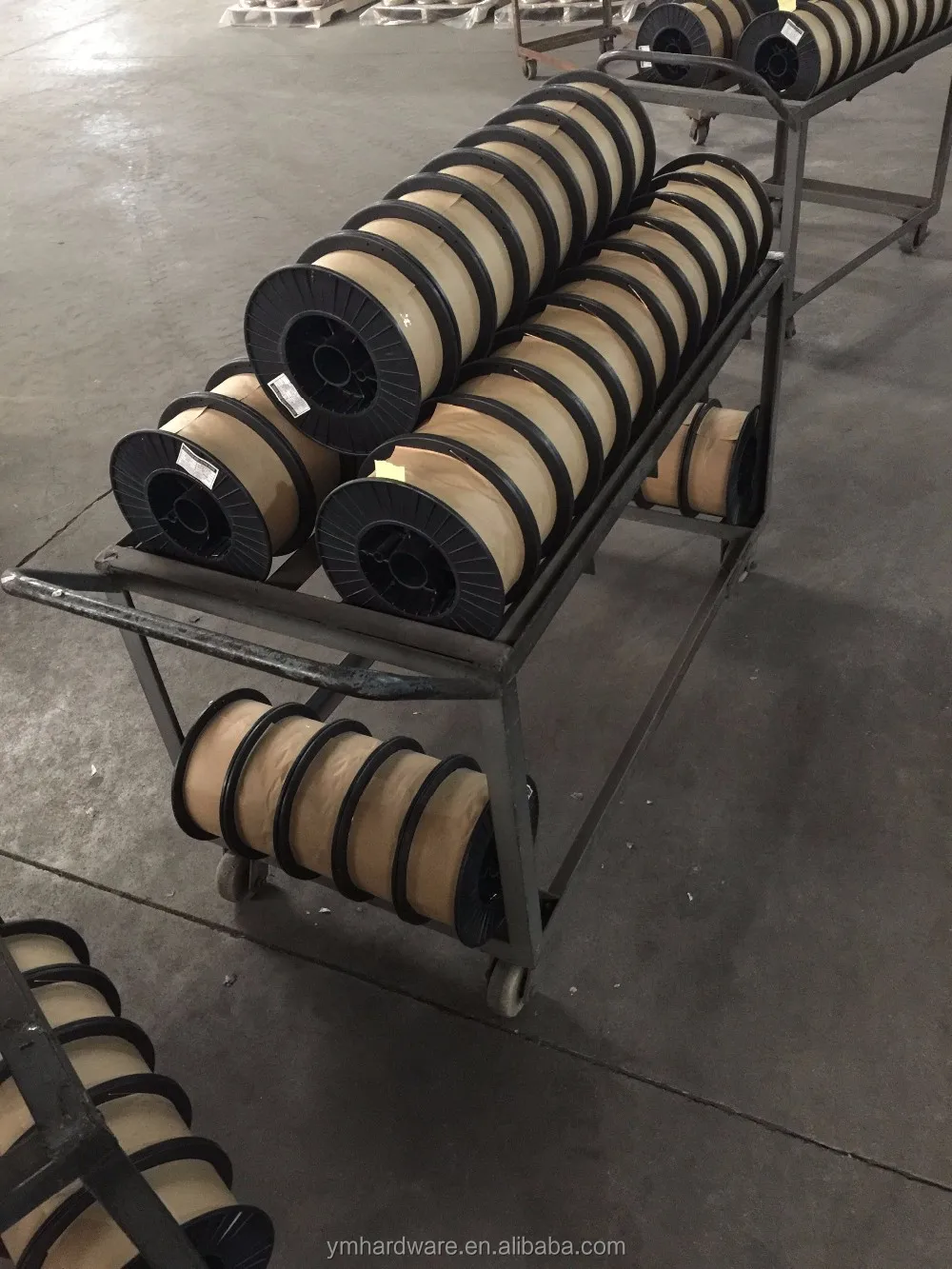

plastic spool + layer winding welding wire + rust-proof paper + thermal shrinking film + carton + pallet.

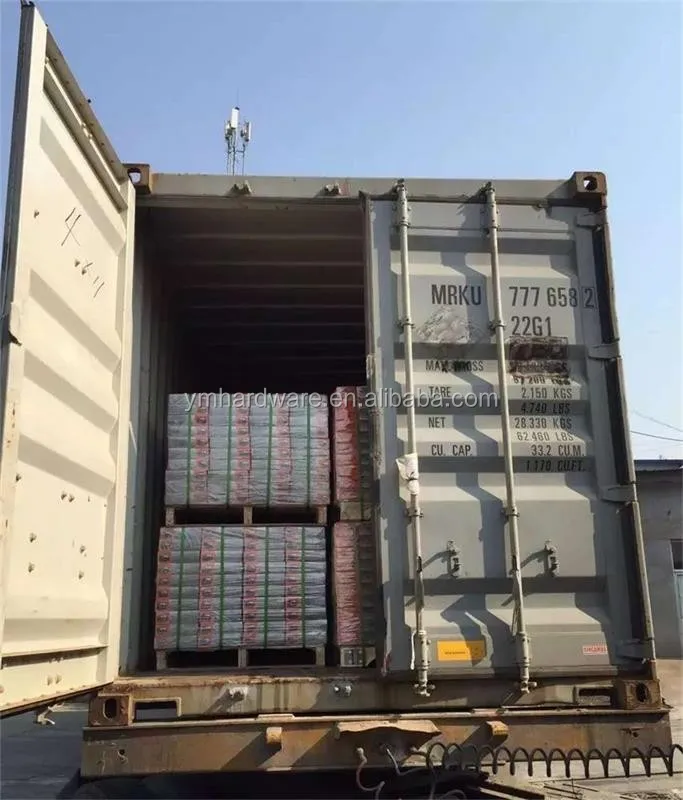

5kg/spool/carton, 288 cartons/ pallet, and 20 pallets filled in a 20 feet container
15kg/spool/carton,72 cartons/ pallet, and 20 pallets filled in a 20 feet container
20kg/spool/carton,66 cartons/ pallet, and 20 pallets filled in a 20 feet container
You can choose from above method for your mig welding wire er70s-6 packing,or we can do according to your personal request!
Payment: L/C,
T/T ( 30% T/T deposit first, 70% T/T balance to be paid against BL copy),
Shipping Port: Qingdao Port,China
Deliver time: 1-10 tons, within 7 days after receiving deposit;
10-20 tons, wihtin 10 days after receiving deposit;
>20 tons, within 15 days after receiving deposit.
Mig welding wire er70s-6 is widely used for butt and fillet welding structures made by shipping steels and low alloy steels. Such as ships, containers, vehicles, engineering & construction machinery, bridges and so on.
Our Services
1. Free samples can be supplied for your test in 3 days with free shipping.
2. Trial orders are available. MOQ is 2 tons.
3. Guarantee you 1 year warranty.
3. Also we attend trade shows each year. Warmly welcome everyone to visit us.

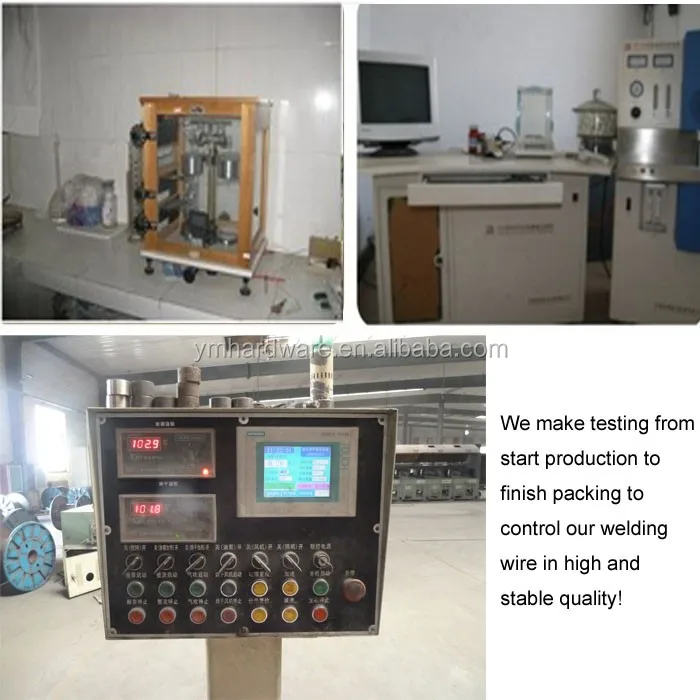

4. We will inspect from production to finish to control stable quality.
5.Good after-sale service. Any probelm,we will help to solve from pre-sale to after-sale
6.24 hours on line for your service.
1. With advanced production line, we can offer high quality competitive price products for you.
2. Professional sales team will give you a smooth and pleasure trade experience.
3. We are very near from Qingdao Port,reduce some of the transportion cost.
4. Can finish your mig welding wire er70s-6 order in short time and deliver quickly.
5. Netural,OEM, customized package are accepted
6. Very easy operating for our products,suit all position welding.
7. CE,ISO9001:2008 etc. Certificate can be supplied to you
Company Information

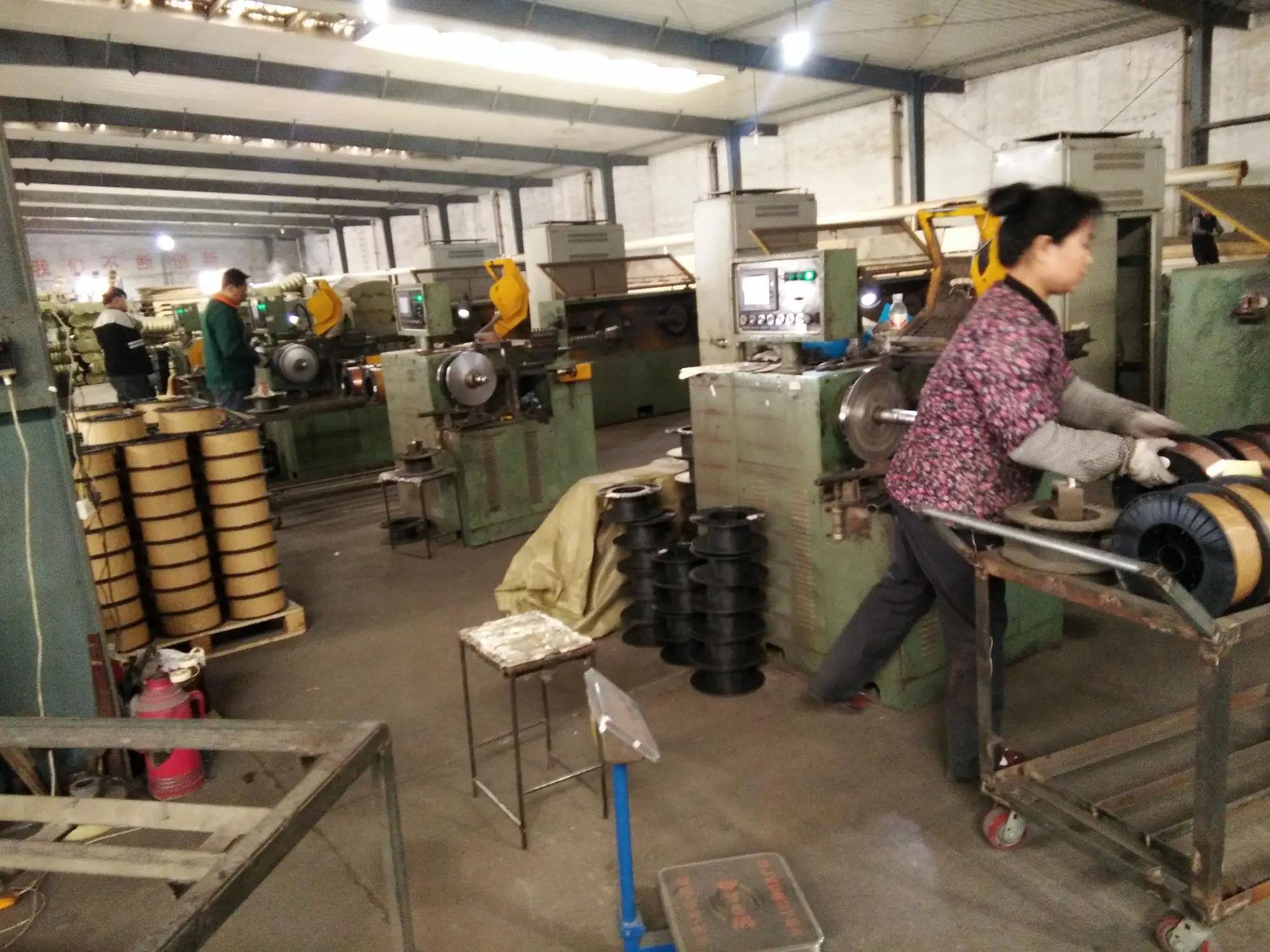

1. Wulian Yamei Hardware Equipment Co., Ltd was set up in 2000,convenient both waterway and land route.
2. With more than 8 years produce experiences of welding wire,we can supply you good quality in low price.
3. Owning about 500 employees,we can finish your mig welding wire er70s-6 order in short time.
4. Our scope of business widely includes R&D, production,and sale of textile,welding wire,sale of steel and trading of other relative products.
5. With advanced equipment and processing,make our products easy to operate, low splashing, wire feeding well, high welding efficiency, also make your soldering machine have longer life.
we have CE&ISO9001:2008 certificates now. also we can do other certificates if you need.
Warmly welcome you to join us and visit our factory,and expect to cooperate with you to make you a better business. Your business is our business!
At last thanks for visiting our products!And please feel free to contact us if you have any require,we will always be at your service and give you good advice.
