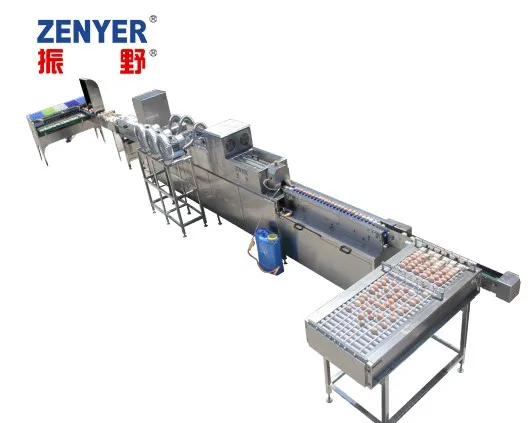

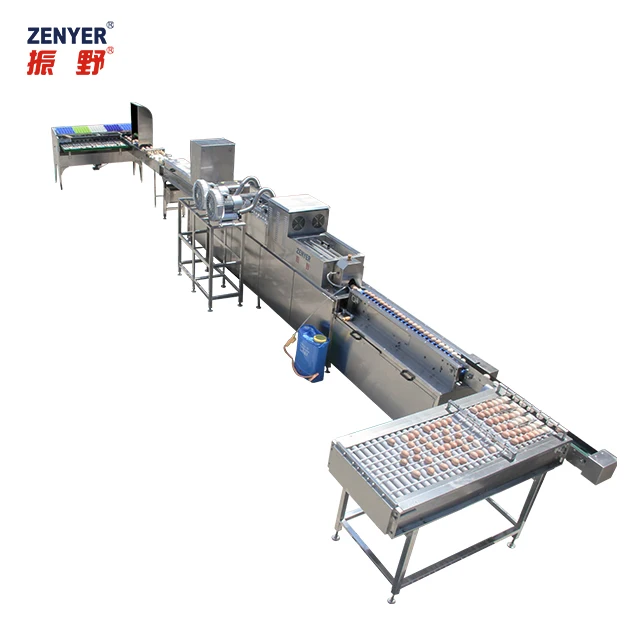

First,suck eggs up onto accumulator with a vacuum egg lifter(30 eggs a time)
Second,egg washing machine wash eggs with warm water and specialized egg cleaning brushes.
Third,egg drying equipment dry the eggs with strong heated wind produced by drying fans installed within egg cleaning machine
Fourth,egg printing equipment will print company name,brand name,quality guarantee period,date of production or something like this onto eggshells so that egg products buyers can turn back to egg products producers if they are interested in the egg products.
Fifth,UV sterilizing equipment will sterilize eggs to kill bacteria .
Sixth,egg grading machine will grade eggs by weight.Eggs of different weight will fall down onto different lanes of egg collecting board of egg grading machine.
Seventh,workers should collect egg from different lanes of egg collecting board into egg trays for sale.
Detailed Images

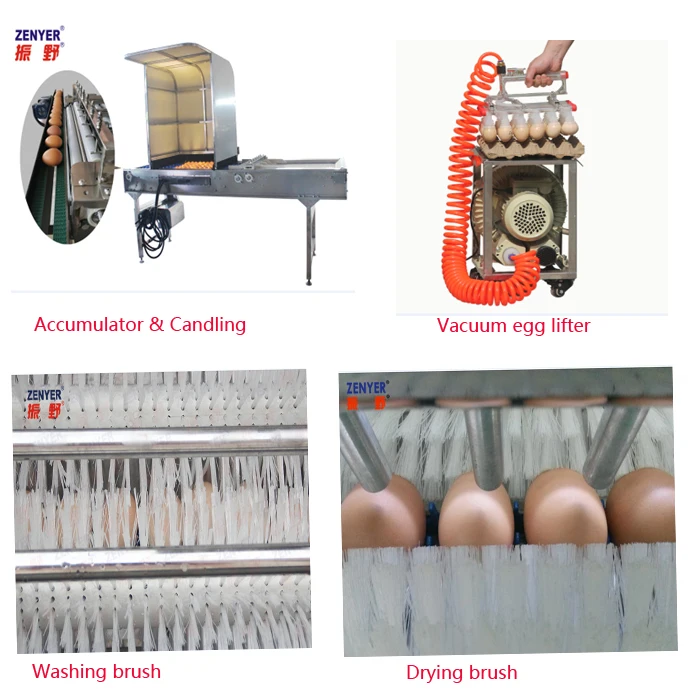

Vacuum egg lifter (option)
First, Eggs are sucked onto the roller of egg cleaner by a vacuum egg lifter (5*6=30 eggs each suck). The vacuum egg lifter is run by a motor but lift up and down by hand, that helps workers to load eggs onto the egg machine more easily.

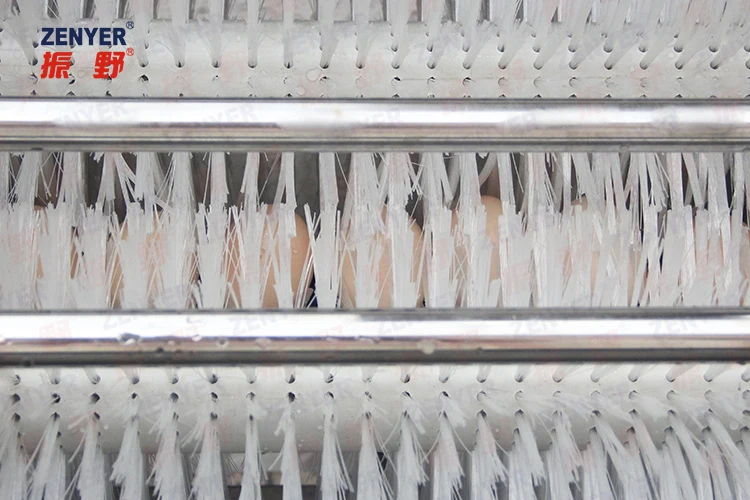

Washing and Drying
Eggs are put by vacuum egg lifter on the roller of cleaner, the shape of rollers have been specially designed, that make sure eggs align automatically, so as to guarantee all eggs enter the egg cleaning machine in good order.

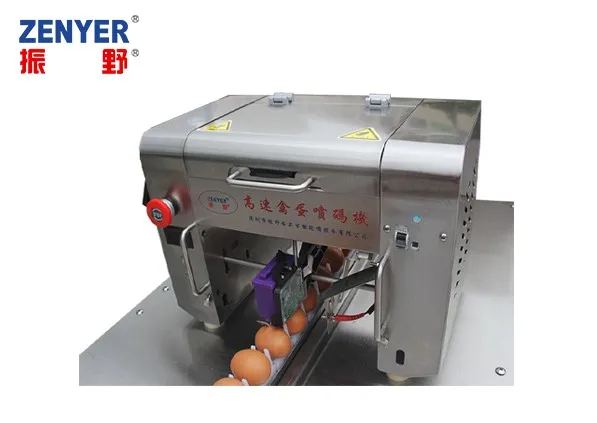

Printing (Option)
After being dried, eggs will be printed by the cartridge printer, the position where code is printed is in the middle of eggs (between the bigger head and the smaller head).

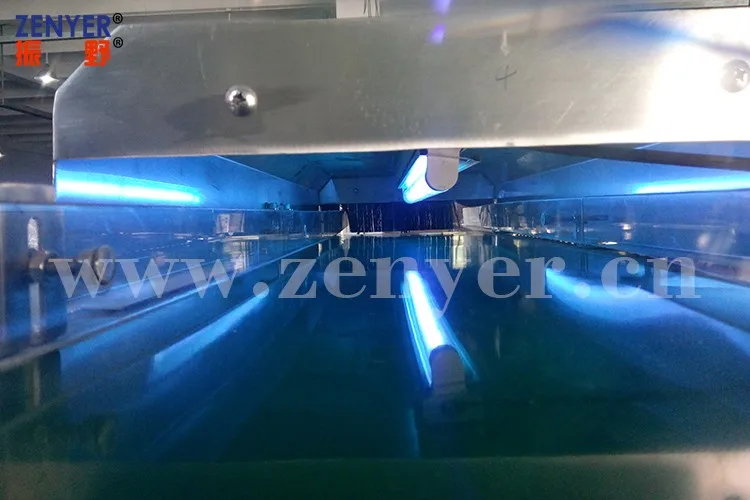

UV sterilizing
The UV system uses Ultra Violet technology to reduce contamination and bacteria on the shell surface of eggs after washing. The cover ensures that UV ray light stays within the system. The handle beside the cover makes cleaning very easy

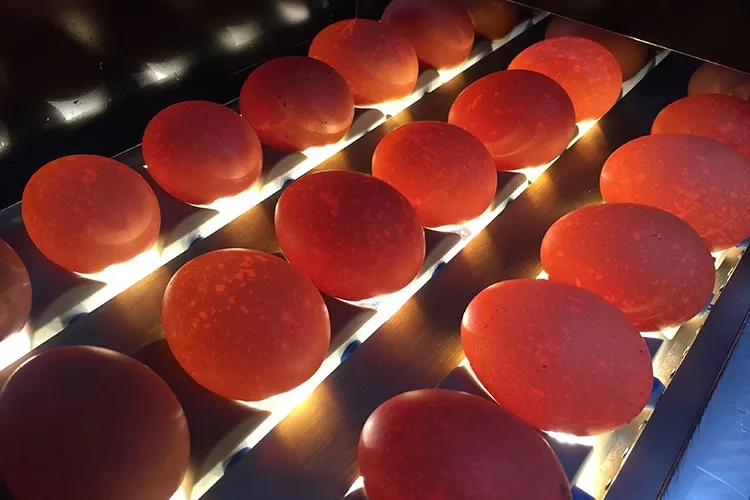

Candling
Candler with LED light source has been installed on the roller of grader to help operators to check whether there is any damage on the eggs. For example eggs with cracks, eggs with black core, eggs having gone bad can be selected out by hand

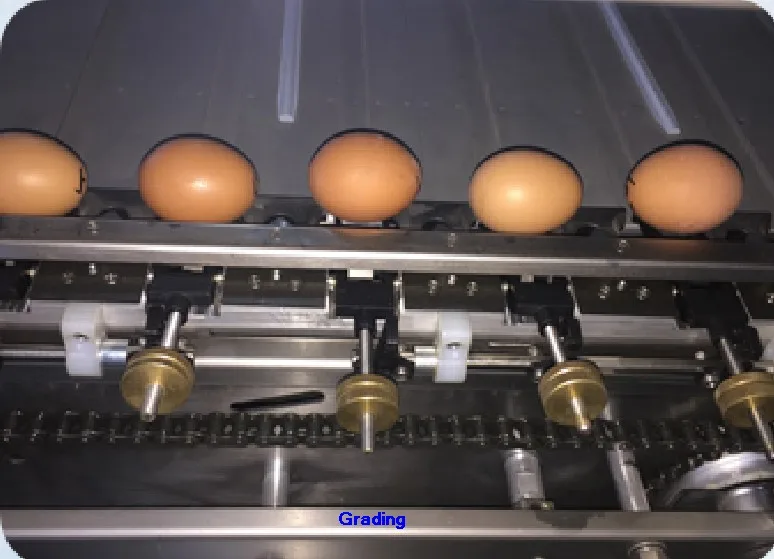

Grading
After candling, eggs will enter the weighing part of grader. Egg grading machine can at most separate eggs into 5 grades. Eggs of different weight fall down onto to different lanes of the egg collecting board of grader.
Package
At last, respectively workers pack eggs located on egg collecting belt and egg collecting table into the trays by hand, some eggs will be packed into egg tray automatically by egg packing machine.
