Solar water Pumping System is consist of PV panel,pumping inverter/controller,AC/DC pump .
HSPL/HXXXXL/HA/B series produts are conver the DC power of the PV array to 3ph-AC power
and drives the pump,according to the power of PV array output,regulates output frequency and let PV output max power at all time.

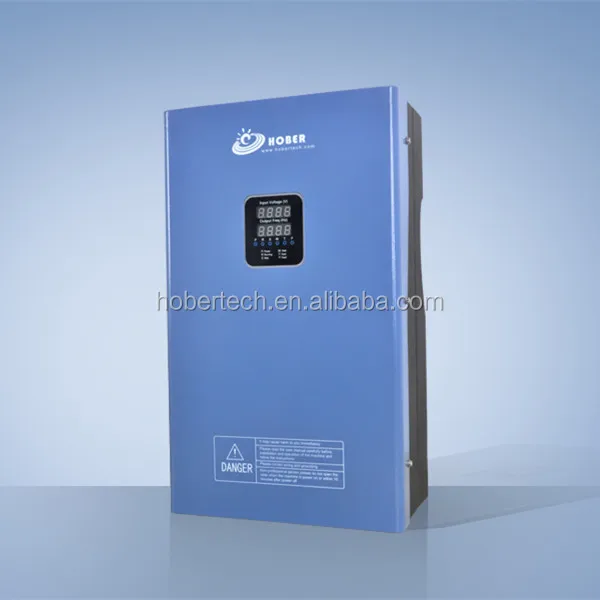

Product Introduction
Product Advantage:
Hybrid(Solar,AC Power,Battery,Diesel generator)
Automatic switching
MPPT MEPT function
Solar Booster for saving solar panels
Metal Shell,Waterproof IP65
Setting working time,Control the flow
Film capacitor 100000 working hours
Work with any 3 phase pump
Features:
1:AC Drive function
When sunshine is not enough,AC city power is switched to work manually
2:No-Need Battery:
Water storage replaces battery power storage
3:Second Generation of MPPT Function
4:LED Display ,simple operation
5:One Key for Statup/Stop
6:Support adjusting the output water flow
7:Well and Tank's water level detecting,operate of pressure sensor
8:Long Life expectancy and proven in service record
Solar Pump Inverter Parameters
Model
HSPL2200H
DC Input
Rated Power(W)
2200W
Min DC Input Voltage(V)
480V
Max DC Input Voltage(V)
750V
Rated Power of DC Input
Voltage Request(V)
480-750V
AC Output
Rated Power AC
Voltage(V) 3 phase
380V/400V/440V 3-phase
Rated Power AC
Current(A)
7.2A
Inverter efficiency
97%
Output frequency(Hz)
0~50/60
Others
Water Level Sensor (Water of Well)
Yes
Water Level Sensor(Water of tank)
Yes
AC Switcher
Optional
GPRS Monitor &Controller
Optional
Protection type
IP65 DC input Low/Over Voltage
DC Input Anti-Reverse
Output overload,Output short circuit
Over temperature
Sensor of Water Empty/Full
Lighting
Operation Limit
Noise(1 m)
<50dB
Operation environment temperature
-10 to 60Degree
Humidity
15%-+95%RH
Using altitude(m)
<4000Altitude higher than 1000m pls consider to use less loads
Others
Prohibiting the installation location:direct sunlight,thicking dust,corrosive gas or oil mist,flammable.etc
Adapted Pump
Support Pump's HP
≤3HP
Rated Power(W)
≤2200W
Rated Frequency(Hz)
0~50/60
Rated Voltage
AC-380V/400V/440V-3 phase

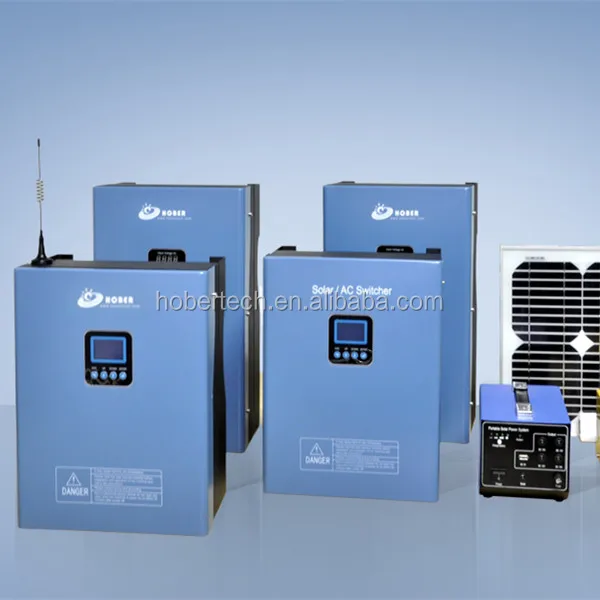

Project and Product Application
Company Information
Hober technology co.,ltd is a professional large-scale manufacturer of solar pump inverter, integrating development and production together. As a leader in china ,we have patent by ourselves and CE certification ,and still focus on research, development and innovation, Our company was established in 2009, Located near hongkong which convenient sea, land and air transportation. already exporting to Asia, Australia,Africa and 20 other countries and regions. “reasonable prices, efficient production time and good after-sale service” are our tenets. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
Certifications
Our Services
1,-Global leading professional inverter manufacturer
2,-Perfect product quality:100% full bum-in test
3,-Test report:CE,RoHS,UL,ISO9001-2008
4,-Monthly production capaciy:1,000 pcs
