Датчик переключения воды

Product Overview

Description

Production

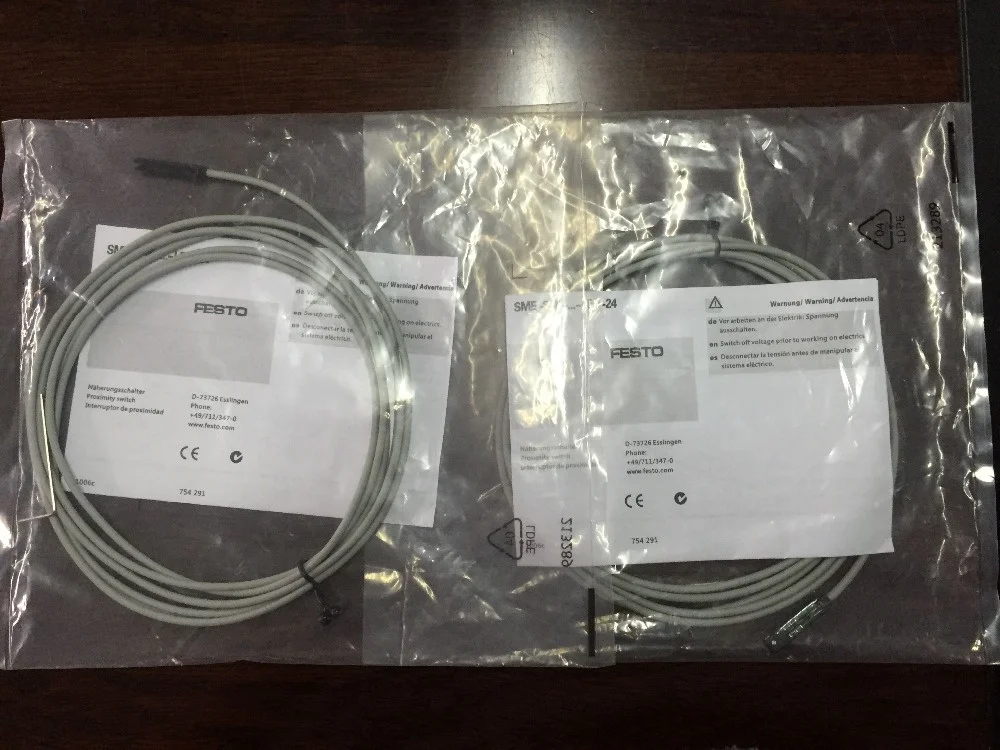

Shift sensor for waterjet cutting machine/ Spare parts

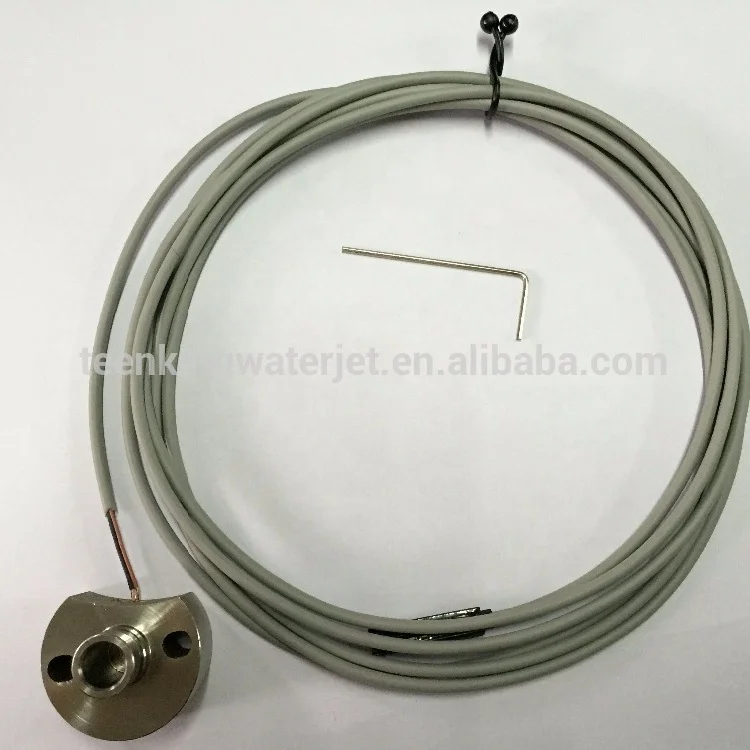

The consumable spare parts of waterjet cutting machine high pressure system.  The sensor includes cable and seat.

Package size: 150x150x30mm



Detailed Image





Packaging & Service

Well raped with sponge and outside with paper carton.

Usually delivery with FedEx Express.

FAQ:

Q:How long is delivery time?

A: It depends on areas. Details comes:

    3 days: South & East Asia, North America

   5 days: Middle East, Europe, Australia

   About 1 week: Africa, South America and Russia, etc



5-axis 3D waterjet cutting machine adopts AC-axis structure, which effectively realizes CNC five-axis linkage cutting.

Equipped with Yaskawa/Weihong servo motors, effectively improves the accuracy of cutting and control.

It adopts an integrated dust-proof sealing structure, and the waterproof level reaches IP68, which improves the service life of the equipment.

It adopts imported reduction gear, with less components, simple design and beautiful structure, simple operation, easy to understand, easy to learn, very convenient for maintenance, and lower maintenance cost.

Equipped with original imported linear guide and ball screw  components, making the whole cutting head more stable and reliable.

The 3D cutting, that is, the 5-axis linkage cutting, the head can cut the workpiece surface at different angles, and can cut the cutting cross section of the vertical, the inclined, and the gradual angle. In most basic form, the 5-axis head can be easily programmed from a 2-D cad file to create a variety of bevels on the plate edge.

Such features are commonly required to provide weld preparations. Full 5-axis articulation allows these bevels to follow contours on the profile without the need for solid models or any dedicated 5-axis programming techniques.





Technical specifications for High pressure pump:
Max generated pressure	420MPa (60,000psi)
Operating pressure	360MPa (50,000psi)
Pressure fluctuation	5MPa.(50bar) @ 3800bar with dia0.33mm orifice
Nominal power	37KW/80A
Power consumption	21kW/50 A @380V/50Hz 3800bar with dia0.33mm orifice
Max Flow:	3.6L/min
Pressure mode	High/Low level auto shift































COMPANY profile:

TEENKING CNC MACHINERY CO.,LIMITED is a Chinese company founded in 2003 with headquarters in Foshan city and a filial in Hong Kong city.

As a worldwide producer, TEENKING had CE certificated since 2006, and ISO9001 certificated in 2010, we also passed the reexamine every two years and keep our manufacturing quality in best level.

we already owned more than 15 national utility model technology patents, and 3 national invention patents.

We are the company who concentrate on developing ultra high-pressure pump & water jet cutting equipment.

We are holding the advanced high technology for 5 axis dynamical and 3D Waterjet cutting machine, as well as 6 axis robotic abrasive/pure Waterjet cutting system.

We are in leading position of designing and manufacturing top quality waterjet cutting equipment in China.

TEENKING has created its reputation successively by supplying more than 600 set of top quality waterjet cutting equipments to worldwide users who are locating in more than 60 countries.

TEENKING insist in producing excellent quality machine with innovation, and pragmatism, "let TEENKING become a world-trust brand" is always our ambition.





For further discussions please contact  cyris(@)teenking.com.cn
