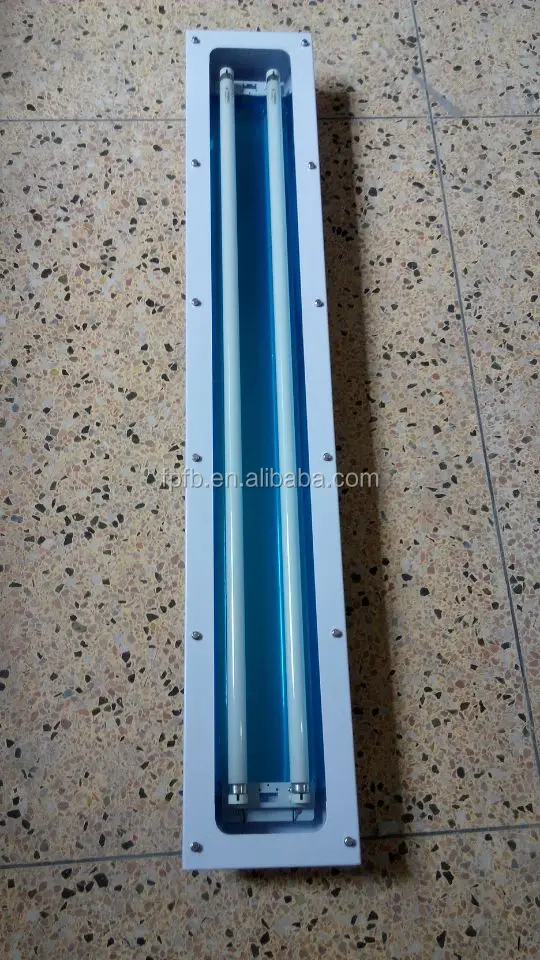

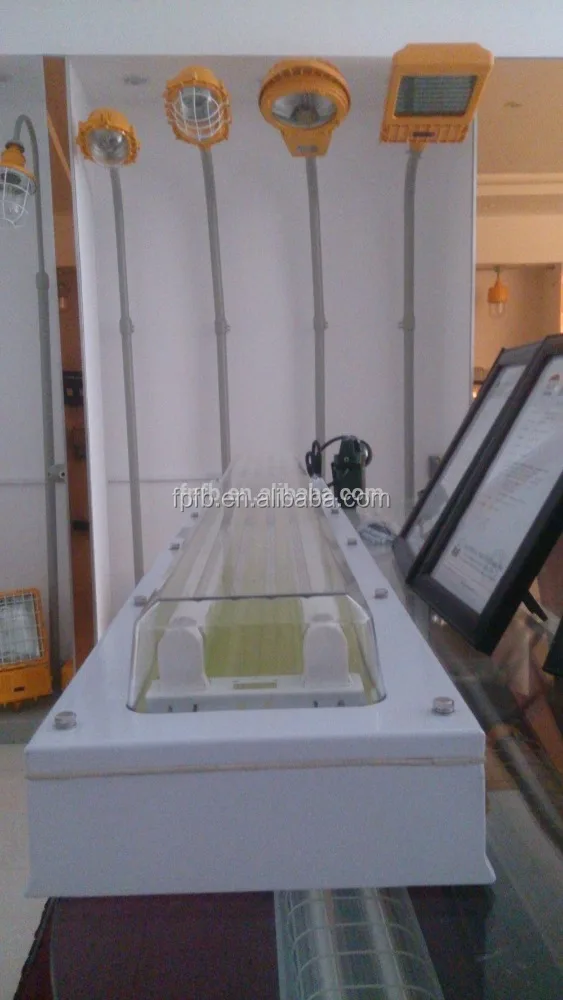

BHY 36W T8 LED tubes anti Explosion fluorescent lighting fixture flame proof lamp
- Category: >>>
- Supplier: Feipu Explosion Proof Electric Co. Ltd.
Share on (60459395138):
Product Overview
Description
BHY BHY T8 T10 20W 40W 18W 36W explosion proof front access fluorescent fitting
Product Description
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T6.
3. Lamp options: high light, fluorescent lamp.
4. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
5.Can be fitted with T10 single-pin and T8 T5bi-pin bube as lighting source.
6.Can be fitted with emrgency device on per request.
7.Emergency lighting duration is obove 90min.
Voltage | Charging time | Emergency start time | Emergency ligting time | Ex-mark | Degree of protection | Erosionproofclass | cableouterline |
AC220v | ≤24h | 0.3s | >90min | Exed II CT5 Gb, DIP A21 TA, T5 | IP65 | WF1 WF2 | Φ 9- Φ 14 |

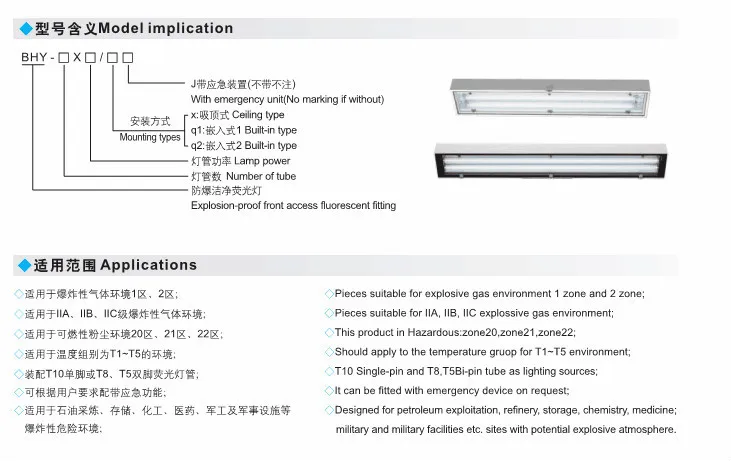

APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
- Can be used in the environment of temperature group for T1~T5.
- T10 Single-pin and T8, T5Bi-pin tube as lighting sources.
- It can be fitted with emergency device on request.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
Techinical parameters:
- Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1, IEC60079-0,IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1,EN60079-7, EN61241-1,
- Ex-proof Mark:Exed II CT5 Gb, DIP A21 TA, T5.
- Rated voltage: AC220V
- Ligting Source: T10 Single-pin tubes(1×20W,2×20W,1×40W,2×40W)
T8 Bi-pin tubes(1×18W,2×18W,1×36W,2×36W)
T5 Bi-pin tubes(1×14W,2×14W,1×28W,2×28W)
T5 and T8 LED tube(1×9W, 2×9W,1×18W,2×18W)
Detail Plz refer the blew table. - Protection grade:IP54,IP65
- Corrosion-proof grade:WF2,WF1
- Inlet Thread: G3/4"
- Cable outer dia:9mm~14mm
- Battery charging time:≤24h
- Emergency Start time:≤0.3s
- Emergency lighting duration:≥90min

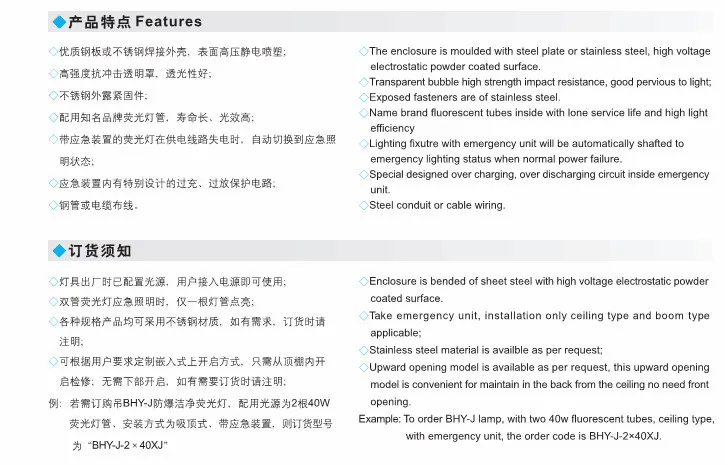

Product Features:
- Steel plate or stainless steel Enclosure, high voltage electrostatic powder coated surface.
- Transparent bubble high strength impact resistance, good pervious to light
- Exposed fasteners are of stainless steel.
- Take name brand fluorescent tube with long service life and high light efficiency.
- For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
- Inside the emergency unit designed with over charging and over discharging protection circuit.
- Steel conduit or cable wirings.
Order Information :
- Lamps has factory configuration light source, can be used directly access power;

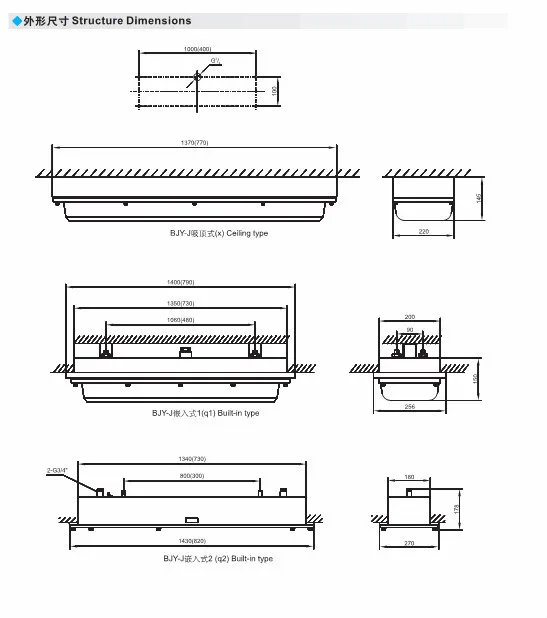

- Take emergency unit, installation only ceiling type and boom type applicable;
- When double tube fluorescent lamp start emergency unit, Only one tube work.
- Stainless steel material is available as per request,
- Upward opening model is available as per request, this upward opening model is convenient for maintain in the back from the ceiling no need front opening.

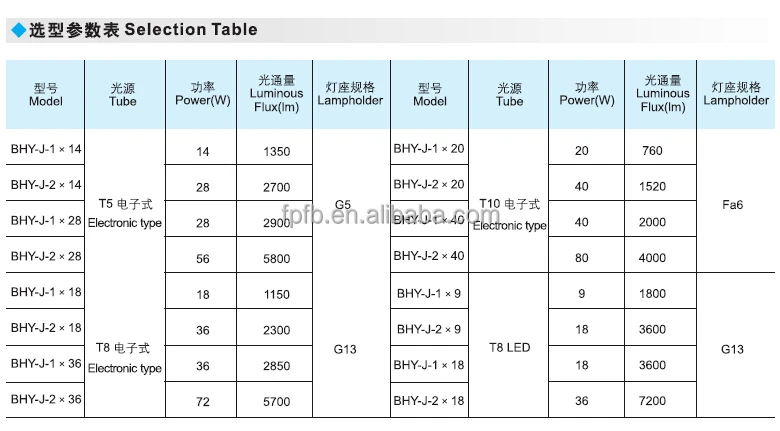

Selection Table:
Product Details
CARBON STEEL MATERIAL:

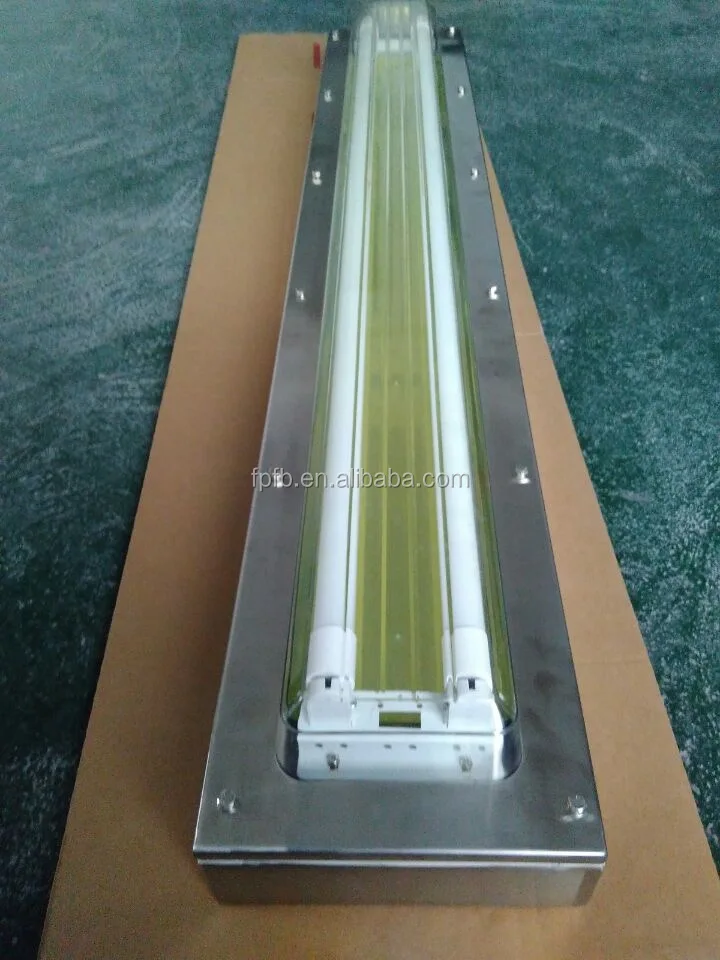

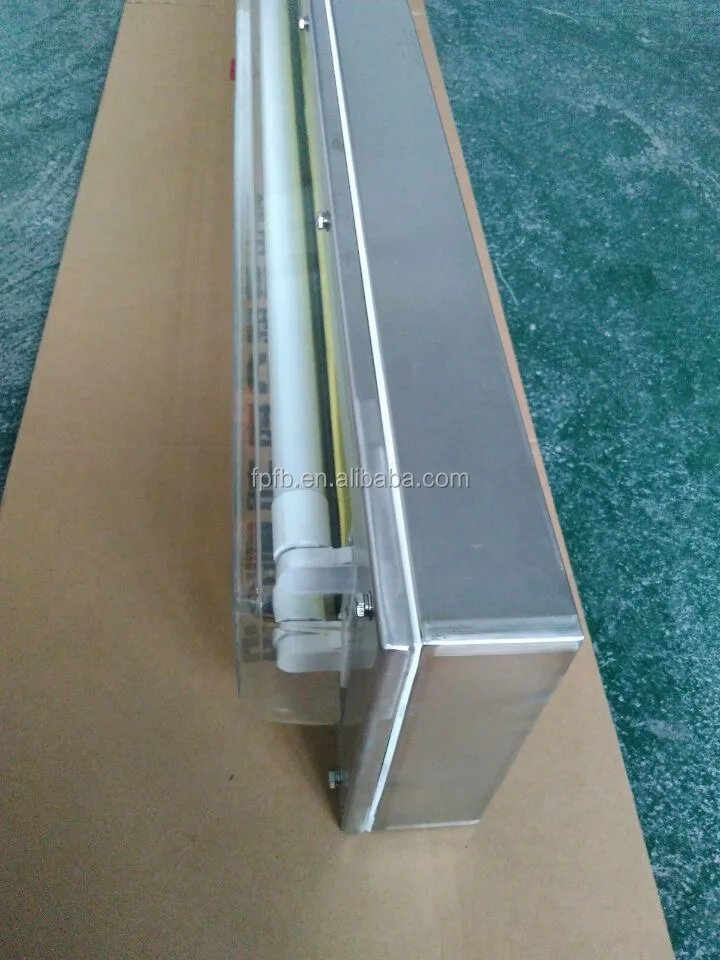

STAINLESS STEEL MATERIAL:
Company Information
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Our Services
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
FAQ
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
Packaging & Shipping
1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
